Ferrari 488 Pista USA - A/C SYSTEM - AIR CONDITIONER SYSTEM

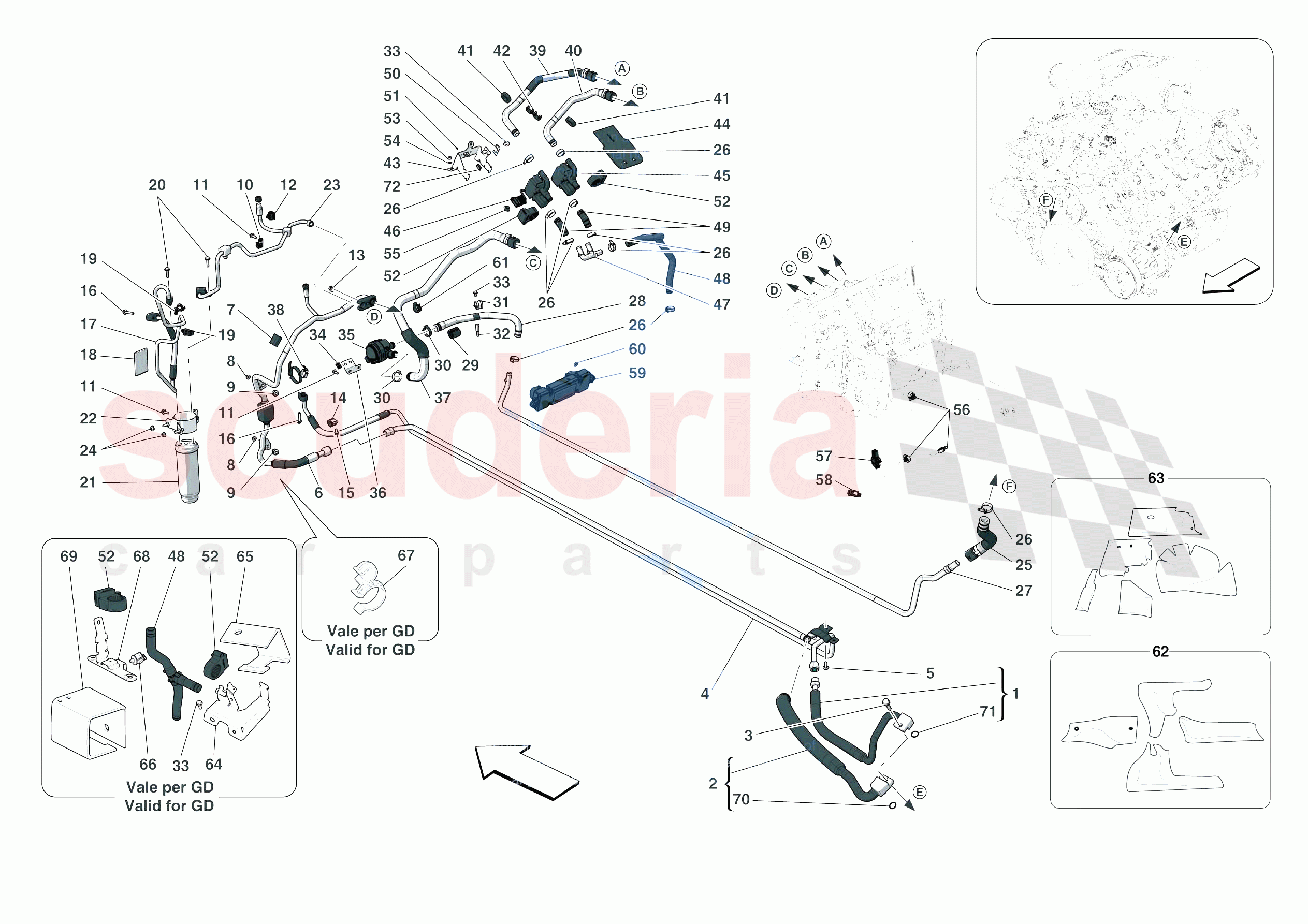

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86240500 PIPE FROM COMPRESSOR TO UNDERBODY $180.46 To Order
Photo Part No Description Price (each) Stock
86854500 FREON RETURN PIPE TO COMPRESSOR $206.26 To Order
Photo Part No Description Price (each) Stock
14306724 SCREW $0.82 To Order
Photo Part No Description Price (each) Stock
88898300 UNDERBODY FREON DELIVERY-RETURN PIPE $386.74 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
88898700 PIPE FROM HVAC TO UNDERBODY $451.21 To Order
819306 PIPE FROM HVAC TO UNDERBODY $593.01 To Order
Photo Part No Description Price (each) Stock
308399 SPACER $5.85 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
262380 CLIP $1.54 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
263230 CLIP $1.30 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
13837017 SCREW $3.27 IN STOCK
Photo Part No Description Price (each) Stock
88898500 PIPE FROM DISCONNECTOR TO RECEIVER DRIER $167.58 To Order
785303 PIPE FROM DISCONNECTOR TO RECEIVER DRIER $193.36 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.11 IN STOCK
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.22 IN STOCK
Photo Part No Description Price (each) Stock
11612826 SCREW $3.01 To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER $51.14 To Order
Photo Part No Description Price (each) Stock
82155900 DEHYDRATOR FILTER BRACKET $42.53 To Order
82886600 DEHYDRATOR FILTER BRACKET $52.84 To Order
Photo Part No Description Price (each) Stock
86403000 PIPE FROM FILTER TO HVAC $425.41 To Order
86927400 PIPE FROM FILTER TO HVAC $489.88 To Order
Photo Part No Description Price (each) Stock
14040611 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
86228900 HOSE $146.60 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
86253700 UNDERBODY WATER PIPE $193.36 IN STOCK
Photo Part No Description Price (each) Stock
86280800 HOSE $59.29 To Order
Photo Part No Description Price (each) Stock
316986 SPACER $7.31 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
320600 CLIP $2.14 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $10.18 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.41 IN STOCK
Photo Part No Description Price (each) Stock
291645 CLIP $3.61 To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,277.99 To Order
Photo Part No Description Price (each) Stock
86051000 RECIRCULATION PUMP MOUNTING BRACKET $6.82 To Order
Photo Part No Description Price (each) Stock
86280900 HOSE $149.66 To Order
86928400 HOSE $296.49 To Order
Photo Part No Description Price (each) Stock
231214 CLIP $1.30 IN STOCK
Photo Part No Description Price (each) Stock
82761900 RH TGK VALVE CONNECTOR PIPE $105.69 To Order
82887200 RH TGK VALVE CONNECTOR PIPE $322.28 To Order
Photo Part No Description Price (each) Stock
82302700 LH TGK VALVE CONNECTOR PIPE $64.44 To Order
82887300 LH TGK VALVE CONNECTOR PIPE $180.46 To Order
Photo Part No Description Price (each) Stock
83444200 DRIP BAFFLE RING $4.00 IN STOCK
Photo Part No Description Price (each) Stock
82329900 CLIP $0.86 IN STOCK
Photo Part No Description Price (each) Stock
82328500 TGK VALVE BLOCK MOUNTING BRACKET $27.06 To Order
Photo Part No Description Price (each) Stock
83560800 GUARD $9.15 To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $229.07 IN STOCK
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $213.80 IN STOCK
Photo Part No Description Price (each) Stock
290953 RIGID TGK VALVE OUTLET PIPE $5.08 To Order
Photo Part No Description Price (each) Stock
291115 HOSE $42.53 To Order
82887400 HOSE $121.16 To Order
Photo Part No Description Price (each) Stock
291116 HOSE $36.08 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.20 To Order
Photo Part No Description Price (each) Stock
82331800 RUBBER SPACER BUTTON $3.33 To Order
Photo Part No Description Price (each) Stock
174623 BUSH $12.05 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
13000390 Screw Collar $0.69 IN STOCK
Photo Part No Description Price (each) Stock
266156 CLIP $0.57 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
87521000 A/C CONTROLS BLACK BOX $1,312.38 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
270085 CLIP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
82923400 AC MOBILE DUCT INSULATION KIT $103.11 To Order
83030200 AC MOBILE DUCT INSULATION KIT $154.69 To Order
Photo Part No Description Price (each) Stock
82923500 HVAC UNIT INSULATION KIT $108.28 To Order
Photo Part No Description Price (each) Stock
84058400 LH TGK VALVE MOUNTING BRACKET $117.31 To Order
Photo Part No Description Price (each) Stock
83689600 WATER PIPE RUBBER GUARD $15.46 To Order
Photo Part No Description Price (each) Stock
241708 CLIP $2.31 To Order
Photo Part No Description Price (each) Stock
139966 CLIP $0.57 To Order
Photo Part No Description Price (each) Stock
83413300 RH TGK VALVE MOUNTING BRACKET $34.79 To Order
Photo Part No Description Price (each) Stock
83689500 WATER PIPE RUBBER GUARD $18.03 To Order
Photo Part No Description Price (each) Stock
11342584 GASKET $13.04 To Order
Photo Part No Description Price (each) Stock
11342784 GASKET $13.04 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.11 IN STOCK
View All
A/C SYSTEM - AIR CONDITIONER SYSTEM of Ferrari Ferrari 488 Pista USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 86240500
PIPE FROM COMPRESSOR TO UNDERBODY 		$180.46 1
0002 86854500
FREON RETURN PIPE TO COMPRESSOR 		$206.26 1
0003 14306724
SCREW
M8 X 35 		$0.82 1
0004 88898300
UNDERBODY FREON DELIVERY-RETURN PIPE 		$386.74 1
0005 231619
SCREW
M6 X 18
IN STOCK 		$0.29 1
0006 88898700
PIPE FROM HVAC TO UNDERBODY 		$451.21 1
0006 819306
PIPE FROM HVAC TO UNDERBODY 		$593.01 1
0007 308399
SPACER 		$5.85 1
0008 14040614
NUT
IN STOCK 		$0.14 2
0009 239829
VIBRATION DAMPER 		- 2 Enquire
0010 262380
CLIP 		$1.54 1
0011 11625824
SCREW
M6 X 18
IN STOCK 		$0.34 (66% off) 4
0012 263230
CLIP 		$1.30 1
0013 14040711
NUT
IN STOCK 		$0.35 1
0014 10441490
BRACKET WITH SHEATH
D. 14
IN STOCK 		$0.52 2
0015 248334
SCREW
M6 X 14
IN STOCK 		$0.59 3
0016 13837017
SCREW
M6 X 30
IN STOCK 		$3.27 2
0017 88898500
PIPE FROM DISCONNECTOR TO RECEIVER DRIER 		$167.58 1
0017 785303
PIPE FROM DISCONNECTOR TO RECEIVER DRIER 		$193.36 1
0018 255515
BUSH
IN STOCK 		$2.11 2
0019 250318
SNAP CLIP
IN STOCK 		$0.22 2
0020 11612826
SCREW
M6 X 25 		$3.01 2
0021 67085100
GAS FILTER 		$51.14 (28.9% off) 1
0022 82155900
DEHYDRATOR FILTER BRACKET 		$42.53 1
0022 82886600
DEHYDRATOR FILTER BRACKET 		$52.84 1
0023 86403000
PIPE FROM FILTER TO HVAC 		$425.41 1
0023 86927400
PIPE FROM FILTER TO HVAC 		$489.88 1
0024 14040611
NUT
IN STOCK 		$0.26 2
0025 86228900
HOSE 		$146.60 1
0026 262111
JUBILEE CLAMP
D.17 - 25
IN STOCK 		$1.42 10
0027 86253700
UNDERBODY WATER PIPE
IN STOCK 		$193.36 1
0028 86280800
HOSE 		$59.29 1
0029 316986
SPACER 		$7.31 1
0030 262111
JUBILEE CLAMP
IN STOCK 		$1.42 2
0031 320600
CLIP 		$2.14 1
0032 178772
SPACER STUD 		$10.18 1
0033 880041
Allen Head Bolt M6 X 26
M6 X 14
IN STOCK 		$5.41 2
0034 291645
CLIP 		$3.61 2
0035 291349
WATER RECIRCULATION PUMP 		$3,277.99 1
0036 86051000
RECIRCULATION PUMP MOUNTING BRACKET 		$6.82 1
0037 86280900
HOSE 		$149.66 1
0037 86928400
HOSE 		$296.49 1
0038 231214
CLIP
IN STOCK 		$1.30 1
0039 82761900
RH TGK VALVE CONNECTOR PIPE 		$105.69 1
0039 82887200
RH TGK VALVE CONNECTOR PIPE 		$322.28 1
0040 82302700
LH TGK VALVE CONNECTOR PIPE 		$64.44 1
0040 82887300
LH TGK VALVE CONNECTOR PIPE 		$180.46 1
0041 83444200
DRIP BAFFLE RING
IN STOCK 		$4.00 2
0042 82329900
CLIP
IN STOCK 		$0.86 1
0043 82328500
TGK VALVE BLOCK MOUNTING BRACKET 		$27.06 1
0044 83560800
GUARD 		$9.15 1
0045 67444900
LH TGK VALVE
IN STOCK 		$229.07 (20.5% off) 1
0046 67635900
RH TGK VALVE
IN STOCK 		$213.80 (25.5% off) 1
0047 290953
RIGID TGK VALVE OUTLET PIPE 		$5.08 1
0048 291115
HOSE 		$42.53 1
0048 82887400
HOSE 		$121.16 1
0049 291116
HOSE 		$36.08 2
0050 162606
CLIP 		$1.20 (18.4% off) 1
0051 82331800
RUBBER SPACER BUTTON 		$3.33 2
0052 174623
BUSH 		$12.05 2
0053 14059211
NUT
M6
IN STOCK 		$0.06 2
0054 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
0055 303385
CLIP
IN STOCK 		$0.26 1
0056 13000390
Screw Collar
IN STOCK 		$0.69 (65.5% off) 3
0057 266156
CLIP 		$0.57 1
0058 177553
CLAMP 		$0.43 (65.6% off) 1
0059 87521000
A/C CONTROLS BLACK BOX 		$1,312.38 1
0060 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
0061 270085
CLIP
IN STOCK 		$1.64 1
0062 82923400
AC MOBILE DUCT INSULATION KIT 		$103.11 1
0062 83030200
AC MOBILE DUCT INSULATION KIT 		$154.69 1
0063 82923500
HVAC UNIT INSULATION KIT 		$108.28 1
0064 84058400
LH TGK VALVE MOUNTING BRACKET 		$117.31 1
0065 83689600
WATER PIPE RUBBER GUARD 		$15.46 1
0066 241708
CLIP 		$2.31 1
0067 139966
CLIP 		$0.57 1
0068 83413300
RH TGK VALVE MOUNTING BRACKET 		$34.79 1
0069 83689500
WATER PIPE RUBBER GUARD 		$18.03 1
0070 11342584
GASKET 		$13.04 1
0071 11342784
GASKET 		$13.04 1
0072 255515
BUSH
IN STOCK 		$2.11 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
