Name: REAR LID SUBSTRUCTURE
Rating: 4.5 (1 reviews)

View All

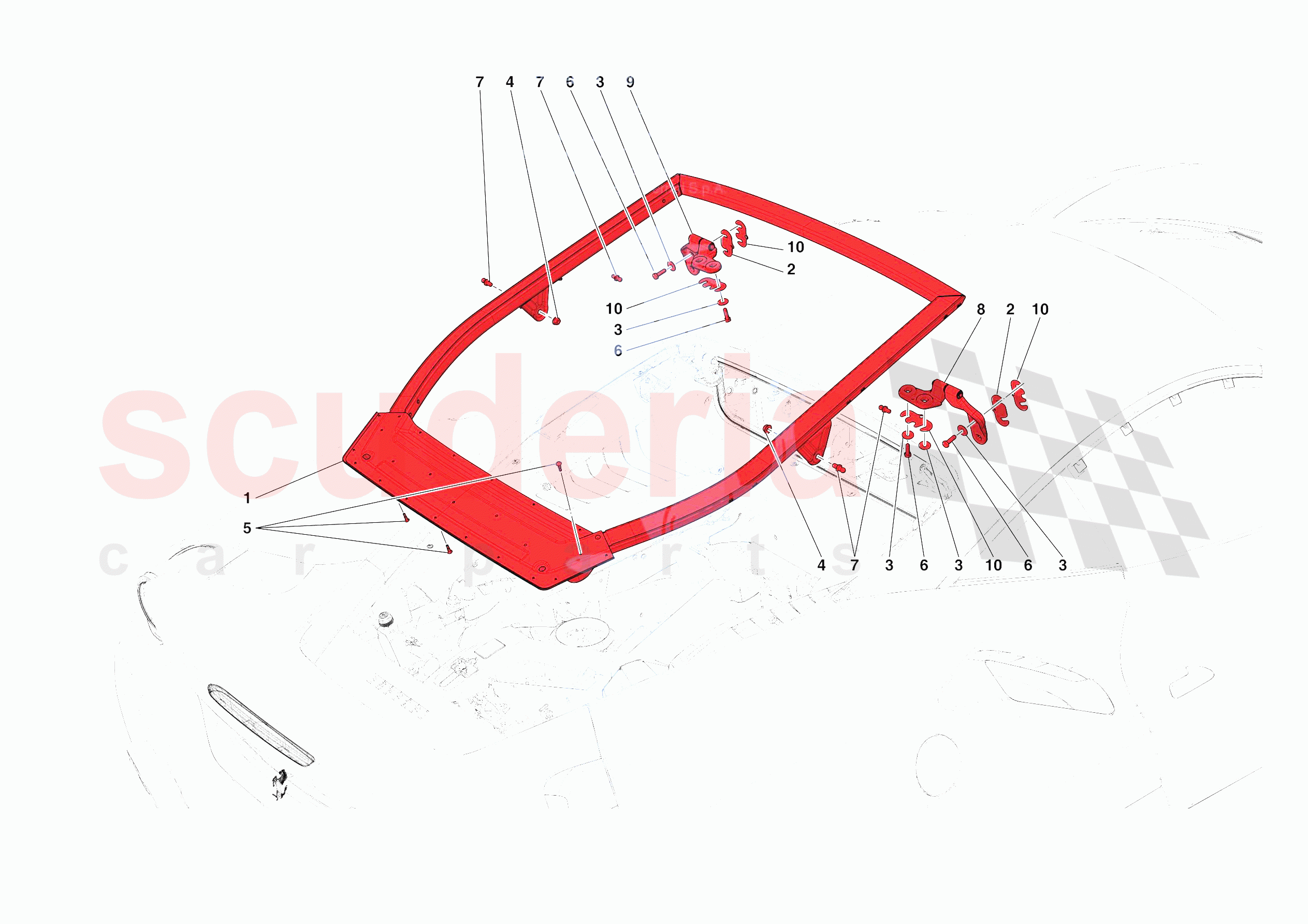

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82119700	SHIM	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	12642001	WASHER	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	13046224	NUT	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14639591	RIVET	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	16043734	SCREW	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65939900	PIN	$3.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81429200	COMPL. RH ENGINE COMPARTMENT LID HINGE	$265.31	To Order

Photo	Part No	Description	Price (each)	Stock
	81429300	COMPL. LH ENGINE COMPARTMENT LID HINGE	$265.31	To Order

Photo	Part No	Description	Price (each)	Stock
	81905000	SHIM	$3.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	86097411	COMPL. REAR LID	86097411 COMPL. REAR LID	$2,169.04	1
0001	805151	COMPL. REAR LID	805151 COMPL. REAR LID Naked weave carbon engine subframe	$23,040.20	1
0002	82119700	SHIM	82119700 SHIM Th. 3 mm	$3.70	2
0003	12642001	WASHER	12642001 WASHER	$0.12 MSRP: ~~0.90~~ (86.7% off)	8
0004	13046224	NUT IN STOCK	13046224 NUT IN STOCK	$0.34	2
0005	14639591	RIVET	14639591 RIVET	$1.34	3
0006	16043734	SCREW IN STOCK	16043734 SCREW M8 X 28 IN STOCK	$2.36	8
0007	65939900	PIN IN STOCK	65939900 PIN IN STOCK	$3.90	4
0008	81429200	COMPL. RH ENGINE COMPARTMENT LID HINGE	81429200 COMPL. RH ENGINE COMPARTMENT LID HINGE	$265.31	1
0009	81429300	COMPL. LH ENGINE COMPARTMENT LID HINGE	81429300 COMPL. LH ENGINE COMPARTMENT LID HINGE	$265.31	1
0010	81905000	SHIM	81905000 SHIM Th. 1 mm	$3.03	4

Rear Lid Substructure

Ferrari 488 Pista USA
