Ferrari 430 Scuderia - HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
226819 STEERING BOX TO POWER-ASSISTED RACK $14,436.90 To Order
226820 STEERING BOX TO POWER-ASSISTED RACK $25,910.62 To Order
Photo Part No Description Price (each) Stock
181882 BALL TIE ROD $733.71 IN STOCK
Photo Part No Description Price (each) Stock
10791324 NUT $7.78 IN STOCK
Photo Part No Description Price (each) Stock
211764 SWIVELLING UNION $37.83 To Order
177943 SWIVELLING UNION $45.63 To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $10.26 IN STOCK
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
212706 RUBBER PIPE $21.79 To Order
245911 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
238563 PIPE TO RADIATOR $257.33 To Order
239951 PIPE TO RADIATOR $671.99 To Order
Photo Part No Description Price (each) Stock
239202 OIL RADIATOR $302.75 To Order
Photo Part No Description Price (each) Stock
14457381 Gasket $0.70 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
247406 RUBBER PIPE Enquire To Order
247406 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
201706 THREADED CONNECTOR $6.18 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
211536 JUNCTION TO LH STEERING BOX DELIVERY PIPE $393.57 To Order
Photo Part No Description Price (each) Stock
202552 UNDERBODY RETURN PIPE $317.88 To Order
Photo Part No Description Price (each) Stock
177631 TUBE FASTENING BRACKET $8.43 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.77 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
171519 COMPLETE RING $21.18 To Order
Photo Part No Description Price (each) Stock
277720 SCREW $3.47 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.67 IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
277720 SCREW $3.47 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.67 IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
179556 BOLT FOR TRACK ROD JOINT $48.92 IN STOCK
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.29 IN STOCK
Photo Part No Description Price (each) Stock
70000948 BELLOW REPLACEMENT KIT $68.11 IN STOCK
Photo Part No Description Price (each) Stock
239488 RH BRACKET $16.64 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
239489 LH BRACKET $22.69 To Order
Photo Part No Description Price (each) Stock
12601277 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
12644478 WASHER $0.18 To Order
Photo Part No Description Price (each) Stock
16044324 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
209920 PIPE FROM STEERING BOX TO UNION $61.47 To Order
Photo Part No Description Price (each) Stock
245905 CONNECTOR $50.70 To Order
Photo Part No Description Price (each) Stock
219299 RUBBER PIPE $126.78 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.83 IN STOCK
Photo Part No Description Price (each) Stock
204939 PROTECTIVE SHEATH $13.61 To Order
View All

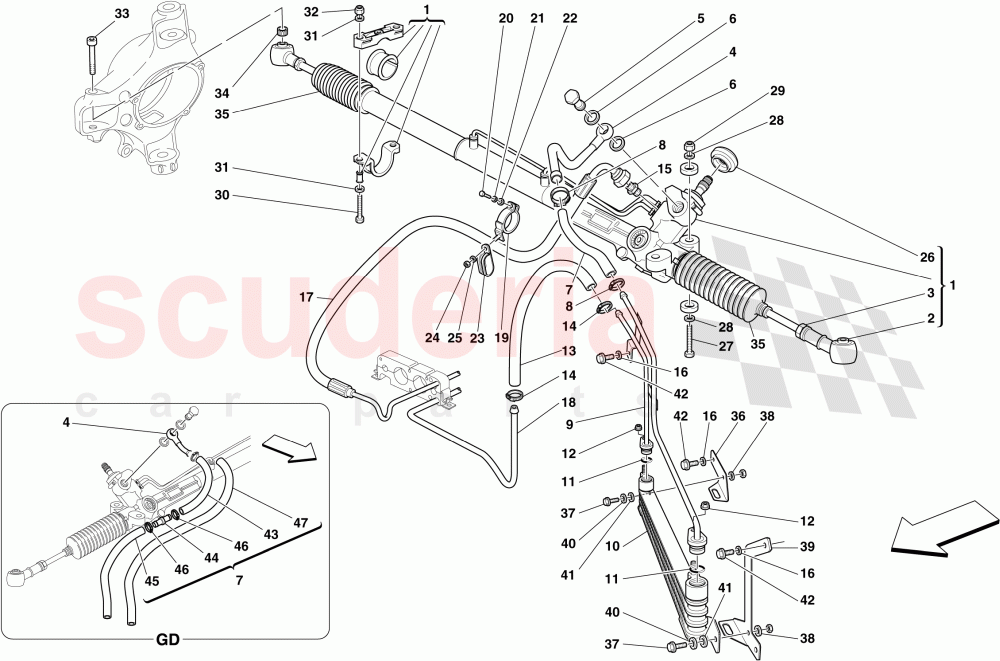

HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 226819
STEERING BOX TO POWER-ASSISTED RACK
Not for GD 		$14,436.90 1
1 226820
STEERING BOX TO POWER-ASSISTED RACK
Applicable for GD 		$25,910.62 1
2 181882
BALL TIE ROD
IN STOCK 		$733.71 (27.2% off) 2
3 10791324
NUT
IN STOCK 		$7.78 2
4 211764
SWIVELLING UNION
Not for GD 		$37.83 1
4 177943
SWIVELLING UNION
Applicable for GD 		$45.63 1
5 277407
HOSE CONNECTOR
IN STOCK 		$10.26 1
6 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 2
7 212706
RUBBER PIPE
Not for GD 		$21.79 (36.9% off) 1
7 245911
RUBBER PIPE
Applicable for GD; No longer supplied 		- 1 Enquire
8 262111
SCREW CLAMP 		$1.39 2
9 238563
PIPE TO RADIATOR
Not for GD 		$257.33 1
9 239951
PIPE TO RADIATOR
Applicable for GD 		$671.99 1
10 239202
OIL RADIATOR 		$302.75 1
11 14457381
Gasket
IN STOCK 		$0.70 2
12 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
13 247406
RUBBER PIPE
Not for GD 		- 1 Enquire
13 247406
RUBBER PIPE
Applicable for GD 		- 1 Enquire
14 262111
SCREW CLAMP 		$1.39 2
15 201706
THREADED CONNECTOR 		$6.18 1
16 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.98 4
17 211536
JUNCTION TO LH STEERING BOX DELIVERY PIPE 		$393.57 (23.4% off) 1
18 202552
UNDERBODY RETURN PIPE 		$317.88 1
19 177631
TUBE FASTENING BRACKET 		$8.43 2
20 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
21 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
22 12639724
WASHER
IN STOCK 		$0.05 (90% off) 2
23 10441690
BRACKET WITH SHEATH 		$1.77 2
24 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
25 12639724
WASHER
IN STOCK 		$0.05 (90% off) 2
26 171519
COMPLETE RING 		$21.18 1
27 277720
SCREW 		$3.47 2
28 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.67 (4.6% off) 4
29 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 2
30 277720
SCREW 		$3.47 2
31 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.67 (4.6% off) 4
32 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 2
33 179556
BOLT FOR TRACK ROD JOINT
IN STOCK 		$48.92 2
34 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.29 (17% off) 2
35 70000948
BELLOW REPLACEMENT KIT
IN STOCK 		$68.11 (28.9% off) 1
36 239488
RH BRACKET 		$16.64 1
37 11568124
SCREW
IN STOCK 		$0.81 4
38 12637824
WASHER
IN STOCK 		$0.06 (88% off) 4
39 239489
LH BRACKET 		$22.69 1
40 12601277
WASHER 		$0.05 4
41 12644478
WASHER 		$0.18 4
42 16044324
SCREW 		$0.34 (24.4% off) 4
43 209920
PIPE FROM STEERING BOX TO UNION 		$61.47 1
44 245905
CONNECTOR 		$50.70 1
45 219299
RUBBER PIPE 		$126.78 1
46 13127070
COLLAR
IN STOCK 		$1.83 2
47 204939
PROTECTIVE SHEATH 		$13.61 1
