Ferrari 430 Scuderia - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
226683 ABS/ASR HYDRAULIC UNIT/ECU $3,212.51 To Order
Photo Part No Description Price (each) Stock
228956 ECU MOUNTING BRACKET $83.67 To Order
Photo Part No Description Price (each) Stock
197149 VIBRATION DAMPER $0.38 To Order
Photo Part No Description Price (each) Stock
13516524 STUD BOLT $1.26 To Order
Photo Part No Description Price (each) Stock
212645 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
226686 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $44.28 To Order
Photo Part No Description Price (each) Stock
226685 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $48.16 To Order
Photo Part No Description Price (each) Stock
226687 PIPE FROM ECU TO LH. INTERMEDIATE TUBE $47.97 To Order
Photo Part No Description Price (each) Stock
226688 PIPE FROM ECU TO RH. INTERMEDIATE TUBE $46.70 To Order
Photo Part No Description Price (each) Stock
226689 PIPE FROM ECU TO INTERMEDIATE TUBE $44.17 To Order
Photo Part No Description Price (each) Stock
226690 PIPE FROM ECU TO RH. FRONT BREAK TUBE $50.49 To Order
Photo Part No Description Price (each) Stock
271771 PIPE Enquire To Order
268658 RUBBER PIPE $618.71 To Order
Photo Part No Description Price (each) Stock
200324 FRONT RH BRAKE PIPE $37.67 To Order
200325 FRONT LH BRAKE PIPE $37.67 To Order
Photo Part No Description Price (each) Stock
205295 INTERMEDIATE PIPE $51.24 To Order
Photo Part No Description Price (each) Stock
205093 PIPE TO REAR RH HOSE $130.51 To Order
Photo Part No Description Price (each) Stock
205094 TUBE TO REAR LH HOSE $303.03 To Order
Photo Part No Description Price (each) Stock
202555 SPLIT TAPERED BUSHING $1.01 To Order
Photo Part No Description Price (each) Stock
207278 BRAKE PIPE MOUNTING BRACKET $19.58 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
212645 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.18 IN STOCK
Photo Part No Description Price (each) Stock
178938 CABLE MOUNTING $30.23 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
185283 REAR MOUNTING $202.01 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.05 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
249656 CONNECTOR $16.40 To Order
Photo Part No Description Price (each) Stock
10107225 PIPE UNION $9.52 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
View All

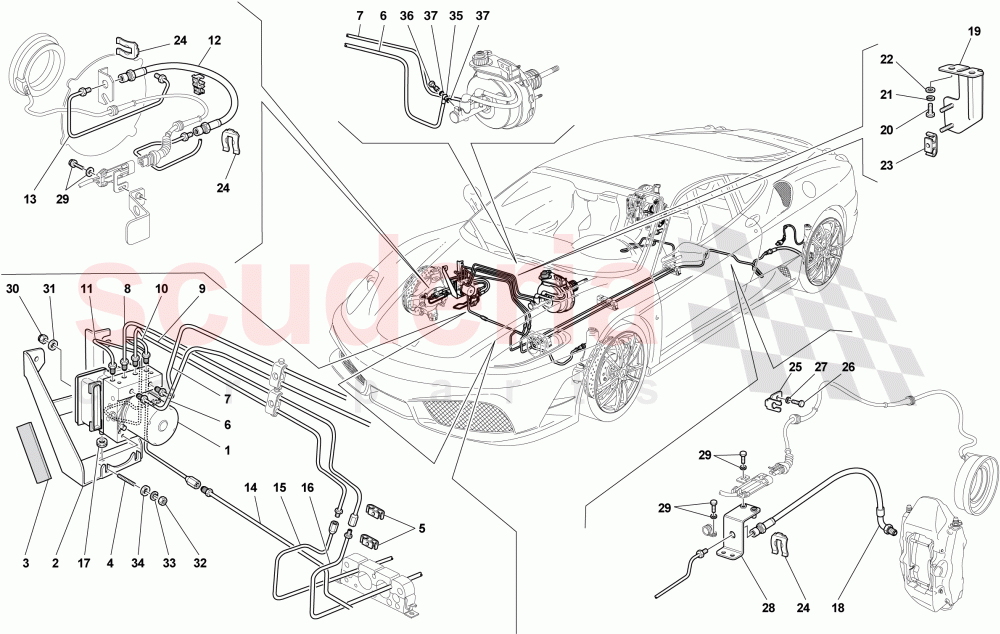

BRAKE SYSTEM -Not applicable for GD- of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 226683
ABS/ASR HYDRAULIC UNIT/ECU
Not for GD 		$3,212.51 1
2 228956
ECU MOUNTING BRACKET
Not for GD 		$83.67 1
3 197149
VIBRATION DAMPER
Not for GD 		$0.38 1
4 13516524
STUD BOLT
Not for GD 		$1.26 2
5 212645
CLIP
Not for GD 		$3.00 4
6 226686
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
Not for GD 		$44.28 1
7 226685
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Not for GD 		$48.16 1
8 226687
PIPE FROM ECU TO LH. INTERMEDIATE TUBE
Not for GD 		$47.97 1
9 226688
PIPE FROM ECU TO RH. INTERMEDIATE TUBE
Not for GD 		$46.70 1
10 226689
PIPE FROM ECU TO INTERMEDIATE TUBE
Not for GD 		$44.17 1
11 226690
PIPE FROM ECU TO RH. FRONT BREAK TUBE
Not for GD 		$50.49 1
12 271771
PIPE
Not for GD; Applicable after depletion of 116373 		- 2 Enquire
12 268658
RUBBER PIPE
Not for GD; Applicable until depletion 		$618.71 2
13 200324
FRONT RH BRAKE PIPE
Not for GD 		$37.67 1
13 200325
FRONT LH BRAKE PIPE
Not for GD 		$37.67 1
14 205295
INTERMEDIATE PIPE
Not for GD 		$51.24 1
15 205093
PIPE TO REAR RH HOSE
Not for GD 		$130.51 1
16 205094
TUBE TO REAR LH HOSE
Not for GD 		$303.03 1
17 202555
SPLIT TAPERED BUSHING
Not for GD 		$1.01 1
19 207278
BRAKE PIPE MOUNTING BRACKET
Not for GD 		$19.58 1
20 10902424
SCREW
Not for GD
IN STOCK 		$0.14 (80% off) 2
21 127494
WASHER
Not for GD
IN STOCK 		$0.08 (88.2% off) 2
22 12644424
WASHER
Not for GD
IN STOCK 		$0.06 (85% off) 2
23 212645
CLIP
Not for GD 		$3.00 2
24 116374
CLIP
Not for GD
IN STOCK 		$2.18 (37.7% off) 8
25 178938
CABLE MOUNTING
Not for GD 		$30.23 2
26 10977524
SCREW
Not for GD
IN STOCK 		$0.14 2
27 11197774
WASHER
Not for GD
IN STOCK 		$0.06 (80% off) 2
28 185283
REAR MOUNTING
Not for GD 		$202.01 2
29 250657
SCREW
Not for GD
IN STOCK 		$7.05 6
30 147985
NUT
Not for GD
IN STOCK 		$0.14 (72% off) 1
31 84653800
WASHER 10 X 18 X 2.5
Not for GD
IN STOCK 		$4.96 1
32 14040711
NUT
Not for GD
IN STOCK 		$0.35 2
33 84653800
WASHER 10 X 18 X 2.5
Not for GD
IN STOCK 		$4.96 2
34 127496
WASHER
Not for GD 		$0.06 (80% off) 2
35 249656
CONNECTOR
Not for GD 		$16.40 1
36 10107225
PIPE UNION
Not for GD 		$9.52 1
37 10298460
GASKET
Not for GD
IN STOCK 		$0.14 (88.8% off) 2
