Ferrari 430 Scuderia - HYDRAULIC F1 GEARBOX AND CLUTCH CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247996 BLEED SCREW $63.52 To Order
Photo Part No Description Price (each) Stock
248399 HYDRAULIC ACTUATOR KIT $9,761.85 To Order
Photo Part No Description Price (each) Stock
248088 RECIRCULATION PIPE KIT $273.06 To Order
Photo Part No Description Price (each) Stock
248093 QUICK DISCONNECT KIT $394.43 To Order
Photo Part No Description Price (each) Stock
248096 EV1 PIPE KIT $1,228.83 To Order
Photo Part No Description Price (each) Stock
248097 EV2 PIPE KIT $1,198.48 To Order
Photo Part No Description Price (each) Stock
248400 EV3 PIPE KIT $1,466.38 To Order
Photo Part No Description Price (each) Stock
248401 EV4 PIPE KIT $1,715.43 To Order
Photo Part No Description Price (each) Stock
248402 EV5 PIPE KIT $1,082.97 To Order
Photo Part No Description Price (each) Stock
248101 EVF PIPE KIT $849.55 To Order
Photo Part No Description Price (each) Stock
248095 Position Sensor Kit $727.94 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $5.00 IN STOCK
Photo Part No Description Price (each) Stock
208101 TUBES MOUNTING BRACKET $31.84 To Order
Photo Part No Description Price (each) Stock
242669 SHIELD MOUNTING BRACKET $190.59 To Order
Photo Part No Description Price (each) Stock
241707 ACTUATOR GUARD SHIELD $408.82 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10903224 SCREW $0.26 IN STOCK
Photo Part No Description Price (each) Stock
186685 BLOCK MOUNTING BRACKET $4.06 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.21 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
124034 BRACKET WITH SHEATH $2.47 To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
208103 BRACKET $27.29 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
208622 SENSOR GUARD SHIELD $288.23 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
180745 SHIELD MOUNTING BRACKET $52.09 To Order
Photo Part No Description Price (each) Stock
13516424 STUD BOLT $25.68 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
208842 BRACKET $7.88 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11501024 STUD BOLT $0.93 To Order
Photo Part No Description Price (each) Stock
11500724 STUD BOLT $1.18 To Order
Photo Part No Description Price (each) Stock
103038 DOWEL $1.18 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13516424 STUD BOLT $25.68 To Order
Photo Part No Description Price (each) Stock
179346 PROTECTIVE SHEATH $496.67 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
242682 UPPER ACTUATOR MOUNTING BRACKET $16.55 To Order
View All

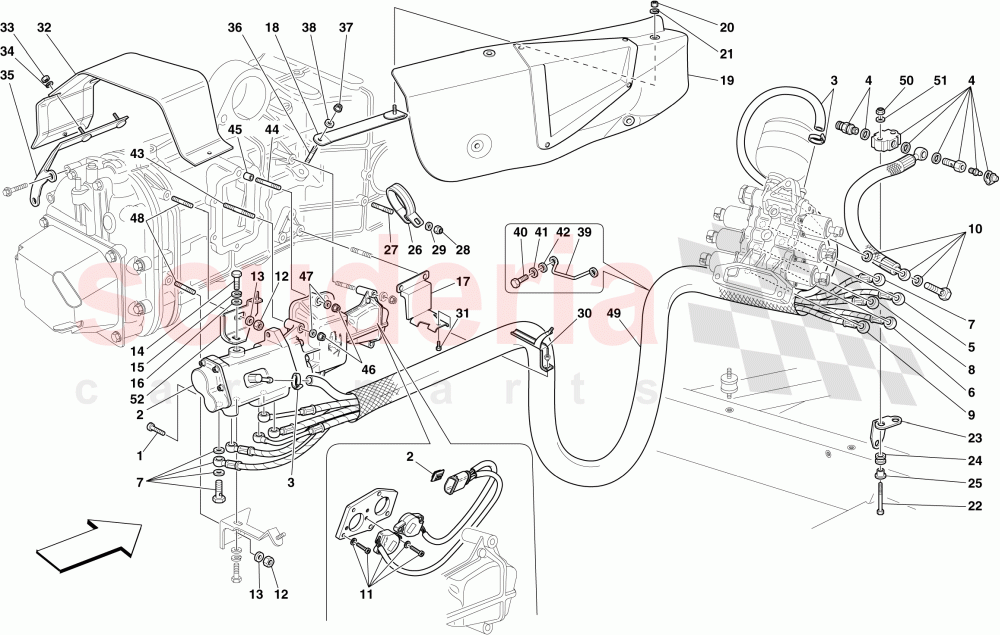

HYDRAULIC F1 GEARBOX AND CLUTCH CONTROL of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 234259
F1-TYPE GEARBOX SYSTEM COMPONENTS KIT 		$9,436.96 (19.1% off) 1
1 247996
BLEED SCREW 		$63.52 3
2 248399
HYDRAULIC ACTUATOR KIT 		$9,761.85 (26.7% off) 1
3 248088
RECIRCULATION PIPE KIT 		$273.06 1
4 248093
QUICK DISCONNECT KIT 		$394.43 1
5 248096
EV1 PIPE KIT 		$1,228.83 1
6 248097
EV2 PIPE KIT 		$1,198.48 1
7 248400
EV3 PIPE KIT 		$1,466.38 1
8 248401
EV4 PIPE KIT 		$1,715.43 1
9 248402
EV5 PIPE KIT 		$1,082.97 1
10 248101
EVF PIPE KIT 		$849.55 1
11 248095
Position Sensor Kit
IN STOCK 		$727.94 (25.1% off) 1
12 14040711
NUT
IN STOCK 		$0.35 2
13 127496
WASHER 		$0.06 (80% off) 2
14 16043124
SCREW
M8 X 14
IN STOCK 		$0.17 1
15 127496
WASHER 		$0.06 (80% off) 1
16 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$5.00 1
17 208101
TUBES MOUNTING BRACKET 		$31.84 1
18 242669
SHIELD MOUNTING BRACKET 		$190.59 1
19 241707
ACTUATOR GUARD SHIELD 		$408.82 1
20 15896470
NUT 		$6.36 4
21 12637824
WASHER
IN STOCK 		$0.06 (88% off) 4
22 10903224
SCREW
IN STOCK 		$0.26 (35% off) 2
23 186685
BLOCK MOUNTING BRACKET 		$4.06 1
24 177576
CABLE GROMMET
IN STOCK 		$2.21 2
25 149707
SPACER 		$1.10 (37.1% off) 2
26 124034
BRACKET WITH SHEATH 		$2.47 1
27 13540724
STUD BOLT 		$0.43 1
28 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
29 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
30 208103
BRACKET 		$27.29 1
31 16043124
SCREW
M8 X 14
IN STOCK 		$0.17 1
32 208622
SENSOR GUARD SHIELD 		$288.23 (36.4% off) 1
33 15896470
NUT 		$6.36 2
34 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
35 180745
SHIELD MOUNTING BRACKET 		$52.09 1
36 13516424
STUD BOLT 		$25.68 1
37 14040711
NUT
IN STOCK 		$0.35 1
38 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
39 208842
BRACKET 		$7.88 1
40 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
41 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
42 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
43 11501024
STUD BOLT 		$0.93 (83.6% off) 4
44 11500724
STUD BOLT 		$1.18 (5.6% off) 2
45 103038
DOWEL
IN STOCK 		$1.18 2
46 14040711
NUT
IN STOCK 		$0.35 2
47 127496
WASHER 		$0.06 (80% off) 2
48 13516424
STUD BOLT 		$25.68 2
49 179346
PROTECTIVE SHEATH 		$496.67 1
50 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
51 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
52 242682
UPPER ACTUATOR MOUNTING BRACKET 		$16.55 1
