Injection - Ignition System

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
188504 IGNITION COIL $646.64 IN STOCK
188504 IGNITION COIL $646.64 IN STOCK
186914 IGNITION COIL $196.52 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
201599 SCREW $0.32 IN STOCK
201599 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192637 Spark Plug NGK $27.95 IN STOCK
Photo Part No Description Price (each) Stock
191392 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS $1,602.68 To Order
216542 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS $1,099.71 IN STOCK
191390 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS $1,439.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
191393 ELECTRO-INJECTOR $304.03 To Order
213635 ELECTRO-INJECTOR $293.46 IN STOCK
Photo Part No Description Price (each) Stock
133902 INJECTOR O-RING $4.98 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.79 To Order
Photo Part No Description Price (each) Stock
215268 RH CYLINDER BANK INJECTION CONNECTOR CABLES $2,419.05 To Order
221338 RH CYLINDER BANK INJECTION CONNECTOR CABLES $2,835.13 To Order
209438 RH CYLINDER BANK INJECTION CONNECTOR CABLES $1,541.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
215269 LH CYLINDER BANK INJECTION CONNECTOR CABLES $2,935.26 To Order
221339 LH CYLINDER BANK INJECTION CONNECTOR CABLES $2,835.13 To Order
209437 LH CYLINDER BANK INJECTION CONNECTOR CABLES $1,557.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
217987 IGNITION ECU $4,569.69 To Order
217987 IGNITION ECU $4,569.69 To Order
216390 IGNITION ECU $4,569.69 To Order
...and 18 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192535 RH BRACKET $25.72 To Order
200163 LH BRACKET $126.78 To Order
Photo Part No Description Price (each) Stock
216545 PROTECTIVE PIPE $9.68 To Order
Photo Part No Description Price (each) Stock
206739 CLAMP $7.78 To Order
Photo Part No Description Price (each) Stock
227941 COMPL. COIL SHIELD $11.19 To Order
View All

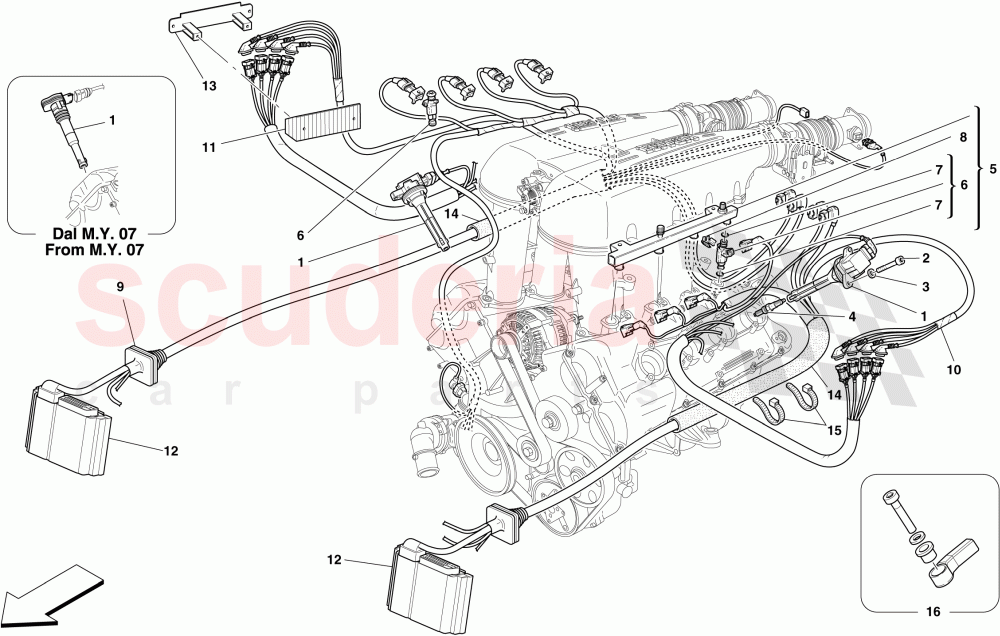

INJECTION - IGNITION SYSTEM of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

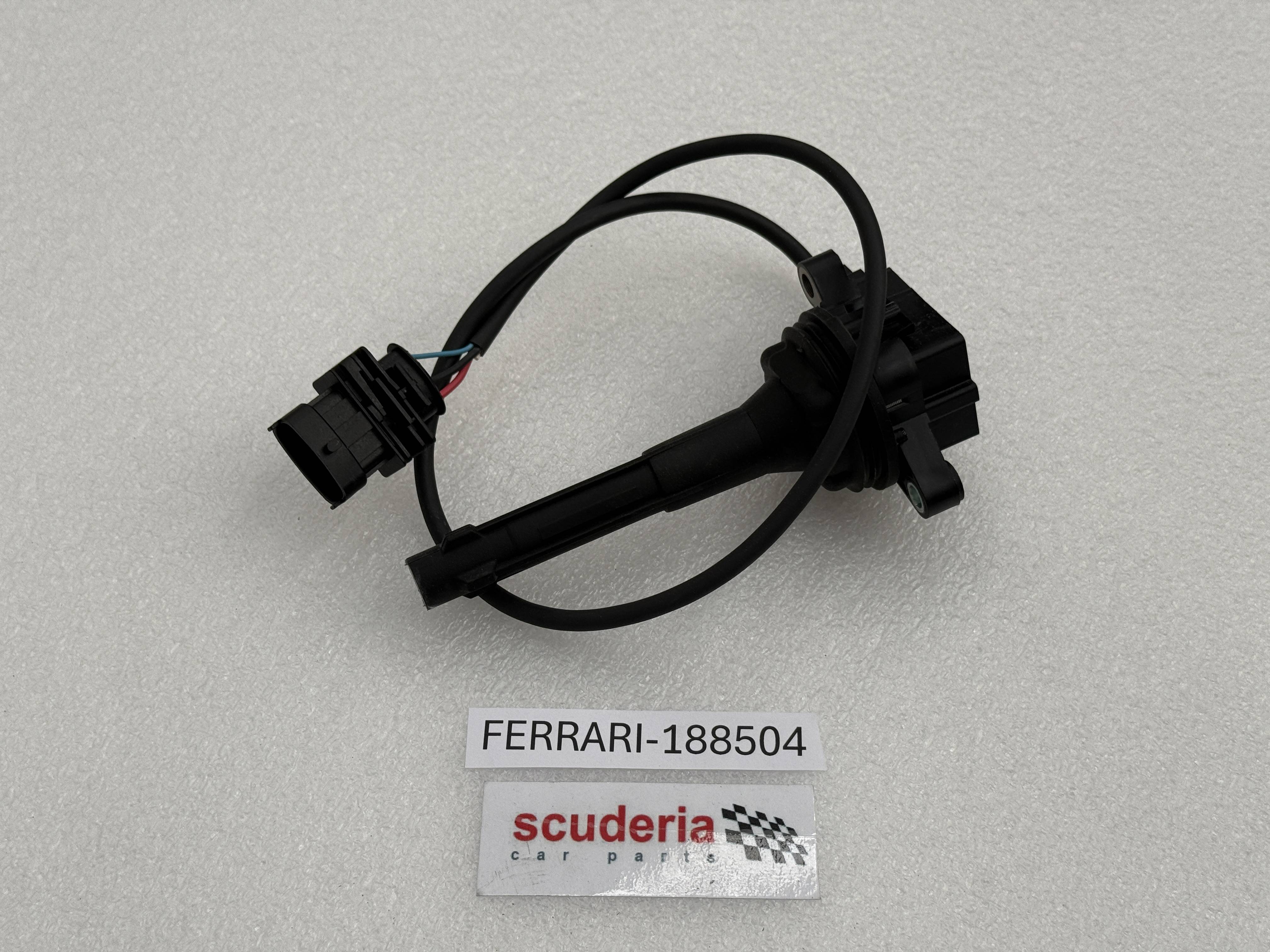

1 188504
IGNITION COIL
For cylinders 1,2,7,8; Applicable for USA, CDN; Applicable up to Ass. No. 67970
IN STOCK 		$646.64 4
1 188504
IGNITION COIL
For cylinders 1,2,7,8; Not for USA, CDN; Applicable up to Ass. No. 69638
IN STOCK 		$646.64 4
1 186914
IGNITION COIL
For cylinders 3,4,5,6; Applicable for USA, CDN; Applicable up to Ass. No. 67970
IN STOCK 		$196.52 (32.5% off) 4
1 186914
IGNITION COIL
For cylinders 3,4,5,6; Not for USA, CDN; Applicable up to Ass. No. 69638
IN STOCK 		$196.52 (32.5% off) 4
1 281449
Ignition Coil
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971
IN STOCK 		$123.14 (29.4% off) 8
1 281449
Ignition Coil
Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639
IN STOCK 		$123.14 (29.4% off) 8
2 201599
SCREW
Not for USA, CDN
IN STOCK 		$0.32 16
2 201599
SCREW
Applicable for USA, CDN; Applicable up to Ass. No. 67970
IN STOCK 		$0.32 16
3 11197774
WASHER
Not for USA, CDN
IN STOCK 		$0.06 (80% off) 16
3 11197774
WASHER
Applicable for USA, CDN; Applicable up to Ass. No. 67970
IN STOCK 		$0.06 (80% off) 16
4 192637
Spark Plug NGK
IN STOCK 		$27.95 (6.1% off) 8
5 191392
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
Applicable up to MY 06; Applicable up to engine No. 99607 		$1,602.68 1
5 216542
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
Applicable from MY 06; Applicable from engine No. 99608
IN STOCK 		$1,099.71 1
5 191390
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
Applicable up to MY 06; Applicable up to engine No. 99607 		$1,439.11 1

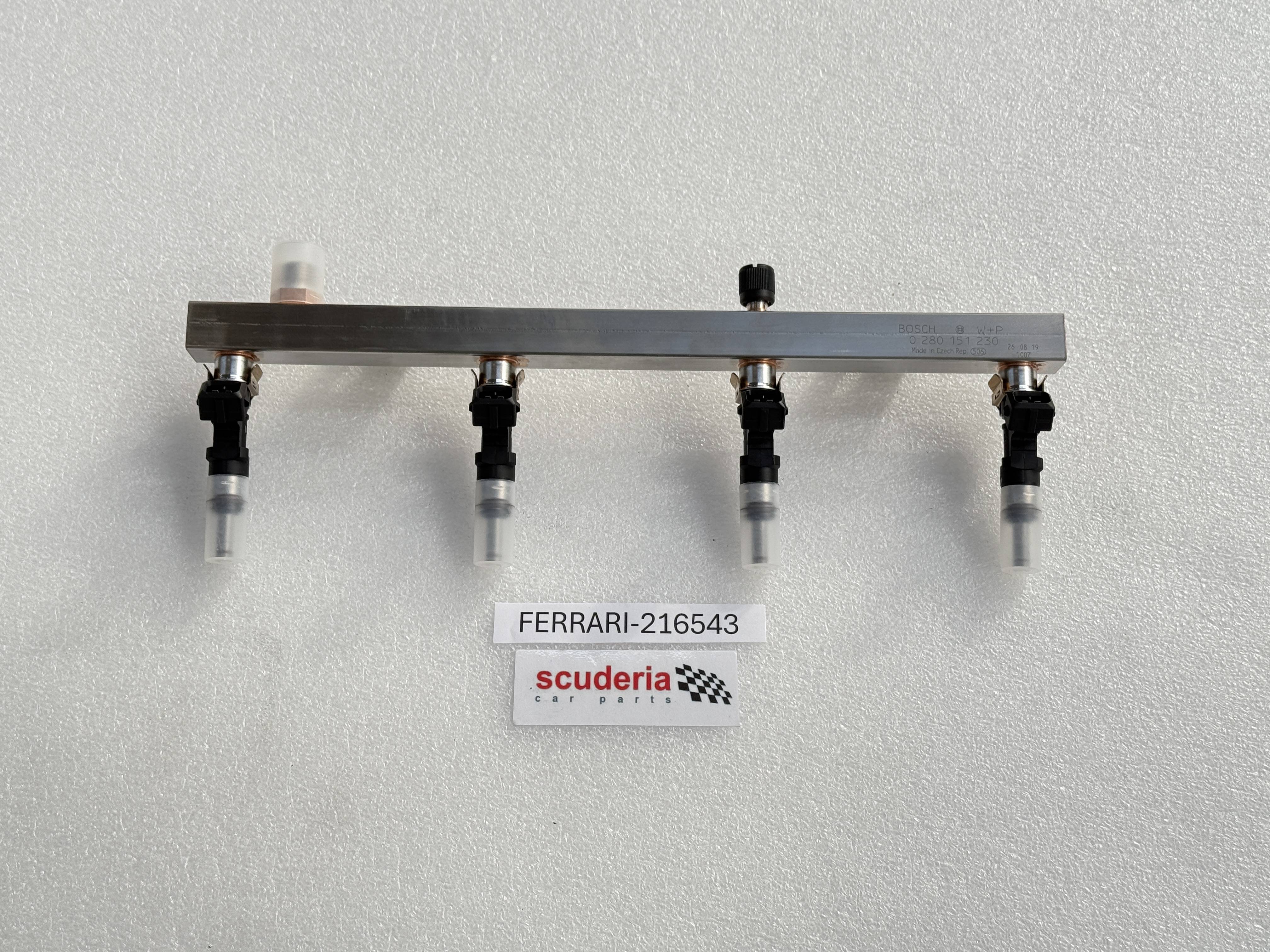

5 216543
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
Applicable from MY 06; Applicable from engine No. 99608
IN STOCK 		$1,099.71 1
6 191393
ELECTRO-INJECTOR
Applicable up to MY 06; Applicable up to engine No. 99607 		$304.03 8
6 213635
ELECTRO-INJECTOR
Applicable from MY 06; Applicable from engine No. 99608
IN STOCK 		$293.46 8
7 133902
INJECTOR O-RING 		$4.98 (17% off) 4
8 144730
INJECTORS RETENTION CLIP 		$3.79 (5.3% off) 8
9 215268
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 69638 		$2,419.05 1
9 221338
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 69639 		$2,835.13 1
9 209438
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,541.04 1
9 219904
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971
IN STOCK 		$1,322.47 1
10 215269
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 69638 		$2,935.26 1
10 221339
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable for USA, CDN; Applicable from Ass. No. 69639 		$2,835.13 1
10 209437
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,557.69 1
10 219905
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971 		$1,928.54 1
12 217987
IGNITION ECU
Not for USA, CDN; Applicable up to Ass. No. 57595; Not for F1 gearbox 		$4,569.69 2
12 217987
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 57596 up to Ass. No. 62225; Not for F1 gearbox 		$4,569.69 2
12 216390
IGNITION ECU
Applicable up to MY 06; Applicable for USA, CDN; Not for F1 gearbox 		$4,569.69 2
12 217986
IGNITION ECU
Not for USA, CDN; Applicable up to Ass. No. 57595; Applicable for F1 gearbox 		$4,576.02 2
12 217986
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 57596 up to Ass. No. 62225; Applicable for F1 gearbox 		$4,576.02 2
12 222264
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 62226 up to Ass. No. 69627 		$4,569.69 2
12 216391
IGNITION ECU
Applicable up to MY 06; Applicable for USA, CDN; Applicable for F1 gearbox 		$4,569.69 2
12 222251
IGNITION ECU
Applicable from MY 06; Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$4,569.69 2
12 231042
IGNITION ECU
Applicable from MY 07; Applicable for USA, CDN; Applicable up to Ass. No. 71293 		$4,569.69 2
12 236837
IGNITION ECU
Applicable from MY 07; No temperature sensors; Applicable up to MY 08; Applicable for USA, CDN; Applicable from Ass. No. 71294 up to Ass. No. 74556 		$4,644.50 2
12 241765
IGNITION ECU
Applicable from MY 08; Applicable for USA, CDN; Applicable from Ass. No. 74557 		$4,644.50 (30.5% off) 2
12 227392
IGNITION ECU
Taiwan; Applicable from MY 06; Applicable up to Ass. No. 69627 		$2,363.04 2
12 235222
IGNITION ECU
Taiwan; Applicable from Ass. No. 69628 up to Ass. No. 73459 		- 2 Enquire
12 240791
IGNITION ECU
Taiwan; Applicable from Ass. No. 73460 		$4,644.50 2
12 224751
IGNITION ECU
Germany; Applicable from MY 06; Applicable for sound kit 		$2,075.41 2
12 230386
IGNITION ECU
Not applicable for sound kit; Not for USA, CDN; Applicable up to Ass. No. 69627 		$4,581.10 2
12 235220
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 69628 up to Ass. No. 73459 		$4,578.56 2
12 104284
IGNITION ECU
Applicable up to MY 08; Not for USA, CDN; Applicable from Ass. No. 73460 up to Ass. No. 74556 		- 2 Enquire
12 241764
IGNITION ECU
Applicable from MY 08; Not for USA, CDN, J; Applicable from Ass. No. 74557 		$4,663.52 2
12 246747
IGNITION ECU
Applicable from MY 08; Applicable for J 		$4,644.50 2
12 250922
IGNITION ECU
Applicable from MY 09; Applicable for USA, CDN 		$2,509.92 2
13 192535
RH BRACKET 		$25.72 1
13 200163
LH BRACKET 		$126.78 1
14 216545
PROTECTIVE PIPE 		$9.68 2
15 206739
CLAMP 		$7.78 4
16 227941
COMPL. COIL SHIELD
Applicable for CINA, USA, CDN 		$11.19 (29.6% off) 8
