Ferrari 430 Coupe - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
233837 FRONT CABLES $1,493.09 To Order
208340 FRONT CABLES $1,825.28 To Order
233832 FRONT CABLES $1,339.24 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
236393 DOOR CONNECTOR CABLES $180.56 To Order
228251 DOOR CONNECTOR CABLES $180.56 To Order
198209 DOOR CONNECTOR CABLES $175.59 To Order
Photo Part No Description Price (each) Stock
250760 DASHBOARD CONNECTOR CABLES $3,937.45 To Order
240646 DASHBOARD CONNECTOR CABLES $3,904.89 To Order
240229 DASHBOARD CONNECTOR CABLES $3,197.86 To Order
...and 32 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
208355 TYRE PRESSURE MONITORING SYSTEM CABLES $731.00 To Order
208355 TYRE PRESSURE MONITORING SYSTEM CABLES $731.00 To Order
238983 TYRE PRESSURE MONITORING SYSTEM CABLES $406.28 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
219904 RH CYLINDER BANK INJECTION CONNECTOR CABLES $1,314.59 IN STOCK
209438 RH CYLINDER BANK INJECTION CONNECTOR CABLES $1,531.85 To Order
221338 RH CYLINDER BANK INJECTION CONNECTOR CABLES $2,818.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
219905 LH CYLINDER BANK INJECTION CONNECTOR CABLES $1,917.04 To Order
209437 LH CYLINDER BANK INJECTION CONNECTOR CABLES $1,548.40 To Order
221339 LH CYLINDER BANK INJECTION CONNECTOR CABLES $2,818.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
208354 ABS/ASR SYSTEM CONNECTOR CABLES $681.10 To Order
192784 ABS/ASR SYSTEM CONNECTOR CABLES $579.77 To Order
Photo Part No Description Price (each) Stock
240466 RH ENGINE COMPARTMENT CONNECTOR CABLES $496.56 To Order
230040 RH ENGINE COMPARTMENT CONNECTOR CABLES $895.59 To Order
230040 RH ENGINE COMPARTMENT CONNECTOR CABLES $895.59 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
240332 LH ENGINE COMPARTMENT CONNECTOR CABLES $692.18 To Order
227390 LH ENGINE COMPARTMENT CONNECTOR CABLES Enquire To Order
230038 LH ENGINE COMPARTMENT CONNECTOR CABLES $626.66 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
218558 TAILLIGHT CONNECTOR CABLES $43.59 To Order
199173 TAILLIGHT CONNECTOR CABLES $165.51 To Order
210637 TAILLIGHT CONNECTOR CABLES $83.17 To Order
Photo Part No Description Price (each) Stock
182985 PLATE LIGHT CABLES $226.86 To Order
Photo Part No Description Price (each) Stock
227387 REAR CABLE Enquire To Order
240463 REAR PART CONNECTOR CABLES $1,128.57 To Order
235560 REAR PART CONNECTOR CABLES $1,173.71 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192534 COMPLETE ENGINE SERVICES CONNECTOR CABLES $285.89 To Order
Photo Part No Description Price (each) Stock
213318 CENTRE CONSOLE CONNECTOR CABLES $76.73 To Order
Photo Part No Description Price (each) Stock
240459 COMPLETE GEARBOX CONTROL CABLES $586.85 To Order
227293 COMPLETE GEARBOX CONTROL CABLES $1,633.45 To Order
221019 COMPLETE GEARBOX CONTROL CABLES $601.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
199522 BECKER WIRING HARNESS $30.08 To Order
199521 BLUETOOTH WIRING HARNESS $109.83 To Order
Photo Part No Description Price (each) Stock
227630 WIRING HARNESS FOR DIGITEK F1 PANEL $93.28 To Order
View All

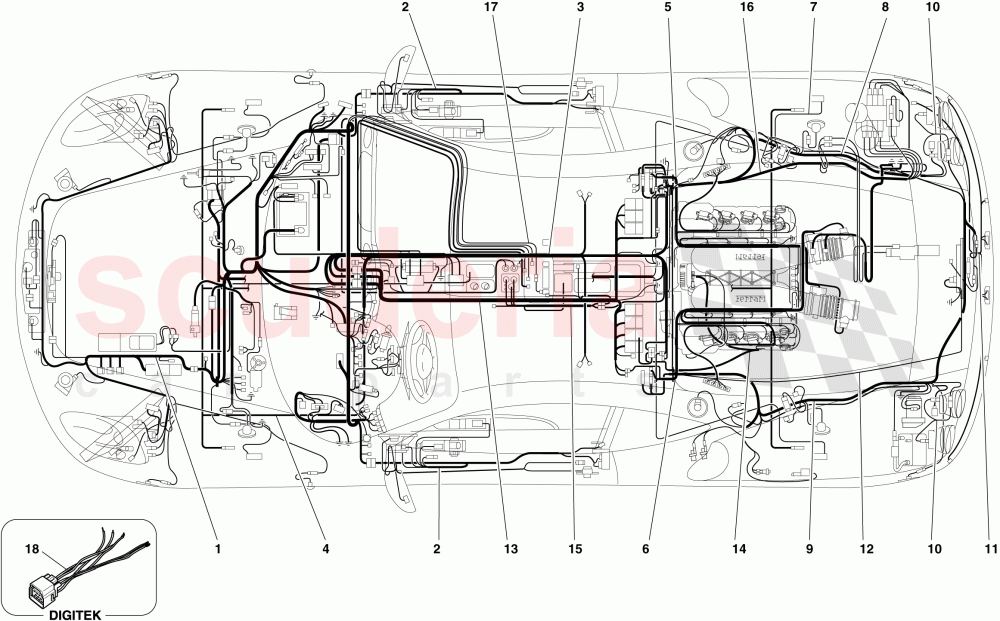

ELECTRICAL SYSTEM of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 233837
FRONT CABLES
Applicable for USA, CDN; Applicable from Ass. No. 71979 		$1,493.09 1
1 208340
FRONT CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 71978 		$1,825.28 1
1 233832
FRONT CABLES
Not for USA, CDN; Applicable from Ass. No. 71979 		$1,339.24 1
1 218282
FRONT CABLES
Not for USA, CDN; Applicable from Ass. No. 40466 up to Ass. No. 71978 		$1,391.10 1
1 208340
FRONT CABLES
Not for USA, CDN; Applicable up to Ass. No. 40465 		$1,825.28 1
2 236393
DOOR CONNECTOR CABLES
Applicable for high power Bose Hi-Fi 		$180.56 2
2 228251
DOOR CONNECTOR CABLES
Applicable from Ass. No. 68691; Applicable after depletion of 198209 		$180.56 2
2 198209
DOOR CONNECTOR CABLES
Applicable up to Ass. No. 68690; Applicable until depletion 		$175.59 2
3 250760
DASHBOARD CONNECTOR CABLES
Applicable for high power Bose Hi-Fi; Not for GD; Applicable from Ass. No. 81812 		$3,937.45 1
3 240646
DASHBOARD CONNECTOR CABLES
Applicable for high power Bose Hi-Fi; Not for GD; Applicable up to Ass. No. 81811 		$3,904.89 1
3 240229
DASHBOARD CONNECTOR CABLES
Applicable for high power Bose Hi-Fi; Not for GD 		$3,197.86 1
3 240231
DASHBOARD CONNECTOR CABLES
Applicable for radio amplifier; Not for High power Bose Hi-Fi; Applicable for GD 		- 1 Enquire
3 240230
DASHBOARD CONNECTOR CABLES
Not for radio amplifier; Not for High power Bose Hi-Fi; Applicable for GD 		$7,465.29 1
3 240232
DASHBOARD CONNECTOR CABLES
Applicable for high power Bose Hi-Fi; Not for radio amplifier; Applicable for GD 		$3,712.28 1
3 241954
DASHBOARD CONNECTOR CABLES
Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 71979 		$3,826.54 1
3 232683
DASHBOARD CONNECTOR CABLES
Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978 		$3,378.22 1
3 228204
DASHBOARD CONNECTOR CABLES
Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 65449 up to Ass. No. 71567 		$3,496.32 1
3 241956
DASHBOARD CONNECTOR CABLES
Full house; Bose Hi-Fi system; Applicable from MY 08; Applicable for GD; Applicable from Ass. No. 74557 		$3,429.23 1
3 241955
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Applicable up to MY 08; Applicable for GD; Applicable from Ass. No. 71979 up to Ass. No. 74556 		$3,319.53 1
3 232682
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Applicable for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978 		$3,438.41 1
3 227585
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Applicable for GD; Applicable from Ass. No. 65449 up to Ass. No. 71567 		$3,810.15 1
3 220462
DASHBOARD CONNECTOR CABLES
Applicable for GD; Applicable from Ass. No. 61555 up to Ass. No. 65448 		$3,281.91 1
3 218507
DASHBOARD CONNECTOR CABLES
Applicable for GD; Applicable up to Ass. No. 61554 		$3,902.17 1
3 250759
DASHBOARD CONNECTOR CABLES
Navtrak; Optional; Not for GD; Applicable from Ass. No. 81812 		$3,510.18 1
3 240644
DASHBOARD CONNECTOR CABLES
Navtrak; Optional; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811 		$3,090.80 1
3 250760
DASHBOARD CONNECTOR CABLES
Full house; Bose Hi-Fi system; Applicable from MY 08; Not for GD; Applicable from Ass. No. 81812 		$3,937.45 1
3 250758
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Not for GD; Applicable from Ass. No. 81812 		$3,598.40 1
3 240643
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811 		$2,931.91 1
3 232677
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978 		$3,093.81 1
3 231519
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Not for GD; Applicable from Ass. No. 67218 up to Ass. No. 71567 		$3,083.28 1
3 227584
DASHBOARD CONNECTOR CABLES
Navtrak; Full house; Not for GD; Applicable from Ass. No. 65971 up to Ass. No. 67217 		$2,907.22 1
3 220461
DASHBOARD CONNECTOR CABLES
Full house; Not for GD; Applicable from Ass. No. 61555 up to Ass. No. 65970 		$3,059.20 1
3 233837
FRONT CABLES
Standard; Applicable for USA, CDN; Not for GD; Applicable from Ass. No. 71979 		$1,493.09 1
3 232679
DASHBOARD CONNECTOR CABLES
Standard; Applicable for USA, CDN; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978 		$3,166.04 1
3 231520
DASHBOARD CONNECTOR CABLES
Standard; Applicable for USA, CDN; Applicable from Ass. No. 67218 up to Ass. No. 71567 		$2,935.81 1
3 231520
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable up to Ass. No. 71567 		$2,935.81 1
3 250757
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable from Ass. No. 81812 		- 1 Enquire
3 240642
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811 		$1,885.54 1
3 232674
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978 		$3,024.59 1
3 231520
DASHBOARD CONNECTOR CABLES
Standard; Applicable for USA, CDN; Applicable from Ass. No. 61555 up to Ass. No. 67217 		$2,935.81 1
3 231520
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable from Ass. No. 61555 up to Ass. No. 71567 		$2,935.81 1
3 218503
DASHBOARD CONNECTOR CABLES
Full house; Not for GD; Applicable up to Ass. No. 61554 		$3,815.20 1
3 218384
DASHBOARD CONNECTOR CABLES
Standard; Not for GD; Applicable up to Ass. No. 61554 		$3,498.84 1
4 208355
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for USA, CDN; Applicable from Ass. No. 84423 		$731.00 1
4 208355
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for GD 		$731.00 1
4 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for USA, CDN; Applicable from Ass. No. 84423 		$406.28 1
4 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for GD 		$406.28 1
4 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for USA, CDN; Applicable up to Ass. No. 84422 		$315.99 1
4 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for GD 		$315.99 1
5 219904
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971
IN STOCK 		$1,314.59 1
5 209438
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,531.85 1
5 221338
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 69639 		$2,818.23 1
5 215268
RH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 69638 		$2,404.62 1
6 219905
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971 		$1,917.04 1
6 209437
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,548.40 1
6 221339
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 69639 		$2,818.23 1
6 215269
LH CYLINDER BANK INJECTION CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 69638 		$2,917.75 1
7 208354
ABS/ASR SYSTEM CONNECTOR CABLES
Applicable for GD 		$681.10 1
7 192784
ABS/ASR SYSTEM CONNECTOR CABLES
Not for GD 		$579.77 1
8 240466
RH ENGINE COMPARTMENT CONNECTOR CABLES
Parking sensors; Optional; Applicable from MY 08; Applicable from Ass. No. 74557 		$496.56 1
8 230040
RH ENGINE COMPARTMENT CONNECTOR CABLES
Parking sensors; Applicable up to MY 08; Applicable for USA, CDN; Applicable from Ass. No. 67971 up to Ass. No. 74556 		$895.59 1
8 230040
RH ENGINE COMPARTMENT CONNECTOR CABLES
Parking sensors; Applicable up to MY 08; Not for USA, CDN; Applicable from Ass. No. 69639 up to Ass. No. 74556 		$895.59 1
8 223683
RH ENGINE COMPARTMENT CONNECTOR CABLES
Parking sensors; Optional; Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$511.61 1
8 223683
RH ENGINE COMPARTMENT CONNECTOR CABLES
Parking sensors; Optional; Not for USA, CDN; Applicable up to Ass. No. 69638 		$511.61 1
8 240460
RH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable from MY 08; Applicable from Ass. No. 74557 		$466.47 1
8 230039
RH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable up to MY 08; Applicable for USA, CDN; Applicable from Ass. No. 67971 up to Ass. No. 74556 		$798.87 1
8 230039
RH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable up to MY 08; Not for USA, CDN; Applicable from Ass. No. 69639 up to Ass. No. 74556 		$798.87 1
8 223682
RH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for USA, CDN; Applicable from Ass. No. 62016 up to Ass. No. 67970 		$476.09 1
8 223682
RH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 62016 up to Ass. No. 69638 		$476.09 1
8 202973
RH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable up to Ass. No. 62015 		$556.57 1
9 240332
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for CINA; Applicable from Ass. No. 73460; Applicable for F1 gearbox 		$692.18 1
9 227390
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for CINA; Applicable up to Ass. No. 73459; Applicable for F1 gearbox 		- 1 Enquire
9 230038
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971; Applicable for F1 gearbox 		$626.66 1
9 218248
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 62015; Applicable for F1 gearbox 		$721.34 1
9 240331
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 73460; Applicable for F1 gearbox 		$571.80 1
9 230037
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 69639 up to Ass. No. 73459; Applicable for F1 gearbox 		$548.41 1
9 218146
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 40466 up to Ass. No. 62015; Applicable for F1 gearbox 		$692.18 1
9 203015
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 40465; Applicable for F1 gearbox 		$752.38 1
9 230036
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971; Not for F1 gearbox 		$742.71 1
9 221348
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for USA, CDN; Applicable from Ass. No. 61578 up to Ass. No. 62015; Not for F1 gearbox 		$1,875.44 1
9 218246
LH ENGINE COMPARTMENT CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 61577; Not for F1 gearbox 		$803.55 1
9 240330
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 73460; Not for F1 gearbox 		$603.46 1
9 230035
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 69639 up to Ass. No. 73459; Not for F1 gearbox 		$649.06 1
9 221347
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 61578 up to Ass. No. 62015; Not for F1 gearbox 		$1,861.58 1
9 218144
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable from Ass. No. 40466 up to Ass. No. 61577; Not for F1 gearbox 		$812.57 1
9 202975
LH ENGINE COMPARTMENT CONNECTOR CABLES
Not for USA, CDN; Applicable up to Ass. No. 40465; Not for F1 gearbox 		$857.71 1
10 218558
TAILLIGHT CONNECTOR CABLES
Applicable for Korea; No longer supplied 		$43.59 2
10 199173
TAILLIGHT CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 40465 		$165.51 2
10 210637
TAILLIGHT CONNECTOR CABLES
Not applicable for Korea; Not for USA, CDN; Applicable up to Ass. No. 40465 		$83.17 2
11 182985
PLATE LIGHT CABLES 		$226.86 1
13 227387
REAR CABLE
Applicable for CINA; Applicable up to Ass. No. 72455 		- 1 Enquire
13 240463
REAR PART CONNECTOR CABLES
Applicable from MY 08; Applicable from Ass. No. 74557 		$1,128.57 1
13 235560
REAR PART CONNECTOR CABLES
Applicable up to MY 08; Applicable from Ass. No. 72456 up to Ass. No. 74556 		$1,173.71 1
13 218508
REAR PART CONNECTOR CABLES
Applicable from Ass. No. 60052 up to Ass. No. 72455 		$1,326.21 1
13 218508
REAR PART CONNECTOR CABLES
Applicable up to Ass. No. 60051 		$1,326.21 1
14 192534
COMPLETE ENGINE SERVICES CONNECTOR CABLES 		$285.89 1
15 213318
CENTRE CONSOLE CONNECTOR CABLES 		$76.73 1
16 240459
COMPLETE GEARBOX CONTROL CABLES
Applicable from MY 08; Applicable from Ass. No. 74557; Applicable for F1 gearbox 		$586.85 1
16 227293
COMPLETE GEARBOX CONTROL CABLES
Applicable for Digitek F1 panel; Applicable up to MY 08; Applicable from Ass. No. 66454 up to Ass. No. 74556; Applicable for F1 gearbox 		$1,633.45 1
16 221019
COMPLETE GEARBOX CONTROL CABLES
Applicable for Jaeger F1 panel; Applicable from Ass. No. 61587 up to Ass. No. 66453; Applicable for F1 gearbox; Applicable until depletion 		$601.90 1
16 208342
COMPLETE GEARBOX CONTROL CABLES
Applicable up to Ass. No. 61586; Applicable for F1 gearbox 		$1,200.89 1
17 199522
BECKER WIRING HARNESS
Optional 		$30.08 1
17 199521
BLUETOOTH WIRING HARNESS
Optional 		$109.83 1
18 227630
WIRING HARNESS FOR DIGITEK F1 PANEL
Applicable for Digitek F1 panel with wiring harness 208342 and 221019; Applicable for F1 gearbox 		$93.28 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
