High Power Bose Hi Fi System

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - HIGH POWER BOSE HI FI SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
233478 BOSE BASS-BOX AMPLIFIER $2,098.12 To Order
Photo Part No Description Price (each) Stock
14358624 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
12638107 WASHER $0.93 To Order
Photo Part No Description Price (each) Stock
80409000 BRACKET $405.73 To Order
80946800 BRACKET $272.47 To Order
Photo Part No Description Price (each) Stock
80199100 BOSE BASS-BOX SUBSTRUCTURE $4,750.31 To Order
Photo Part No Description Price (each) Stock
80199300 GRILLE $198.29 To Order
Photo Part No Description Price (each) Stock
16085177 SCREW $2.45 To Order
Photo Part No Description Price (each) Stock
68927900 SCREW M6 X 25 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12611107 WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
80569100 RH RECESS $507.17 To Order
80569300 LH RECESS $507.17 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
80481600 MOUNTING BRACKET $583.24 To Order
Photo Part No Description Price (each) Stock
80482700 COMPLETE RH TWIDDLER CONTAINER $790.70 To Order
80483800 COMPLETE RH TWIDDLER CONTAINER $1,040.20 To Order
81129900 COMPLETE RH TWIDDLER CONTAINER Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
227270 TWIDDLER $243.43 To Order
Photo Part No Description Price (each) Stock
16082777 SCREW $1.09 IN STOCK
Photo Part No Description Price (each) Stock
80584300 SURROUND FOR TWIDDLER $329.66 To Order
Photo Part No Description Price (each) Stock
68927400 SCREW $0.60 To Order
Photo Part No Description Price (each) Stock
12611107 WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
233479 BOSE 8800 AMPLIFIER $2,897.41 To Order
Photo Part No Description Price (each) Stock
14305321 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192522 BOSE AUDIOPILOT MICROPHONE $74.16 To Order
Photo Part No Description Price (each) Stock
61756800 RIVET $0.14 To Order
Photo Part No Description Price (each) Stock
80552200 CABLE RETAINER BRACKET $6.71 To Order
Photo Part No Description Price (each) Stock
16082977 SCREW $6.51 To Order
Photo Part No Description Price (each) Stock
80554000 GRILLE $164.82 To Order
Photo Part No Description Price (each) Stock
14418924 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
13550077 WASHER $3.04 To Order
Photo Part No Description Price (each) Stock
80858000 STUD BOLT $10.14 To Order
Photo Part No Description Price (each) Stock
80858100 STUD BOLT $7.86 To Order
Photo Part No Description Price (each) Stock
80858400 MOUNTING $7.71 To Order
Photo Part No Description Price (each) Stock
12577821 NUT $0.37 To Order
Photo Part No Description Price (each) Stock
81017800 GASKET $10.03 To Order
View All

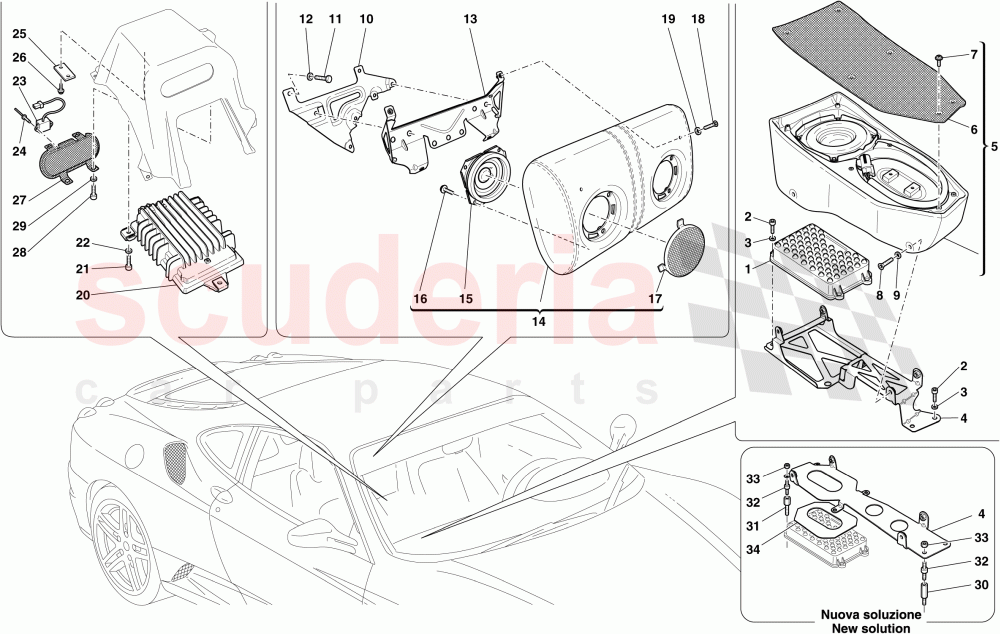

HIGH POWER BOSE HI FI SYSTEM of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 233478
BOSE BASS-BOX AMPLIFIER 		$2,098.12 1
2 14358624
SCREW
Applicable up to Ass. No. 74795 		$0.15 6
3 12638107
WASHER
Applicable up to Ass. No. 74795 		$0.93 6
4 80409000
BRACKET
Applicable up to Ass. No. 74795 		$405.73 1
4 80946800
BRACKET
Applicable from Ass. No. 74796 		$272.47 1
5 80199100
BOSE BASS-BOX SUBSTRUCTURE 		$4,750.31 1
6 80199300
GRILLE 		$198.29 1
7 16085177
SCREW 		$2.45 6
8 68927900
SCREW M6 X 25
M6 X 25
IN STOCK 		$0.23 (69.3% off) 4
9 12611107
WASHER 		$0.67 4
10 80569100
RH RECESS 		$507.17 1
10 80569300
LH RECESS 		$507.17 1
11 897538
SCREW
L. 14 mm 		$1.53 6
12 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 6
13 80481600
MOUNTING BRACKET 		$583.24 2
14 80482700
COMPLETE RH TWIDDLER CONTAINER
Not for USA, CDN 		$790.70 1
14 80483800
COMPLETE RH TWIDDLER CONTAINER
Applicable for USA, CDN 		$1,040.20 1
14 81129900
COMPLETE RH TWIDDLER CONTAINER
Applicable for vehicles with rollbar 		- 1 Enquire
14 80602100
COMPLETE LH TWIDDLER CONTAINER 		$967.06 1
14 81130000
COMPLETE LH TWIDDLER CONTAINER
Applicable for vehicles with rollbar 		- 1 Enquire
15 227270
TWIDDLER 		$243.43 4
16 16082777
SCREW
IN STOCK 		$1.09 16
17 80584300
SURROUND FOR TWIDDLER 		$329.66 4
18 68927400
SCREW 		$0.60 16
19 12611107
WASHER 		$0.67 16
20 233479
BOSE 8800 AMPLIFIER 		$2,897.41 1
21 14305321
SCREW 		$0.09 (88% off) 3
22 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
23 192522
BOSE AUDIOPILOT MICROPHONE 		$74.16 1
24 61756800
RIVET 		$0.14 2
25 80552200
CABLE RETAINER BRACKET 		$6.71 1
26 16082977
SCREW 		$6.51 2
27 80554000
GRILLE 		$164.82 1
28 14418924
SCREW 		$0.46 (8% off) 4
29 13550077
WASHER 		$3.04 4
30 80858000
STUD BOLT
Applicable from Ass. No. 74796 		$10.14 2
31 80858100
STUD BOLT
Applicable from Ass. No. 74796 		$7.86 4
32 80858400
MOUNTING
Applicable from Ass. No. 74796 		$7.71 6
33 12577821
NUT
Applicable from Ass. No. 74796 		$0.37 6
34 81017800
GASKET 		$10.03 1
