Name: FUEL SYSTEM PUMPS AND PIPES
Rating: 4.4 (1 reviews)

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

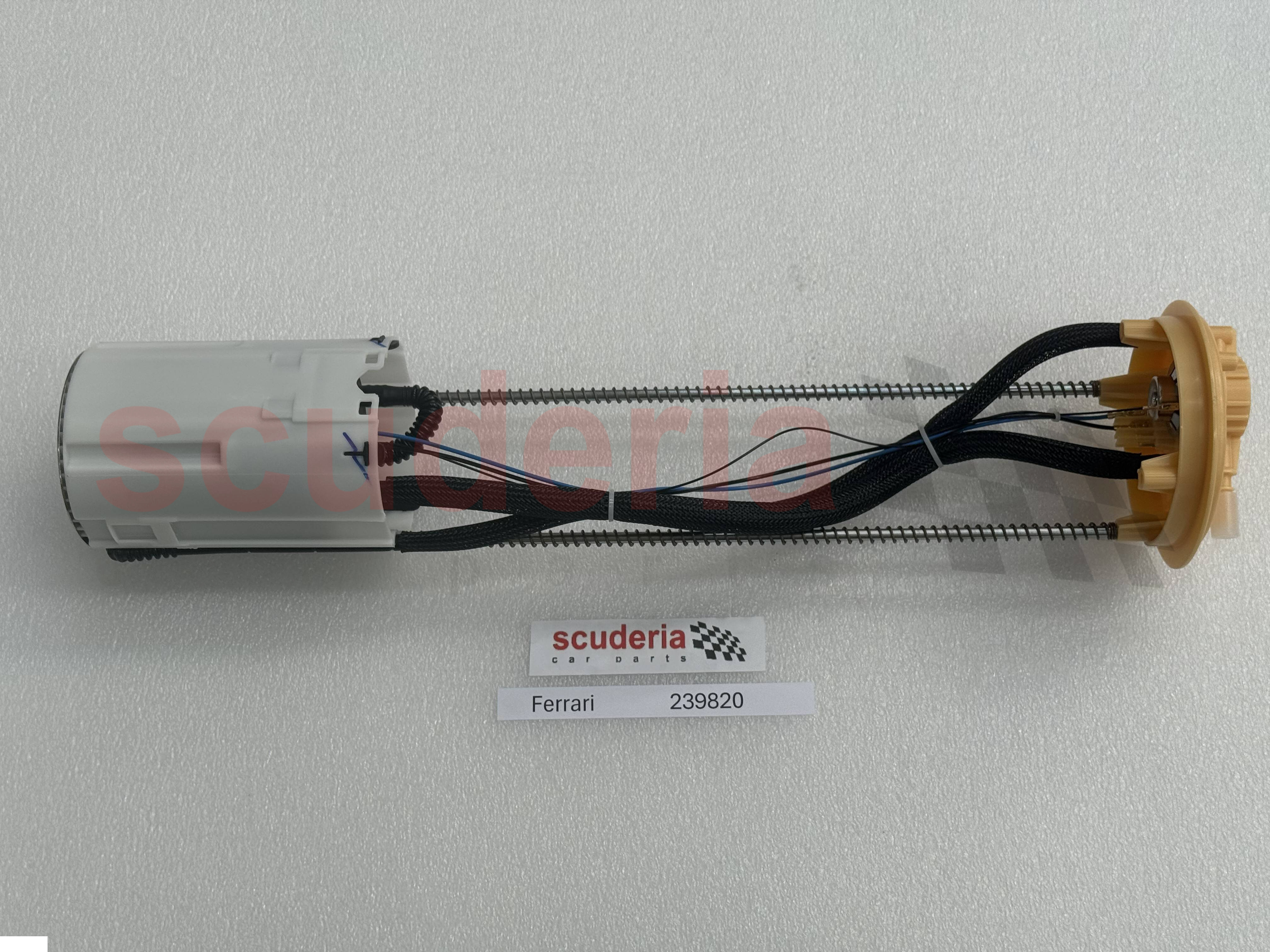

	239820	RH Fuel Pump	$528.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock

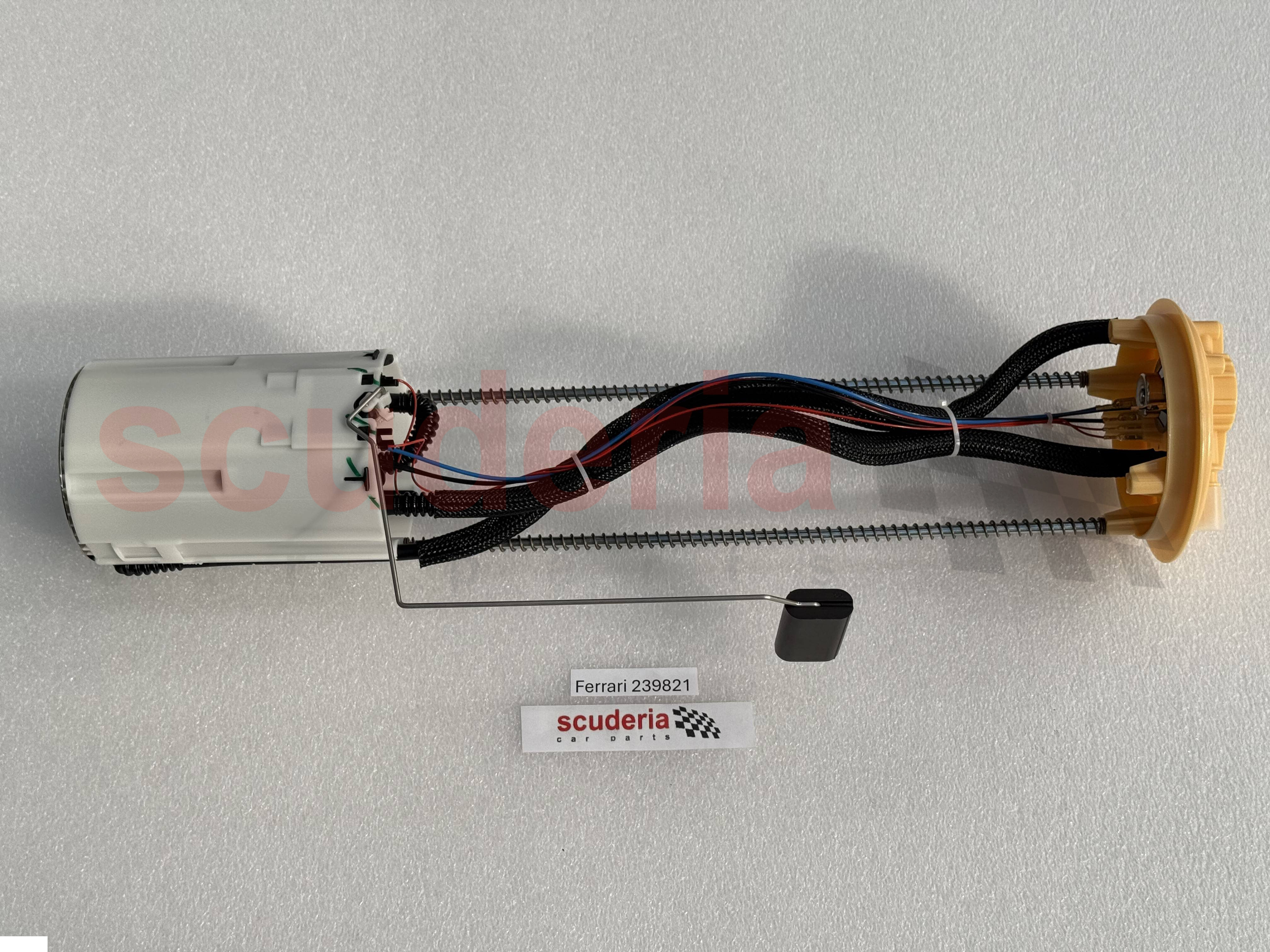

	239821	LH Fuel Pump and Fuel Level Indicator	$602.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196124	FUEL SENSOR	$204.64	To Order

Photo	Part No	Description	Price (each)	Stock
	196100	RH PUMP MOUNT COVER	$119.11	To Order

Photo	Part No	Description	Price (each)	Stock
	181682	FUEL PUMP RETAINER RING NUT	$25.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196101	LH PUMP MOUNT COVER	$111.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	181681	Fuel Pump Gasket	$21.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock

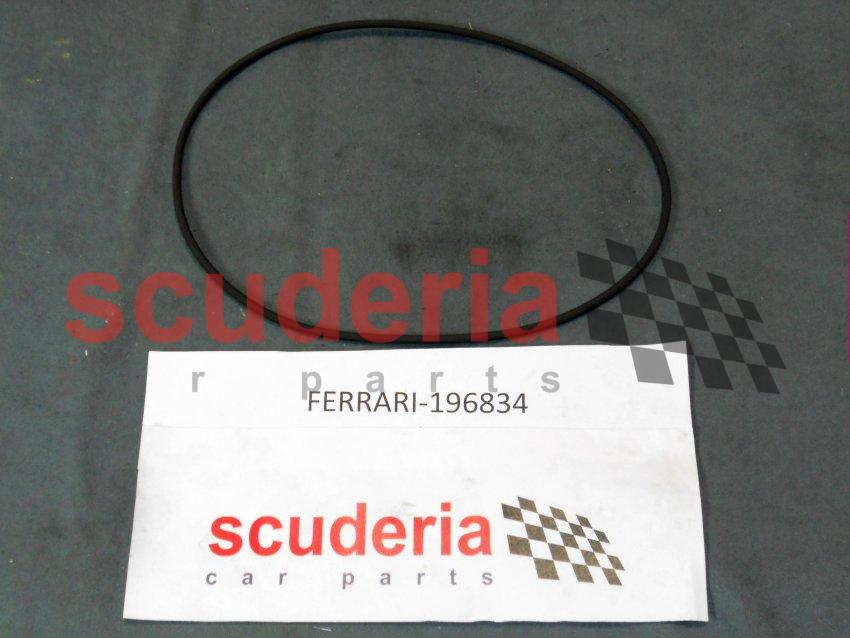

	196834	O-RING	$15.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	208831	RH CONNECTION PIPE	$264.32	To Order

Photo	Part No	Description	Price (each)	Stock

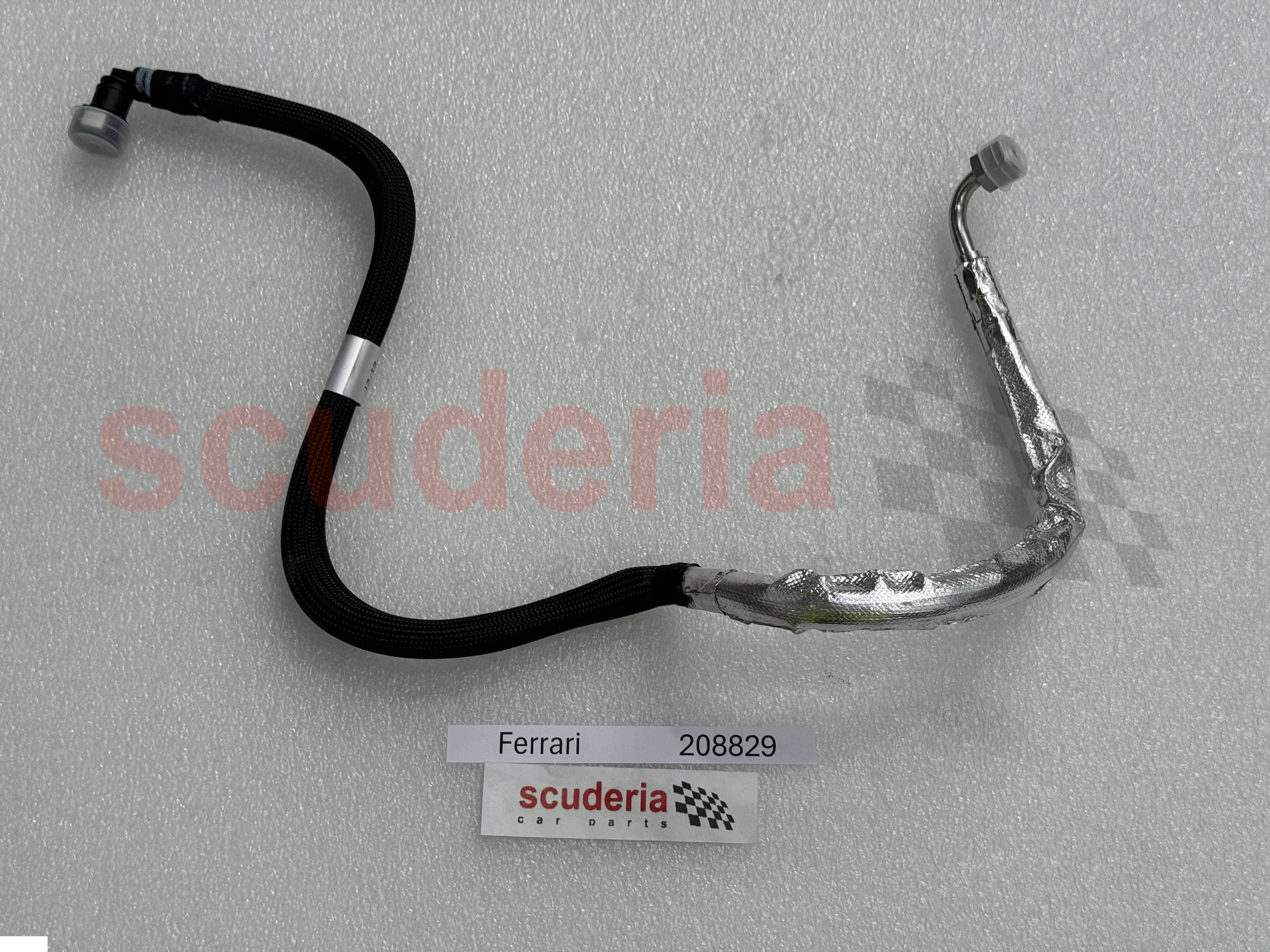

	208829	LH CONNECTOR PIPE	$264.32	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	239820	RH Fuel Pump IN STOCK	239820 RH Fuel Pump IN STOCK	$528.66 MSRP: ~~633.58~~ (16.6% off)	1
2	239821	LH Fuel Pump and Fuel Level Indicator IN STOCK	239821 LH Fuel Pump and Fuel Level Indicator IN STOCK	$602.68 MSRP: ~~723.86~~ (16.7% off)	1
3	196124	FUEL SENSOR	196124 FUEL SENSOR	$204.64 MSRP: ~~284.55~~ (28.1% off)	1
4	196100	RH PUMP MOUNT COVER	196100 RH PUMP MOUNT COVER Applicable up to Ass. No. 67394	$119.11	1
5	181682	FUEL PUMP RETAINER RING NUT IN STOCK	181682 FUEL PUMP RETAINER RING NUT IN STOCK	$25.95 MSRP: ~~35.00~~ (25.9% off)	2
6	196101	LH PUMP MOUNT COVER	196101 LH PUMP MOUNT COVER Applicable up to Ass. No. 67394	$111.10	1
7	10977624	SCREW IN STOCK	10977624 SCREW Applicable up to Ass. No. 67394 IN STOCK	$0.06	26
8	12601174	WASHER	12601174 WASHER Applicable up to Ass. No. 67394	$0.06 MSRP: ~~0.35~~ (82.9% off)	26
9	181681	Fuel Pump Gasket IN STOCK	181681 Fuel Pump Gasket IN STOCK	$21.37 MSRP: ~~24.78~~ (13.8% off)	2
10	196834	O-RING IN STOCK	196834 O-RING Applicable up to Ass. No. 67394 IN STOCK	$15.23	2
11	208831	RH CONNECTION PIPE	208831 RH CONNECTION PIPE	$264.32	1
12	208829	LH CONNECTOR PIPE	208829 LH CONNECTOR PIPE	$264.32	1

Fuel System Pumps And Pipes

Ferrari 430 Coupe
