Crankshaft - Connecting Rods And Pistons

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
196460 CRANKSHAFT $8,701.04 To Order
Photo Part No Description Price (each) Stock
286833 UPPER HALF-BEARING $23.00 IN STOCK
286834 UPPER HALF-BEARING $21.74 IN STOCK
286832 UPPER MAIN HALF BEARING BLUE $23.77 IN STOCK
Photo Part No Description Price (each) Stock
286837 LOWER HALF-BEARING $23.00 IN STOCK
286838 LOWER HALF-BEARING $21.37 To Order
200194 Lower Main Half Bearing Blue $29.00 IN STOCK
Photo Part No Description Price (each) Stock
222874 SHIM RING $30.68 To Order
196648 UPPER SHIM RING $345.38 To Order
Photo Part No Description Price (each) Stock
222874 SHIM RING $30.68 To Order
196649 LOWER SHIM RING $345.38 To Order
Photo Part No Description Price (each) Stock
212322 TORSION DAMPER $665.25 To Order
Photo Part No Description Price (each) Stock
263683 WASHER $46.05 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $66.09 IN STOCK
Photo Part No Description Price (each) Stock
103877 BEARING $31.67 IN STOCK
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $48.89 IN STOCK
200323 REAR MAIN OIL SEALING RING D.80-100X10 $48.89 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $0.96 IN STOCK
Photo Part No Description Price (each) Stock
244887 COMPL. CONNECTING ROD AND CAP $930.58 To Order
Photo Part No Description Price (each) Stock
210361 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $805.90 To Order
210360 PISTON COMPL. WITH RINGS, RH CYLINDER BANK $805.90 To Order
Photo Part No Description Price (each) Stock
236497 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
226260 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
175614 OIL SCRAPER RING $70.64 To Order
Photo Part No Description Price (each) Stock
178890 STOP RING $2.90 To Order
Photo Part No Description Price (each) Stock
175367 GUDGEON PIN $69.07 To Order
Photo Part No Description Price (each) Stock
234861 BUSHING $6.14 To Order
Photo Part No Description Price (each) Stock
208095 CON. ROD FASTENER SCREW $71.63 To Order
215530 CON. ROD FASTENER SCREW $162.03 To Order
Photo Part No Description Price (each) Stock
204292 CONNECTING ROD HALF-BEARING $8.86 IN STOCK
204291 CONNECTING ROD HALF-BEARING BLUE $8.86 IN STOCK
204290 Connecting Rod Half Bearing Red $8.86 IN STOCK
Photo Part No Description Price (each) Stock
240375 COMPLETE PISTON RING SET $273.20 IN STOCK
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $3.75 IN STOCK
View All

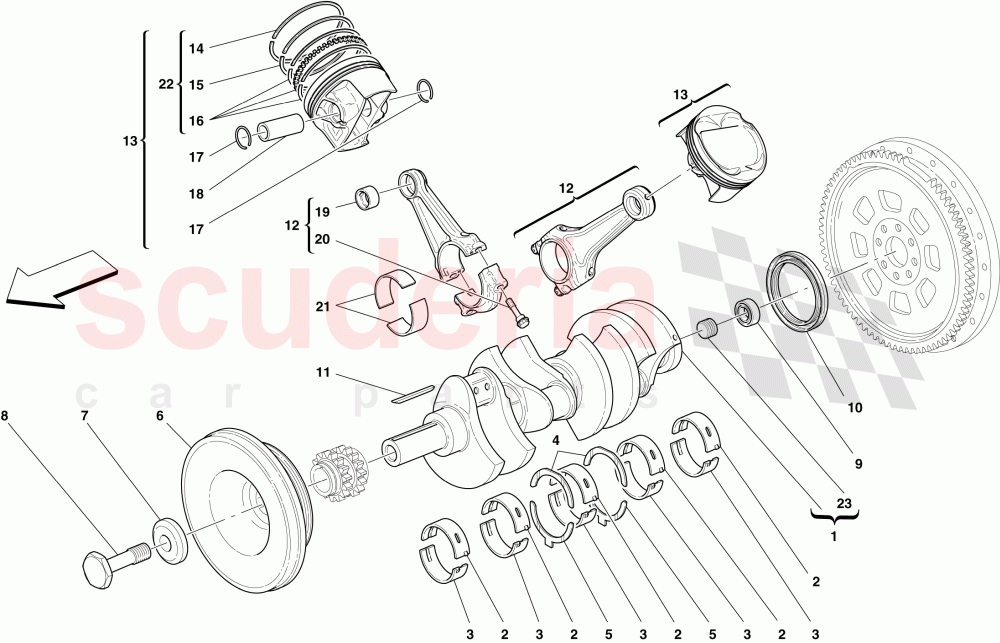

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 196460
CRANKSHAFT 		$8,701.04 1
2 286833
UPPER HALF-BEARING
Yellow
IN STOCK 		$23.00 5
2 286834
UPPER HALF-BEARING
Green
IN STOCK 		$21.74 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue; Standard
IN STOCK 		$23.77 5
3 286837
LOWER HALF-BEARING
Yellow
IN STOCK 		$23.00 5
3 286838
LOWER HALF-BEARING
Green 		$21.37 5
3 200194
Lower Main Half Bearing Blue
Blue; Standard
IN STOCK 		$29.00 5
4 222874
SHIM RING
Applicable for crankcase 236095 Tab. 1 pos.1; Applicable from Ass. No. 72742 		$30.68 2
4 196648
UPPER SHIM RING
Applicable up to Ass. No. 72741 		$345.38 (44.5% off) 2
5 222874
SHIM RING
Applicable for crankcase 236095 Tab. 1 pos.1; Applicable from Ass. No. 72742 		$30.68 2
5 196649
LOWER SHIM RING
Applicable up to Ass. No. 72741 		$345.38 2
6 212322
TORSION DAMPER 		$665.25 1
7 263683
WASHER 		$46.05 1
8 196216
SCREW
IN STOCK 		$66.09 1
9 103877
BEARING
IN STOCK 		$31.67 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
Alternative solution
IN STOCK 		$48.89 (27.2% off) 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
IN STOCK 		$48.89 (27.2% off) 1
11 186201
TAB
IN STOCK 		$0.96 1
12 244887
COMPL. CONNECTING ROD AND CAP
Not applicable with phosphatised screw; Applicable from Ass. No. 76459 		$930.58 8
13 210361
PISTON COMPL. WITH RINGS, LH CYLINDER BANK 		$805.90 4
13 210360
PISTON COMPL. WITH RINGS, RH CYLINDER BANK 		$805.90 (22.7% off) 4
14 236497
SEAL RING
1st groove; Not available as spare part; With complete piston ring set ref. 22 		- 8 Enquire
15 226260
SEAL RING
2nd groove; Not available as spare part; With complete piston ring set ref. 22 		- 8 Enquire
16 175614
OIL SCRAPER RING
3rd groove; Not available as spare part; With complete piston ring set ref. 22 		$70.64 8
17 178890
STOP RING
Applicable until depletion 		$2.90 16
18 175367
GUDGEON PIN
Applicable until depletion 		$69.07 8
19 234861
BUSHING 		$6.14 8
20 208095
CON. ROD FASTENER SCREW
Applicable from Ass. No. 76459 		$71.63 16
20 215530
CON. ROD FASTENER SCREW
Phosphatised; Applicable up to Ass. No. 76458 		$162.03 16
21 204292
CONNECTING ROD HALF-BEARING
Black
IN STOCK 		$8.86 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue
IN STOCK 		$8.86 (64.3% off) 16
21 204290
Connecting Rod Half Bearing Red
Red; Standard
IN STOCK 		$8.86 16
22 240375
COMPLETE PISTON RING SET
IN STOCK 		$273.20 8
23 163528
THREADED PLUG
IN STOCK 		$3.75 (11.8% off) 1
