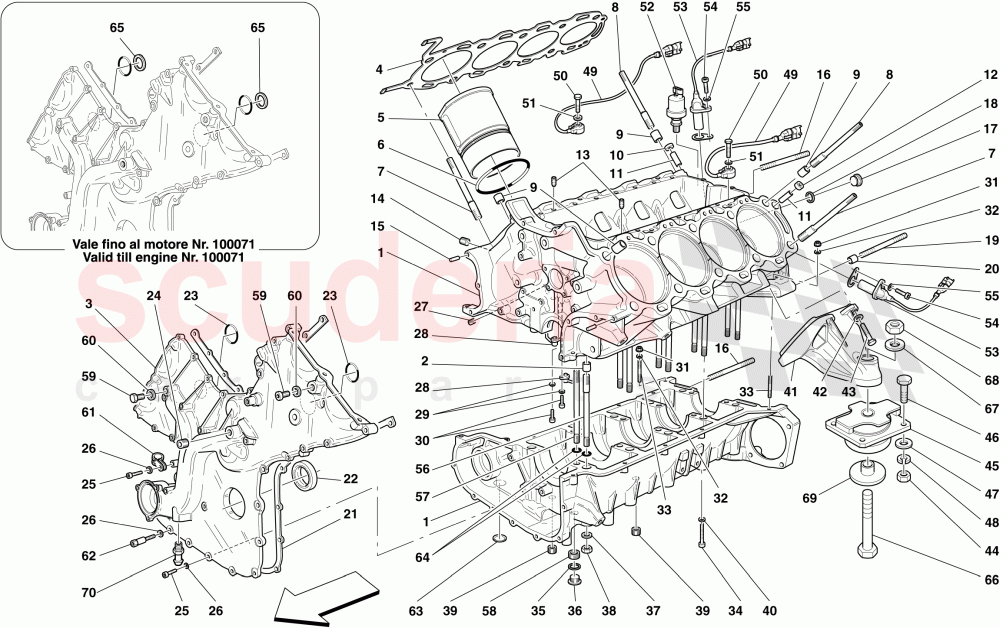

Ferrari 430 Coupe - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	236095	COMPLETE CRANKCASE	$3,592.06	To Order
	202077	COMPLETE CRANKCASE	$5,033.09	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	229253	FRONT COVER	$893.13	To Order

Photo	Part No	Description	Price (each)	Stock
	55012822	LH Cylinder Head Gasket	$393.05	ARRIVING SOON
	55012820	RH HEAD-CRANKCASE GASKET	$380.36	To Order

Photo	Part No	Description	Price (each)	Stock
	190770	CYLINDER SLEEVE	$1,438.10	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217967	STUD BOLT	$11.84	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	201850	DOWEL	$4.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	201849	DOWEL	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	177727	CENTRING DOWEL	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.32	IN STOCK
	193885	THREADED PLUG	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	245464323979	FRONT COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal	$28.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING D-32.93	$1.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14324940	THREADED PLUG	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14303924	SCREW	$0.35	To Order
	156828	SCREW	$0.64	To Order
	231624	SCREW	$0.41	IN STOCK

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	175657	PISTON COOLING NOZZLE	$8.91	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	252274	SCREW WITH WASHER	$0.41	To Order
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD BOLT	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	ALLEN SCREW M6 X 20	$0.08	IN STOCK
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.41	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	207220	RH ENGINE MOUNTING STRUT	$1,438.10	To Order
	207221	LH ENGINE MOUNTING STRUT	$1,438.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	$0.54	To Order
	15970734	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219870	LH KNOCK SENSOR	$94.77	To Order
	219869	RH KNOCK SENSOR	$127.79	To Order
	187740	KNOCK SENSOR	$213.00	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	219873	LH Cylinder Bank Speed Sensor	$154.07	IN STOCK
	219872	RH CYLINDER BANK RPM SENSOR	$149.09	To Order
	182194	RPM Sensor	$77.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217794	STUD BOLT	$10.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187718	BLEED PLUG	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	206672	STUD BOLT	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191620	WATER OUTPUT REDUCER	$69.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11369634	SCREW	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	SELF-LOCKING HEX NUT M16 X 1.5	$1.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182141	RETAINER WASHER	$41.82	To Order

Photo	Part No	Description	Price (each)	Stock
	213389	CONNECTOR	$12.02	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	236095	COMPLETE CRANKCASE	236095 COMPLETE CRANKCASE Replaces 233052; Applicable with shims 222874, Table 2 pos.4 and 5; Applicable from Ass. No. 72742	$3,592.06	1
1	202077	COMPLETE CRANKCASE	202077 COMPLETE CRANKCASE Applicable up to engine No. 89098	$5,033.09	1
2	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.05	10
3	229253	FRONT COVER	229253 FRONT COVER See detail in TI 1544; Applicable from engine No. 117479	$893.13	1
4	55012822	LH Cylinder Head Gasket ARRIVING SOON	55012822 LH Cylinder Head Gasket ARRIVING SOON	$393.05	1
4	55012820	RH HEAD-CRANKCASE GASKET	55012820 RH HEAD-CRANKCASE GASKET	$380.36	1
5	190770	CYLINDER SLEEVE	190770 CYLINDER SLEEVE	$1,438.10	8
6	186251	O-RING IN STOCK	186251 O-RING IN STOCK	$2.43 MSRP: ~~3.20~~ (24.1% off)	24
7	217967	STUD BOLT	217967 STUD BOLT	$11.84	10
8	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.10	10
9	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.80	4
10	201850	DOWEL IN STOCK	201850 DOWEL IN STOCK	$4.05	1
11	200458	CHECK VALVE IN STOCK	200458 CHECK VALVE IN STOCK	$9.22	2
12	201849	DOWEL	201849 DOWEL	$5.75	1
13	177727	CENTRING DOWEL	177727 CENTRING DOWEL	$2.46	2
14	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.30	1
15	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.68	2
16	13546834	STUD BOLT	13546834 STUD BOLT	$1.44	4
17	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.32	1
17	193885	THREADED PLUG	193885 THREADED PLUG Applicable until depletion	$2.84	1
18	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	1
19	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT IN STOCK	$1.68	3
20	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.23	2
21	245464323979	FRONT COVER GASKET	245464323979 FRONT COVER GASKET Applicable until depletion	-	1	Enquire
22	188717	Front Crankshaft Seal IN STOCK	188717 Front Crankshaft Seal IN STOCK	$28.75 MSRP: ~~39.38~~ (27% off)	1
23	183010	O-RING D-32.93 IN STOCK	183010 O-RING D-32.93 IN STOCK	$1.61 MSRP: ~~2.89~~ (44.3% off)	2
24	14324940	THREADED PLUG	14324940 THREADED PLUG	$1.94	1
25	14303924	SCREW	14303924 SCREW M6 X 70	$0.35	3
25	156828	SCREW	156828 SCREW M6 X 50	$0.64 MSRP: ~~1.50~~ (57.3% off)	3
25	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.41	2
25	231622	SCREW IN STOCK	231622 SCREW M6 X 35 IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	1
25	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	3
25	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
25	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	15
26	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	28
27	13525770	THREADED INSERT	13525770 THREADED INSERT	$2.61 MSRP: ~~3.67~~ (28.9% off)	5
28	175657	PISTON COOLING NOZZLE	175657 PISTON COOLING NOZZLE	$8.91	8
29	11181474	WASHER	11181474 WASHER No longer supplied	$0.06	8
30	252274	SCREW WITH WASHER	252274 SCREW WITH WASHER	$0.41	8
30	14302921	SCREW	14302921 SCREW No longer supplied; Replaced by 252274	$0.06	8
31	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
32	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
33	13541624	STUD BOLT	13541624 STUD BOLT	$0.46 MSRP: ~~1.49~~ (69.1% off)	2
34	14305324	ALLEN SCREW M6 X 20 IN STOCK	14305324 ALLEN SCREW M6 X 20 IN STOCK	$0.08	1
34	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	10
35	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
36	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.41 MSRP: ~~6.90~~ (21.6% off)	1
37	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.73	20
38	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	20
39	282756	THREADED PLUG	282756 THREADED PLUG	$2.61	4
40	11197774	WASHER IN STOCK	11197774 WASHER No longer supplied IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	11
41	207220	RH ENGINE MOUNTING STRUT	207220 RH ENGINE MOUNTING STRUT	$1,438.10	1
41	207221	LH ENGINE MOUNTING STRUT	207221 LH ENGINE MOUNTING STRUT	$1,438.10	1
42	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
43	11306934	SCREW	11306934 SCREW Applicable from Ass. No. 60389	$0.54 MSRP: ~~1.50~~ (64% off)	8
43	15970734	SCREW	15970734 SCREW Applicable up to Ass. No. 60388	$0.46	8
44	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	8
46	15970634	SCREW	15970634 SCREW	$0.38 MSRP: ~~3.25~~ (88.3% off)	8
47	12647021	WASHER IN STOCK	12647021 WASHER IN STOCK	$0.31	8
48	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	8
49	219870	LH KNOCK SENSOR	219870 LH KNOCK SENSOR Timing side	$94.77	1
49	219869	RH KNOCK SENSOR	219869 RH KNOCK SENSOR Timing side	$127.79	1
49	187740	KNOCK SENSOR	187740 KNOCK SENSOR Timing side; Replaced by 219872 and 219873; No longer supplied	$213.00	2
49	219871	LH KNOCK SENSOR	219871 LH KNOCK SENSOR Flywheel side	$127.79	1
49	219868	RH KNOCK SENSOR	219868 RH KNOCK SENSOR Flywheel side	$127.79	1
49	187739	KNOCK SENSOR	187739 KNOCK SENSOR Flywheel side; Replaced by 219872 and 219873; No longer supplied	$244.95	2
50	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	4
51	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.60	4
53	219873	LH Cylinder Bank Speed Sensor IN STOCK	219873 LH Cylinder Bank Speed Sensor IN STOCK	$154.07 MSRP: ~~180.70~~ (14.7% off)	1
53	219872	RH CYLINDER BANK RPM SENSOR	219872 RH CYLINDER BANK RPM SENSOR	$149.09 MSRP: ~~180.70~~ (17.5% off)	1
53	182194	RPM Sensor IN STOCK	182194 RPM Sensor Replaced by 219872 and 219873; No longer supplied IN STOCK	$77.05 MSRP: ~~111.23~~ (30.7% off)	2
54	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
55	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
56	217794	STUD BOLT IN STOCK	217794 STUD BOLT IN STOCK	$10.14	10
57	217796	STUD BOLT	217796 STUD BOLT	$10.14	10
58	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$5.15	1
59	187718	BLEED PLUG	187718 BLEED PLUG	$6.19	2
60	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	2
61	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$0.52	1
62	206672	STUD BOLT	206672 STUD BOLT	$5.75	2
63	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
64	134704	O-RING IN STOCK	134704 O-RING IN STOCK	$0.14 MSRP: ~~1.00~~ (86% off)	20
65	191620	WATER OUTPUT REDUCER	191620 WATER OUTPUT REDUCER Applicable up to engine No. 100071	$69.73	2
66	11369634	SCREW	11369634 SCREW	$3.13 MSRP: ~~4.00~~ (21.8% off)	2
67	12601774A	WASHER	12601774A WASHER	-	2	Enquire
68	176573	SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	176573 SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	$1.74 MSRP: ~~2.25~~ (22.7% off)	2
69	182141	RETAINER WASHER	182141 RETAINER WASHER	$41.82 MSRP: ~~61.45~~ (31.9% off)	2
70	213389	CONNECTOR	213389 CONNECTOR	$12.02	1
