Ferrari 360 Modena - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181746 RETURN WATER PIPE $137.33 To Order
164162 RETURN WATER PIPE $212.37 To Order
Photo Part No Description Price (each) Stock
173384 DELIVERY WATER PIPE $147.13 To Order
181790 DELIVERY WATER PIPE $136.52 To Order
Photo Part No Description Price (each) Stock
220948 RUBBER PIPE $45.46 To Order
175000 RETURN RUBBER PIPE $254.11 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
13001690 SCREW COLLAR $1.18 To Order
Photo Part No Description Price (each) Stock
164165 DELIVERY RUBBER HOSE $86.45 To Order
181802 DELIVERY RUBBER HOSE $190.58 To Order
Photo Part No Description Price (each) Stock
168220 Screw Collar -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 268210- $1.44 IN STOCK
Photo Part No Description Price (each) Stock
173402 RETURN RUBBER HOSE $142.58 IN STOCK
181745 RETURN RUBBER HOSE $78.87 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.18 To Order
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
Photo Part No Description Price (each) Stock
175643 WATER RETURN RUBBER PIPE $190.58 To Order
181789 DELIVERY RUBBER HOSE $133.48 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.18 To Order
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
Photo Part No Description Price (each) Stock
164164 UNDERFLOOR RETURN ALUMINIUM TUBE $273.05 To Order
181743 UNDERFLOOR RETURN ALUMINIUM TUBE $227.54 To Order
Photo Part No Description Price (each) Stock
181788 UNDERFLOOR DELIVERY ALUMINIUM TUBE $63.06 To Order
164163 UNDERFLOOR DELIVERY ALUMINIUM TUBE $74.61 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.18 To Order
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
Photo Part No Description Price (each) Stock
175592 Water Hose $223.18 IN STOCK
181742 DELIVERY RUBBER HOSE $142.58 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.18 To Order
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
Photo Part No Description Price (each) Stock
173392 RETURN ALUMINIUM TUBE $216.00 To Order
181734 RETURN ALUMINIUM TUBE $165.17 To Order
Photo Part No Description Price (each) Stock
173393 DELIVERY ALUMINIUM TUBE $485.43 To Order
180746 DELIVERY ALUMINIUM TUBE $303.39 To Order
181786 DELIVERY ALUMINIUM TUBE $572.42 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.78 IN STOCK
13001690 SCREW COLLAR $1.18 To Order
Photo Part No Description Price (each) Stock
178643 RETURN RUBBER HOSE $182.03 To Order
181733 RETURN RUBBER HOSE $144.10 To Order
Photo Part No Description Price (each) Stock
181779 Water Hose $150.17 To Order
175016 DELIVERY RUBBER HOSE $86.39 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.70 IN STOCK
Photo Part No Description Price (each) Stock
182301 BRACKET WITH SHEATH $18.00 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10979414 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65744800 HOSE FROM TGK VALVE TO RETURN PIPE $46.17 To Order
65231800 PIPE FROM TGK VALVE TO RETURN PIPE $36.19 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
183641 SHIM $4.49 IN STOCK
Photo Part No Description Price (each) Stock
183642 BRACKET WITH SHEATH $20.33 To Order
Photo Part No Description Price (each) Stock
182363 STUD BOLT $24.04 To Order
Photo Part No Description Price (each) Stock
13550221 WASHER $0.06 To Order
View All

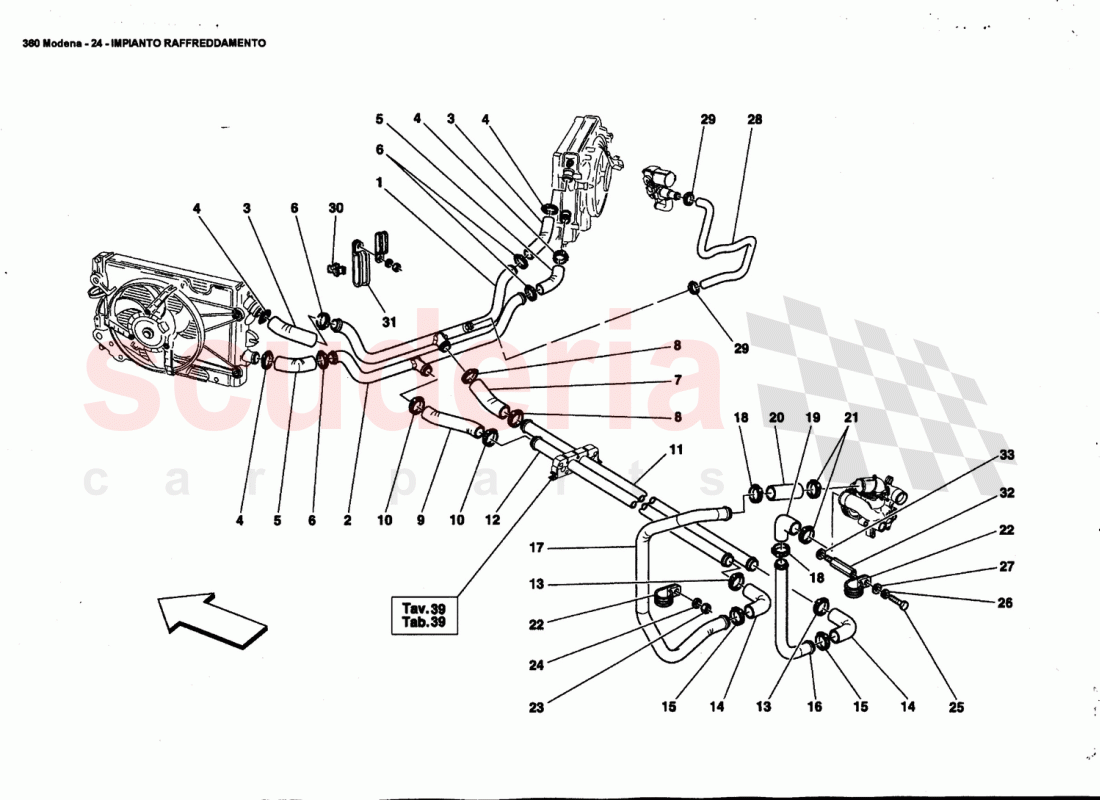

COOLING SYSTEM of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181746
RETURN WATER PIPE
Valid from Ass. Nr. 35744 		$137.33 1
1 164162
RETURN WATER PIPE
Valid till Ass. Nr. 35743 		$212.37 1
2 173384
DELIVERY WATER PIPE
Valid till Ass. Nr. 35743 		$147.13 1
2 181790
DELIVERY WATER PIPE
Valid from Ass. Nr. 35744 		$136.52 1
3 220948
RUBBER PIPE
Valid from Ass. Nr. 35744 		$45.46 2
3 175000
RETURN RUBBER PIPE
Valid till Ass. Nr. 35743 		$254.11 2
4 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 4
4 13001690
SCREW COLLAR 		$1.18 4
5 164165
DELIVERY RUBBER HOSE
Valid till Ass. Nr. 35743 		$86.45 2
5 181802
DELIVERY RUBBER HOSE
Valid from Ass. Nr. 35744 		$190.58 (30.7% off) 2
6 168220
Screw Collar -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 268210-
IN STOCK 		$1.44 4
7 173402
RETURN RUBBER HOSE
Valid till Ass. Nr. 35743
IN STOCK 		$142.58 1
7 181745
RETURN RUBBER HOSE
Valid from Ass. Nr. 35744 		$78.87 (30.1% off) 1
8 13001690
SCREW COLLAR 		$1.18 2
8 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 2
9 175643
WATER RETURN RUBBER PIPE
Valid till Ass. Nr. 35743 		$190.58 (25.9% off) 1
9 181789
DELIVERY RUBBER HOSE
Valid from Ass. Nr. 35744 		$133.48 (29.6% off) 1
10 13001690
SCREW COLLAR 		$1.18 2
10 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 2
11 164164
UNDERFLOOR RETURN ALUMINIUM TUBE
ALUMINIUM TUBE / Valid till Ass. Nr. 35743 		$273.05 1
11 181743
UNDERFLOOR RETURN ALUMINIUM TUBE
ALUMINIUM TUBE / Valid from Ass. Nr. 35744 		$227.54 1
12 181788
UNDERFLOOR DELIVERY ALUMINIUM TUBE
ALUMINIUM TUBE / Valid from Ass. Nr. 35744 		$63.06 1
12 164163
UNDERFLOOR DELIVERY ALUMINIUM TUBE
ALUMINIUM TUBE / Valid till Ass. Nr. 35743 		$74.61 1
13 13001690
SCREW COLLAR 		$1.18 2
13 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 2
14 175592
Water Hose
Valid till Ass. Nr. 35743
IN STOCK 		$223.18 2
14 181742
DELIVERY RUBBER HOSE
Valid from Ass. Nr. 35744 		$142.58 (25.6% off) 2
15 13001690
SCREW COLLAR 		$1.18 2
15 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 2
16 173392
RETURN ALUMINIUM TUBE
Valid till Ass. Nr. 35743 		$216.00 1
16 181734
RETURN ALUMINIUM TUBE
Valid from Ass. Nr. 35744 		$165.17 (29.7% off) 1
17 173393
DELIVERY ALUMINIUM TUBE
Valid till Ass. Nr. 32567 		$485.43 1
17 180746
DELIVERY ALUMINIUM TUBE
Valid from Ass. Nr. 32568 / till Ass. Nr. 35743 		$303.39 1
17 181786
DELIVERY ALUMINIUM TUBE
Valid from Ass. Nr. 35744 		$572.42 1
18 296781
PIPE CLAMP 30-45MM
Not as spare part / Replaced by 13001690
IN STOCK 		$7.78 2
18 13001690
SCREW COLLAR 		$1.18 2
19 178643
RETURN RUBBER HOSE
Valid till Ass. Nr. 35743 		$182.03 (17.3% off) 1
19 181733
RETURN RUBBER HOSE
Valid from Ass. Nr. 35744 		$144.10 (26.1% off) 1
20 181779
Water Hose
Valid from Ass. Nr. 35744 		$150.17 (28.1% off) 1
20 175016
DELIVERY RUBBER HOSE
Valid till Ass. Nr. 35743 		$86.39 1
21 13000790
SCREW COLLAR
IN STOCK 		$0.70 (68.9% off) 2
22 182301
BRACKET WITH SHEATH 		$18.00 2
23 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
24 12644424
WASHER
IN STOCK 		$0.06 (85% off) 1
25 10979414
SCREW 		$0.18 1
26 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
27 12644424
WASHER
IN STOCK 		$0.06 (85% off) 1
28 65744800
HOSE FROM TGK VALVE TO RETURN PIPE
RETURN PIPE / Valid for GD 		$46.17 1
28 65231800
PIPE FROM TGK VALVE TO RETURN PIPE
RETURN PIPE / Not for GD 		$36.19 (33.5% off) 1
29 262111
SCREW CLAMP 		$1.39 2
30 183641
SHIM
IN STOCK 		$4.49 2
31 183642
BRACKET WITH SHEATH 		$20.33 2
32 182363
STUD BOLT 		$24.04 2
33 13550221
WASHER 		$0.06 2
