Injection Device - Ignition

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - INJECTION DEVICE - IGNITION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
199876 L.H. SIDE ENGINE INJECTION CABLES $895.27 To Order
199874 L.H. SIDE ENGINE INJECTION CABLES $616.38 To Order
199875 R.H. SIDE ENGINE INJECTION CABLES $895.27 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
177074 Single Ignition Coil $407.12 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
10902534 SCREW $0.63 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192637 Spark Plug NGK $28.02 IN STOCK
192637 Spark Plug NGK $28.02 IN STOCK
Photo Part No Description Price (each) Stock
197808 Electro-Injector $315.18 To Order
197808 Electro-Injector $315.18 To Order
Photo Part No Description Price (each) Stock
133902 INJECTOR O-RING $5.00 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.80 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
206421 CONTROL UNIT IGNITION $1,682.26 To Order
206423 CONTROL UNIT IGNITION $3,186.36 To Order
201752 CONTROL UNIT IGNITION $3,188.89 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
174956 L.H. PLATE $23.65 To Order
189978 R.H. PLATE $36.40 To Order
177984 R.H. PLATE $368.57 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
198348 LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $983.37 To Order
198348 LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $983.37 To Order
198347 RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $983.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
185316 EMERGENCY SWITCH BRACKET $47.02 To Order
Photo Part No Description Price (each) Stock
179243 PLATE $4.31 To Order
Photo Part No Description Price (each) Stock
178430 FASTENER CLIP $0.37 IN STOCK
View All
INJECTION DEVICE - IGNITION of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 199876
L.H. SIDE ENGINE INJECTION CABLES
Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004-- Valid till Ass. Nr. 44103 / Valid till stock exhaustion / 		$895.27 1
1 199874
L.H. SIDE ENGINE INJECTION CABLES
Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$616.38 1
1 199875
R.H. SIDE ENGINE INJECTION CABLES
Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid from Ass. Nr. 44104 / Valid till stock exhaustion / 		$895.27 1
1 199875
R.H. SIDE ENGINE INJECTION CABLES
Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$895.27 1
1 199873
R.H. SIDE ENGINE INJECTION CABLES
Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$616.38 1
2 177074
Single Ignition Coil
IN STOCK 		$407.12 8
3 10902424
SCREW
Not as spare part / Replaced by 10902534
IN STOCK 		$0.14 (80% off) 16
3 10902534
SCREW
IN STOCK 		$0.63 16
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 16
5 192637
Spark Plug NGK
IN STOCK 		$28.02 (5.8% off) 8
5 192637
Spark Plug NGK
IN STOCK 		$28.02 (5.8% off) 8
6 197808
Electro-Injector 		$315.18 8
6 197808
Electro-Injector 		$315.18 8
7 133902
INJECTOR O-RING 		$5.00 (16.7% off) 16
8 144730
INJECTORS RETENTION CLIP 		$3.80 (5% off) 8
9 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 4
10 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
11 206421
CONTROL UNIT IGNITION
/ Not for USA and CDN / Valid for racing exhaust version / Optional / 		$1,682.26 2
11 206423
CONTROL UNIT IGNITION
Valid for F1 / Not for USA and CDN / Valid for racing exhaust version / Optional 		$3,186.36 2
11 201752
CONTROL UNIT IGNITION
Valid for F1 / Valid for USA MY 2004 and CDN MY 2004 		$3,188.89 2
11 206424
CONTROL UNIT IGNITION
/ Valid for USA and CDN / Valid for racing exhaust version / Optional / 		$1,722.94 2
11 206425
CONTROL UNIT IGNITION
Valid for F1 / Valid for USA and CDN / Valid for racing exhaust version / Optional 		$1,722.94 2

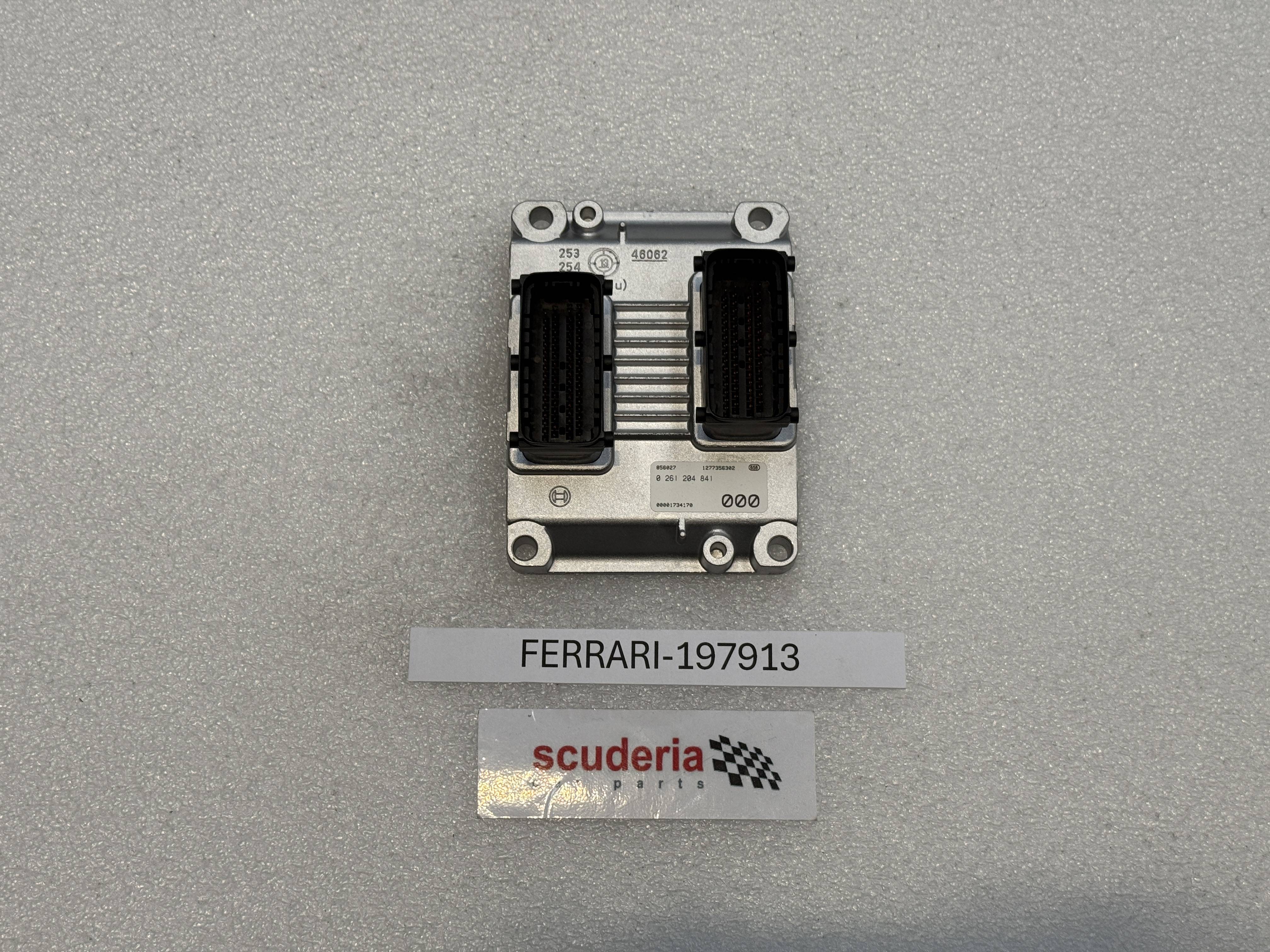

11 197913
CONTROL UNIT IGNITION
Valid for F1 / Valid for USA MY 2002 and CDN MY 2002 / Not for USA MY 2003,2004 and CDN MY 2003,2004
IN STOCK 		$3,188.89 2
11 197913
CONTROL UNIT IGNITION
Valid for F1 / Vale for USA MY 2003 and CDN MY 2003
IN STOCK 		$3,188.89 2
11 181642
CONTROL UNIT IGNITION
Valid for F1- -Not for USA, CDN and AUS / Valid for USA MY 2000, USA MY 2001, / CDN MY 2000 and CDN MY 2001 / Not for USA MY 2002,2003,2004 and CDN MY / 2002,2003,2004 		$3,188.89 (30.2% off) 2
11 209974
CONTROL UNIT IGNITION
Valid for F1 / Valid from Nr.53911 for AUS / For cars not USA, CDN and AUS valid from / Ass. Nr. 57451 		$3,188.89 2
11 182630
CONTROL UNIT IGNITION
Valid for F1 / Valid for not catalyzed cars / Not for USA, CDN and AUS / 		$3,188.89 2
11 178784
CONTROL UNIT IGNITION
Valid for F1 / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr.53910 for AUS 		$3,188.89 2
11 209974
CONTROL UNIT IGNITION
Valid for F1 / Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS F1 and J F1 from car / Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid till Ass. Nr. 57450 		$3,188.89 2
11 197914
CONTROL UNIT IGNITION
/ Valid for USA MY 2003 and CDN MY / 2003 / 		$3,188.89 2
11 201747
CONTROL UNIT IGNITION
/ Valid for USA MY 2004 and CDN MY / 2004 / 		$3,188.89 2
11 178765
CONTROL UNIT IGNITION
Valid for F1 / Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS F1 and J F1 till car / Ass.Nr. 39159 / Valid for GB F1 till car Ass.Nr. 39148 		$3,188.89 (30.2% off) 2
11 197914
CONTROL UNIT IGNITION
/ Valid for USA MY 2002 and CDN MY 2002 / Not for USA MY 2003,2004 and CDN MY 2003,2004 / 		$3,188.89 2
11 209973
CONTROL UNIT IGNITION
/ Valid from Nr.53911 for AUS / For cars not USA, CDN and AUS valid from / Ass. Nr. 57451 		$3,188.89 2
11 180700
CONTROL UNIT IGNITION -Not for F1-
Valid for USA MY 2000, USA MY 2001, / CDN MY 2000 and CDN MY 2001 / Not for USA MY 2002,2003 and CDN MY 2002, / 2003,2004 / 		$3,186.36 2
11 178768
CONTROL UNIT IGNITION
Not for F1- -Valid for USA, CDN and AUS / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr.53910 for AUS / / 		$3,188.89 2
11 209973
CONTROL UNIT IGNITION
Not for F1- -Valid for catalyzed cars / Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid till Ass. Nr. 57450 		$3,188.89 2
11 180101
CONTROL UNIT IGNITION
/ Valid for not catalyzed cars / Not for USA, CDN and AUS / 		$8,007.21 2
11 178285
CONTROL UNIT IGNITION
/ Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 till car / Ass.Nr. 39158 / Valid for GB not F1 till car Ass.Nr. 39144 		$3,188.89 2
12 174956
L.H. PLATE 		$23.65 1
12 189978
R.H. PLATE
For cars not USA and CDN valid from Ass. Nr. 44737 / For cars USA MY 2002,2003 and CDN MY 2002,2003, / 2004valid from Ass. Nr. 44739 		$36.40 1
12 177984
R.H. PLATE
Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till car Ass. Nr. 44736 		$368.57 1
12 179553
R.H. PLATE
Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till car Ass. Nr. 44738 		$368.57 1
13 15896470
NUT 		$6.36 8
14 12601174
WASHER 		$0.06 (82.9% off) 8
15 86574700
SCREW 		$0.61 4
16 198348
LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
WITH ELECTRO-INJECTORS / Valid till stock exhaustion 		$983.37 1
16 198348
LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
WITH ELECTRO-INJECTORS 		$983.37 1
16 198347
RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
WITH ELECTRO-INJECTORS / Valid till stock exhaustion 		$983.37 1
16 198347
RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
WITH ELECTRO-INJECTORS 		$983.37 1
17 185316
EMERGENCY SWITCH BRACKET
BRACKET 		$47.02 1
18 179243
PLATE 		$4.31 2
19 178430
FASTENER CLIP
IN STOCK 		$0.37 (50.7% off) 2
