Ferrari 360 Modena - SECONDARY AIR SYSTEM -Valid far USA MY 2000, 2001, 2002, 2003, 2004

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181197 Secondary Air Pump $514.68 IN STOCK
Photo Part No Description Price (each) Stock
182759 BRACKET FOR PUMP $15.72 To Order
Photo Part No Description Price (each) Stock
181988 SHIELD FOR PUMP PROTECTION $215.54 To Order
195887 SHIELD FOR PUMP PROTECTION $14.66 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
181994 AIR PUMP CONNECTION SLEEVE $77.19 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
181963 PIPE FROM PUMP TO SLEEVE $355.01 To Order
Photo Part No Description Price (each) Stock
155116 SLEEVE $18.15 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
178435 AIR DELIVERY TUBE $181.64 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.83 IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
154652 ELBOW $51.88 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
147119 Rubber pipe from R.H. cut-off $14.24 To Order
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $317.88 IN STOCK
Photo Part No Description Price (each) Stock
172303 GASKET $1.39 To Order
Photo Part No Description Price (each) Stock
184859 COMPLETE BRACKET $87.79 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
178062 CONNECTION PIPE $862.85 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
147125 RUBBER HOSE -Valid till car Ass. Nr. 60159- $25.34 To Order
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
124790 RUBBER PIPE $6.97 To Order
289103 RUBBER PIPE $12.03 To Order
Photo Part No Description Price (each) Stock
121828 RUBBER PIPE $4.80 To Order
Photo Part No Description Price (each) Stock
117170 PIPE FROM UNION TO VACUUM TANK $9.11 To Order
Photo Part No Description Price (each) Stock
159542 RUBBER PIPE $4.17 To Order
Photo Part No Description Price (each) Stock
155751 CLIP $4.37 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10519224 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
View All

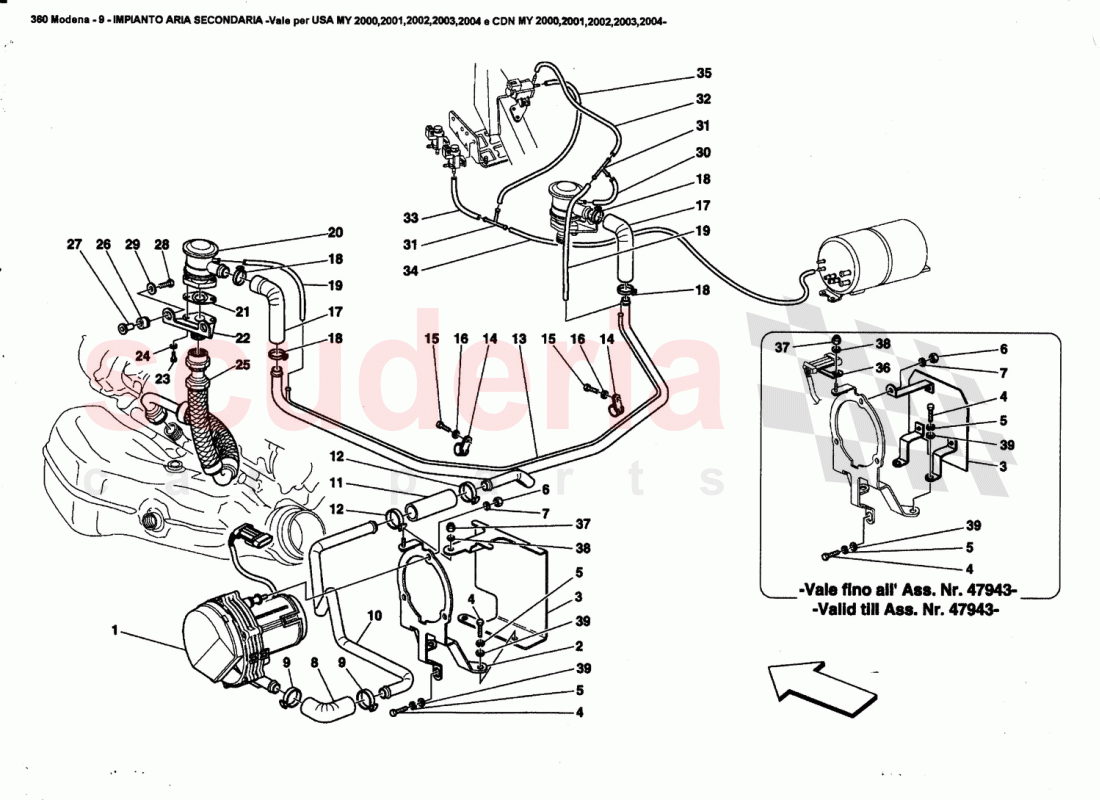

SECONDARY AIR SYSTEM -Valid far USA MY 2000, 2001, 2002, 2003, 2004 of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181197
Secondary Air Pump
IN STOCK 		$514.68 (22.4% off) 1
2 182759
BRACKET FOR PUMP 		$15.72 1
3 181988
SHIELD FOR PUMP PROTECTION
Valid till Ass. Nr. 47943 		$215.54 1
3 195887
SHIELD FOR PUMP PROTECTION
Valid from Ass. Nr. 47944 		$14.66 1
4 231625
SCREW
IN STOCK 		$0.57 3
5 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
6 14059290
FLANGED NUT M6
IN STOCK 		$1.32 3
7 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
8 181994
AIR PUMP CONNECTION SLEEVE
SLEEVE 		$77.19 1
9 262111
SCREW CLAMP 		$1.39 2
10 181963
PIPE FROM PUMP TO SLEEVE 		$355.01 1
11 155116
SLEEVE 		$18.15 1
12 262111
SCREW CLAMP 		$1.39 2
13 178435
AIR DELIVERY TUBE 		$181.64 1
14 291225
P clip Bracket With Sheath
IN STOCK 		$4.83 2
15 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
16 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
17 154652
ELBOW 		$51.88 2
18 262111
SCREW CLAMP 		$1.39 4
19 147119
Rubber pipe from R.H. cut-off 		$14.24 2
20 171175
SECONDARY AIR VALVE
IN STOCK 		$317.88 2
21 172303
GASKET 		$1.39 (30.5% off) 2
22 184859
COMPLETE BRACKET 		$87.79 2
23 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 4
24 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
25 178062
CONNECTION PIPE 		$862.85 2
26 177576
CABLE GROMMET
IN STOCK 		$2.20 4
27 149707
SPACER 		$1.10 (37.1% off) 4
28 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 4
29 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
30 147125
RUBBER HOSE -Valid till car Ass. Nr. 60159- 		$25.34 1
31 161816257691
THREE-WAY UNION 		- 2 Enquire
32 124790
RUBBER PIPE
Not as spare part replaced by 115411 		$6.97 1
32 289103
RUBBER PIPE 		$12.03 1
33 121828
RUBBER PIPE 		$4.80 1
34 117170
PIPE FROM UNION TO VACUUM TANK 		$9.11 1
35 159542
RUBBER PIPE 		$4.17 1
36 155751
CLIP
Valid till Ass. Nr. 47943 		$4.37 (11.7% off) 1
37 62790300
NUT
IN STOCK 		$0.29 (61.3% off) 1
38 10519224
WASHER
IN STOCK 		$0.06 (80% off) 1
39 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 3
