Door Trim Panels, D >> - Mj 2015

Bentley Mulsanne (2010+)

Find Your Part

Bentley Mulsanne (2010+) - door trim panels, D >> - MJ 2015

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3Y1867013 assembly door panel trim (leather) $6,539.33 To Order
3Y1867014 assembly door panel trim (leather) $5,503.93 To Order
3Y2867015 assembly door panel trim (leather) $5,503.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3Y5867049B sound abs. for door trim panel $95.77 To Order
3Y5867050B sound abs. for door trim panel $95.77 To Order
Photo Part No Description Price (each) Stock
3Y5868601 door insert piece $2,588.48 To Order
3Y5868602 door insert piece $2,588.48 To Order
Photo Part No Description Price (each) Stock
3Y0837197B clamping ring, assembly $89.39 To Order
3Y0837198B clamping ring, assembly $93.98 To Order
Photo Part No Description Price (each) Stock
3Y1867101 door trim panel, upper part, assembly $2,860.95 To Order
3Y1867102 door trim panel, upper part, assembly $3,133.42 To Order
Photo Part No Description Price (each) Stock
3Y5867941 chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366 $175.61 To Order
3Y5867942 chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366 $181.99 To Order
Photo Part No Description Price (each) Stock
3Y5867860 loudspeaker chrome trim $80.45 To Order
Photo Part No Description Price (each) Stock
3Y5035410 loudspeaker grille Enquire To Order
Photo Part No Description Price (each) Stock
3Y1867173F armrest $689.68 To Order
3Y1867174E armrest $689.68 To Order
3Y2867174F armrest $715.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3Y5867181D armrest, assembly, D >> - 13.07.2015 Enquire To Order
3Y5867182D armrest, assembly Enquire To Order
Photo Part No Description Price (each) Stock
N90638103 round hd. screw $0.85 IN STOCK
Photo Part No Description Price (each) Stock
N10118104 Hexagon nut $1.27 To Order
Photo Part No Description Price (each) Stock
N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 $1.27 IN STOCK
Photo Part No Description Price (each) Stock
3W0868517 locking washer $1.01 To Order
Photo Part No Description Price (each) Stock
7M3858153 spring clip, D >> - 30.08.2011 $1.53 IN STOCK
Photo Part No Description Price (each) Stock
6Q0868243 clip $0.99 IN STOCK
Photo Part No Description Price (each) Stock
N10586401 Oval hexagon socket head bolt $0.50 To Order
Photo Part No Description Price (each) Stock
N91074201 Hexagon socket head bolt $0.77 To Order
Photo Part No Description Price (each) Stock
N10118104 Hexagon nut $1.27 To Order
Photo Part No Description Price (each) Stock
4A0867276A Clip $0.77 IN STOCK
Photo Part No Description Price (each) Stock
3W0867549 clamp, D >> - 02.04.2012 $2.44 IN STOCK
Photo Part No Description Price (each) Stock
N90918701 Hexagon socket head panel bolt $0.85 To Order
Photo Part No Description Price (each) Stock
3Y1837641A999 torch bracket trim $442.75 To Order
3Y2867683 torch bracket trim Enquire To Order
Photo Part No Description Price (each) Stock
3B0867334 grommet, D >> - 02.04.2012 $0.99 To Order
3B0867334 grommet, D >> - 02.04.2012 $0.99 To Order
Photo Part No Description Price (each) Stock
3Y5867007B insert piece $1,103.49 To Order
3Y5867008B insert piece $1,103.49 To Order
Photo Part No Description Price (each) Stock
3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $136.05 To Order
3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $136.05 To Order
Photo Part No Description Price (each) Stock
N0115359 washer $0.39 To Order
Photo Part No Description Price (each) Stock
N10613301 Hexagon socket flat head bolt $0.60 To Order
Photo Part No Description Price (each) Stock
3Y5868017C Door trim strip $120.04 To Order
3Y5864557C Door trim strip $184.54 To Order
3Y5868018C Door trim strip $173.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3Y0853045B plastic foam, (self-adhesive) $18.37 To Order
3Y0853046B plastic foam, (self-adhesive) $18.12 To Order
Photo Part No Description Price (each) Stock
3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $136.05 To Order
Photo Part No Description Price (each) Stock
3Y5868601A insert Enquire To Order
3Y5868602A insert Enquire To Order
Photo Part No Description Price (each) Stock
N10118104 Hexagon nut $1.27 To Order
Photo Part No Description Price (each) Stock
3Y5867435 chrome trim, door panel $312.90 To Order
Photo Part No Description Price (each) Stock
3Y5867436 chrome trim, door panel $370.37 To Order
Photo Part No Description Price (each) Stock

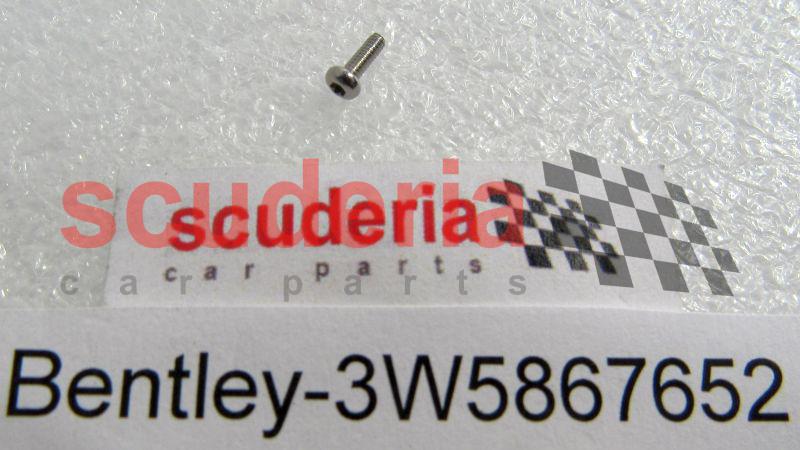

3W5867652 t-head screw $3.36 IN STOCK
Photo Part No Description Price (each) Stock
3W5867651 Washer $0.39 IN STOCK
View All

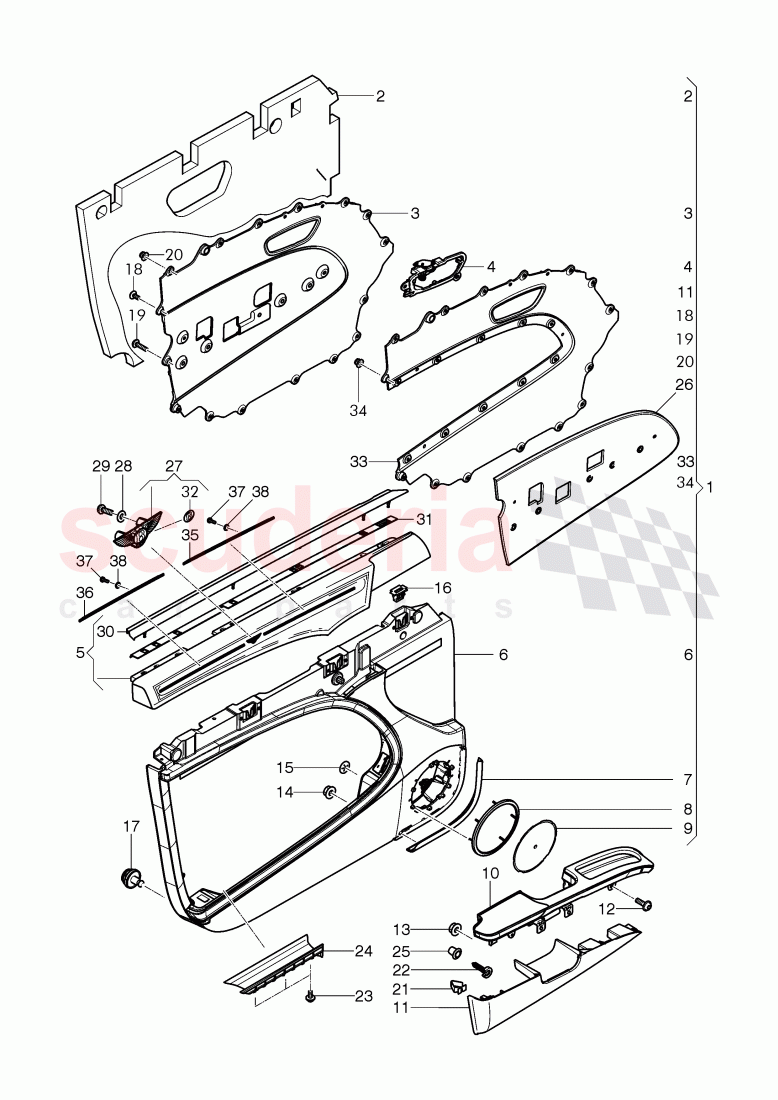

door trim panels, D >> - MJ 2015 of Bentley Bentley Mulsanne (2010+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3Y1867013
assembly door panel trim (leather)
front, left lhd, 		$6,539.33 1
1 3Y1867014
assembly door panel trim (leather)
front, right lhd, 		$5,503.93 1
1 3Y2867015
assembly door panel trim (leather)
front, left rhd, 		$5,503.93 1
1 3Y2867016
assembly door panel trim (leather)
front, right rhd, 		$5,694.66 1
2 3Y5867049B
sound abs. for door trim panel
left front, upper, 		$95.77 1
2 3Y5867050B
sound abs. for door trim panel
right front, upper, 		$95.77 1
3 3Y5868601
door insert piece
leather, left, PR-3LD+3LH 		$2,588.48 1
3 3Y5868602
door insert piece
leather, right, PR-3LD+3LH 		$2,588.48 1
4 3Y0837197B
clamping ring, assembly
left, 		$89.39 1
4 3Y0837198B
clamping ring, assembly
right, 		$93.98 1
5 3Y1867101
door trim panel, upper part, assembly
left front, 		$2,860.95 1
5 3Y1867102
door trim panel, upper part, assembly
right front, 		$3,133.42 1
7 3Y5867941
chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366
left front, lower, 		$175.61 1
7 3Y5867942
chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366
right front, lower, 		$181.99 1
8 3Y5867860
loudspeaker chrome trim
Large, 		$80.45 1
9 3Y5035410
loudspeaker grille
Large, 		- 1 Enquire
10 3Y1867173F
armrest
drivers side, upper lhd, PR-LOL 		$689.68 1
10 3Y1867174E
armrest
passenger side, upper lhd, PR-LOL 		$689.68 1
10 3Y2867174F
armrest
drivers side, upper rhd, PR-LOR 		$715.22 1
10 3Y2867173E
armrest
passenger side, upper rhd, PR-LOR 		$715.22 1
11 3Y5867181D
armrest, assembly, D >> - 13.07.2015
left front, lower, 		- 1 Enquire
11 3Y5867182D
armrest, assembly
right front, lower, 		- 1 Enquire
12 N90638103
round hd. screw
M6X12,
IN STOCK 		$0.85 1
13 N10118104
Hexagon nut 		$1.27 1
14 N10334801
shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366
M4,
IN STOCK 		$1.27 4
15 3W0868517
locking washer 		$1.01 7
16 7M3858153
spring clip, D >> - 30.08.2011
IN STOCK 		$1.53 3
17 6Q0868243
clip
IN STOCK 		$0.99 8
18 N10586401
Oval hexagon socket head bolt
M5X10, 		$0.50 1
19 N91074201
Hexagon socket head bolt
M5X16, 		$0.77 1
20 N10118104
Hexagon nut
M5, 		$1.27 15
21 4A0867276A
Clip
22,3,
IN STOCK 		$0.77 1
22 3W0867549
clamp, D >> - 02.04.2012
IN STOCK 		$2.44 7
23 N90918701
Hexagon socket head panel bolt
TP4X12, 		$0.85 3
24 3Y1837641A999
torch bracket trim
left lhd, PR-B0L+L0L 		$442.75 1
24 3Y2867683
torch bracket trim
right rhd, PR-B0L+L0R 		- 1 Enquire
25 3B0867334
grommet, D >> - 02.04.2012
black, 		$0.99 -
25 3B0867334
grommet, D >> - 02.04.2012
white, 		$0.99 -
26 3Y5867007B
insert piece
Wood, left inner, PR-3LE 		$1,103.49 1
26 3Y5867008B
insert piece
Wood, right inner, PR-3LE 		$1,103.49 1
27 3Y0867932A
Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 		$136.05 1
27 3Y0867932A
Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
Observe work, shop manual, 		$136.05 1
28 N0115359
washer
7X3X.5, 		$0.39 2
29 N10613301
Hexagon socket flat head bolt
M3 X M8MM, 		$0.60 2
30 3Y5868017C
Door trim strip
left lhd, 		$120.04 1
30 3Y5864557C
Door trim strip
left rhd, 		$184.54 1
30 3Y5868018C
Door trim strip
right lhd, 		$173.69 1
30 3Y5864558C
Door trim strip
right rhd, 		$455.95 1
31 3Y0853045B
plastic foam, (self-adhesive)
left, 		$18.37 1
31 3Y0853046B
plastic foam, (self-adhesive)
right, 		$18.12 1
32 3Y0867932A
Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
Observe work, shop manual, 		$136.05 1
33 3Y5868601A
insert
leather, left outer, PR-3LE 		- 1 Enquire
33 3Y5868602A
insert
leather, right outer, PR-3LE 		- 1 Enquire
34 N10118104
Hexagon nut
PR-3LE 		$1.27 10
35 3Y5867435
chrome trim, door panel
front, PR-NR6 		$312.90 1
36 3Y5867436
chrome trim, door panel
rear, PR-NR6 		$370.37 1
37 3W5867652
t-head screw
M1.6X5, PR-NR6
IN STOCK 		$3.36 8
38 3W5867651
Washer
M1.6X0.3, PR-NR6
IN STOCK 		$0.39 8
