Name: center console, D - MJ 2017>>
Rating: 5.0 (1 reviews)

View All

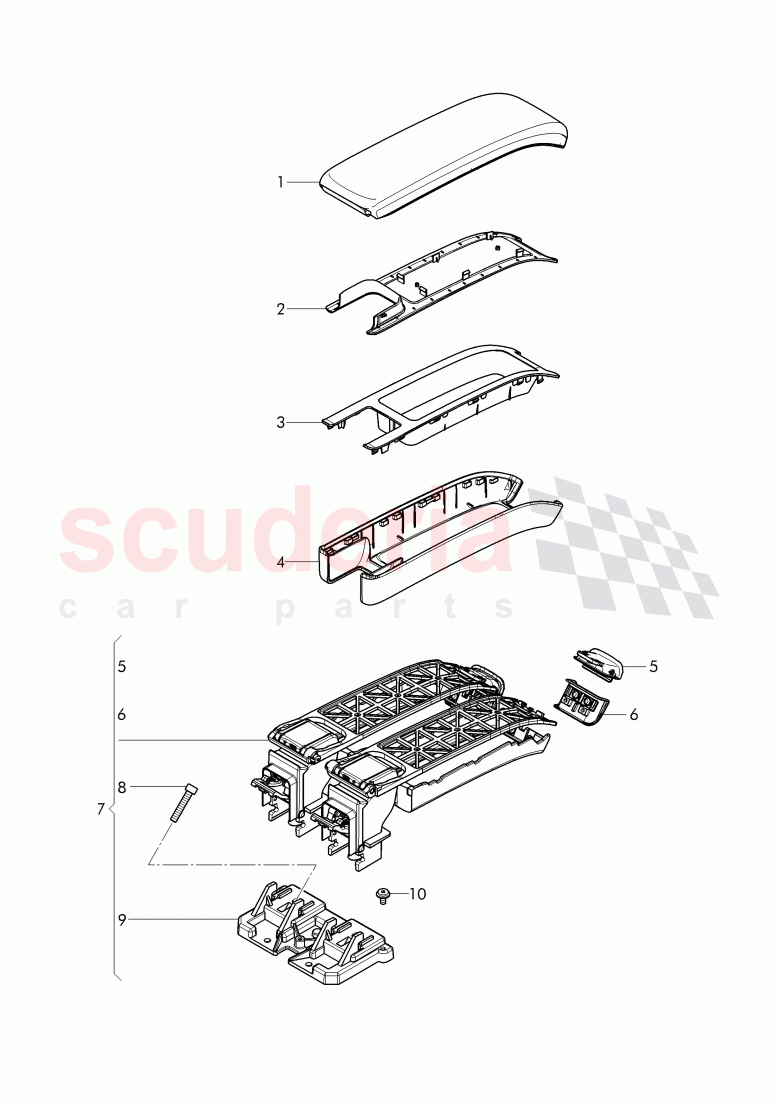

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0864109A	catch, hood latch	$358.64	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0864357A	catch, lining	$217.75	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0864209G	armrest	$4,672.83	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0098610	mounting for armrest	$160.09	To Order

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	$1.03	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3Y0864205	armrest, assembly	3Y0864205 armrest, assembly padded, left,	$1,175.03	1
1	3Y0864205A	armrest, assembly	3Y0864205A armrest, assembly padded, right,	$1,147.70	1
2	3Y0864399	trim for armrest	3Y0864399 trim for armrest left, inner upper,	$860.77	1
2	3Y0864400	trim for armrest	3Y0864400 trim for armrest right, inner upper,	$860.77	1
3	3Y0864551	trim for armrest	3Y0864551 trim for armrest lower, left,	$539.68	1
3	3Y5864552	trim for armrest	3Y5864552 trim for armrest lower, right,	$765.12	1
4	3Y0864207	trim for armrest, assembly	3Y0864207 trim for armrest, assembly lower, left,	$765.12	1
4	3Y0864207A	trim for armrest, assembly	3Y0864207A trim for armrest, assembly lower, right,	$765.12	1
5	3Y0864109A	catch, hood latch	3Y0864109A catch, hood latch lower,	$358.64	1
6	3Y0864357A	catch, lining	3Y0864357A catch, lining lower,	$217.75	1
7	3Y0864209G	armrest	3Y0864209G armrest body,	$4,672.83	1
9	3Y0098610	mounting for armrest	3Y0098610 mounting for armrest	$160.09	1
10	N90737101	Oval hexagon socket head bolt IN STOCK	N90737101 Oval hexagon socket head bolt M6X12, IN STOCK	$1.03	3

Center Console, D - Mj 2017>>

Bentley Mulsanne (2010+)
