Name: floor assembly, wheel housing, rear panel, D >> - MJ 2016
Rating: 5.0 (1 reviews)

View All

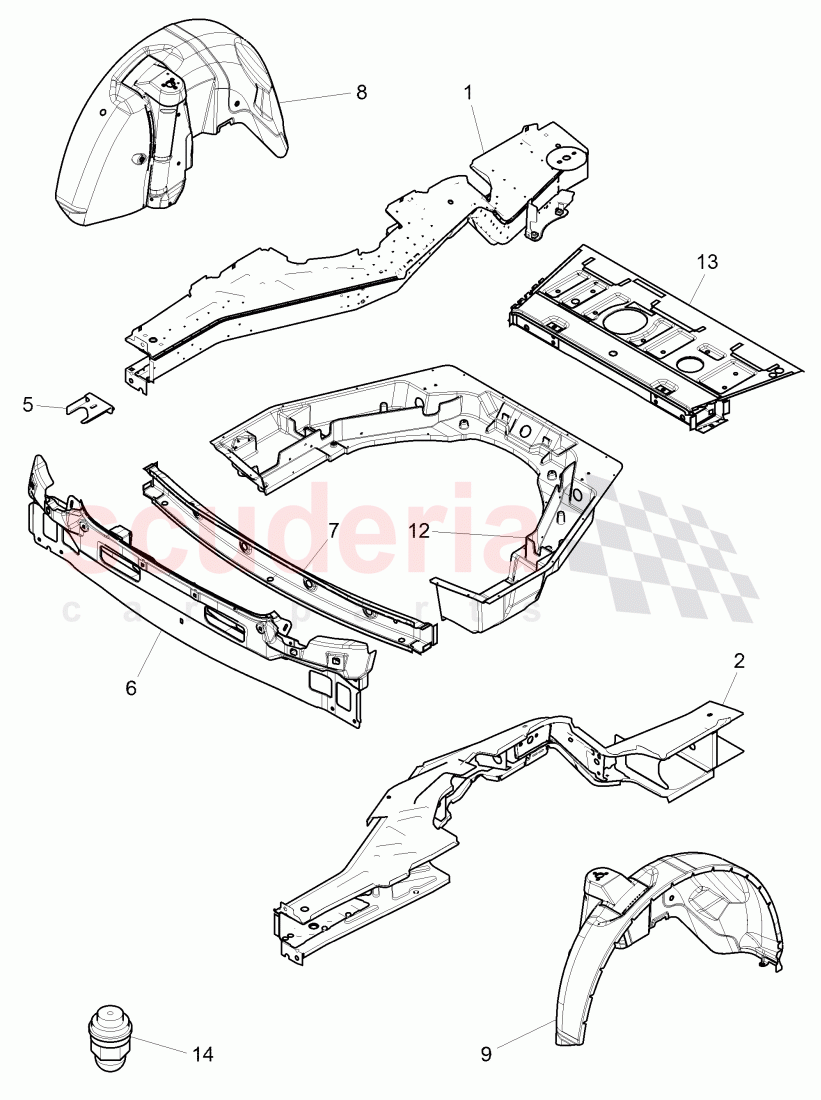

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0803055C	repair plate - side member, assembly	$856.74	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803056D	repair plate - side member, assembly	$1,381.02	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803329B	bracket, towing bracket, D - 04.02.2013>>	$83.10	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5813103A	rear panel	$805.59	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5813149	cross member, D - 11.07.2011>>	$182.21	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803501A	wheel hsg w suspension strut d	$613.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803502A	wheel hsg w suspension strut d	$613.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803713C	sub-frame, D - MJ 2017>>	$791.09	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0802069	luggage compartment floor	$159.82	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000868	Weld studs with cap nuts	$1.02	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3Y0803055C	repair plate - side member, assembly	3Y0803055C repair plate - side member, assembly left,	$856.74	1
2	3Y0803056D	repair plate - side member, assembly	3Y0803056D repair plate - side member, assembly right,	$1,381.02	1
5	3Y0803329B	bracket, towing bracket, D - 04.02.2013>>	3Y0803329B bracket, towing bracket, D - 04.02.2013>> PR-K8B	$83.10	1
6	3Y5813103A	rear panel	3Y5813103A rear panel rear, PR-K8B	$805.59	1
7	3Y5813149	cross member, D - 11.07.2011>>	3Y5813149 cross member, D - 11.07.2011>> rear,	$182.21	1
8	3Y0803501A	wheel hsg w suspension strut d	3Y0803501A wheel hsg w suspension strut d left rear, PR-K8B	$613.77	1
9	3Y0803502A	wheel hsg w suspension strut d	3Y0803502A wheel hsg w suspension strut d right rear, PR-K8B	$613.77	1
12	3Y0803713C	sub-frame, D - MJ 2017>>	3Y0803713C sub-frame, D - MJ 2017>> PR-K8B	$791.09	1
13	3Y0802069	luggage compartment floor	3Y0802069 luggage compartment floor front, PR-K8B	$159.82	1
14	WHT000868	Weld studs with cap nuts IN STOCK	WHT000868 Weld studs with cap nuts M6X14,8, IN STOCK	$1.02	-

Floor Assembly, Wheel Housing, Rear Panel, D >> - Mj 2016

Bentley Mulsanne (2010+)
