Bentley Bentayga (2015-2020) - refrigerant circuit, for vehicles with 2nd evaporator

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0820251B retainer plate $36.13 To Order
Photo Part No Description Price (each) Stock
4M0816727D refrigerant line $57.31 To Order
Photo Part No Description Price (each) Stock
4E0260749C seal ring $4.65 To Order
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.65 IN STOCK
Photo Part No Description Price (each) Stock
4M0816725D refrigerant line $57.31 To Order
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.65 IN STOCK
Photo Part No Description Price (each) Stock
4D0260749B seal ring $4.35 To Order
Photo Part No Description Price (each) Stock
N10609201 Hexagon collar nut $1.19 To Order
Photo Part No Description Price (each) Stock
4M0820181B expansion valve, for refrigerant: $110.11 To Order
4M0816181A Expansion valve for refrigerant: $110.11 To Order
Photo Part No Description Price (each) Stock
N10723801 Socket head bolt with inner hex round head $0.42 To Order
Photo Part No Description Price (each) Stock
4M0816885F refrigerant line $337.43 To Order
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.65 IN STOCK
Photo Part No Description Price (each) Stock
4D0260749B seal ring $4.35 To Order
Photo Part No Description Price (each) Stock
4H0260759B bracket for refrigerant pipe $33.81 To Order
Photo Part No Description Price (each) Stock
N10582103 oval head countersunk bolt with multi-point socket head $1.11 IN STOCK
Photo Part No Description Price (each) Stock
N90215805 shouldered hex. nut, Discont./New add.+FULU calc. $2.05 IN STOCK
Photo Part No Description Price (each) Stock
4H0260759E bracket for refrigerant pipe $15.66 To Order
Photo Part No Description Price (each) Stock
4M0820769E bracket $8.99 To Order
Photo Part No Description Price (each) Stock
N90495301 Hexagon nut $0.94 To Order
Photo Part No Description Price (each) Stock
8D0201441C speed nut $1.66 To Order
Photo Part No Description Price (each) Stock
4M0816886A refrigerant line $348.29 To Order
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.65 IN STOCK
Photo Part No Description Price (each) Stock
3D0260749C seal ring $4.65 IN STOCK
Photo Part No Description Price (each) Stock
4M0820769H bracket $12.62 To Order
Photo Part No Description Price (each) Stock
4F0129669F grommet $3.88 To Order
Photo Part No Description Price (each) Stock
8Z0129734 bushing $7.22 To Order
Photo Part No Description Price (each) Stock
N90887703 Hexagon flange nut, self-locking $1.28 IN STOCK
Photo Part No Description Price (each) Stock
N10582103 oval head countersunk bolt with multi-point socket head $1.11 IN STOCK
Photo Part No Description Price (each) Stock
N10632102 Oval hexagon socket head bolt $0.86 To Order
View All

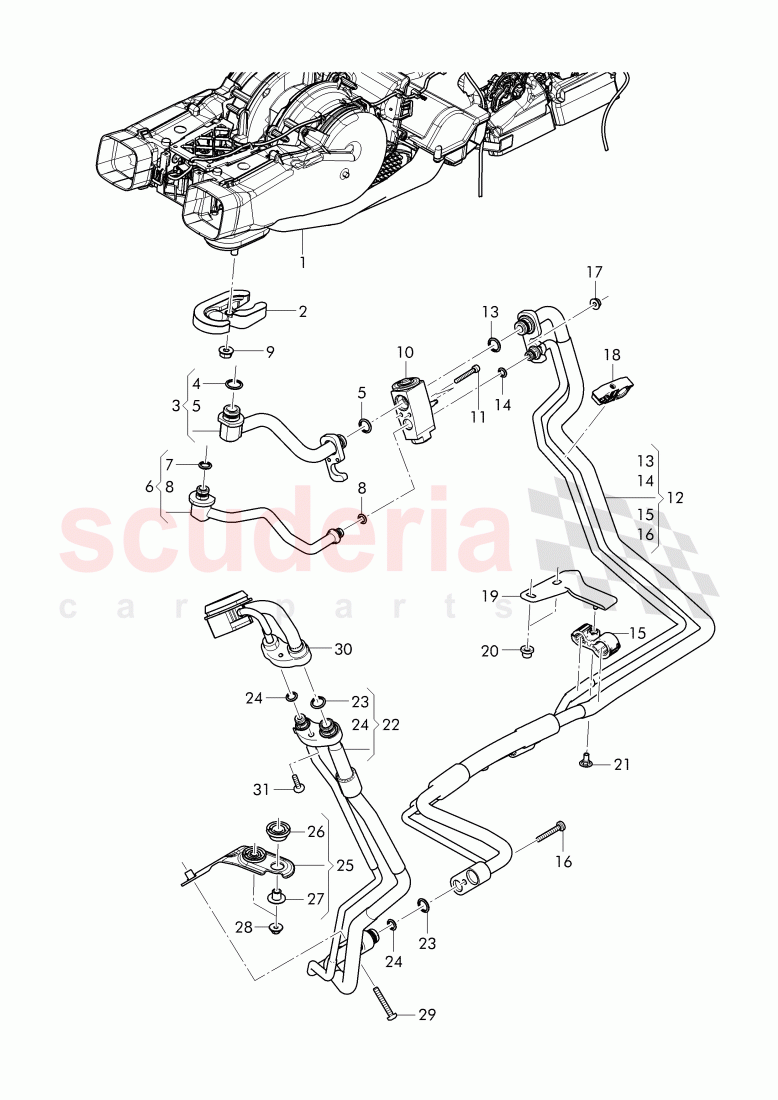

refrigerant circuit, for vehicles with 2nd evaporator of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 4M0820251B
retainer plate 		$36.13 1
3 4M0816727D
refrigerant line 		$57.31 1
4 4E0260749C
seal ring
16,25X2,5, 		$4.65 1
5 4E0260749B
seal ring
13,7X2,5,
IN STOCK 		$4.65 1
6 4M0816725D
refrigerant line 		$57.31 1
7 4E0260749B
seal ring
11X2,5,
IN STOCK 		$4.65 1
8 4D0260749B
seal ring
7,6X2,5, 		$4.35 1
9 N10609201
Hexagon collar nut
M8, 		$1.19 1
10 4M0820181B
expansion valve, for refrigerant:
R134A, PR-KK1 		$110.11 1
10 4M0816181A
Expansion valve for refrigerant:
R1234YF, PR-KK3 		$110.11 1
11 N10723801
Socket head bolt with inner hex round head
M5X40, 		$0.42 2
12 4M0816885F
refrigerant line 		$337.43 1
13 4E0260749B
seal ring
13,7X2,5,
IN STOCK 		$4.65 1
14 4D0260749B
seal ring
7,6X2,5, 		$4.35 1
15 4H0260759B
bracket for refrigerant pipe 		$33.81 1
16 N10582103
oval head countersunk bolt with multi-point socket head
M6X40,
IN STOCK 		$1.11 1
17 N90215805
shouldered hex. nut, Discont./New add.+FULU calc.
M6,
IN STOCK 		$2.05 1
18 4H0260759E
bracket for refrigerant pipe 		$15.66 1
19 4M0820769E
bracket 		$8.99 1
20 N90495301
Hexagon nut
4.1, 		$0.94 2
21 8D0201441C
speed nut 		$1.66 1
22 4M0816886A
refrigerant line 		$348.29 1
23 4E0260749B
seal ring
13,7X2,5,
IN STOCK 		$4.65 2
24 3D0260749C
seal ring
9,5X2,5,
IN STOCK 		$4.65 2
25 4M0820769H
bracket 		$12.62 1
26 4F0129669F
grommet 		$3.88 2
27 8Z0129734
bushing 		$7.22 2
28 N90887703
Hexagon flange nut, self-locking
M6,
IN STOCK 		$1.28 2
29 N10582103
oval head countersunk bolt with multi-point socket head
M6X40,
IN STOCK 		$1.11 1
31 N10632102
Oval hexagon socket head bolt
M6X25, 		$0.86 1
