1 Set Of Fuel Lines, Fuel Supply Line

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - 1 set of fuel lines, Fuel supply line

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0201544AL 1 set of fuel lines, for vehicles with, coolant auxiliary heater, F >> 4V-J-017 571, F >> ZV-J-017 571 $466.16 To Order
4M0201544BL 1 set of fuel lines, for vehicles with stationary, heater, F 4V-J-017 572>>, F ZV-J-017 572>> $466.16 To Order
4M0201544AK 1 set fuel lines with return, line, F >> 4V-J-017 571, F >> ZV-J-017 571 $466.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0201190C securing clip $1.97 To Order
Photo Part No Description Price (each) Stock
4M0201196F seal strip $4.48 To Order
Photo Part No Description Price (each) Stock
4M0201192R cover $27.10 To Order
4M0201192K cover, F 4V-J-017 572>>, F ZV-J-017 572>> $27.10 To Order
Photo Part No Description Price (each) Stock
N10737001 hexagon nut, self-locking $1.27 To Order
Photo Part No Description Price (each) Stock
4M0201216E fuel hose, see illustration, item: $110.00 To Order
Photo Part No Description Price (each) Stock
4M0201192R cover $27.10 To Order
Photo Part No Description Price (each) Stock
N10009506 hexagon head bolt (combi) $0.85 To Order
Photo Part No Description Price (each) Stock
N90215805 shouldered hex. nut, Discont./New add.+FULU calc. $2.04 IN STOCK
Photo Part No Description Price (each) Stock
4F0611853A spacer ring, D - 31.07.2017>> $5.20 To Order
View All

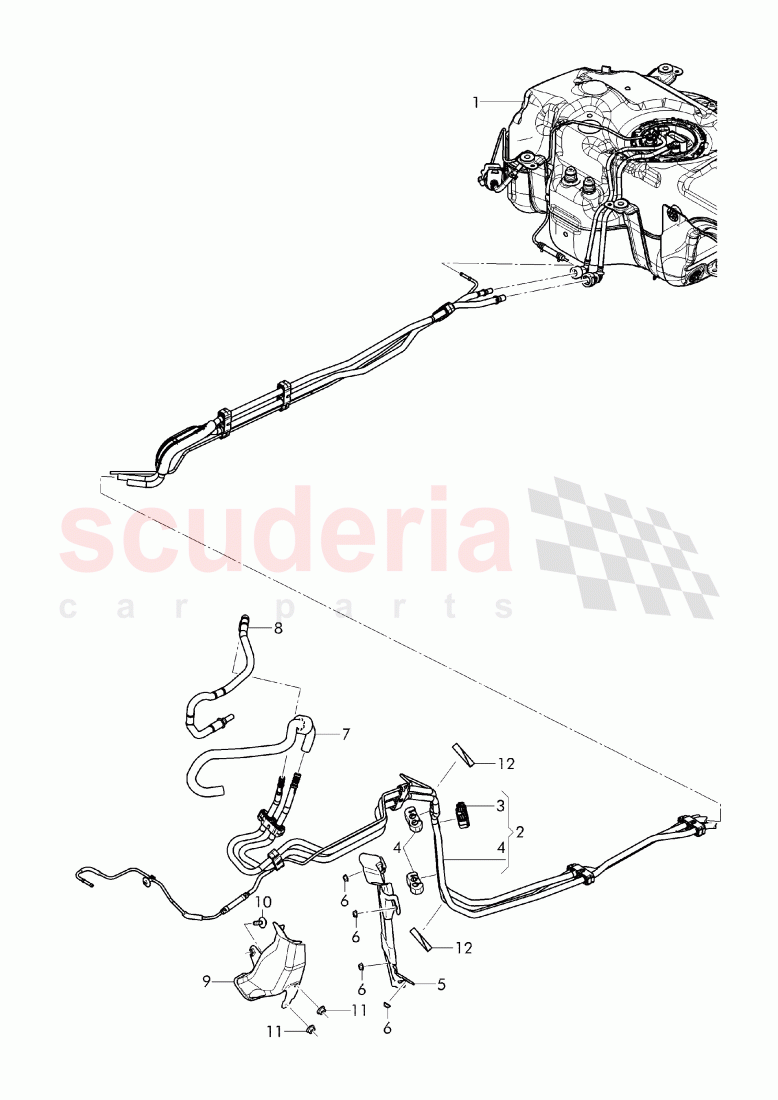

1 set of fuel lines, Fuel supply line of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 4M0201544AL
1 set of fuel lines, for vehicles with, coolant auxiliary heater, F >> 4V-J-017 571, F >> ZV-J-017 571
PR-9M9 		$466.16 1
2 4M0201544BL
1 set of fuel lines, for vehicles with stationary, heater, F 4V-J-017 572>>, F ZV-J-017 572>>
PR-9M9 		$466.16 1
2 4M0201544AK
1 set fuel lines with return, line, F >> 4V-J-017 571, F >> ZV-J-017 571
rear, lower, PR-9M0 		$466.16 1
2 4M0201544BF
1 set of fuel lines, F 4V-J-017 572>>, F ZV-J-017 572>>
rear, lower, PR-9M0 		$224.34 1
3 4M0201190C
securing clip
3 holes, 		$1.97 9
4 4M0201196F
seal strip
3 grooves, 		$4.48 2
5 4M0201192R
cover 		$27.10 1
5 4M0201192K
cover, F 4V-J-017 572>>, F ZV-J-017 572>> 		$27.10 1
6 N10737001
hexagon nut, self-locking
M6, 		$1.27 4
8 4M0201216E
fuel hose, see illustration, item:
127-000,16, 		$110.00 1
9 4M0201192R
cover
front, upper, 		$27.10 1
10 N10009506
hexagon head bolt (combi)
M6X18, 		$0.85 1
11 N90215805
shouldered hex. nut, Discont./New add.+FULU calc.
M6,
IN STOCK 		$2.04 2
12 4F0611853A
spacer ring, D - 31.07.2017>>
10,5X6X50, PR-VH2+9M9 		$5.20 2
