Refrigerant Condenser With Dryer, Refrigerant Circuit, Engine Bay

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - refrigerant condenser with dryer, refrigerant circuit, Engine bay

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M2820720K refrigerant line, for refrigerant: $363.52 To Order
4M2816720M refrigerant line, for refrigerant: $603.46 To Order
Photo Part No Description Price (each) Stock
4M1820720K refrigerant line, for refrigerant: $363.52 To Order
4M1816720R refrigerant line, for refrigerant: $603.46 To Order
Photo Part No Description Price (each) Stock
4M2820740K refrigerant line, for refrigerant: $603.46 To Order
4M2816740 refrigerant line, for refrigerant: $603.46 To Order
Photo Part No Description Price (each) Stock
4M1820740K refrigerant line, for refrigerant: $596.18 To Order
4M1816740N refrigerant line, for refrigerant: $596.18 To Order
Photo Part No Description Price (each) Stock
4D0260749B seal ring $4.36 To Order
Photo Part No Description Price (each) Stock
3C0820581 Protective cap D >> - MJ 2019 $18.74 To Order
5Q0816581 Protective cap $6.39 To Order
Photo Part No Description Price (each) Stock
8E0820855 Evacuating and charging valve $19.77 To Order
Photo Part No Description Price (each) Stock
3D0260749C seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
3C0820231 Protective cap for refrigerant: D >> - MJ 2019 $19.15 To Order
5Q0816231 Protective cap $9.16 To Order
Photo Part No Description Price (each) Stock
8E0820855 Evacuating and charging valve $19.77 To Order
Photo Part No Description Price (each) Stock
N90215805 shouldered hex. nut, Discont./New add.+FULU calc. $2.05 IN STOCK
Photo Part No Description Price (each) Stock
N10632102 Oval hexagon socket head bolt $0.86 To Order
Photo Part No Description Price (each) Stock
8K0260759H Bracket $5.80 To Order
Photo Part No Description Price (each) Stock
4M0820339G basic plate $64.70 To Order
Photo Part No Description Price (each) Stock
4M0820126A double grommet $14.66 To Order
Photo Part No Description Price (each) Stock
4M0816738N refrigerant tube $581.65 To Order
Photo Part No Description Price (each) Stock
WHT004858 seal ring $2.50 To Order
Photo Part No Description Price (each) Stock
3D0260749C seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
4M0820769J bracket $9.00 To Order
Photo Part No Description Price (each) Stock
36A816741A refrigerant line $239.92 To Order
Photo Part No Description Price (each) Stock
3D0260749C seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
N10405604 Oval hexagon socket head bolt $0.86 IN STOCK
Photo Part No Description Price (each) Stock
4M0816743BS refrigerant line $239.92 To Order
Photo Part No Description Price (each) Stock
8E0260749C seal ring $4.02 IN STOCK
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
N91097201 round hd. screw $1.20 To Order
Photo Part No Description Price (each) Stock
N10414402 Socket head bolt with hexagon socket head $1.89 IN STOCK
Photo Part No Description Price (each) Stock
4M0816721DH refrigerant line $239.92 To Order
Photo Part No Description Price (each) Stock
4E0260749B seal ring $4.66 IN STOCK
Photo Part No Description Price (each) Stock
4M0816411M A/C CONDENSER WITH DRYER $513.22 To Order
Photo Part No Description Price (each) Stock
4M0298403 Drier insert with mounting, parts $74.91 To Order
Photo Part No Description Price (each) Stock
4H0959126C Pressure sender for refrigerant circuit D - 15.02.2023>> $86.72 To Order
Photo Part No Description Price (each) Stock
8A0820855AA valve $22.54 IN STOCK
Photo Part No Description Price (each) Stock
7H0820749 O-Ring $4.28 To Order
View All

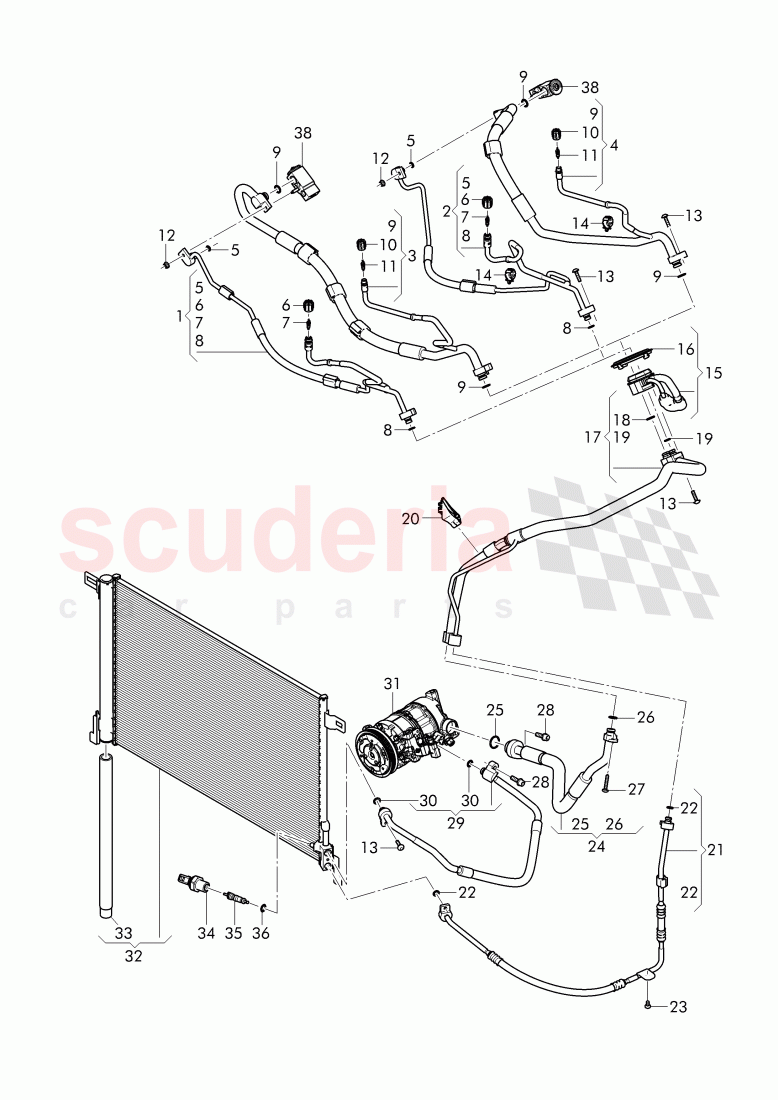

refrigerant condenser with dryer, refrigerant circuit, Engine bay of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M2820720K
refrigerant line, for refrigerant:
rhd, R134A, PR-KK1 		$363.52 1
1 4M2816720M
refrigerant line, for refrigerant:
rhd, R1234YF, PR-KK3 		$603.46 1
2 4M1820720K
refrigerant line, for refrigerant:
lhd, R134A, PR-KK1 		$363.52 1
2 4M1816720R
refrigerant line, for refrigerant:
lhd, R1234YF, PR-KK3 		$603.46 1
3 4M2820740K
refrigerant line, for refrigerant:
rhd, R134A, PR-KK1 		$603.46 1
3 4M2816740
refrigerant line, for refrigerant:
rhd, R1234YF, PR-KK3 		$603.46 1
4 4M1820740K
refrigerant line, for refrigerant:
lhd, R134A, PR-KK1 		$596.18 1
4 4M1816740N
refrigerant line, for refrigerant:
lhd, R1234YF, PR-KK3 		$596.18 1
5 4D0260749B
seal ring
7,6X2,5, 		$4.36 1
6 3C0820581
Protective cap D >> - MJ 2019
M10X1, R134A, PR-KK1 		$18.74 1
6 5Q0816581
Protective cap
M10X1, R1234YF, PR-KK3 		$6.39 1
7 8E0820855
Evacuating and charging valve 		$19.77 1
8 3D0260749C
seal ring
9,5X2,5,
IN STOCK 		$4.66 1
9 4E0260749B
seal ring
13,7X2,5,
IN STOCK 		$4.66 2
10 3C0820231
Protective cap for refrigerant: D >> - MJ 2019
M8X1, R134A, PR-KK1 		$19.15 1
10 5Q0816231
Protective cap
M8X1, R1234YF, PR-KK3 		$9.16 1
11 8E0820855
Evacuating and charging valve 		$19.77 1
12 N90215805
shouldered hex. nut, Discont./New add.+FULU calc.
M6,
IN STOCK 		$2.05 1
13 N10632102
Oval hexagon socket head bolt
M6X25, 		$0.86 4
14 8K0260759H
Bracket
D=10-12MM, 		$5.80 2
15 4M0820339G
basic plate 		$64.70 1
16 4M0820126A
double grommet 		$14.66 1
17 4M0816738N
refrigerant tube 		$581.65 1
18 WHT004858
seal ring
13,94X2,62, 		$2.50 1
19 3D0260749C
seal ring
9,5X2,5,
IN STOCK 		$4.66 1
20 4M0820769J
bracket 		$9.00 1
21 36A816741A
refrigerant line
left front, 		$239.92 1
22 3D0260749C
seal ring
9,5X2,5,
IN STOCK 		$4.66 2
23 N10405604
Oval hexagon socket head bolt
M6X14,
IN STOCK 		$0.86 1
24 4M0816743BS
refrigerant line 		$239.92 1
25 8E0260749C
seal ring
23,8X2,4,
IN STOCK 		$4.02 1
26 4E0260749B
seal ring
13,7X2,5,
IN STOCK 		$4.66 1
27 N91097201
round hd. screw
M6X35, 		$1.20 1
28 N10414402
Socket head bolt with hexagon socket head
M8X26,
IN STOCK 		$1.89 2
29 4M0816721DH
refrigerant line 		$239.92 1
30 4E0260749B
seal ring
11X2,5,
IN STOCK 		$4.66 2
32 4M0816411M
A/C CONDENSER WITH DRYER 		$513.22 1
33 4M0298403
Drier insert with mounting, parts 		$74.91 1
34 4H0959126C
Pressure sender for refrigerant circuit D - 15.02.2023>> 		$86.72 1
35 8A0820855AA
valve
IN STOCK 		$22.54 1
36 7H0820749
O-Ring
17,2X1,82, 		$4.28 1
