Tonneau Latching System

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Tonneau Latching System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433710477 Motor Tonneau Latch $1,140.83 IN STOCK
Photo Part No Description Price (each) Stock
4G4353923AA WORM CABLE $22.03 To Order
Photo Part No Description Price (each) Stock
704327 Nut and Washer, M6, Hex Flange Head $5.00 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.48 IN STOCK
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $21.14 To Order
Photo Part No Description Price (each) Stock
4G439611272 Enclosure, Tonneau Latch Motor Assy $72.04 To Order
Photo Part No Description Price (each) Stock
4G433956AB Seal, tonneau latch motor Enquire To Order
Photo Part No Description Price (each) Stock
4G4353548AC Lid, Tonneau Latch Motor Assy $24.42 IN STOCK
Photo Part No Description Price (each) Stock
701574 Screw, M6 x 12, Pan Head $0.73 To Order
Photo Part No Description Price (each) Stock
702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) $5.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43301347AA BLACK TPR BODY PLUG 20mm $1.29 To Order
Photo Part No Description Price (each) Stock
4G4353922AB Tonneau Latch Motor Drive Cable $134.17 IN STOCK
Photo Part No Description Price (each) Stock
4G436C691AD Grommet Sleeve, Cable $4.21 To Order
Photo Part No Description Price (each) Stock
4G4354796AB Latch, Tonneau, RH $314.77 To Order
Photo Part No Description Price (each) Stock
ED33L43161AA Mounting Plate, Tonneau Latch, LH Enquire To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head $0.72 IN STOCK
Photo Part No Description Price (each) Stock
ED33L43165AA Spacer, Tonneau Latch Mounting Plate $9.40 To Order
View All

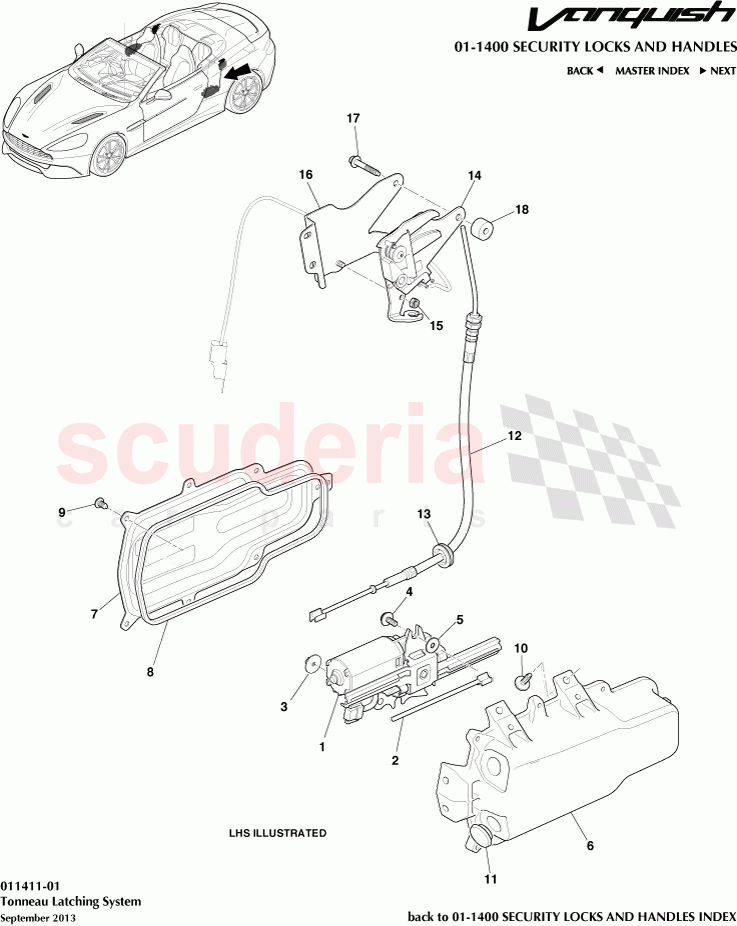

Tonneau Latching System of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4354797AB
Latch, Tonneau, LH 		$314.77 1
- ED33L43160AA
Mounting Plate, Tonneau Latch, RH 		- 1 Enquire
1 4G433710477
Motor Tonneau Latch
IN STOCK 		$1,140.83 2
2 4G4353923AA
WORM CABLE 		$22.03 2
3 704327
Nut and Washer, M6, Hex Flange Head 		$5.00 2
4 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.48 6
5 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		$21.14 6
6 4G439611272
Enclosure, Tonneau Latch Motor Assy
Includes Item 7 		$72.04 2
7 4G433956AB
Seal, tonneau latch motor 		- 2 Enquire
8 4G4353548AC
Lid, Tonneau Latch Motor Assy
IN STOCK 		$24.42 2
9 701574
Screw, M6 x 12, Pan Head 		$0.73 14
10 702839PK
SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)
Pack of 10
IN STOCK 		$5.27 8
11 4G43301347AA
BLACK TPR BODY PLUG 20mm 		$1.29 2
12 4G4353922AB
Tonneau Latch Motor Drive Cable
IN STOCK 		$134.17 2
13 4G436C691AD
Grommet Sleeve, Cable 		$4.21 2
14 4G4354796AB
Latch, Tonneau, RH 		$314.77 1
16 ED33L43161AA
Mounting Plate, Tonneau Latch, LH 		- 1 Enquire
17 702946
Bolt, M6 x 35, Hex Head
IN STOCK 		$0.72 8
18 ED33L43165AA
Spacer, Tonneau Latch Mounting Plate 		$9.40 2
