Aston Martin Vanquish (2012+) - Body Ancillary Parts, VOLANTE - Page 2

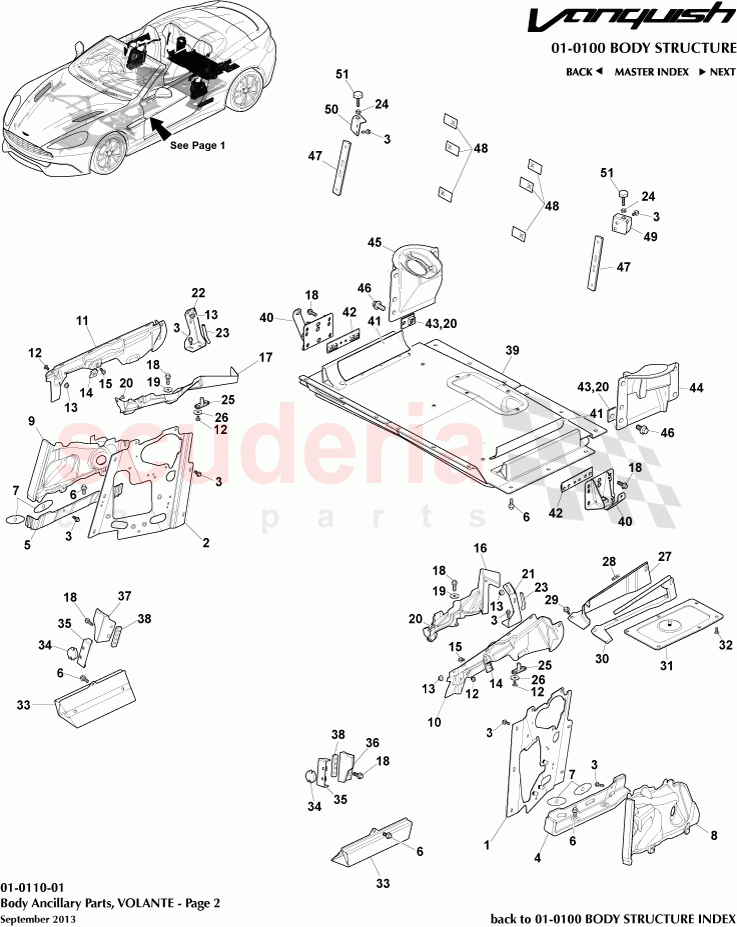

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED33L04703AB	Panel, Window Regulator Opening Cover, LH	$135.31	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L04702AB	Panel, Window Regulator Opening Cover, RH	$132.42	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED33303A93AA	Bracket, Quarter Window Regulator Mounting, LH	$234.26	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33303A92AA	Bracket, Quarter Window Regulator Mounting, RH	$234.26	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	$19.10	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4328035AB	Panel, Rear Quarter Shedder, LH	$88.96	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4328034AB	Panel, Rear Quarter Shedder, RH	$136.83	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33A410K25AC	Panel, Rear Body Pillar Closing, LH	$59.32	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33A410K24AC	Panel, Rear Body Pillar Closing, RH	$59.32	To Order

Photo	Part No	Description	Price (each)	Stock
	703266	Screw M6 x 10 Pan Head Torx	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$9.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED335423AA	Bearing Casting, Water Shedder, LH	$37.59	To Order

Photo	Part No	Description	Price (each)	Stock
	ED335422AA	Bearing Casting, Water Shedder, RH	$35.86	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	$5.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG4332692BA	M8X25 STEEL WASHER	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L277A61AC	Bracket, Reinforcement Rear Quarter Inner, LH	$22.22	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L277A60AC	Bracket, Reinforcement Rear Quarter Inner, RH	$22.22	To Order

Photo	Part No	Description	Price (each)	Stock
	3381094	Strip, Edge Protection, 65mm	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$0.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED43L243A70AA	Alignment Pin, Main Bearing Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED33507A62AA	Cover Plate, Tonneau Pump	$523.55	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33EM7243AA	Clip, Tonneau Pump Cover Plate	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)	$5.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED33P8K141AA	Gasket, Tonneau Pump Closing Panel	$14.80	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33507A63AA	Plate Assembly, Pump Closing	$74.22	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	GOCD3310230AA	Reinforcement Extrusion, Rear Floor Side	$56.32	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F16346BB	SPACER LATCH STRIKER	$16.27	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43393126AA	Nutplate Assembly, Striker	$60.00	To Order

Photo	Part No	Description	Price (each)	Stock
	GOED3320E801AA	Body Mount Catcher, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOED3320E800AA	Body Mount Catcher, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33393126AC	Mounting Plate, Catcher	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3338580AB	Panel Assy, Fuel Tank Compartment, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	$60.24	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N070AB	INSULATION - FUEL TANK SUPPORT	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	$15.70	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	$6.04	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	$874.03	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	$874.03	To Order

Photo	Part No	Description	Price (each)	Stock
	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	$9.86	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L24556AB	Nutplate, Pillar Centre Body Inner Rear	$53.06	To Order

Photo	Part No	Description	Price (each)	Stock
	7G432943707AA	Plate, Weld Nut, Centre	$5.51	To Order

Photo	Part No	Description	Price (each)	Stock
	ED334S019AB	Bracket, Tonneau Bump Stop, LH	$30.52	To Order

Photo	Part No	Description	Price (each)	Stock
	ED334S018AB	Bracket, Tonneau Bump Stop, RH	$30.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316K808AB	Bumper Hood to Cowl Top	$3.80	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	$16.27	A/R
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	$16.27	A/R
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	$16.27	A/R
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	$16.27	A/R
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	$14.82	A/R
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm	$20.69	A/R
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm	$20.26	A/R
1	ED33L04703AB	Panel, Window Regulator Opening Cover, LH	ED33L04703AB Panel, Window Regulator Opening Cover, LH Structural Cat. A Only	$135.31	1
2	ED33L04702AB	Panel, Window Regulator Opening Cover, RH	ED33L04702AB Panel, Window Regulator Opening Cover, RH Structural Cat. A Only	$132.42	1
3	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	$0.19	28
4	ED33303A93AA	Bracket, Quarter Window Regulator Mounting, LH	ED33303A93AA Bracket, Quarter Window Regulator Mounting, LH Structural Cat. A Only	$234.26	1
5	ED33303A92AA	Bracket, Quarter Window Regulator Mounting, RH	ED33303A92AA Bracket, Quarter Window Regulator Mounting, RH Structural Cat. A Only	$234.26	1
6	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	$0.25	27
7	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	4G4314A573AA Plate Assembly, Window Regulator Rear Switch Cover	$19.10	4
8	9G4328035AB	Panel, Rear Quarter Shedder, LH	9G4328035AB Panel, Rear Quarter Shedder, LH Structural Cat. A Only	$88.96	1
9	9G4328034AB	Panel, Rear Quarter Shedder, RH	9G4328034AB Panel, Rear Quarter Shedder, RH Structural Cat. A Only	$136.83	1
10	ED33A410K25AC	Panel, Rear Body Pillar Closing, LH	ED33A410K25AC Panel, Rear Body Pillar Closing, LH Structural Cat. A Only	$59.32	1
11	ED33A410K24AC	Panel, Rear Body Pillar Closing, RH	ED33A410K24AC Panel, Rear Body Pillar Closing, RH Structural Cat. A Only	$59.32	1
12	703266	Screw M6 x 10 Pan Head Torx IN STOCK	703266 Screw M6 x 10 Pan Head Torx IN STOCK	$0.80	6
13	703749	Nut, M6, Hex Flange Head IN STOCK	703749 Nut, M6, Hex Flange Head IN STOCK	$0.63	4
14	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 IN STOCK	$9.11	2
15	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	$0.66	2
16	ED335423AA	Bearing Casting, Water Shedder, LH	ED335423AA Bearing Casting, Water Shedder, LH Structural Cat. A Only	$37.59	1
17	ED335422AA	Bearing Casting, Water Shedder, RH	ED335422AA Bearing Casting, Water Shedder, RH Structural Cat. A Only	$35.86	1
18	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	$5.40	16
19	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	$1.33	4
20	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	$0.11	4
21	ED33L277A61AC	Bracket, Reinforcement Rear Quarter Inner, LH	ED33L277A61AC Bracket, Reinforcement Rear Quarter Inner, LH	$22.22	1
22	ED33L277A60AC	Bracket, Reinforcement Rear Quarter Inner, RH	ED33L277A60AC Bracket, Reinforcement Rear Quarter Inner, RH	$22.22	1
23	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	$5.54	2
24	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	$0.93	2
25	ED43L243A70AA	Alignment Pin, Main Bearing Bracket	ED43L243A70AA Alignment Pin, Main Bearing Bracket	-	2	Enquire
26	FD43E830667AB	WASHER 25MM X 6.4MM BLACK IN STOCK	FD43E830667AB WASHER 25MM X 6.4MM BLACK Pack of 10 IN STOCK	$0.65	4
27	ED33507A62AA	Cover Plate, Tonneau Pump	ED33507A62AA Cover Plate, Tonneau Pump	$523.55	1
28	ED33EM7243AA	Clip, Tonneau Pump Cover Plate	ED33EM7243AA Clip, Tonneau Pump Cover Plate	$2.48	1
29	702839PK	SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) IN STOCK	702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) Pack of 10 IN STOCK	$5.21	4
30	ED33P8K141AA	Gasket, Tonneau Pump Closing Panel	ED33P8K141AA Gasket, Tonneau Pump Closing Panel	$14.80	1
31	ED33507A63AA	Plate Assembly, Pump Closing	ED33507A63AA Plate Assembly, Pump Closing	$74.22	1
32	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	$0.66	6
33	GOCD3310230AA	Reinforcement Extrusion, Rear Floor Side	GOCD3310230AA Reinforcement Extrusion, Rear Floor Side	$56.32	2
34	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	$16.27	A/R
35	DG43393126AA	Nutplate Assembly, Striker	DG43393126AA Nutplate Assembly, Striker	$60.00	2
36	GOED3320E801AA	Body Mount Catcher, LH	GOED3320E801AA Body Mount Catcher, LH	-	1	Enquire
37	GOED3320E800AA	Body Mount Catcher, RH	GOED3320E800AA Body Mount Catcher, RH	-	1	Enquire
38	CD33393126AC	Mounting Plate, Catcher	CD33393126AC Mounting Plate, Catcher	-	2	Enquire
39	CD3338580AB	Panel Assy, Fuel Tank Compartment, Lower	CD3338580AB Panel Assy, Fuel Tank Compartment, Lower	-	1	Enquire
40	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	$60.24	2
41	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT	$2.41	2
42	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper	$15.70	2
43	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front	$6.04	2
44	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	$874.03	1
45	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	$874.03	1
46	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	$9.86	8
47	4G43L24556AB	Nutplate, Pillar Centre Body Inner Rear	4G43L24556AB Nutplate, Pillar Centre Body Inner Rear	$53.06	2
48	7G432943707AA	Plate, Weld Nut, Centre	7G432943707AA Plate, Weld Nut, Centre	$5.51	6
49	ED334S019AB	Bracket, Tonneau Bump Stop, LH	ED334S019AB Bracket, Tonneau Bump Stop, LH	$30.52	1
50	ED334S018AB	Bracket, Tonneau Bump Stop, RH	ED334S018AB Bracket, Tonneau Bump Stop, RH	$30.52	1
51	4G4316K808AB	Bumper Hood to Cowl Top IN STOCK	4G4316K808AB Bumper Hood to Cowl Top IN STOCK	$3.80	2
