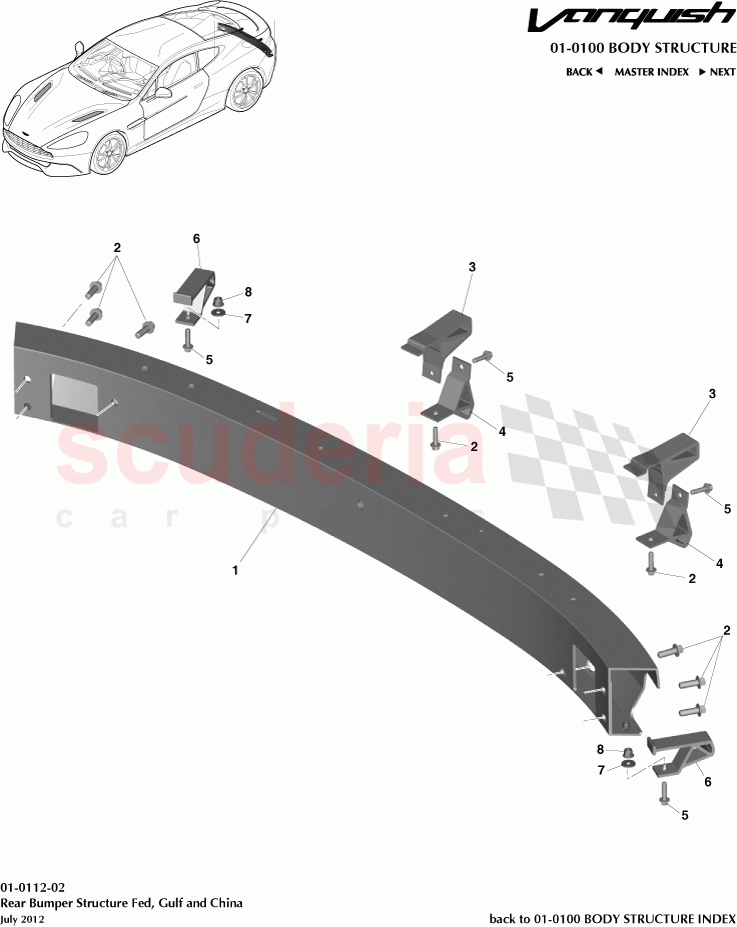

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3317758DA	Bumper Beam, Rear	$1,235.22	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	$5.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD3317C910AB	Absorber, Rear Bumper Isolator, Upper	$29.49	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3317C911AA	Absorber, Rear Bumper Isolator, Lower	$18.45	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD3317C902AB	Reinforcement, Rear Bumper Outer	$313.17	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	$20.82	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	$0.11	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	ED3317C911AA	Absorber, Rear Bumper Isolator, Lower	ED3317C911AA Absorber, Rear Bumper Isolator, Lower 14.5MY	$18.45	2
1	CD3317758DA	Bumper Beam, Rear	CD3317758DA Bumper Beam, Rear	$1,235.22	1
2	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	$5.38	8
3	CD3317C910AB	Absorber, Rear Bumper Isolator, Upper	CD3317C910AB Absorber, Rear Bumper Isolator, Upper	$29.49	2
4	ED3317C911AA	Absorber, Rear Bumper Isolator, Lower	ED3317C911AA Absorber, Rear Bumper Isolator, Lower	$18.45	2
5	703025	Screw, M6 x 25, Hex Flange Head IN STOCK	703025 Screw, M6 x 25, Hex Flange Head IN STOCK	$0.19	4
6	CD3317C902AB	Reinforcement, Rear Bumper Outer	CD3317C902AB Reinforcement, Rear Bumper Outer	$313.17	2
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	$20.82	2
8	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	$0.11	2
