Aston Martin Vanquish (2001-2007) - Harnesses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3R12370508AB HARNESS - LEFT FORWARD (RHD) $1,162.48 To Order
3R12370509AB HARNESS - LEFT FORWARD (LHD) $2,949.56 To Order
1R12370508AE HARNESS - LEFT FORWARD (RHD) $3,470.10 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3R12370524AA HARNESS - DOOR (PASSENGER) $258.19 To Order
1R12370524AC HARNESS - DOOR (PASSENGER) $1,134.09 To Order
700468 Grease, Lagermeister SL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3R12375523AC LINN ICE HARNESS $1,388.05 To Order
3R12375862AA LINN ICE LINK LEAD $24.82 To Order
1R12373211AD HARNESS ICE PREMIUM $1,440.60 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3R12370517AB BOOT HARNESS $799.04 To Order
1R12370517AE HARNESS - BOOT $876.84 To Order
5R1314403AA BOOT HARNESS $3,817.09 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3R12370514AA HARNESS-FACIA RHD $14,227.33 To Order
3R12370515AB HARNESS-FACIA LHD $10,410.26 To Order
1R12370514AF HARNESS-FACIA RHD $13,880.36 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3R12370522AA HARNESS - DOOR (DRIVER) $305.33 To Order
1R12370522AC HARNESS - DOOR (DRIVER) $2,168.83 To Order
700468 Grease, Lagermeister SL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
5R1314A227AA Harness, boot lid Enquire To Order
1R12370518AD HARNESS - BOOT LID $218.67 To Order
Photo Part No Description Price (each) Stock
91698 ENGINE WIR G HARNESS $8,935.49 To Order
3785921 FUEL INJECTOR HOUSING HARNESS $3.14 IN STOCK
703163 Nut, M6, Hex Flange Head, Locking $0.11 IN STOCK
Photo Part No Description Price (each) Stock
4R12376322AA TRANSMISSION GEAR POSITION LINK LEAD $248.48 To Order
3R12370799AB HARNESS - ASM $3,274.10 To Order
3R12370799AB HARNESS - ASM $3,274.10 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12370527AD Lead, fuel tank Enquire To Order
Photo Part No Description Price (each) Stock
3R12375524AB REAR PARKING SENSOR HARNESS $109.30 To Order
3R12375525AB PARKING SENSOR MODULE LINK $19.46 To Order
1R123210113 CYL BLOCK HTR-120v $47.90 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12833190AA HEELBOARD HARNESS COVER RHS $38.61 To Order
Photo Part No Description Price (each) Stock
4R12376276AA ABS SENSOR LINK LEAD $152.74 To Order
6R139137AA BLUETOOTH SWITCHER UNIT LINK $18.32 To Order
1R12375247AA GPS LINKLEAD GROMMET $15.21 To Order
...and 13 more part variants. See table on right for more details.
View All

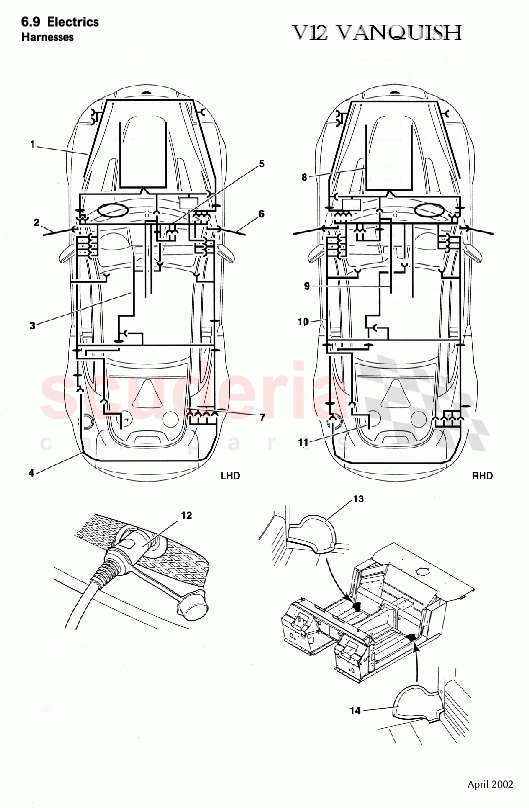

Harnesses of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3R12370508AB
HARNESS - LEFT FORWARD (RHD)
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$1,162.48 1
1 3R12370509AB
HARNESS - LEFT FORWARD (LHD)
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$2,949.56 1
1 1R12370508AE
HARNESS - LEFT FORWARD (RHD)
Up to (V) 500515 + 500522-525 		$3,470.10 1
1 1R12370509AE
HARNESS - LEFT FORWARD (LHD)
Up to (V) 500515 + 500522-525 		$4,161.43 1
1 4R12370508AA
HARNESS - RIGHT FORWARD (RHD)
From (V) 501286 		$1,214.54 1
1 4R12370509AA
HARNESS - LEFT FORWARD (LHD)
From (V) 501286 		$1,274.19 1
2 3R12370524AA
HARNESS - DOOR (PASSENGER)
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$258.19 1
2 1R12370524AC
HARNESS - DOOR (PASSENGER)
Up to (V) 500515 + 500522-525 		$1,134.09 1
2 700468
Grease, Lagermeister SL
For sealing door harness 		- - Enquire
2 6R1314B631BA
PASSENGER DOOR HARNESS
06MY from (V) 501949 		$256.82 1
2 4R12370524AB
HARNESS - DOOR (PASSENGER)
From (V) 501286 		$2,255.52 1
3 3R12375523AC
LINN ICE HARNESS
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$1,388.05 1
3 3R12375862AA
LINN ICE LINK LEAD
From (V) 500516-21 + 526 onwards 		$24.82 1
3 1R12373211AD
HARNESS ICE PREMIUM
Up to (V) 500515 + 500522-525 		$1,440.60 1
3 1R12370513AD
HARNESS-ICE
Up to (V) 500515 + 500522-525 		$1,409.26 1
3 6R1314588AB
Harness, ICE
06MY from (V) 501949 		- 1 Enquire
3 697274PK
TIE STRAP(PK OF 100)
ICE harness attach 		$59.41 3
3 1R12373777AA
SPACER - EARTH STUD
ICE harness earth 		$2.35 1
3 4R12375523AA
LINN ICE HARNESS
From (V) 501286 		$1,492.20 1
4 3R12370517AB
BOOT HARNESS
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$799.04 1
4 1R12370517AE
HARNESS - BOOT
Up to (V) 500515 + 500522-525 		$876.84 1
4 5R1314403AA
BOOT HARNESS
Vanquish S From (V) 501506 		$3,817.09 1
4 6R1314A227AA
BOOT HARNESS
06MY from (V) 501949 		$763.44 1
4 4R12370517AA
BOOT HARNESS
From (V) 501286 		$746.07 1
5 3R12370514AA
HARNESS-FACIA RHD
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$14,227.33 1
5 3R12370515AB
HARNESS-FACIA LHD
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$10,410.26 1
5 1R12370514AF
HARNESS-FACIA RHD
Up to (V) 500515 + 500522-525 		$13,880.36 1
5 1R12370515AG
HARNESS-FACIA LHD
Up to (V) 500515 + 500522-525 		$2,599.11 1
5 697398
TIESTRAP-RELEASEABLE 4.6 x 165
Facia harness to bracket 		$1.31 1
5 6R1314401AB
FACIA HARNESS RHD
06MY from (V) 501949 		$2,706.69 1
5 6R1314401BB
FACIA HARNESS LHD
06MY from (V) 501949 		$2,758.71 1
5 4R12370514AA
HARNESS-FACIA RHD
From (V) 501286 		$13,049.26 1
5 4R12370515AA
HARNESS-FACIA LHD
From (V) 501286 		$2,272.90 1
6 3R12370522AA
HARNESS - DOOR (DRIVER)
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$305.33 1
6 1R12370522AC
HARNESS - DOOR (DRIVER)
Up to (V) 500515 + 500522-525 		$2,168.83 1
6 700468
Grease, Lagermeister SL
For sealing door harness 		- - Enquire
6 6R1314B631AA
DRIVERS DOOR HARNESS
06MY from (V) 501949 		$281.05 1
6 4R12370522AB
HARNESS - DOOR (DRIVER)
From (V) 501286 		$1,561.56 1
7 5R1314A227AA
Harness, boot lid
Vanquish S From (V) 501506 		- 1 Enquire
7 1R12370518AD
HARNESS - BOOT LID 		$218.67 1
8 91698
ENGINE WIR G HARNESS 		$8,935.49 1
8 3785921
FUEL INJECTOR HOUSING HARNESS
IN STOCK 		$3.14 12
8 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 4
9 4R12376322AA
TRANSMISSION GEAR POSITION LINK LEAD
To rework ASM harness to suit latest sensors 		$248.48 1
9 3R12370799AB
HARNESS - ASM
From (V) 500516-21 + 526 See SB0185 		$3,274.10 1
9 3R12370799AB
HARNESS - ASM
Up to (V) 500515 + 500522-525 		$3,274.10 1
9 5R13372200AA
HARNESS-ASM SWITCHES
Vanquish S From (V) 501506 		$1,020.62 1
9 699209
Tie-wrap, heat proof
Asm harness to bracket 		$0.87 1
9 6R1314B079AA
ASM SWITCH HARNESS
06MY from (V) 501949 		$117.99 1
9 1R12372200AB
HARNESS-ASM SWITCHES
Up to (V) 501285 		$140.58 1
9 4R12372200AA
HARNESS-ASM SWITCHES
From (V) 501286 		$260.24 1
9 4R12370799AA
HARNESS - ASM
From See SB0185 		$2,247.37 1
10 3R12370520AB
HARNESS - CABIN (COUPE)
From (V) 500516-21 + 526 onwards, Up to (V) 501285 		$2,047.35 1
10 5R1314A003AA
CABIN HARNESS
Vanquish S From (V) 501506 up to (V) 501948 		$1,006.29 1
10 1R12370520AE
HARNESS - CABIN MODIFIED
Up to (V) 500515 + 500522-525 		$4,351.54 1
10 6R1314A003AA
CABIN HARNESS
06MY from (V) 501949 		$1,023.68 1
10 4R12370520AA
HARNESS - CABIN (COUPE)
From (V) 501286 		$2,776.01 1
11 1R12370527AD
Lead, fuel tank 		- 1 Enquire
12 3R12375524AB
REAR PARKING SENSOR HARNESS
From (V) 500516-21 + 526 onwards 		$109.30 1
12 3R12375525AB
PARKING SENSOR MODULE LINK
From (V) 500516-21 + 526 onwards 		$19.46 1
12 1R123210113
CYL BLOCK HTR-120v 		$47.90 1
12 1R12375210AA
220V BLOCK HEATER CORD SET 		$222.25 1
12 1R12375211AA
110V BLOCK HEATER CORD SET 		$55.10 1
12 1R12370528AA
Braid, security antenna 		- 1 Enquire
12 1R12375274AA
230V EXTENSION CORD 		$52.00 1
12 1R12375275AB
120V EXTENSION CORD 		$49.94 1
12 700077
'P' CLIP 		$5.67 1
12 700162
RIVET POP 4.9mm 		$0.58 2
12 699824
CABLE TIE / C CLIP 		$1.12 2
12 700163
RIVET 		$1.41 2
12 699523
P CLIP OPEN (RICHO WHC375-01) 		$1.67 6
12 700162
RIVET POP 4.9mm 		$0.58 8
13 1R12833190AA
HEELBOARD HARNESS COVER RHS 		$38.61 1
14 4R12376276AA
ABS SENSOR LINK LEAD
Vanquish S From (V) 501506 		$152.74 2
14 6R139137AA
BLUETOOTH SWITCHER UNIT LINK
06MY from (V) 501949 		$18.32 1
14 1R12375247AA
GPS LINKLEAD GROMMET
06MY from (V) 501949 		$15.21 1
14 6R1310N928AB
CENTRE STACK HARNESS
06MY from (V) 501949 		$288.11 1
14 6R1318B605AA
Link lead, microphone
06MY from (V) 501949 		- 1 Enquire
14 6R1318C950AA
GPS AERIAL LEAD
06MY from (V) 501949 		$50.31 1
14 6R1318C951AA
MOST LINK LEAD
06MY from (V) 501949 		$83.30 1
14 3R12375677AA
DIFF PUMP EXT HARNESS
Middle East 		$37.49 1
14 3R12375737AB
Harness, engine fan overlay
Middle East 		- 1 Enquire
14 697274PK
TIE STRAP(PK OF 100)
Middle East 		$59.41 4
14 3R12376149AA
BRACKET-CLUTCH POS N SENSOR 		$48.59 1
14 1R12833191AA
HEELBOARD HARNESS COVER LHS 		$38.61 1
14 1R12375746AA
ENGINE HARNESS CARRIER 		$623.03 1
14 3785236
Protector, Power Stud 		$5.36 1
14 1R12373359AA
EDGE PROTECTION 		$4.72 1
14 699233PK
TIE-STRAP HT RES-100 		$87.94 2
