Electronic Control Modules 1

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Electronic Control Modules 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12391408AH ADAPTOR-PTEC MODULES $398.82 To Order
Photo Part No Description Price (each) Stock
4S4A9D372AA MODULE - FUEL PUMP CONTROL $1,028.04 To Order
Photo Part No Description Price (each) Stock
1R12383609AB COVER - PTECS $78.02 To Order
Photo Part No Description Price (each) Stock
1R12383585AB GASKET - PTEC COVER $10.31 To Order
Photo Part No Description Price (each) Stock
703278 Screw, M6 x 10, Flange Hex Head $0.17 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
1R12381429AB SUPPORT CHANNEL - PTEC MODULE $51.58 To Order
Photo Part No Description Price (each) Stock
1R12381430AB MOUNTING SPINDLE - PTEC MODULE $7.81 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.55 IN STOCK
Photo Part No Description Price (each) Stock
1R123710134 SEAL-OUTER-PTEC $9.00 To Order
Photo Part No Description Price (each) Stock
1R123710020 Module, security and locking, 315 Mhz $806.31 To Order
1R123710436P SECURITY MODULE 315 PROGRAMMED TO CAR $700.80 To Order
Photo Part No Description Price (each) Stock
1R123710021 Module, security and locking, 315 Mhz low power $490.79 To Order
1R123710437P SECURITY MODULE 315Mhz LOW POWER PROGRAMMED TO CAR $687.08 To Order
Photo Part No Description Price (each) Stock
1R123710305P SECURITY MODULE 433 $1,163.34 To Order
1R123710438P SECURITY MODULE 433 PROGRAMMED TO CAR $862.73 To Order
Photo Part No Description Price (each) Stock
91719P MODULE-PTEC PROG TO CHASSIS No. PAIR $7,199.42 To Order
Photo Part No Description Price (each) Stock
1R12370529AD EARTH BRAID-MISFIRE DETECTION MODULE $24.38 To Order
Photo Part No Description Price (each) Stock
703278 Screw, M6 x 10, Flange Hex Head $0.17 To Order
Photo Part No Description Price (each) Stock
1R12370530AD EARTH BRAID - RESTRAINT CONTROL MODULE $21.08 To Order
Photo Part No Description Price (each) Stock
1R1314B321AC SIR MODULE RCM262 $328.88 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.98 To Order
Photo Part No Description Price (each) Stock
3785291 MODULE-MSF $425.70 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.98 To Order
Photo Part No Description Price (each) Stock
699697 Nut, M6, Flg Duralock $3.00 To Order
Photo Part No Description Price (each) Stock
1R12393606AC GASKET ADAPTOR PTEC MODULE $38.82 To Order
Photo Part No Description Price (each) Stock
1R129010106 Modulator, ABS $1,132.57 To Order
Photo Part No Description Price (each) Stock
1R129010106P ABS MODULATOR PROGRAMMED TO CAR $1,525.79 To Order
Photo Part No Description Price (each) Stock
1R12371650AB BRACKET - FUEL PUMP MODULE Enquire To Order
Photo Part No Description Price (each) Stock
697636 M5 x 20 FLG HD $2.50 To Order
Photo Part No Description Price (each) Stock
1R123710197 Seat module $474.09 To Order
703278 Screw, M6 x 10, Flange Hex Head $0.17 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.55 IN STOCK
Photo Part No Description Price (each) Stock
1R12382240AC ASSY ACCEL PEDAL RHD $789.51 To Order
1R12382239AD ASSY ACCEL PEDAL LHD $747.17 To Order
Photo Part No Description Price (each) Stock
1R123710037 LEAD-SECURITY AERIAL $653.45 To Order
Photo Part No Description Price (each) Stock
699522 SCREW 5MM X 12MM THREADFORMING Enquire To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.98 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.27 IN STOCK
View All

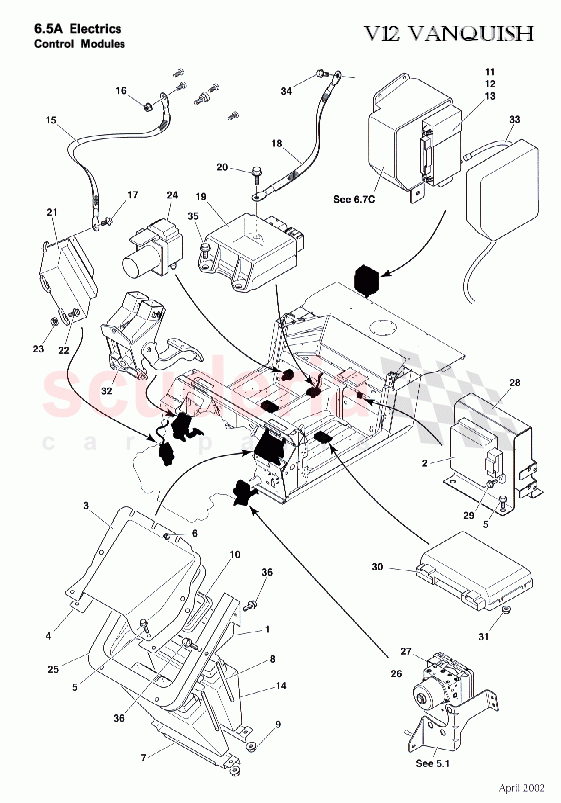

Electronic Control Modules 1 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12391408AH
ADAPTOR-PTEC MODULES 		$398.82 1
2 4S4A9D372AA
MODULE - FUEL PUMP CONTROL 		$1,028.04 2
3 1R12383609AB
COVER - PTECS 		$78.02 2
4 1R12383585AB
GASKET - PTEC COVER 		$10.31 1
5 703278
Screw, M6 x 10, Flange Hex Head 		$0.17 2
6 702295
Nut, M5, Hex Flange Head
LHD
IN STOCK 		$0.10 2
6 702295
Nut, M5, Hex Flange Head
RHD
IN STOCK 		$0.10 3
7 1R12381429AB
SUPPORT CHANNEL - PTEC MODULE 		$51.58 2
8 1R12381430AB
MOUNTING SPINDLE - PTEC MODULE 		$7.81 4
9 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.55 4
10 1R123710134
SEAL-OUTER-PTEC 		$9.00 2
11 1R123710020
Module, security and locking, 315 Mhz
Up to (V) 501285 		$806.31 1
11 1R123710436P
SECURITY MODULE 315 PROGRAMMED TO CAR
From (V) 501286 		$700.80 1
12 1R123710021
Module, security and locking, 315 Mhz low power
Up to (V) 501285 		$490.79 1
12 1R123710437P
SECURITY MODULE 315Mhz LOW POWER PROGRAMMED TO CAR
From (V) 501286 		$687.08 1
13 1R123710305P
SECURITY MODULE 433
Up to (V) 501285 		$1,163.34 1
13 1R123710438P
SECURITY MODULE 433 PROGRAMMED TO CAR
From (V) 501286 		$862.73 1
14 91719P
MODULE-PTEC PROG TO CHASSIS No. PAIR 		$7,199.42 1
15 1R12370529AD
EARTH BRAID-MISFIRE DETECTION MODULE 		$24.38 1
16 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.12 1
17 703278
Screw, M6 x 10, Flange Hex Head 		$0.17 1
18 1R12370530AD
EARTH BRAID - RESTRAINT CONTROL MODULE 		$21.08 1
19 1R1314B321AC
SIR MODULE RCM262 		$328.88 1
20 700126
SCREW M6x20 HEX FLG
Sir module attach 		$2.98 3
21 3785291
MODULE-MSF 		$425.70 2
22 700126
SCREW M6x20 HEX FLG 		$2.98 6
23 699697
Nut, M6, Flg Duralock 		$3.00 2
24 1R123910135
Sensor, Barometric Pressure 		$154.76 1
25 1R12393606AC
GASKET ADAPTOR PTEC MODULE 		$38.82 1
26 1R129010106
Modulator, ABS 		$1,132.57 1
27 1R129010106P
ABS MODULATOR PROGRAMMED TO CAR 		$1,525.79 1
28 1R12371650AB
BRACKET - FUEL PUMP MODULE 		- 1 Enquire
29 697636
M5 x 20 FLG HD 		$2.50 2
30 1R123710197
Seat module 		$474.09 2
30 703278
Screw, M6 x 10, Flange Hex Head 		$0.17 4
31 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.55 4
32 1R12382240AC
ASSY ACCEL PEDAL RHD
RHD 		$789.51 1
32 1R12382239AD
ASSY ACCEL PEDAL LHD
LHD 		$747.17 1
33 1R123710037
LEAD-SECURITY AERIAL 		$653.45 1
34 699522
SCREW 5MM X 12MM THREADFORMING 		- 1 Enquire
35 700126
SCREW M6x20 HEX FLG 		$2.98 2
36 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.27 2
