Aston Martin Vanquish (2001-2007) - Exterior Lamps

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
700615 SCREW M8x16 PILOT GRD 10.9 $4.47 To Order
1R12370490AC HEADLAMP ASSY-RH NAS $3,764.50 To Order
1R12370491AC HEADLAMP ASSY-LH NAS $3,764.50 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12371966AB ASSY TUBE - VENT FRONT (AIR IN) $17.80 To Order
Photo Part No Description Price (each) Stock
1R12370492AB ASSY TUBE-HEADLAMP VENT (FRONT) $25.26 To Order
Photo Part No Description Price (each) Stock
1R12370495AB TUBE ASSY - HEADLAMP VENT (REAR) $14.86 To Order
699523 P CLIP OPEN (RICHO WHC375-01) $1.67 To Order
Photo Part No Description Price (each) Stock
1R12373274AC Bracket, headlamp support, RH Enquire To Order
697274PK TIE STRAP(PK OF 100) $59.19 To Order
699515 RIVET (HUCK ABP-R8-M3) $1.67 To Order
Photo Part No Description Price (each) Stock
37121709AA LHS FRT SIDE/DI/FOG LAMP ROW $531.50 To Order
37121710AA RH Front Fog Lamp $172.80 IN STOCK
37122812AA LHS FRT SIDE - DI - FOG LAMP FED $404.79 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12374013AA SIDE REPEATER $54.22 To Order
1R123710126 SIDE REPEATER LAMP $26.08 To Order
1R123710127 SIDEMARKER LMP-RR RH $840.65 To Order
Photo Part No Description Price (each) Stock
1R123710130 SIDEMARKER LMP-FT LH $391.51 To Order
1R12373588AB MOULDING FRONT SIDE MARKER RH $39.03 To Order
Photo Part No Description Price (each) Stock
1R12373589AB MOULDING FRONT SIDE MARKER LH $39.03 To Order
Photo Part No Description Price (each) Stock
1R12373590AB MOULDING REAR SIDE MARKER RH $39.03 To Order
1R12373591AB MOULDING REAR SIDE MARKER LH $39.03 To Order
Photo Part No Description Price (each) Stock
1R12370506AA LAMP - LICENCE PLATE $81.51 To Order
Photo Part No Description Price (each) Stock
700055 SCREW M4x16 SKT BTTN $2.11 To Order
Photo Part No Description Price (each) Stock
1R12370503AB REFLEX REFLECTOR ECE $12.18 IN STOCK
1R12370503AB REFLEX REFLECTOR ECE $12.18 IN STOCK
Photo Part No Description Price (each) Stock
5R13373378AA REAR LAMP ASSY COMPLETE RH $1,407.54 To Order
5R13373379AA REAR LAMP ASSY COMPLETE LH $1,407.54 To Order
697177 Nut, M6, Flanged $0.11 To Order
Photo Part No Description Price (each) Stock
1R12372044AA CARRIER - CHMSL $382.24 To Order
700106 SCREW No6x13 S/TAPP $3.46 To Order
699293 SPIRE CLIP NO.6 $0.80 To Order
Photo Part No Description Price (each) Stock
1R12372722AA SEAL - CHMSL $6.86 To Order
Photo Part No Description Price (each) Stock
5R1313A503AA Bracket, CHMSL, TRUNK LID Enquire To Order
5R1313N408AB CHMSL TRUNK LID $116.44 To Order
697470 NUT M5 NYLOC $0.05 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12834228AA SCREW M5x25 SKT HD - POLISHED $1.62 To Order
Photo Part No Description Price (each) Stock
700605 NUT M4 HEX FLG BLACK GRD 8 $1.23 To Order
Photo Part No Description Price (each) Stock
1R12375084AA FOAM PAD REAR LAMP CLUSTER RH $3.19 To Order
1R12375083AA FOAM PAD REAR LAMP CLUSTER LH $3.19 To Order
Photo Part No Description Price (each) Stock
700615 SCREW M8x16 PILOT GRD 10.9 $4.47 To Order
697064 KY jelly $19.33 To Order
View All

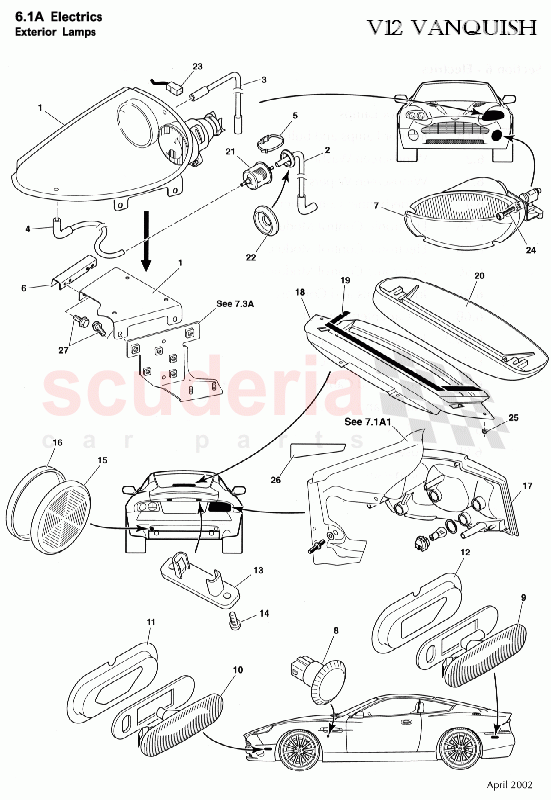

Exterior Lamps of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 700615
SCREW M8x16 PILOT GRD 10.9
Headlamp attach 		$4.47 8
1 1R12370490AC
HEADLAMP ASSY-RH NAS
USA/CDN only 		$3,764.50 1
1 1R12370491AC
HEADLAMP ASSY-LH NAS
USA/CDN only 		$3,764.50 1
1 1R12370488AC
HEADLAMP ASSY - RH EURO LHD
Not USA/CDN 		$3,548.50 1
1 1R12370489AC
HEADLAMP ASSY - LH EURO LHD
Not USA/CDN 		$3,764.50 1
1 1R12370486AC
HEADLAMP ASSY-RH RHD 		$3,548.50 1
1 1R12370487AC
HEADLAMP ASSY-LH RHD 		$3,548.50 1
2 1R12371966AB
ASSY TUBE - VENT FRONT (AIR IN) 		$17.80 2
3 1R12370492AB
ASSY TUBE-HEADLAMP VENT (FRONT) 		$25.26 2
4 1R12370495AB
TUBE ASSY - HEADLAMP VENT (REAR) 		$14.86 2
4 699523
P CLIP OPEN (RICHO WHC375-01) 		$1.67 6
5 1R12373274AC
Bracket, headlamp support, RH 		- 1 Enquire
5 697274PK
TIE STRAP(PK OF 100) 		$59.19 2
5 699515
RIVET (HUCK ABP-R8-M3) 		$1.67 4
6 1R12373275AC
Bracket, headlamp support, LH 		- 1 Enquire
6 699531
RIVET (HUCK ABP-R8-M6) 		$3.93 4
7 37121709AA
LHS FRT SIDE/DI/FOG LAMP ROW
Not USA/CDN 		$531.50 1

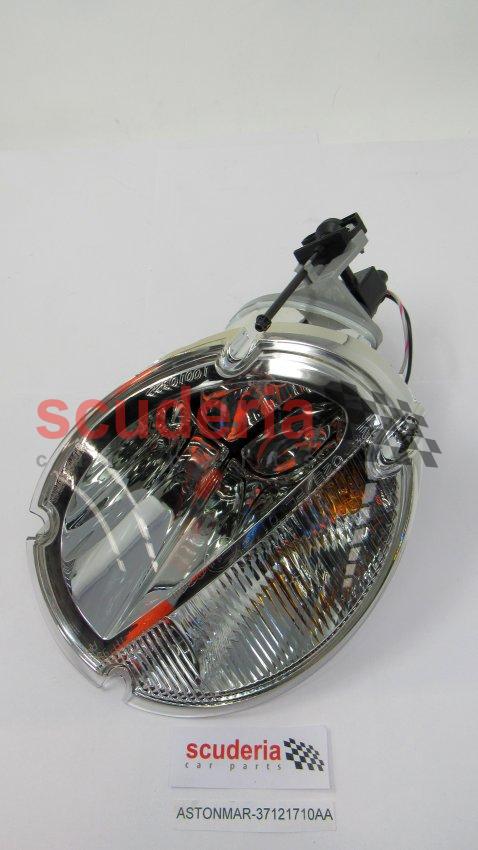

7 37121710AA
RH Front Fog Lamp
Not USA/CDN
IN STOCK 		$172.80 1
7 37122812AA
LHS FRT SIDE - DI - FOG LAMP FED
USA/CDN 		$404.79 1
7 37122813AA
RHS FRT SIDE - DI - FOG LAMP FED
USA/CDN 		$404.79 1
7 1R12834228AA
SCREW M5x25 SKT HD - POLISHED 		$1.62 6
8 1R12374013AA
SIDE REPEATER
Not USA/CDN 		$54.22 2
8 1R123710126
SIDE REPEATER LAMP
USA/CDN 		$26.08 2
8 1R123710127
SIDEMARKER LMP-RR RH 		$840.65 1
9 1R123710129
SIDEMARKER LMP-FT RH 		$391.51 1

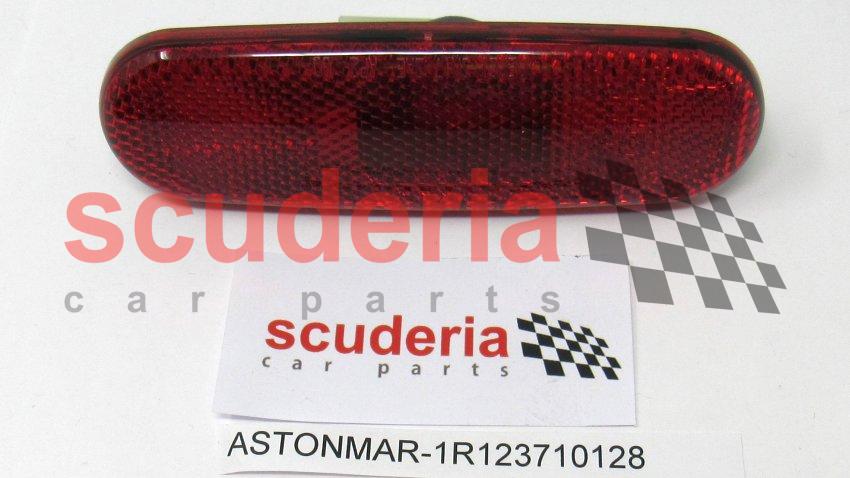

9 1R123710128
Side Marker LMP-RR LH
IN STOCK 		$255.53 1
9 697482
SCREW M4 x 20 PAN HEAD THREAD FORM 		$0.47 8
10 1R123710130
SIDEMARKER LMP-FT LH 		$391.51 1
10 1R12373588AB
MOULDING FRONT SIDE MARKER RH 		$39.03 1
11 1R12373589AB
MOULDING FRONT SIDE MARKER LH 		$39.03 1
12 1R12373590AB
MOULDING REAR SIDE MARKER RH 		$39.03 1
12 1R12373591AB
MOULDING REAR SIDE MARKER LH 		$39.03 1
13 1R12370506AA
LAMP - LICENCE PLATE 		$81.51 2
14 700055
SCREW M4x16 SKT BTTN
Number plate light 		$2.11 4
15 1R12370503AB
REFLEX REFLECTOR ECE
Not USA/CDN
IN STOCK 		$12.18 2
15 1R12370503AB
REFLEX REFLECTOR ECE
USA/CDN
IN STOCK 		$12.18 2
16 1R12373561AD
FINISHER - REFLEX REFLECTOR ECE
Not USA/CDN 		$90.33 2
16 1R12373562AB
FINISHER - REFLEX REFLECTOR SAE
USA/CDN
IN STOCK 		$82.70 2
17 5R13373378AA
REAR LAMP ASSY COMPLETE RH 		$1,407.54 1
17 5R13373379AA
REAR LAMP ASSY COMPLETE LH 		$1,407.54 1
17 697177
Nut, M6, Flanged 		$0.11 2
18 1R12372044AA
CARRIER - CHMSL 		$382.24 1
18 700106
SCREW No6x13 S/TAPP 		$3.46 4
18 699293
SPIRE CLIP NO.6 		$0.80 4
19 1R12372722AA
SEAL - CHMSL 		$6.86 1
20 5R1313A503AA
Bracket, CHMSL, TRUNK LID
Vanquish S From (V) 501506 		- 1 Enquire
20 5R1313N408AB
CHMSL TRUNK LID
Vanquish S From (V) 501506 		$116.44 1
20 697470
NUT M5 NYLOC
Vanquish S From (V) 501506 		$0.05 2
20 5R137D741AA
O RING - CHMSL RETENTION
Vanquish S From (V) 501506 		$2.47 2
20 697528PK
Washer-M5 Large OD Pack of 20
Vanquish S From (V) 501506 		$8.07 4
20 3784982
HIGH MOUNTED STOP LAMP IN BLACK 		$846.30 1
20 8390005
Krytox, GPL105 		$484.44 -
21 3783530
FILTER - HEADLAMP VENTING 		$22.16 2
23 1R123710332
AUTO HEADLAMP LINK LEAD
Up to (V) 501285 		$86.40 2
23 37111114AC
LINK LEAD - HEADLAMP 		$46.17 2
24 1R12834228AA
SCREW M5x25 SKT HD - POLISHED 		$1.62 6
25 700605
NUT M4 HEX FLG BLACK GRD 8 		$1.23 4
26 1R12375084AA
FOAM PAD REAR LAMP CLUSTER RH 		$3.19 1
26 1R12375083AA
FOAM PAD REAR LAMP CLUSTER LH 		$3.19 1
27 700615
SCREW M8x16 PILOT GRD 10.9 		$4.47 8
27 697064
KY jelly 		$19.33 -
