Aston Martin Rapide - Evaporative Emissions

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433410937 Valve Fuel/ Vapour Purge Electronic $76.67 IN STOCK
Photo Part No Description Price (each) Stock
4G439G743AA Bracket, Electronic Fuel Vapour Management $8.33 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
AD239B051AA TUBE - PURGE VALVE INLET $38.63 To Order
4G439B051AD TUBE - PURGE VALVE INLET $132.57 To Order
Photo Part No Description Price (each) Stock
4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH $167.77 To Order
Photo Part No Description Price (each) Stock
6H439G750AA Cannister, Carbon Enquire To Order
Photo Part No Description Price (each) Stock
AD439C177AA Bracket, Fuel Tank Vent Valve Enquire To Order
Photo Part No Description Price (each) Stock
703161 Nut Hex M8 Flanged $0.85 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
699711 ‘P Clip, 23 x 15 x M6 $1.80 To Order
Photo Part No Description Price (each) Stock
4G439B995AA Filter, Fuel/Vapour Storage Canister $32.96 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
AD439G271BA Hose assy Enquire To Order
Photo Part No Description Price (each) Stock
AD439A228AB VAPOUR LINE FROM CANISTER TO TANK $197.28 To Order
Photo Part No Description Price (each) Stock
HY539C111AA ON BOARD DIAGNOSTIC LEAK CHECK PUMP $585.08 IN STOCK
Photo Part No Description Price (each) Stock
AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL $531.05 To Order
AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL $531.05 To Order
AD439G271AA Hose assy Enquire To Order
View All

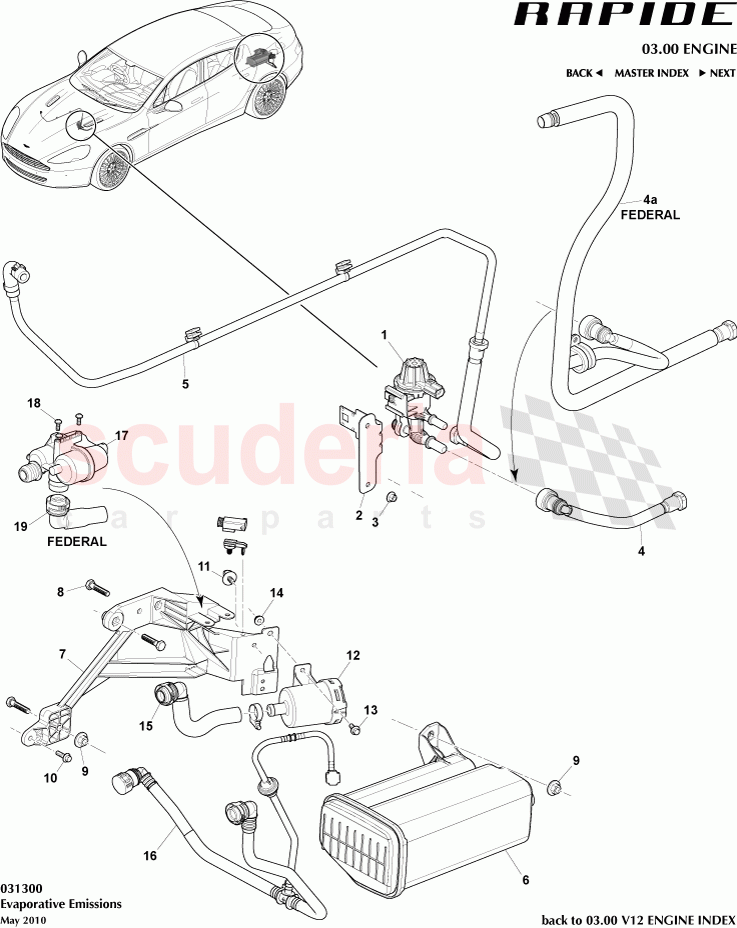

Evaporative Emissions of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433410937
Valve Fuel/ Vapour Purge Electronic
IN STOCK 		$76.67 1
2 4G439G743AA
Bracket, Electronic Fuel Vapour Management 		$8.33 1
3 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 2
4 AD239B051AA
TUBE - PURGE VALVE INLET 		$38.63 1
4 4G439B051AD
TUBE - PURGE VALVE INLET
FED 		$132.57 1
5 4G439D289BD
TUBE ASSY - EVMV TO MANIFOLD RH 		$167.77 1
6 6H439G750AA
Cannister, Carbon 		- 1 Enquire
7 AD439C177AA
Bracket, Fuel Tank Vent Valve 		- 1 Enquire
9 703161
Nut Hex M8 Flanged
IN STOCK 		$0.85 2
10 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 2
11 699711
‘P Clip, 23 x 15 x M6 		$1.80 1
12 4G439B995AA
Filter, Fuel/Vapour Storage Canister 		$32.96 1
13 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 1
14 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.93 1
15 AD439G271BA
Hose assy 		- 1 Enquire
16 AD439A228AB
VAPOUR LINE FROM CANISTER TO TANK 		$197.28 1
17 HY539C111AA
ON BOARD DIAGNOSTIC LEAK CHECK PUMP
FED
IN STOCK 		$585.08 1
19 AD439E857AB
FUEL CARBON CANNISTE BRACKET ASSY FEDERAL
FED, items 6, 7, 8, 12, 17, 18 & 19 		$531.05 1
19 AD439E857AB
FUEL CARBON CANNISTE BRACKET ASSY FEDERAL
Items 6, 7, 8, 12 & 15 		$531.05 1
19 AD439G271AA
Hose assy
FED, 		- 1 Enquire
