Accessory Drive

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Accessory Drive

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3310300AA Alternator, 200A $1,409.62 To Order
Photo Part No Description Price (each) Stock
704079 Bolt, M10 x 150, Hex Flg Hd $8.28 To Order
700140 Bolt and Washer, M10 x 97.5 $39.51 To Order
Photo Part No Description Price (each) Stock
AD4310A346AA HEAT SHIELD ALTERNATOR $86.46 To Order
Photo Part No Description Price (each) Stock
CD3310239AB BRKT ASY-ALT MTG Enquire To Order
Photo Part No Description Price (each) Stock
703692 Bolt, flg, M10x45, Alt bkt to cl hd $21.85 To Order
Photo Part No Description Price (each) Stock
697759 Dowel, hollow, 14.0 X 17.5 Enquire To Order
Photo Part No Description Price (each) Stock
AD4319D629AA COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT $1,032.29 To Order
Photo Part No Description Price (each) Stock
702557 BOLT M8 X 100 HF 8 $24.93 To Order
Photo Part No Description Price (each) Stock

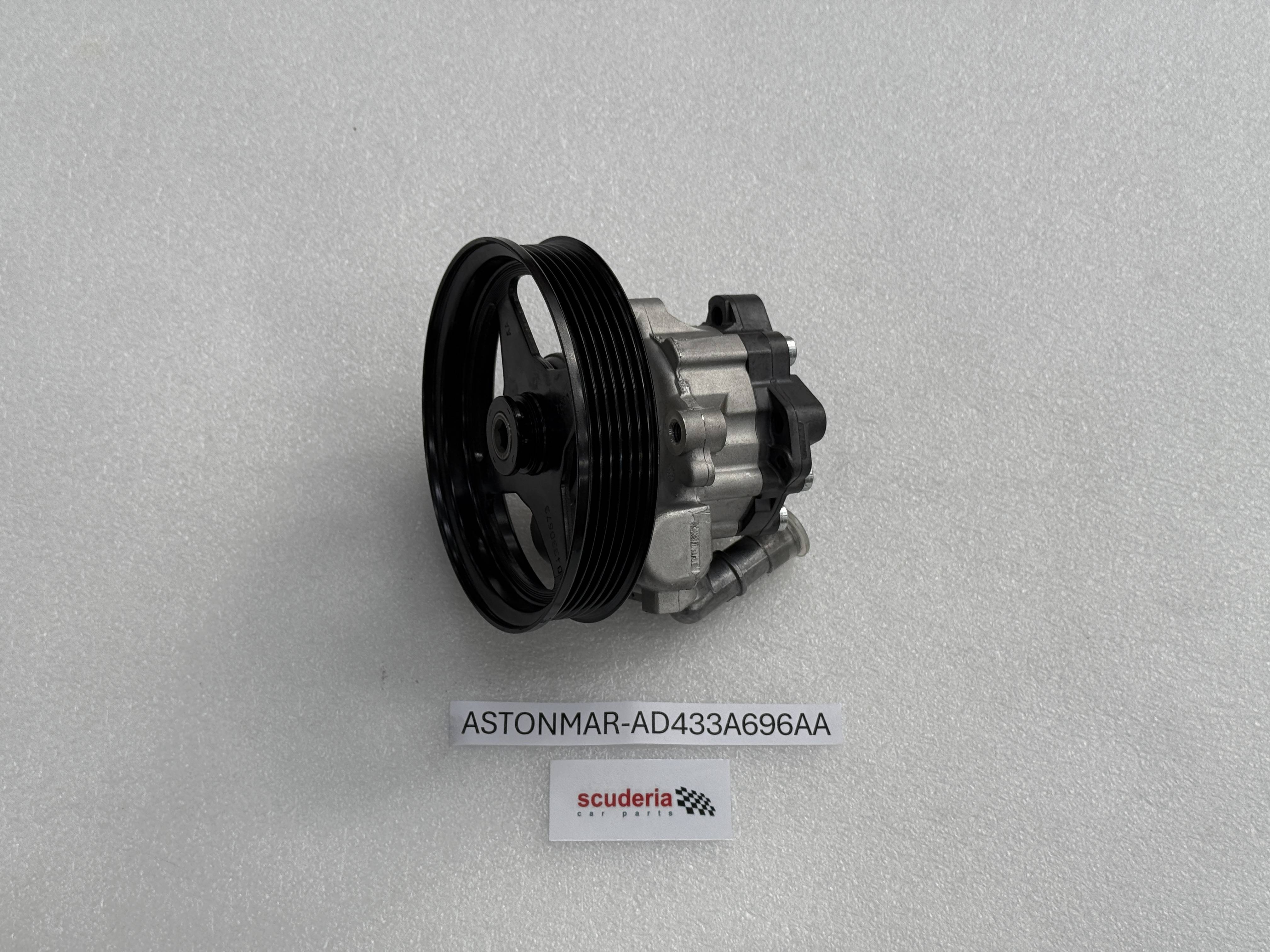

AD433A696AA P/STRG PUMP & PULLEY (ENGINE MOUNTED) $3,479.56 IN STOCK
Photo Part No Description Price (each) Stock
AD433D673AA Pulley, PAS pump Enquire To Order
Photo Part No Description Price (each) Stock
AD4336189AB Bracket, PAS Pump mounting Enquire To Order
Photo Part No Description Price (each) Stock
702511PK NUT J SPRING 4.8 X 0.70 (PACK OF 10) $6.66 IN STOCK
Photo Part No Description Price (each) Stock
702859 PIN $9.27 To Order
Photo Part No Description Price (each) Stock
1R120510488 Pulley, Engine Idler $105.44 IN STOCK
Photo Part No Description Price (each) Stock
707627 SCREW M8 X 25MM HEX HEAD $8.20 IN STOCK
Photo Part No Description Price (each) Stock
1R120510530 Idler Pulley Grooved $149.15 IN STOCK
Photo Part No Description Price (each) Stock
585368 Tensioner Drive Belt $264.00 ARRIVING SOON
Photo Part No Description Price (each) Stock
ED238620AA Feed Drive Belt $87.11 ARRIVING SOON
View All

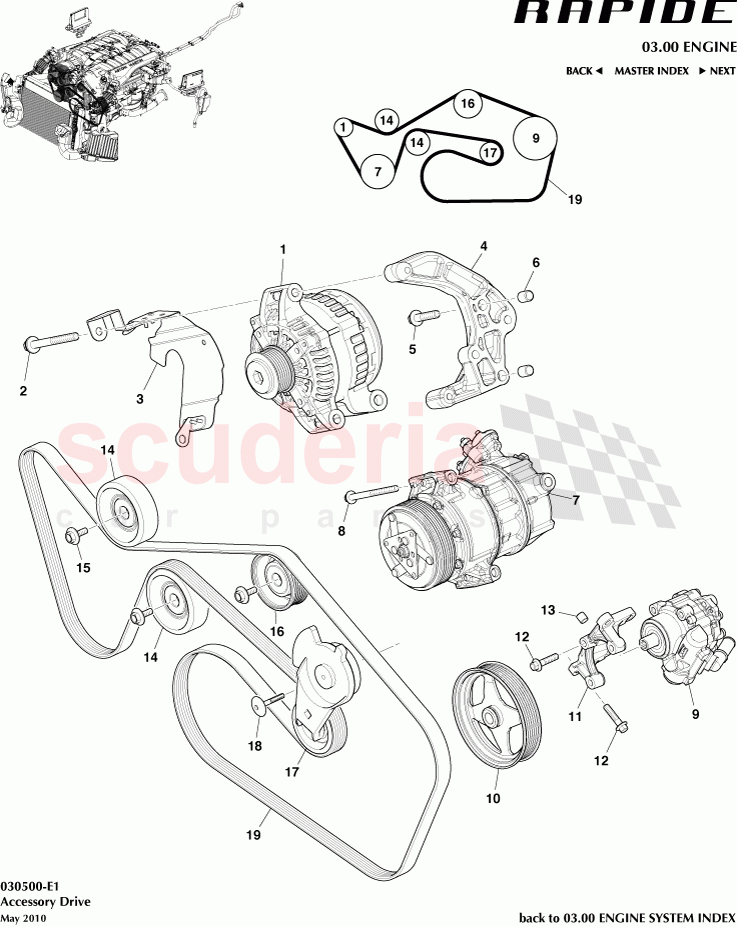

Accessory Drive of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3310300AA
Alternator, 200A 		$1,409.62 1
2 704079
Bolt, M10 x 150, Hex Flg Hd 		$8.28 1
2 700140
Bolt and Washer, M10 x 97.5 		$39.51 2
3 AD4310A346AA
HEAT SHIELD ALTERNATOR 		$86.46 1
4 CD3310239AB
BRKT ASY-ALT MTG 		- 1 Enquire
5 703692
Bolt, flg, M10x45, Alt bkt to cl hd 		$21.85 3
6 697759
Dowel, hollow, 14.0 X 17.5 		- 2 Enquire
7 AD4319D629AA
COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT 		$1,032.29 1
8 702557
BOLT M8 X 100 HF 8
Air Con Compressor 		$24.93 3
9 AD433A696AA
P/STRG PUMP & PULLEY (ENGINE MOUNTED)
IN STOCK 		$3,479.56 1
10 AD433D673AA
Pulley, PAS pump 		- 1 Enquire
11 AD4336189AB
Bracket, PAS Pump mounting 		- 1 Enquire
12 702511PK
NUT J SPRING 4.8 X 0.70 (PACK OF 10)
IN STOCK 		$6.66 7
13 702859
PIN 		$9.27 3
14 1R120510488
Pulley, Engine Idler
IN STOCK 		$105.44 2
15 707627
SCREW M8 X 25MM HEX HEAD
IN STOCK 		$8.20 3
16 1R120510530
Idler Pulley Grooved
IN STOCK 		$149.15 1
17 585368
Tensioner Drive Belt
ARRIVING SOON 		$264.00 1
19 ED238620AA
Feed Drive Belt
ARRIVING SOON 		$87.11 1
