Aston Martin Rapide - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D338333AA HOSE RADIATOR $114.27 IN STOCK
Photo Part No Description Price (each) Stock
8D338555AB TUBE WATER BYPASS $1,138.67 IN STOCK
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
4G438C350GB HOS-ENG COOL RSVR A $1,245.21 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
4G4319B518BD RADIATOR EXPANSION TANK $457.12 IN STOCK
Photo Part No Description Price (each) Stock
1R123710166 Switch, Coolant Level $72.75 IN STOCK
Photo Part No Description Price (each) Stock
4G438101BB PRESSURE CAP 150KPA $125.10 IN STOCK
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.44 IN STOCK
Photo Part No Description Price (each) Stock
4G438C363FC HOSE RAD DEGAS $638.77 To Order
Photo Part No Description Price (each) Stock
4G438063AE Hose, Engine to Supply Tank $82.07 IN STOCK
Photo Part No Description Price (each) Stock
4G438003EB Pipe, Cross Over Bleed $76.47 To Order
Photo Part No Description Price (each) Stock
4G438003CA Hose, Thermo Housing, Cross Over Bleed $64.15 To Order
Photo Part No Description Price (each) Stock
702904 Spring Clamp, Hose, 17 x 15 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
4G438584EB HOSE ASY THERMO UPR $225.81 To Order
Photo Part No Description Price (each) Stock
AD4318D334AA HOS-HTR INLT ASSY LH $274.48 To Order
AD4318D334BA HOS-HTR INLT ASSY RH $246.98 To Order
Photo Part No Description Price (each) Stock
AD4318D359AA HOS-HTR OLET ASSY LH $360.59 To Order
AD4318D359BA HOS-HTR OLET ASSY RH $256.35 To Order
Photo Part No Description Price (each) Stock
701335 Clip, Hose Spring, 20 x 15 $1.06 To Order
Photo Part No Description Price (each) Stock
4G434867BA Cover assy, bottom Enquire To Order
Photo Part No Description Price (each) Stock
4G436793BB Top Cover, Engine Harness $13.39 IN STOCK
Photo Part No Description Price (each) Stock
700229 Bolt, M8 x 35, Hex Flange Head $0.38 To Order
Photo Part No Description Price (each) Stock
4G4358AA HOSE CLIP SPACER PLATE $21.20 To Order
Photo Part No Description Price (each) Stock
AD432A155AA BRACKET - HOSE CLIP $19.35 To Order
Photo Part No Description Price (each) Stock
701345 NUT M6 HEX FLG MTL 8 Enquire To Order
Photo Part No Description Price (each) Stock
6G33TBD2BA Reservoir, Coolant Expansion $56.53 To Order
Photo Part No Description Price (each) Stock
703734 Bolt and Washer M6x25 hex hd $1.16 To Order
Photo Part No Description Price (each) Stock
4G438N029AG Hose Assy, Overflow $24.41 To Order
Photo Part No Description Price (each) Stock
AD4355AA DOUBLE C CLIP 18 $1.55 To Order
Photo Part No Description Price (each) Stock
AD438B081AA HOSE RADIATOR SUPPLY TANK OVERFLOW $68.32 To Order
Photo Part No Description Price (each) Stock
701181 Clip, 16 x 6.5 x 1.5-6 $2.91 IN STOCK
Photo Part No Description Price (each) Stock
AD4318D359EA HTR PIPE OLET INLET ASSY $226.01 To Order
Photo Part No Description Price (each) Stock
AD4318D359DA HTR PIPE OLET INLET ASSY $454.65 To Order
Photo Part No Description Price (each) Stock
702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 $1.98 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
703198 Bolt, M6 x 40, Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
AD4318495AA Valve assy, Water Heater Control $233.09 To Order
Photo Part No Description Price (each) Stock
AD4318D359FA Hose, Heater Outlet, LHD $56.72 To Order
AD4318D359CA HOSE HEATER OUTLET ASSY RHD $45.16 To Order
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.40 IN STOCK
View All

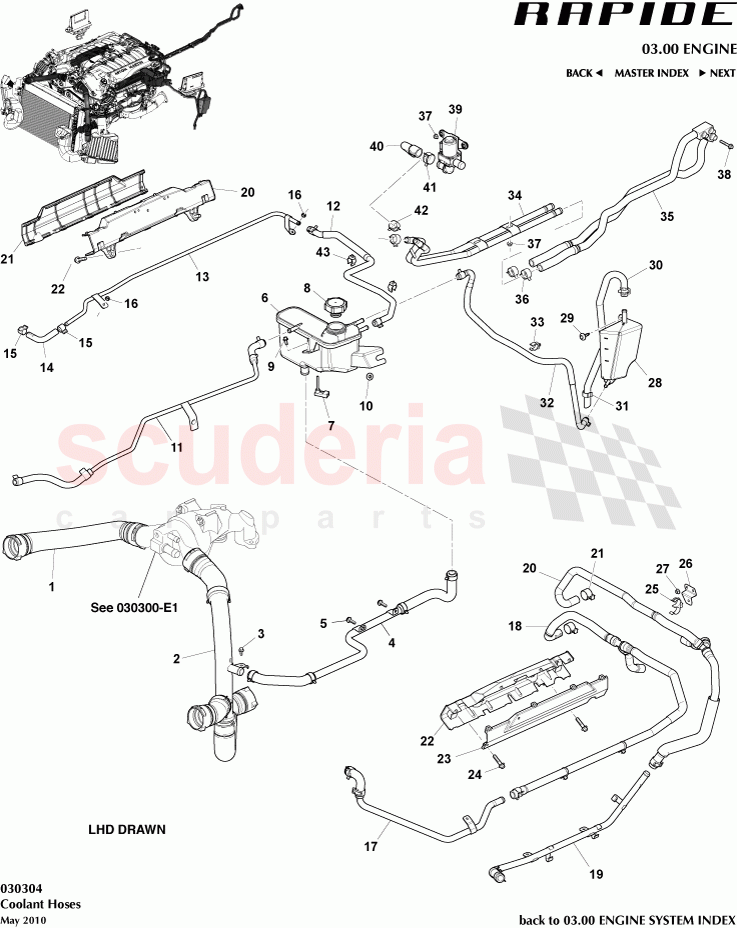

Coolant Hoses of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D338333AA
HOSE RADIATOR
IN STOCK 		$114.27 1
2 8D338555AB
TUBE WATER BYPASS
IN STOCK 		$1,138.67 1
3 HY53E804349AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.66 1
4 4G438C350GB
HOS-ENG COOL RSVR A 		$1,245.21 1
5 HY53E804349AA
M6 X 14 SCREW HEX HD
Hose, engine cool reservoir
IN STOCK 		$0.66 2
6 4G4319B518BD
RADIATOR EXPANSION TANK
IN STOCK 		$457.12 1
7 1R123710166
Switch, Coolant Level
IN STOCK 		$72.75 1
8 4G438101BB
PRESSURE CAP 150KPA
IN STOCK 		$125.10 1
9 HY53E804349AA
M6 X 14 SCREW HEX HD
Tank assy, expansion
IN STOCK 		$0.66 1
10 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.44 1
11 4G438C363FC
HOSE RAD DEGAS 		$638.77 1
12 4G438063AE
Hose, Engine to Supply Tank
IN STOCK 		$82.07 1
13 4G438003EB
Pipe, Cross Over Bleed 		$76.47 1
14 4G438003CA
Hose, Thermo Housing, Cross Over Bleed 		$64.15 1
15 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.82 2
16 702295
Nut, M5, Hex Flange Head
Crossover Bleed Pipe
IN STOCK 		$0.09 2
17 4G438584EB
HOSE ASY THERMO UPR 		$225.81 1
18 AD4318D334AA
HOS-HTR INLT ASSY LH
LHD 		$274.48 1
18 AD4318D334BA
HOS-HTR INLT ASSY RH
RHD 		$246.98 1
20 AD4318D359AA
HOS-HTR OLET ASSY LH
LHD 		$360.59 1
20 AD4318D359BA
HOS-HTR OLET ASSY RH
RHD 		$256.35 1
21 701335
Clip, Hose Spring, 20 x 15 		$1.06 2
22 4G434867BA
Cover assy, bottom 		- 2 Enquire
23 4G436793BB
Top Cover, Engine Harness
IN STOCK 		$13.39 2
24 700229
Bolt, M8 x 35, Hex Flange Head 		$0.38 4
25 4G4358AA
HOSE CLIP SPACER PLATE 		$21.20 1
26 AD432A155AA
BRACKET - HOSE CLIP 		$19.35 1
27 701345
NUT M6 HEX FLG MTL 8 		- 2 Enquire
28 6G33TBD2BA
Reservoir, Coolant Expansion 		$56.53 1
29 703734
Bolt and Washer M6x25 hex hd
Overflow tank 		$1.16 3
30 4G438N029AG
Hose Assy, Overflow 		$24.41 1
31 AD4355AA
DOUBLE C CLIP 18 		$1.55 1
32 AD438B081AA
HOSE RADIATOR SUPPLY TANK OVERFLOW 		$68.32 1
33 701181
Clip, 16 x 6.5 x 1.5-6
IN STOCK 		$2.91 1
34 AD4318D359EA
HTR PIPE OLET INLET ASSY 		$226.01 1
35 AD4318D359DA
HTR PIPE OLET INLET ASSY 		$454.65 1
36 702901
HEAVY DUTY SPRING BAND CLAMP 23 x 15
Rear Heater Pipe assy 		$1.98 2
37 702944
Nut, M6, Hex Flanged Head
Rear Heater Pipe assy
IN STOCK 		$0.93 2
38 703198
Bolt, M6 x 40, Chrome Free
Rear Heater Pipe assy
IN STOCK 		$0.40 1
39 AD4318495AA
Valve assy, Water Heater Control 		$233.09 1
40 AD4318D359FA
Hose, Heater Outlet, LHD
LHD 		$56.72 1
40 AD4318D359CA
HOSE HEATER OUTLET ASSY RHD
RHD 		$45.16 1
43 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.40 2
