Receiver And Audio Media System

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Receiver and Audio Media System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4313D734AC SWITCH MAIN BODY SILVER $4,296.14 To Order
CG4313D734BA SWITCH MAIN BODY $2,533.06 To Order
CD3313D734CA SWITCH MAIN BODY $5,705.35 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE $1,520.68 IN STOCK
Photo Part No Description Price (each) Stock
8D3318C612AB CENTRE CONSOLE MODULE ECU $973.28 To Order
Photo Part No Description Price (each) Stock
8D3315000BB Analogue Clock $737.77 To Order
Photo Part No Description Price (each) Stock
8D3313D734CB Switch body, Piano Black surround and Silver lens $202.57 To Order
Photo Part No Description Price (each) Stock
8D3318C612DA Module, Temp HVAC Rotary Control $175.10 To Order
Photo Part No Description Price (each) Stock
8D3313D734BB Module, Volume / Auto Audio Control $236.27 To Order
Photo Part No Description Price (each) Stock
8D3318817AC AUDIO CONROL KNOB $338.93 To Order
Photo Part No Description Price (each) Stock
8D3318C612EA Module, Fan Speed HVAC Rotary Control $217.04 To Order
Photo Part No Description Price (each) Stock
AD433710087 SWITCH KIT-GLASS RAPIDE (MADE TO ORDER) $1,115.90 To Order
8D3318783AC HVAC CONTROL KNOB $370.88 To Order
Photo Part No Description Price (each) Stock
8D3315A860BB SWITCH-PARKNG SENSOR $43.26 To Order
Photo Part No Description Price (each) Stock
AD3314B626CB SPORTS MODE SWITCH $412.17 To Order
9D3314B626AA SPORTS MODE SWITCH $48.37 To Order
Photo Part No Description Price (each) Stock
AD332C418DA Switch, DSC Control $104.23 To Order
6G332C418AA DSC CONTROL SWITCH $45.46 IN STOCK
Photo Part No Description Price (each) Stock
AD3315K237BB FOGLAMP SWITCH $252.70 To Order
6G3315K237BB FOGLAMP SWITCH $41.65 To Order
Photo Part No Description Price (each) Stock
707263 SCREW 4.2x13 FLG T/F $3.79 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.47 IN STOCK
View All

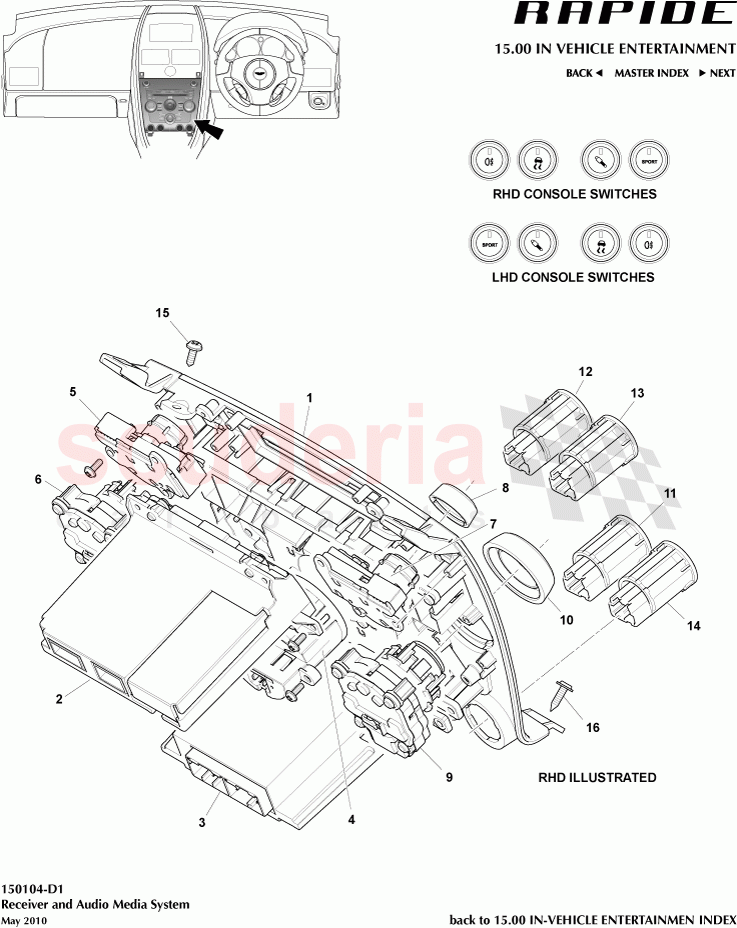

Receiver and Audio Media System of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD4318C858BA
Centre stack assy
RHD 		- 1 Enquire
- AD4318C858AA
Centre stack assy
LHD 		$7,563.01 1
1 9G4313D734AC
SWITCH MAIN BODY SILVER
11MY 		$4,296.14 1
1 CG4313D734BA
SWITCH MAIN BODY
12MY 		$2,533.06 1
1 CD3313D734CA
SWITCH MAIN BODY
12MY 		$5,705.35 1
1 9G3313D734AC
SWITCH MAIN BODY (GRAPHITE) 		$4,031.90 1
2 8D3318K810AA
INFOTAINMENT CONTROL MODULE HARDWARE
IN STOCK 		$1,520.68 1
3 8D3318C612AB
CENTRE CONSOLE MODULE ECU 		$973.28 1
4 8D3315000BB
Analogue Clock 		$737.77 1
5 8D3313D734CB
Switch body, Piano Black surround and Silver lens 		$202.57 1
6 8D3318C612DA
Module, Temp HVAC Rotary Control 		$175.10 1
7 8D3313D734BB
Module, Volume / Auto Audio Control 		$236.27 1
8 8D3318817AC
AUDIO CONROL KNOB 		$338.93 2
9 8D3318C612EA
Module, Fan Speed HVAC Rotary Control 		$217.04 1
10 AD433710087
SWITCH KIT-GLASS RAPIDE (MADE TO ORDER)
Special order 		$1,115.90 -
10 8D3318783AC
HVAC CONTROL KNOB 		$370.88 2
11 8D3315A860BB
SWITCH-PARKNG SENSOR 		$43.26 1
12 AD3314B626CB
SPORTS MODE SWITCH
11MY, Glass 		$412.17 1
12 9D3314B626AA
SPORTS MODE SWITCH 		$48.37 1
13 AD332C418DA
Switch, DSC Control
11MY, Glass 		$104.23 1
13 6G332C418AA
DSC CONTROL SWITCH
IN STOCK 		$45.46 1
14 AD3315K237BB
FOGLAMP SWITCH
11MY, Glass 		$252.70 1
14 6G3315K237BB
FOGLAMP SWITCH 		$41.65 1
15 707263
SCREW 4.2x13 FLG T/F 		$3.79 2
16 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.47 2
