Aston Martin Rapide - Air Con Lines Fittings (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD4319972AA COMPRESSOR TO CONDENSOR $399.23 To Order
Photo Part No Description Price (each) Stock
AG438911295 SW ASY-A/C PRES CTOF $556.55 To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.63 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
AD4319D719AA TUBE ASSY - COND TO R/DRIER $157.42 To Order
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $265.48 IN STOCK
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL $37.92 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.47 IN STOCK
Photo Part No Description Price (each) Stock
AD4319A705AA SUCTION LINE-ENGINE BAY TO COMPRESSOR $299.35 To Order
Photo Part No Description Price (each) Stock
AD4319A705EA TUB ASY EVAP OUTLET RHD $391.39 To Order
Photo Part No Description Price (each) Stock
AD4319835CB TUBE AIRCON DEHYDRATOR $297.46 To Order
Photo Part No Description Price (each) Stock
4G434073AAA CLAMP - LIQ $4.80 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $1.86 To Order
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $1.98 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
1R128910192 Switch, A/C High Pressure $520.27 To Order
Photo Part No Description Price (each) Stock
AD4319A705DC Tube assy, A/C evaporator outlet and inlet $549.80 To Order
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $61.64 IN STOCK
View All

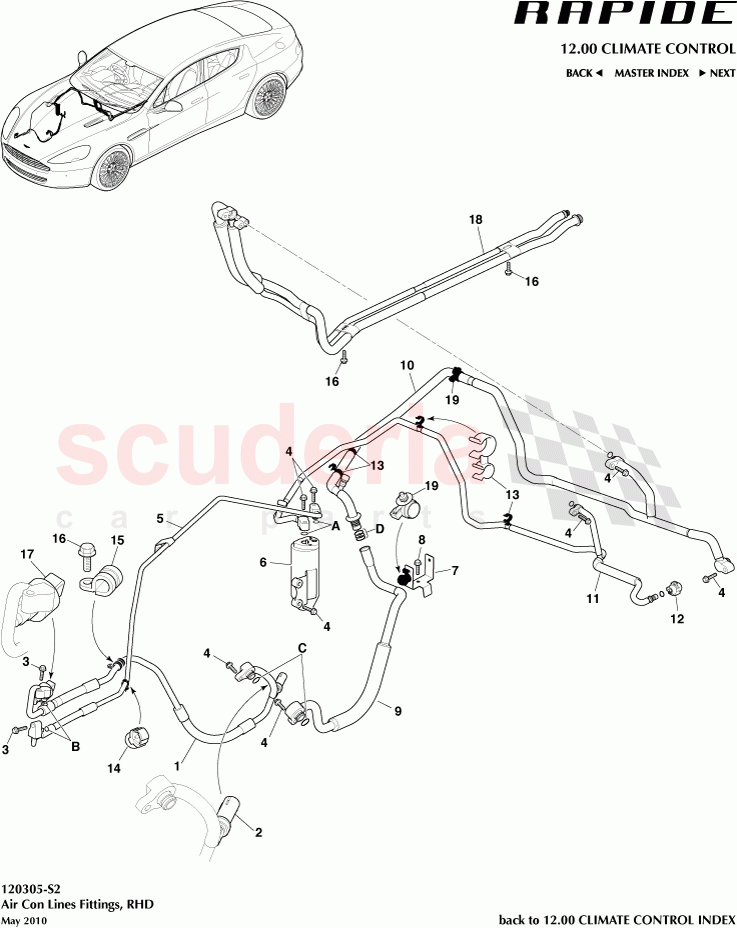

Air Con Lines Fittings (RHD) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
IN STOCK 		$5.28 1
- 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2)
IN STOCK 		$5.37 1
- 4G438910909PK
O-Ring Compressor (Pack of 2)
IN STOCK 		$5.37 1
- 4G438910911PK
O RINGS-DB9 EVAPORATOR-PACK OF 3 		$13.26 1
1 AD4319972AA
COMPRESSOR TO CONDENSOR 		$399.23 1
2 AG438911295
SW ASY-A/C PRES CTOF 		$556.55 1
3 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.63 2
4 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 7
5 AD4319D719AA
TUBE ASSY - COND TO R/DRIER 		$157.42 1
6 4G4319E891AD
Air Conditioning Drier
IN STOCK 		$265.48 1
7 4G436147XAD
BRACKET - AIRCON / ELECTRICAL 		$37.92 1
8 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.47 1
9 AD4319A705AA
SUCTION LINE-ENGINE BAY TO COMPRESSOR 		$299.35 1
10 AD4319A705EA
TUB ASY EVAP OUTLET RHD 		$391.39 1
11 AD4319835CB
TUBE AIRCON DEHYDRATOR 		$297.46 1
12 4G434073AAA
CLAMP - LIQ 		$4.80 1
13 701182
Clip, Pipe Swivel 		$1.86 4
14 701180
Clip, 14 x 4, Push In 		$1.28 1
15 699634
P-Clip,13 x 15 x M6
IN STOCK 		$1.98 1
16 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 3
17 1R128910192
Switch, A/C High Pressure 		$520.27 1
18 AD4319A705DC
Tube assy, A/C evaporator outlet and inlet 		$549.80 1
19 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
IN STOCK 		$61.64 2
