Name: IP Harness Assembly
Rating: 5.0 (1 reviews)

View All

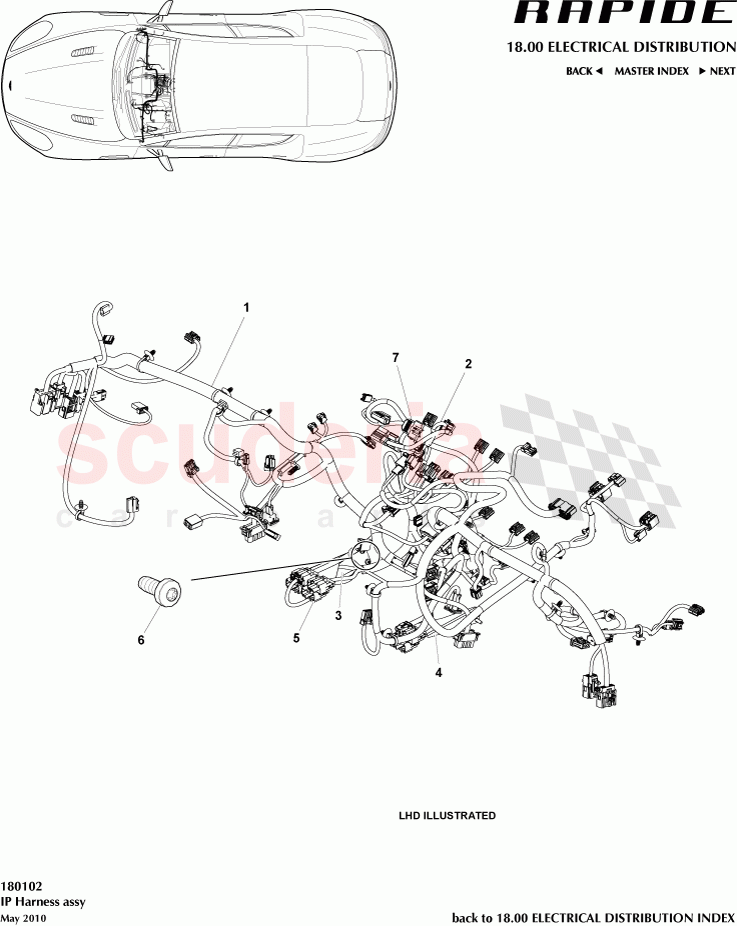

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD4314401AC	Harness assy, facia B&O, RHD	$816.77	To Order
	CD4314401CC	LHD FACIA HIGHLINE HARNESS B&O	$889.34	To Order
	AD4314401AC	RHD FACIA HIGHLINE HARNESS	$831.72	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	$32.48	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3314N003AA	Inline bracket, Instrument Panel (IP), RHS	$24.33	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3314N003BB	Inline bracket, Instrument Panel (IP), LHS	$28.10	To Order

Photo	Part No	Description	Price (each)	Stock
	703735	Screw, M5 x 12, Pan Head	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4314D454BC	Link Harness, Garmin Sat Nav	$191.88	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	CD4314401AC	Harness assy, facia B&O, RHD	CD4314401AC Harness assy, facia B&O, RHD 12MY	$816.77	1
1	CD4314401CC	LHD FACIA HIGHLINE HARNESS B&O	CD4314401CC LHD FACIA HIGHLINE HARNESS B&O 12MY	$889.34	1
1	AD4314401AC	RHD FACIA HIGHLINE HARNESS	AD4314401AC RHD FACIA HIGHLINE HARNESS	$831.72	1
1	AD4314401CC	LHD FACIA HIGHLINE HARNESS	AD4314401CC LHD FACIA HIGHLINE HARNESS	$840.56	1
2	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link	$32.48	1
3	9D3314N003AA	Inline bracket, Instrument Panel (IP), RHS	9D3314N003AA Inline bracket, Instrument Panel (IP), RHS	$24.33	1
4	9D3314N003BB	Inline bracket, Instrument Panel (IP), LHS	9D3314N003BB Inline bracket, Instrument Panel (IP), LHS	$28.10	1
5	CD4314B079AC	CENTRE STACK HARNESS	CD4314B079AC CENTRE STACK HARNESS 12MY	$481.11	1
5	AD4314B079AC	CENTRE STACK HARNESS	AD4314B079AC CENTRE STACK HARNESS	$533.58	1
6	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head	$0.51	4
7	CG4314D454BC	Link Harness, Garmin Sat Nav	CG4314D454BC Link Harness, Garmin Sat Nav 12MY	$191.88	1

Ip Harness Assembly

Aston Martin Rapide
