Aston Martin DBS V12 - Rear Environment Trim Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3360028ACW Panel assy, cover rear bulk head, RH $1,186.30 To Order
8D3360029ABW PNL ASY CVR RR BLK HD LH $1,186.30 To Order
Photo Part No Description Price (each) Stock
8D33045C62ACW Panel assy, stowage compartment, RH $2,676.42 To Order
8D33045C63ACW Panel assy, stowage compartment, LH $2,167.27 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.48 IN STOCK
Photo Part No Description Price (each) Stock
8D3360026ADW PANEL ASSY BLK HD OTR RH $2,354.14 To Order
8D3360027ADW PANEL ASSY BLK HD OTR LH $2,354.14 To Order
Photo Part No Description Price (each) Stock
704327 Nut and Washer, M6, Hex Flange Head $4.95 To Order
Photo Part No Description Price (each) Stock
8D33674A08AC Finisher, cabin, RH Enquire To Order
8D33674A09AC Finisher, cabin, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A72AB Bracket, Cabin Finisher, Outboard, RH $15.74 To Order
8D33313A73AB Bracket, Cabin Finisher, Outboard, LH $15.74 To Order
8D33313A74AB Bracket, Cabin Finisher, RH $15.74 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D3311766AAW Panel Assy, Stowage Compartment Lower, RH $1,283.04 To Order
8D3311767AAW PNL ASY STWG CMPT LWR LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33314A96AC Bracket, Rear Heel Board, RH $56.16 To Order
8D33314A97AC Bracket, Rear Heel Board, LH $56.16 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.11 IN STOCK
Photo Part No Description Price (each) Stock
707613 SCREW M4.2 X 13 FLANGE BLACK $0.89 IN STOCK
Photo Part No Description Price (each) Stock
8D33310A84AB Bracket, Bulk Head Side, RH $51.23 To Order
8D33310A85AB BRKT BLK HD SD LH $51.23 To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button $3.47 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.24 IN STOCK
Photo Part No Description Price (each) Stock
4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD $2.74 To Order
Photo Part No Description Price (each) Stock
8D3311768AA Panel assy, stwg compartment upper, RH Enquire To Order
8D3311769AA Panel assy, stwg compartment upper, LH Enquire To Order
View All

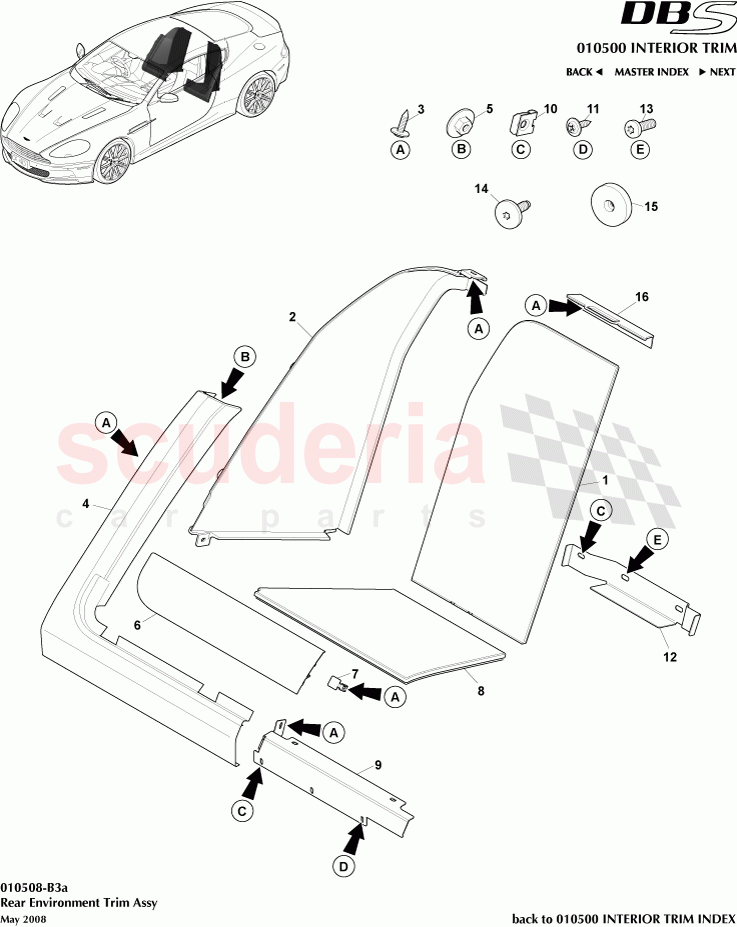

Rear Environment Trim Assembly of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3360028ACW
Panel assy, cover rear bulk head, RH 		$1,186.30 1
1 8D3360029ABW
PNL ASY CVR RR BLK HD LH 		$1,186.30 1
2 8D33045C62ACW
Panel assy, stowage compartment, RH 		$2,676.42 1
2 8D33045C63ACW
Panel assy, stowage compartment, LH 		$2,167.27 1
3 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.48 28
4 8D3360026ADW
PANEL ASSY BLK HD OTR RH 		$2,354.14 1
4 8D3360027ADW
PANEL ASSY BLK HD OTR LH 		$2,354.14 1
5 704327
Nut and Washer, M6, Hex Flange Head 		$4.95 2
6 8D33674A08AC
Finisher, cabin, RH 		- 1 Enquire
6 8D33674A09AC
Finisher, cabin, LH 		- 1 Enquire
7 8D33313A72AB
Bracket, Cabin Finisher, Outboard, RH 		$15.74 1
7 8D33313A73AB
Bracket, Cabin Finisher, Outboard, LH 		$15.74 1
7 8D33313A74AB
Bracket, Cabin Finisher, RH 		$15.74 1
7 8D33313A75AB
Bracket, Cabin Finisher, LH 		$15.74 1
8 8D3311766AAW
Panel Assy, Stowage Compartment Lower, RH 		$1,283.04 1
8 8D3311767AAW
PNL ASY STWG CMPT LWR LH 		- 1 Enquire
9 8D33314A96AC
Bracket, Rear Heel Board, RH 		$56.16 1
9 8D33314A97AC
Bracket, Rear Heel Board, LH 		$56.16 1
10 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.11 14
11 707613
SCREW M4.2 X 13 FLANGE BLACK
IN STOCK 		$0.89 5
12 8D33310A84AB
Bracket, Bulk Head Side, RH 		$51.23 1
12 8D33310A85AB
BRKT BLK HD SD LH 		$51.23 1
13 704701
Screw, M6 x 20, Socket Head Button 		$3.47 2
14 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.24 2
15 4G43C045F70AB
RETAINER PASSENGER AIRBAG COVER PAD 		$2.74 10
16 8D3311768AA
Panel assy, stwg compartment upper, RH 		- 1 Enquire
16 8D3311769AA
Panel assy, stwg compartment upper, LH 		- 1 Enquire
