Body Side Quarter Trim Assembly (Volante)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Side Quarter Trim Assembly (Volante)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD33L31112AAW PANEL BODY SIDE TR R RH $1,370.33 To Order
Photo Part No Description Price (each) Stock
AD33L31113AAW PANEL BODY SIDE TR REAR LH $1,259.61 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $11.30 IN STOCK
Photo Part No Description Price (each) Stock
4G43STC3710BA Fir Tree, Key Hole $1.34 To Order
Photo Part No Description Price (each) Stock
701653 Spring Nut, U Type, 4.2 x 0.7-2 $0.27 IN STOCK
Photo Part No Description Price (each) Stock
703179 SCREW-M5x10 PAN HEAD CHROME FREE $0.23 IN STOCK
Photo Part No Description Price (each) Stock
702211 SCREW M5x8.0x0.80 PAN HEAD $0.10 IN STOCK
Photo Part No Description Price (each) Stock
4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH $346.35 IN STOCK
4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH $346.35 IN STOCK
Photo Part No Description Price (each) Stock
4G43539A40ABW Lid, Flap Finisher Top, RH $594.89 To Order
4G43539A41ABW Lid, Flap Finisher Top, LH $565.58 To Order
Photo Part No Description Price (each) Stock
4G43L24858AB Bezel Assy, Seat Belt B Post Upper, RH $237.47 To Order
Photo Part No Description Price (each) Stock
4G43L24859AB Bezel Assy, Seat Belt B Post Upper, LH $383.61 To Order
Photo Part No Description Price (each) Stock
4G43V850063AA Screw, Cap Hd $0.59 To Order
Photo Part No Description Price (each) Stock
4G43290E16AB Plate, Light to Quarter Panel $13.13 To Order
Photo Part No Description Price (each) Stock
9D33L312A94BA REAR QUARTER SPEAKER RHS BLACK $740.94 To Order
9G43L312A94BD Speaker Grille, Rear Quarter, RH $724.70 To Order
Photo Part No Description Price (each) Stock
9D33L312A95BA REAR QUARTER SPEAKER LHS BLACK $740.94 To Order
9G43L312A95BD Speaker Grille, Rear Quarter, LH $724.70 To Order
Photo Part No Description Price (each) Stock
4G43L53296AA Link Rod, Flap Top RH $41.57 IN STOCK
4G43L53297AA Link Rod, Flap Top LH $23.53 IN STOCK
Photo Part No Description Price (each) Stock
4G4317431AA SPRING $1.64 IN STOCK
Photo Part No Description Price (each) Stock
4G43338013AA PLUG BLANKING (M6) $0.67 IN STOCK
Photo Part No Description Price (each) Stock
4G43103021AB Fix, Push On $1.02 IN STOCK
Photo Part No Description Price (each) Stock
4G431861AA CLIP $0.29 IN STOCK
View All

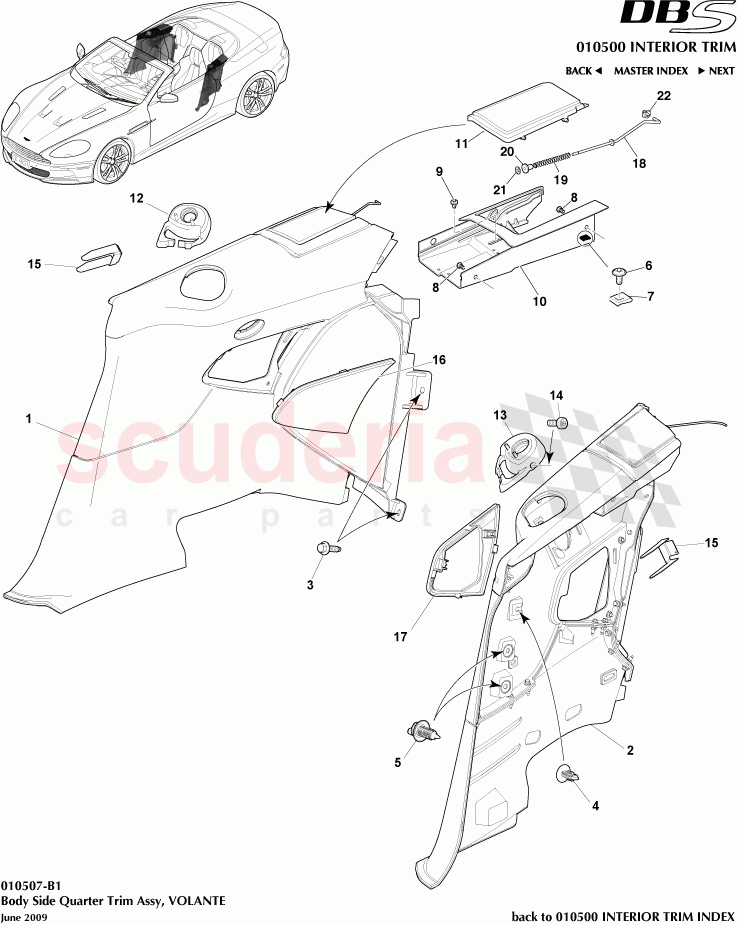

Body Side Quarter Trim Assembly (Volante) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD33L31112AAW
PANEL BODY SIDE TR R RH 		$1,370.33 1
2 AD33L31113AAW
PANEL BODY SIDE TR REAR LH 		$1,259.61 1
3 703026
Screw, M5 x 16, Hex Flange Head
2 per panel
IN STOCK 		$0.20 4
4 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
1 per panel
IN STOCK 		$11.30 2
5 4G43STC3710BA
Fir Tree, Key Hole
2 per panel 		$1.34 4
7 701653
Spring Nut, U Type, 4.2 x 0.7-2
1 per frame
IN STOCK 		$0.27 2
8 703179
SCREW-M5x10 PAN HEAD CHROME FREE
2 per frame
IN STOCK 		$0.23 4
9 702211
SCREW M5x8.0x0.80 PAN HEAD
1 per frame
IN STOCK 		$0.10 2
10 4G43LB605H20ADW
Frame and Finisher Assembly, C-Flap, RH
IN STOCK 		$346.35 1
10 4G43LB605H21ADW
Frame and Finisher Assembly, C-Flap, LH
IN STOCK 		$346.35 1
11 4G43539A40ABW
Lid, Flap Finisher Top, RH 		$594.89 1
11 4G43539A41ABW
Lid, Flap Finisher Top, LH 		$565.58 1
12 4G43L24858AB
Bezel Assy, Seat Belt B Post Upper, RH 		$237.47 1
13 4G43L24859AB
Bezel Assy, Seat Belt B Post Upper, LH 		$383.61 1
14 4G43V850063AA
Screw, Cap Hd
1 per bezel 		$0.59 2
15 4G43290E16AB
Plate, Light to Quarter Panel
1 per panel 		$13.13 2
16 9D33L312A94BA
REAR QUARTER SPEAKER RHS BLACK
B&O, Black 		$740.94 1
16 9G43L312A94BD
Speaker Grille, Rear Quarter, RH
B&O 		$724.70 1
17 9D33L312A95BA
REAR QUARTER SPEAKER LHS BLACK
B&O, Black 		$740.94 1
17 9G43L312A95BD
Speaker Grille, Rear Quarter, LH
B&O 		$724.70 1
18 4G43L53296AA
Link Rod, Flap Top RH
IN STOCK 		$41.57 1
18 4G43L53297AA
Link Rod, Flap Top LH
IN STOCK 		$23.53 1
19 4G4317431AA
SPRING
1 per Link
IN STOCK 		$1.64 2
20 4G43338013AA
PLUG BLANKING (M6)
1 per Link
IN STOCK 		$0.67 2
21 4G43103021AB
Fix, Push On
1 per Link
IN STOCK 		$1.02 2
22 4G431861AA
CLIP
1 per Link
IN STOCK 		$0.29 2
