Package Tray Assembly, 2+2 B&o (2009)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Package Tray Assembly, 2+2 B&O (2009)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3302349BCW COWL LOWER ASSY COMPLETE RH RHD $543.02 To Order
Photo Part No Description Price (each) Stock
9D3346922AAW Panel Assy, Centre Package Tray $1,484.25 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
8D33313A68AA Package Tray Bracket, RH $22.44 To Order
Photo Part No Description Price (each) Stock
8D33313A69AA Package Tray Bracket, LH $22.61 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.24 IN STOCK
Photo Part No Description Price (each) Stock
697528PK Washer-M5 Large OD Pack of 20 $8.12 To Order
Photo Part No Description Price (each) Stock
703165 NUT M5 HEX FLG PLAS CHROME FREE $0.19 IN STOCK
Photo Part No Description Price (each) Stock
6G3346058AA Screw, M5 x 10 Pan Head Flange Torx $1.69 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.48 IN STOCK
4G4346660AA Foam Block, Parcel Shelf $20.55 To Order
View All

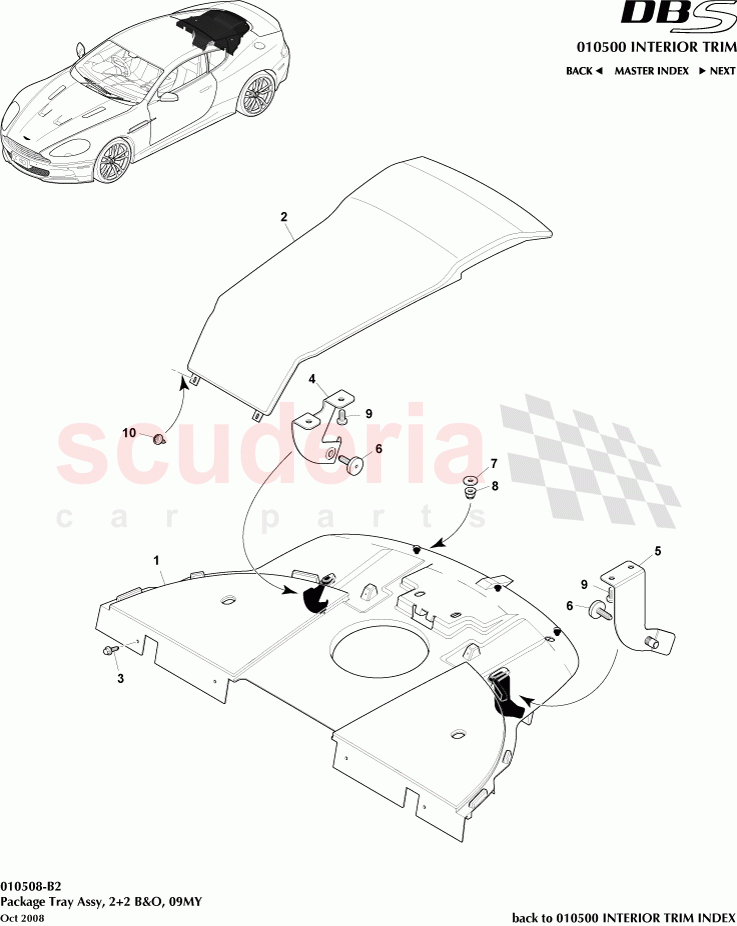

Package Tray Assembly, 2+2 B&O (2009) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G3302349BCW
COWL LOWER ASSY COMPLETE RH RHD 		$543.02 1
2 9D3346922AAW
Panel Assy, Centre Package Tray 		$1,484.25 1
3 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.19 4
4 8D33313A68AA
Package Tray Bracket, RH 		$22.44 1
5 8D33313A69AA
Package Tray Bracket, LH 		$22.61 1
6 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.24 2
7 697528PK
Washer-M5 Large OD Pack of 20 		$8.12 3
8 703165
NUT M5 HEX FLG PLAS CHROME FREE
IN STOCK 		$0.19 3
9 6G3346058AA
Screw, M5 x 10 Pan Head Flange Torx 		$1.69 4
10 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.48 2
10 4G4346660AA
Foam Block, Parcel Shelf 		$20.55 2
