Name: Console Panel, Rear Seat, VOLANTE
Rating: 4.1 (1 reviews)

View All

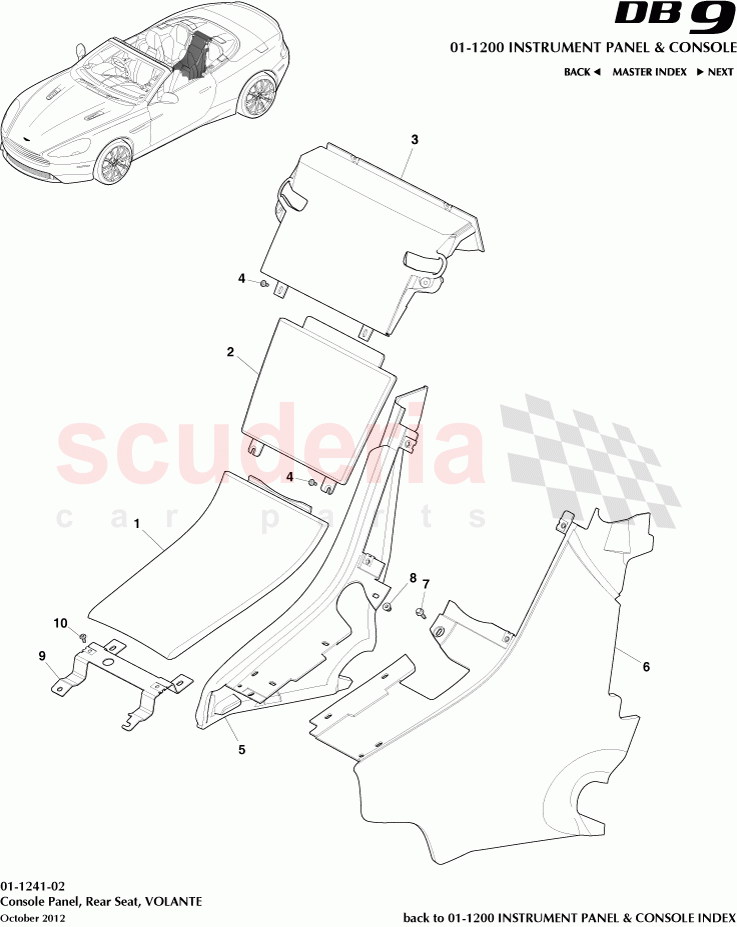

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD33045E24BBW	Panel Assy, Rear Console	$4,226.88	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43047A44ADW	Infill Assy, Rear console	$795.84	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L047A44ACW	Panel assy, Top, Rear console VOL	$1,146.84	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	$2.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG43L045C62AAW	Moulding Assy, Rear Console Side Panel, RHS	$978.90	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43L045C63AAW	Moulding Assy, Rear Console Side Panel, LHS	$978.90	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43672A42AA	BRACKET ASSY REAR CONSOLE -REAR	$33.33	To Order

Photo	Part No	Description	Price (each)	Stock
	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	$0.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	701448	Spring Nut, U Type, 4.2 x 2.1 IN STOCK	701448 Spring Nut, U Type, 4.2 x 2.1 IN STOCK	$1.11	4
1	AD33045E24BBW	Panel Assy, Rear Console	AD33045E24BBW Panel Assy, Rear Console Trimmed	$4,226.88	1
2	9G43047A44ADW	Infill Assy, Rear console	9G43047A44ADW Infill Assy, Rear console Trimmed	$795.84	1
3	AD33L047A44ACW	Panel assy, Top, Rear console VOL	AD33L047A44ACW Panel assy, Top, Rear console VOL Trimmed	$1,146.84	1
4	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10 IN STOCK	$2.49	4
5	CG43L045C62AAW	Moulding Assy, Rear Console Side Panel, RHS	CG43L045C62AAW Moulding Assy, Rear Console Side Panel, RHS Trimmed	$978.90	1
6	CG43L045C63AAW	Moulding Assy, Rear Console Side Panel, LHS	CG43L045C63AAW Moulding Assy, Rear Console Side Panel, LHS Trimmed	$978.90	1
7	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	$0.19	3
8	703165	NUT M5 HEX FLG PLAS CHROME FREE IN STOCK	703165 NUT M5 HEX FLG PLAS CHROME FREE IN STOCK	$0.19	3
9	4G43672A42AA	BRACKET ASSY REAR CONSOLE -REAR	4G43672A42AA BRACKET ASSY REAR CONSOLE -REAR	$33.33	1
10	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	$0.11	2

Console Panel, Rear Seat, Volante

Aston Martin DB9 (2013-2016)
