Instrument Panel, Leather Covered

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Instrument Panel, Leather Covered

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3356241AE Sight Shield, Glove Compartment Assy $52.76 To Order
Photo Part No Description Price (each) Stock
8D33C043K93BCW PASS LOWER RHD $683.72 To Order
Photo Part No Description Price (each) Stock
4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) $0.13 To Order
Photo Part No Description Price (each) Stock
4G433710067 Actuator Assy, Fuel Filler $316.73 To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
4G432K625AA Abutment, Fuel Filler Cable $31.66 To Order
Photo Part No Description Price (each) Stock
9G4306004AB Latch Assy, Glovebox Enquire To Order
Photo Part No Description Price (each) Stock
AG4340180BA Cable, Fuel Filler Flap Release $52.17 IN STOCK
Photo Part No Description Price (each) Stock
8D33044H40AAW Centre Leather Cover, Instrument Panel, LH $200.65 To Order
Photo Part No Description Price (each) Stock
8D33044H41AAW Centre Leather Cover, Instrument Panel, RH $200.65 To Order
Photo Part No Description Price (each) Stock
4G43044B93AA Cover Spacer, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
8D33044B92AAW Leather End Cover, Instrument Panel, RH $154.16 To Order
Photo Part No Description Price (each) Stock
8D33044B92CAW Leather End Cover, Instrument Panel, LH $154.16 To Order
Photo Part No Description Price (each) Stock
8D33C044H58BCW PASS AIRBAG DOOR RHD $1,203.78 To Order
Photo Part No Description Price (each) Stock
8D33C04635BCW PASS UPP OUTER RHD $705.95 To Order
Photo Part No Description Price (each) Stock
9D33C043C54DCW PASS UPPER RHD $766.53 To Order
Photo Part No Description Price (each) Stock
9D33C043C54BCW DRIVER UPPER RHD $861.46 To Order
Photo Part No Description Price (each) Stock
8D33C04634DDW DRIVER UPP INNER RHD $203.85 To Order
Photo Part No Description Price (each) Stock
8D33C04634CCW DRIVER UPP OUTER RHD $550.88 To Order
Photo Part No Description Price (each) Stock
8D3310862ACW BINNACLE HOOD $1,313.84 To Order
Photo Part No Description Price (each) Stock
4G433T501AEW Cover, Steering Column Upper $65.59 To Order
Photo Part No Description Price (each) Stock
4G4311A665AD Bezel, Light Switch $10.36 To Order
Photo Part No Description Price (each) Stock
4G4360K51DA Knee Protector, RHD $57.79 To Order
Photo Part No Description Price (each) Stock
8D33C04325BCW DRIVER LOWER RHD $889.29 To Order
Photo Part No Description Price (each) Stock
702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) $16.74 IN STOCK
Photo Part No Description Price (each) Stock
701447 Screw, M4 x 12, Pan Head, Torx Screw $0.30 IN STOCK
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.48 IN STOCK
View All

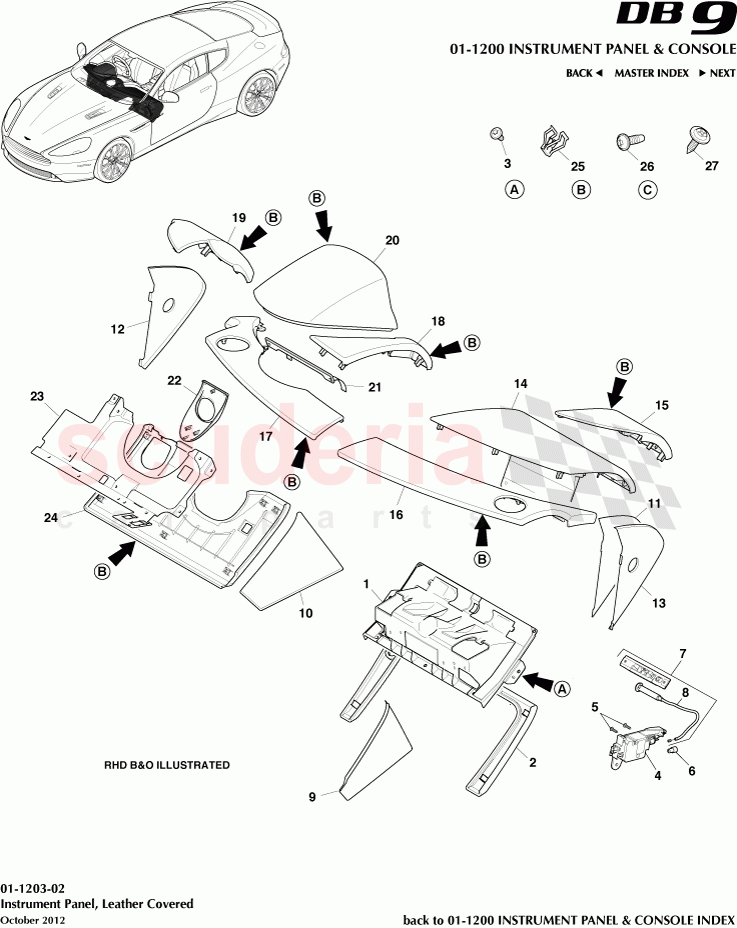

Instrument Panel, Leather Covered of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33C043K93ACW
PASSENGER LOWER LHD 		$422.01 1
- 8D33C044H58ACW
PASS AIRBAG DOOR LHD 		$962.76 1
- 8D33C04635ACW
DRIVER UPP OUTER LHD 		$705.95 1
- 9D33C043C54CCW
PASS UPP LHD
Specifiy B&O or Premium 		$448.80 1
- 9D33C043C54ACW
DRIVER UPPER LHD
Specifiy B&O or Premium 		$448.80 1
- 8D33C04634BDW
DRIVER UPP INNER LHD 		$909.22 1
- 8D33C04634ACW
DRIVER UPP OUTER LHD 		$550.88 1
- 4G4360K51CA
Knee Protector, LHD 		$57.79 1
- 8D33C04325ACW
DRIVER LOWER LHD 		$928.14 1
1 6G3356241AE
Sight Shield, Glove Compartment Assy 		$52.76 1
2 8D33C043K93BCW
PASS LOWER RHD 		$683.72 1
3 4G4380899AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) 		$0.13 7
4 4G433710067
Actuator Assy, Fuel Filler 		$316.73 1
5 NSS
 Seat Belt Loops Frt/ Rear and Left/Right 		- 2 Enquire
6 4G432K625AA
Abutment, Fuel Filler Cable 		$31.66 1
7 9G4306004AB
Latch Assy, Glovebox 		- 1 Enquire
8 AG4340180BA
Cable, Fuel Filler Flap Release
IN STOCK 		$52.17 1
9 8D33044H40AAW
Centre Leather Cover, Instrument Panel, LH 		$200.65 1
10 8D33044H41AAW
Centre Leather Cover, Instrument Panel, RH 		$200.65 1
11 4G43044B93AA
Cover Spacer, Instrument Panel 		- 2 Enquire
12 8D33044B92AAW
Leather End Cover, Instrument Panel, RH 		$154.16 1
13 8D33044B92CAW
Leather End Cover, Instrument Panel, LH 		$154.16 1
14 8D33C044H58BCW
PASS AIRBAG DOOR RHD 		$1,203.78 1
15 8D33C04635BCW
PASS UPP OUTER RHD 		$705.95 1
16 9D33C043C54DCW
PASS UPPER RHD
Specifiy B&O or Premium 		$766.53 1
17 9D33C043C54BCW
DRIVER UPPER RHD
Specifiy B&O or Premium 		$861.46 1
18 8D33C04634DDW
DRIVER UPP INNER RHD 		$203.85 1
19 8D33C04634CCW
DRIVER UPP OUTER RHD 		$550.88 1
20 8D3310862ACW
BINNACLE HOOD 		$1,313.84 1
21 4G433T501AEW
Cover, Steering Column Upper 		$65.59 1
22 4G4311A665AD
Bezel, Light Switch 		$10.36 1
23 4G4360K51DA
Knee Protector, RHD 		$57.79 1
24 8D33C04325BCW
DRIVER LOWER RHD 		$889.29 1
25 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
IN STOCK 		$16.74 A/R
26 701447
Screw, M4 x 12, Pan Head, Torx Screw
IN STOCK 		$0.30 3
27 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.48 A/R
