Rear Quarter Trim Panel, 2+2 Coupe

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Rear Quarter Trim Panel, 2+2 COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG4331112AAW Panel Assy, Rear Quarter Upper, RH $1,327.43 To Order
Photo Part No Description Price (each) Stock
4G4331012AFW Panel Assy, body side trim, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G4324858AEW Bezel Assembly, Front Seat Belt, RH $176.64 To Order
Photo Part No Description Price (each) Stock
4G43V850063AA Screw, Cap Hd $0.59 To Order
Photo Part No Description Price (each) Stock
703175 SCREW M4 x 10 PAN TORX CHROME FREE $0.20 IN STOCK
Photo Part No Description Price (each) Stock
704328 Screw, M5 x 20, Torx Pan Head $0.10 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $22.20 To Order
Photo Part No Description Price (each) Stock
703174 Bolt, M4, Pan Head $1.78 To Order
Photo Part No Description Price (each) Stock
692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT $0.34 IN STOCK
Photo Part No Description Price (each) Stock
702514 SCREW M6 x 14 PAN HEAD $1.58 IN STOCK
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $11.30 IN STOCK
Photo Part No Description Price (each) Stock
4G43290E16AB Plate, Light to Quarter Panel $13.13 To Order
Photo Part No Description Price (each) Stock
EG43310B08CA Speaker Grille, Rear Quarter Lower, RH Enquire To Order
Photo Part No Description Price (each) Stock
9G4318564AA Hook, Coat $6.76 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.69 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 IN STOCK
View All

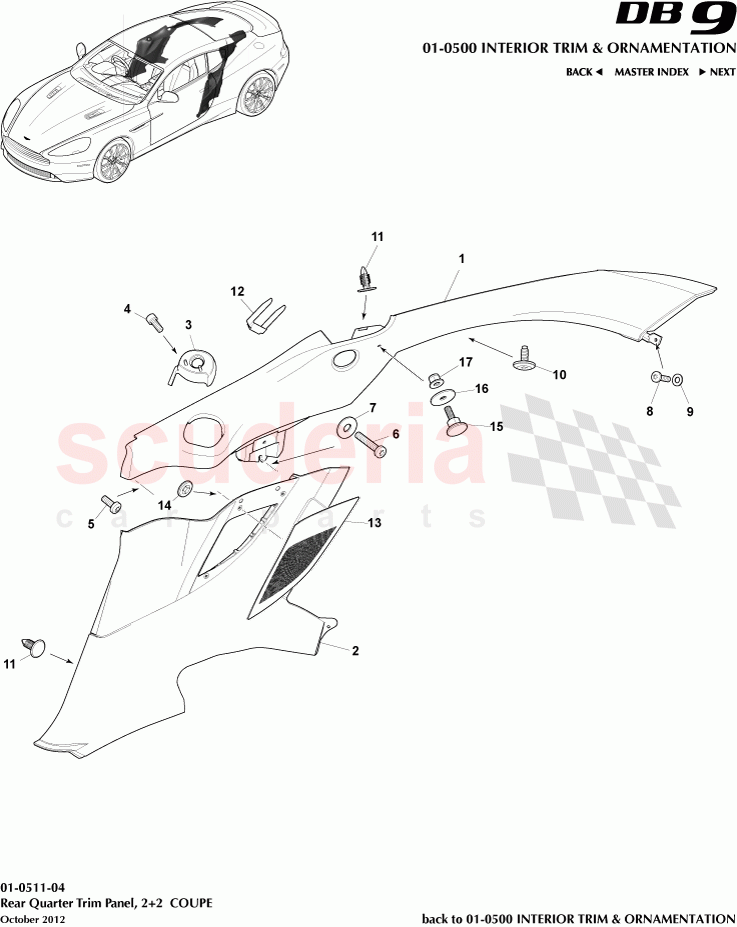

Rear Quarter Trim Panel, 2+2 COUPE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4331113AAW
Panel Assy, Rear Quarter Upper, LH 		$1,327.43 1
- 4G4331013AFW
Panel Assy, body side trim, LH
Alpine. Includes Item 13 		- 1 Enquire
- 9G4331012ADW
Panel Assy, Quarter Lower, RH
B&O. Includes Item 13 		- 1 Enquire
- 9G4331013ACW
Panel Assy, Quarter Lower, LH
B&O. Includes Item 13 		- 1 Enquire
- 4G4324859ADW
Bezel Assy, Front Seat Belt, LH 		- 1 Enquire
- 9D33310B08AC
Speaker Grille, Rear Quarter Lower, RH
B&O 		$708.95 1
- 9D33310B08BA
Speaker Grille, Black Rear Quarter Lower, RH
B&O 		$726.00 1
- EG43310B09CA
Speaker Grille, Rear Quarter Lower, LH
Alpine 		- 1 Enquire
- 9D33310B09AC
Speaker Grille, Rear Quarter Lower, LH
B&O 		$708.95 1
- 9D33310B09BA
Speaker Grille, Black Rear Quarter Lower, LH
B&O 		$726.00 1
- 7G43C2437AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		$140.37 AR
1 CG4331112AAW
Panel Assy, Rear Quarter Upper, RH 		$1,327.43 1
2 4G4331012AFW
Panel Assy, body side trim, RH
Alpine. Includes Item 13 		- 1 Enquire
3 4G4324858AEW
Bezel Assembly, Front Seat Belt, RH 		$176.64 1
4 4G43V850063AA
Screw, Cap Hd 		$0.59 2
5 703175
SCREW M4 x 10 PAN TORX CHROME FREE
IN STOCK 		$0.20 2
6 704328
Screw, M5 x 20, Torx Pan Head 		$0.10 2
7 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		$22.20 2
8 703174
Bolt, M4, Pan Head 		$1.78 2
9 692054
WASHER M4 PLAIN MED MILD STEEL ZINC PLT
IN STOCK 		$0.34 2
10 702514
SCREW M6 x 14 PAN HEAD
IN STOCK 		$1.58 2
11 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
IN STOCK 		$11.30 8
12 4G43290E16AB
Plate, Light to Quarter Panel 		$13.13 2
13 EG43310B08CA
Speaker Grille, Rear Quarter Lower, RH
Alpine 		- 1 Enquire
15 9G4318564AA
Hook, Coat 		$6.76 1
16 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
1 per Coat Hook, Pack of 10
IN STOCK 		$0.69 1
17 703163
Nut, M6, Hex Flange Head, Locking
1 per Coat Hook
IN STOCK 		$0.12 1
