Aston Martin DB9 (2004-2012) - Front Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G431007AA WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK) $2,446.60 To Order
6G431007BA WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK $2,553.15 To Order
4G431007AB WHEEL (8 1/2Jx19 50.3mm OFFSET) FRONT $1,027.54 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CG431508BA TYRE ROAD REAR 275-35ZR19 CCC Enquire To Order
9G431508AA TYRE-ROAD FRONT 235-40ZR19 $646.78 To Order
9G431508BA TYRE-ROAD REAR 275-35ZR19 $696.76 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G431K024BD Nut, Wheel, M14 x 2.0 $27.87 IN STOCK
4G431K024BD Nut, Wheel, M14 x 2.0 $27.87 IN STOCK
6G431K024AA Wheel Nut, Titanium $78.25 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HY531A096DAPK Badge - Wheel Centre (Pack of 4) $95.74 To Order
HY531A096BAPK Badge Wheel Centre (Pack of 4) $97.65 ARRIVING SOON
Photo Part No Description Price (each) Stock
1R123610555 TRANSMITTER DUST CAP SILVER $5.92 To Order
CG33360671AA TPMS Valve Service $334.59 IN STOCK
CG33360671AA TPMS Valve Service $334.59 IN STOCK
...and 7 more part variants. See table on right for more details.
View All

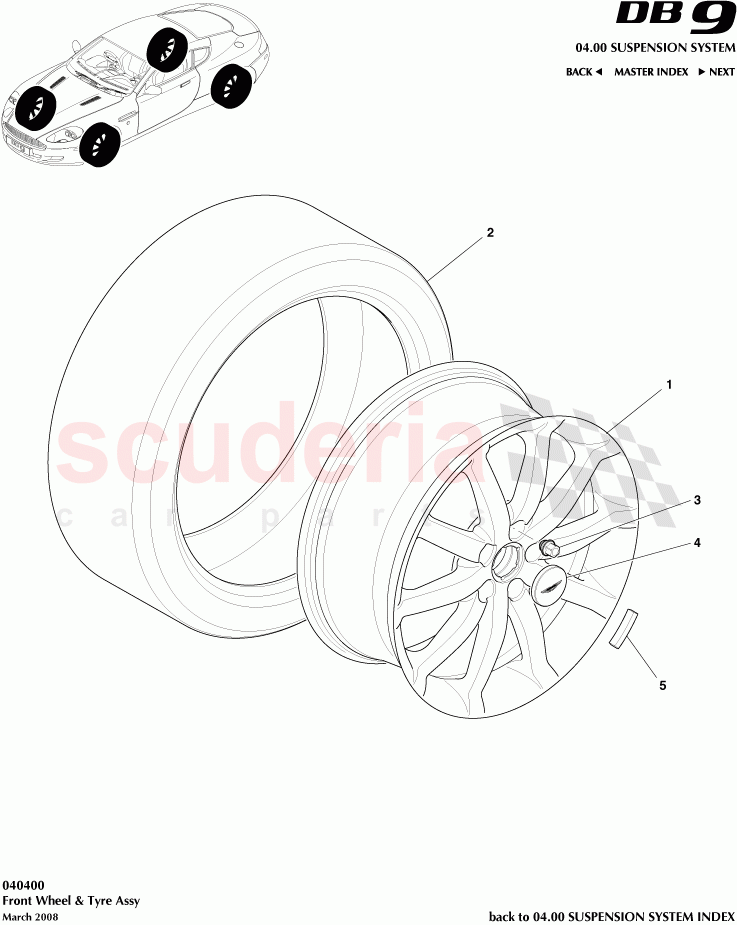

Front Wheel and Tyre Assembly of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G431007AA
WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK)
Sportspack 		$2,446.60 2
1 6G431007BA
WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK
Sportspack 		$2,553.15 2
1 4G431007AB
WHEEL (8 1/2Jx19 50.3mm OFFSET) FRONT
Standard 		$1,027.54 2
1 4G431007BB
WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR
Standard 		$1,070.35 2
1 4G431007FA
WHEEL 19in FRONT
Optional 		$1,302.76 2
1 4G431007GA
WHEEL 19 inch REAR
Optional 		$1,381.15 2
1 6G431007CA
WHEEL FRNT 8.5 X 19 LIGHTWEIGHT SPORTSPACK
Le Mans 		$3,269.70 2
1 6G431007DA
WHEEL REAR 9.5 X 19 LIGHTWEIGHT SPORTSPACK
Le Mans 		$3,328.94 2
1 9G431007HA
WHEEL - FRONT 19in GRAPHITE 20 SPOKE DT
09MY 		$1,158.66 2
1 AG431007CA
FRONT WHEEL-19inch DIAMOND TURNED GRAPHITE 19X8.5
11MY 		$2,573.87 2
1 9G431007FA
WHEEL-FRONT 19 inch SILVER 20 SPOKE DT
09MY 		$1,081.22 2
1 9G431007IA
WHEEL - GRAPHITE 19inch REAR
09MY 		$1,243.97 2
1 AG431007FA
REAR WHEEL-19 inch DIAMOND TURNED GRAPHITE 19X9.5
11MY 		$2,606.63 2
1 AG431007GA
FRONT WHEEL-19 inch DIAMOND TURNED WHEEL
11MY 		$2,379.89 2
1 9G431007GA
WHEEL- REAR 19in SILVER DT
09MY 		$1,126.94 2
1 AG431007HA
REAR WHEEL-19 inch DIAMOND TURNED SILVER
11MY 		$2,410.19 2
1 AG431007JA
FRONT WHEEL-19in DIAMOND TURNED BLACK 19 x 8.5
11MY 		$2,651.07 2
1 AG431007KA
REAR WHEEL-19in DIAMOND TURNED BLACK 19 x 9.5
11MY 		$2,684.84 2
1 9G431007AC
WHEEL (8 1/2Jx19 50.3MM OFFSET) FRONT 10 SPOKE
09MY 		$1,103.54 2
1 9G431007BC
WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR 10 SPOKE
09MY 		$1,116.68 2
1 4G431007DB
WHEEL - WINTER FRONT 		$975.26 2
1 4G431007EB
WHEEL - WINTER REAR 		$1,072.62 2
2 CG431508BA
TYRE ROAD REAR 275-35ZR19 CCC
Chinese Only 		- 2 Enquire
2 9G431508AA
TYRE-ROAD FRONT 235-40ZR19
09MY 		$646.78 2
2 9G431508BA
TYRE-ROAD REAR 275-35ZR19
09MY 		$696.76 2
2 4G43974747AA
WINTER TYRE LABEL 		$17.38 1
2 9G431508AA
TYRE-ROAD FRONT 235-40ZR19 		$646.78 2
2 9G431508BA
TYRE-ROAD REAR 275-35ZR19 		$696.76 2
2 9G331508CA
WINTER TYRE-FRONT 235-40x19 inch 		$547.54 2
2 9G331508DB
WINTER TYRE RR-19in 		$690.39 2
3 4G431K024BD
Nut, Wheel, M14 x 2.0
Up to (V) A09284
IN STOCK 		$27.87 10
3 4G431K024BD
Nut, Wheel, M14 x 2.0
From (V) A09285
IN STOCK 		$27.87 10
3 6G431K024AA
Wheel Nut, Titanium
Sportspack 		$78.25 10
3 4G433610693
Wheel Nut Kit, Titanium 		$845.29 1
4 HY531A096DAPK
Badge - Wheel Centre (Pack of 4) 		$95.74 2
4 HY531A096BAPK
Badge Wheel Centre (Pack of 4)
ARRIVING SOON 		$97.65 2
5 1R123610555
TRANSMITTER DUST CAP SILVER
For use with TP monitoring valves 		$5.92 2
5 CG33360671AA
TPMS Valve Service
Up to (V) B06466
IN STOCK 		$334.59 2
5 CG33360671AA
TPMS Valve Service
From (V) B06467
IN STOCK 		$334.59 2
5 CD23360671CA
TPMS Valve and Transmitter
11MY 433Mhz
IN STOCK 		$200.73 1
5 CD23360671DA
TPMS Valve and Transmitter Assy
11MY 315Mhz 		$192.24 1
5 3628889PK
VALVE CAP WITH WING (PACK OF 4)
Sportspack
IN STOCK 		$78.33 2
5 9G431040AA
Weight, counter balance
09MY 		- - Enquire
5 4G433610809
VALVE STEM CAP METAL DB9
IN STOCK 		$1.76 2
5 3683832
T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED 		$16.45 2
5 4G431040AA
Weight, counter balance 		- - Enquire
