Front Suspension Spring And Damper Assembly

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Front Suspension Spring and Damper Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4318B036BE UNT ASY-FRT SHK COMP $1,680.16 To Order
9G4318B036AE FRONT SHOCK ABSORBER WITH SPRING $1,680.16 IN STOCK
AG4318B036BB UNT ASY FRT SHK COMP $1,680.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
703135 Bolt - M14 x 78 Hex Flange Chrome Free $9.64 IN STOCK
Photo Part No Description Price (each) Stock
703166PK NUT M14 HEXAGON FLANGED (PACK OF 5) $18.98 IN STOCK
Photo Part No Description Price (each) Stock
703216PK NUT M8 HEXAGON FLANGED (PACK OF 10) $18.11 IN STOCK
Photo Part No Description Price (each) Stock
4G4318B036AF FRONT SPRING AND DAMPER ASSEMBLY COUPE $2,671.15 To Order
4G4318B036BF ASSY FRONT DAMPER COMPLETE CONVERTIBLE $2,671.15 To Order
6G4318B036EC ASSY FRONT DAMPER COMPLETE COUPE $4,354.77 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4318141AC Front Shock Absorber Coupe $1,359.49 IN STOCK
4G4318141BC FRONT SHOCK ABSORBER $1,353.77 IN STOCK
4G4318141AC Front Shock Absorber Coupe $1,359.49 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4318174AA Damper Top Mount $547.32 To Order
4G4318174AA Damper Top Mount $547.32 To Order
Photo Part No Description Price (each) Stock
701187 NUT M10 HEXAGON HEAD FLANGED $3.93 IN STOCK
Photo Part No Description Price (each) Stock
6G435310EA COIL SPRING - COUPE $1,177.86 To Order
4G435310AB SPRING FRONT $687.39 IN STOCK
4G435310BA COIL SPRING - CONVERTIBLE $687.39 To Order
Photo Part No Description Price (each) Stock
4G432311266 Gaiter Damper $325.85 To Order
Photo Part No Description Price (each) Stock
4G432311266 Gaiter Damper $325.85 To Order
Photo Part No Description Price (each) Stock
9G33RNF10001AAPK WASHER-PRESSURE RELIEF (PACK OF 3) $0.33 To Order
4G435A067AB SPRING SEAT $85.05 IN STOCK
View All

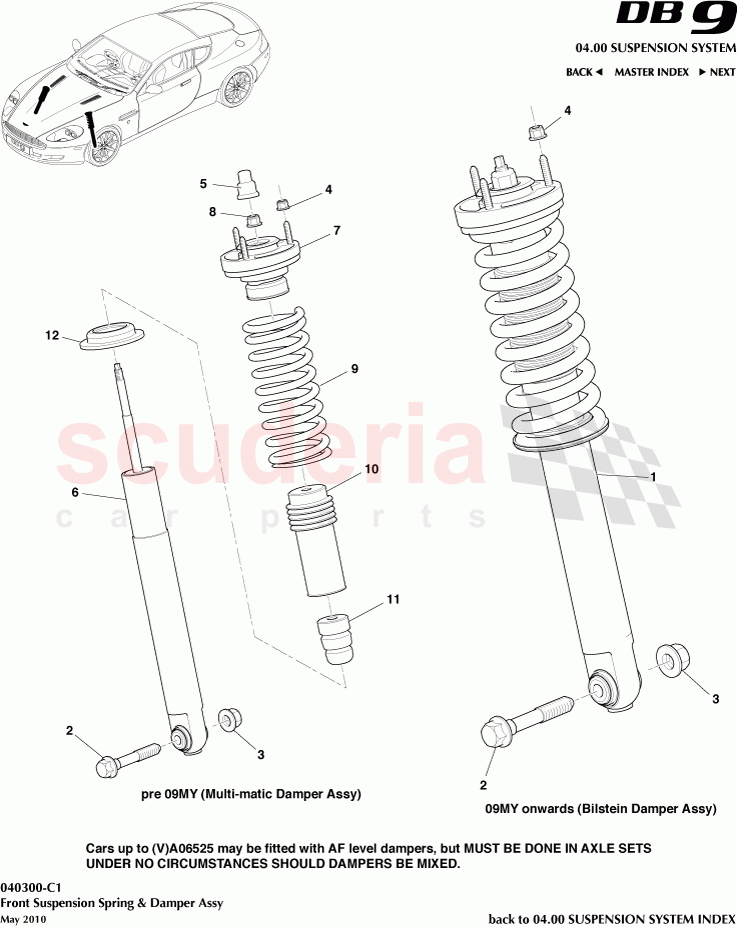

Front Suspension Spring and Damper Assembly of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4318B036BE
UNT ASY-FRT SHK COMP
09MY Bilstein 		$1,680.16 2
1 9G4318B036AE
FRONT SHOCK ABSORBER WITH SPRING
09MY Bilstein
IN STOCK 		$1,680.16 2
1 AG4318B036BB
UNT ASY FRT SHK COMP
11MY, ADS 		$1,680.16 2
1 AG4318B036AB
UNT ASY FRT SHK COMP
11MY, ADS 		$1,360.52 2
2 703135
Bolt - M14 x 78 Hex Flange Chrome Free
IN STOCK 		$9.64 2
3 703166PK
NUT M14 HEXAGON FLANGED (PACK OF 5)
IN STOCK 		$18.98 2
4 703216PK
NUT M8 HEXAGON FLANGED (PACK OF 10)
IN STOCK 		$18.11 6
5 4G4318B036AF
FRONT SPRING AND DAMPER ASSEMBLY COUPE
Up to (V) A01272 		$2,671.15 2
5 4G4318B036BF
ASSY FRONT DAMPER COMPLETE CONVERTIBLE
From (V) B06727 		$2,671.15 2
5 6G4318B036EC
ASSY FRONT DAMPER COMPLETE COUPE
Sports pack 		$4,354.77 2
5 4G4318B036AF
FRONT SPRING AND DAMPER ASSEMBLY COUPE 		$2,671.15 2
5 4G4318167AA
COVER SHOCK ABSORBER PST ROD PVKG 		$13.10 2
6 4G4318141AC
Front Shock Absorber Coupe
From (V) A01273 Up to (V) A06525
IN STOCK 		$1,359.49 2
6 4G4318141BC
FRONT SHOCK ABSORBER
Up to (V) B06726
IN STOCK 		$1,353.77 2
6 4G4318141AC
Front Shock Absorber Coupe
Up to (V) A01272
IN STOCK 		$1,359.49 2
6 6G4318141EA
TUB-FRT SHK ABS
Sports pack 07MY 		$1,440.61 2
6 4G4318141BC
FRONT SHOCK ABSORBER
From (V) B06727
IN STOCK 		$1,353.77 2
6 4G4318141AC
Front Shock Absorber Coupe
From (V) A06526
IN STOCK 		$1,359.49 2
7 4G4318174AA
Damper Top Mount 		$547.32 2
7 4G4318174AA
Damper Top Mount 		$547.32 2
8 701187
NUT M10 HEXAGON HEAD FLANGED
IN STOCK 		$3.93 2
9 6G435310EA
COIL SPRING - COUPE
Sports pack 07MY 		$1,177.86 2
9 4G435310AB
SPRING FRONT
IN STOCK 		$687.39 2
9 4G435310BA
COIL SPRING - CONVERTIBLE 		$687.39 2
10 4G432311266
Gaiter Damper 		$325.85 2
11 4G432311266
Gaiter Damper 		$325.85 2
12 9G33RNF10001AAPK
WASHER-PRESSURE RELIEF (PACK OF 3)
-Multimatic sportspack, see SB-04-0314 		$0.33 -
12 4G435A067AB
SPRING SEAT
IN STOCK 		$85.05 2
