Rear Suspension Sub System

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Rear Suspension Sub System

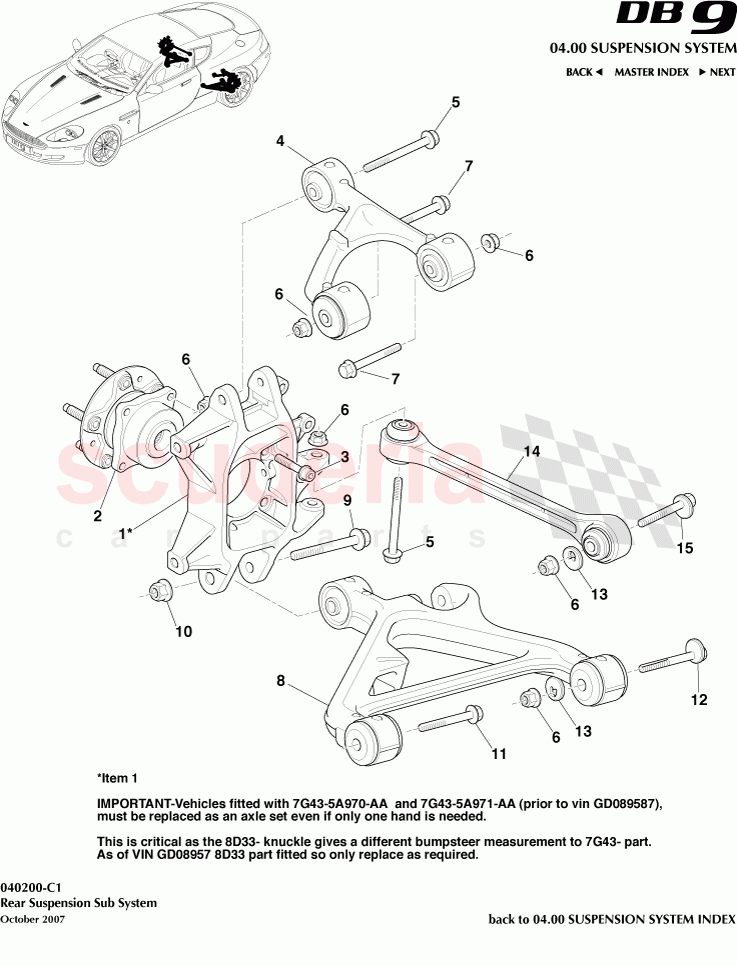

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D335A970AB KNUCKLE - REAR WHEEL RH $1,185.70 To Order
8D335A971AB KNUCKLE - REAR WHEEL LH $944.66 IN STOCK
Photo Part No Description Price (each) Stock
4G432B663AD HUB & BEARING ASSEMBLY, FRONT $523.37 IN STOCK
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $24.29 IN STOCK
Photo Part No Description Price (each) Stock
6G335K742AA Arm & Bushing Assy, Rear Suspension, Upper, RH $725.97 To Order
6G335K743AA Arm & Bushing Assy, Rear Suspension, Upper, LH $725.97 To Order

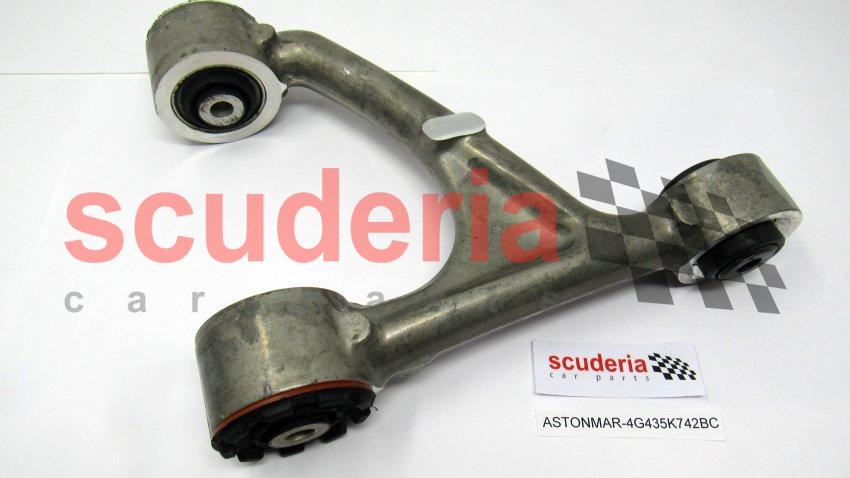

4G435K742BC Arm & Bushing Assy Rear Suspension Upper RH $722.16 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD33487029AA Bolt, M12 x 110, Hex Flange Head $8.69 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.13 IN STOCK
Photo Part No Description Price (each) Stock
703181 BOLT M12 X 85 HEX FLANGE CHROME FREE $11.10 IN STOCK
Photo Part No Description Price (each) Stock

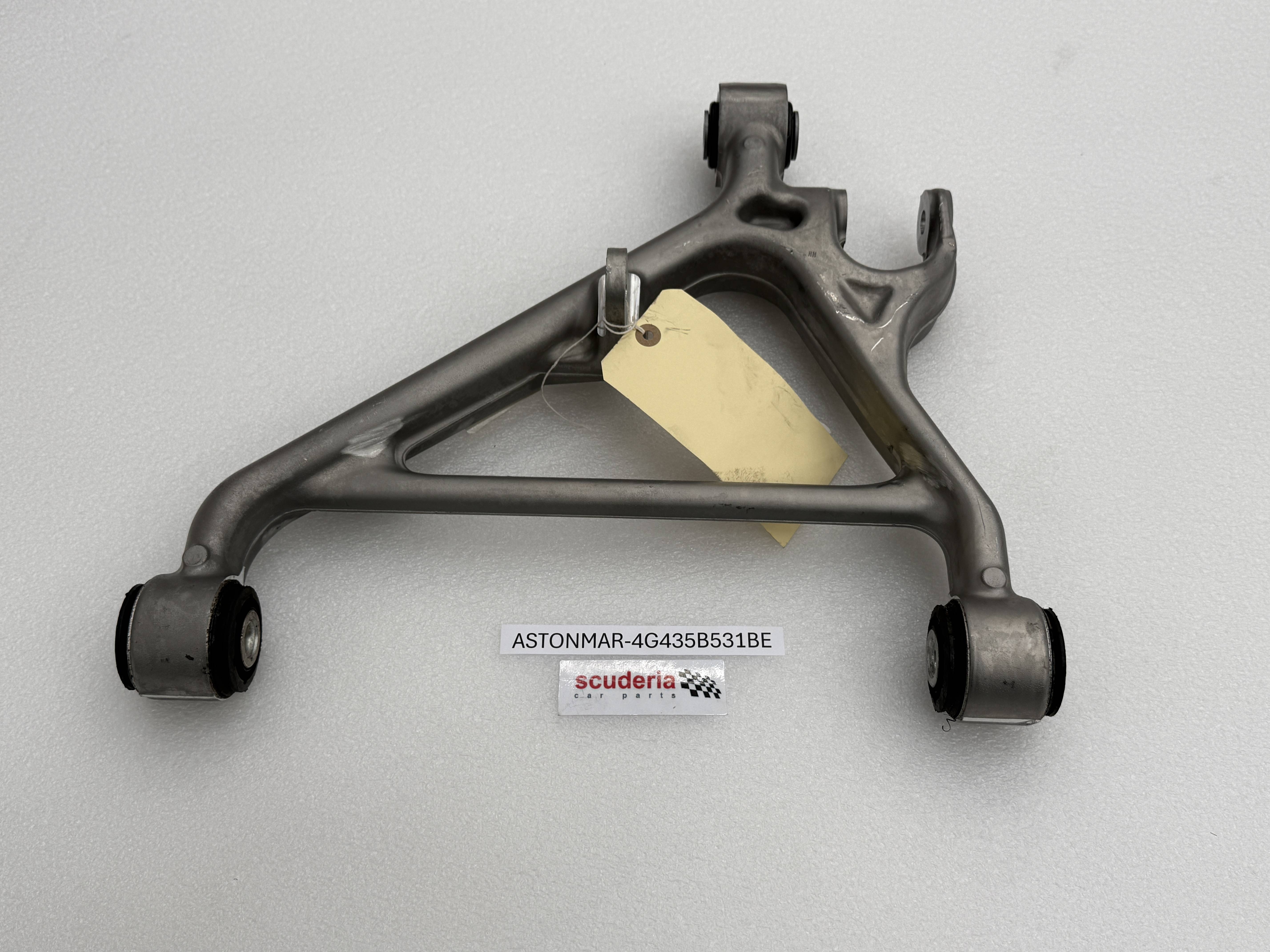

4G435B530BE REAR SUSPENSION LOWER ARM RH $646.72 IN STOCK
4G435B531BE ARM & BUSHING REAR LOWER $646.72 IN STOCK
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $19.27 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.24 IN STOCK
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $5.95 IN STOCK
Photo Part No Description Price (each) Stock
703274 Bolt, M12, Eccentric $41.89 IN STOCK
Photo Part No Description Price (each) Stock
4G432610840 Washer, M12, Eccentric $27.19 IN STOCK
Photo Part No Description Price (each) Stock
4G435B551AA TOE CONTROL ARM REAR SUSPENSION RH $1,422.36 IN STOCK
Photo Part No Description Price (each) Stock
4G435K978AB Bolt, M12, Eccentric $40.39 IN STOCK
View All
Rear Suspension Sub System of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D335A970AB
KNUCKLE - REAR WHEEL RH
12MY 		$1,185.70 1
1 8D335A971AB
KNUCKLE - REAR WHEEL LH
12MY
IN STOCK 		$944.66 1
2 4G432B663AD
HUB & BEARING ASSEMBLY, FRONT
IN STOCK 		$523.37 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
IN STOCK 		$24.29 8
4 6G335K742AA
Arm & Bushing Assy, Rear Suspension, Upper, RH
10.7MY 		$725.97 1
4 6G335K743AA
Arm & Bushing Assy, Rear Suspension, Upper, LH
10.7MY 		$725.97 1
4 4G435K742BC
Arm & Bushing Assy Rear Suspension Upper RH
IN STOCK 		$722.16 1
4 4G435K743BC
ARM & BUSHING ASSY REAR SUSPENSION UPPER LH
IN STOCK 		$722.16 1
5 AD33487029AA
Bolt, M12 x 110, Hex Flange Head
IN STOCK 		$8.69 4
6 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.13 8
7 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE
IN STOCK 		$11.10 4
8 4G435B530BE
REAR SUSPENSION LOWER ARM RH
IN STOCK 		$646.72 1
8 4G435B531BE
ARM & BUSHING REAR LOWER
IN STOCK 		$646.72 1
9 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
IN STOCK 		$19.27 2
10 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.24 2
11 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$5.95 2
12 703274
Bolt, M12, Eccentric
IN STOCK 		$41.89 2
13 4G432610840
Washer, M12, Eccentric
IN STOCK 		$27.19 4
14 4G435B551AA
TOE CONTROL ARM REAR SUSPENSION RH
IN STOCK 		$1,422.36 2
15 4G435K978AB
Bolt, M12, Eccentric
IN STOCK 		$40.39 2
