Front Seat Assembly, From (V) A09110

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Front seat Assembly, from (V) A09110

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7G4360008AFW ASSY FRONT SEAT RH $12,333.97 To Order
7G4360009AFW ASSY FRONT SEAT LHS $11,746.10 To Order
Photo Part No Description Price (each) Stock
7G4360136AFW FRONT SEAT SQUAB RH TRIMMED ASSY $5,922.58 To Order
7G4360137AFW FRONT SEAT SQUAB LH TRIMMED ASSY $9,292.20 To Order
Photo Part No Description Price (each) Stock
7G4360050AFW FRONT SEAT CUSHION TRIMMED ASSY RH Enquire To Order
7G4360051AFW CSHN ASY FRT ST $5,127.05 To Order
Photo Part No Description Price (each) Stock
AG4364800BA Squab frame assy, front seat, RH $2,367.87 To Order
CG4364802AC Squab Frame, Front Seat, LH, Memory $4,332.06 To Order
CG4364800AC Squab Frame, Front Seat, RH, Memory $4,332.06 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,150.50 To Order
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,150.50 To Order
Photo Part No Description Price (each) Stock
7G437411070 SEAT HARNESS $129.36 To Order
7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS $3,625.62 To Order
Photo Part No Description Price (each) Stock
7G43625B02BA Sensor Passenger Seat Weight $366.66 ARRIVING SOON
Photo Part No Description Price (each) Stock
7G43625B00CC Module, Passenger Seat Weight $145.57 ARRIVING SOON
Photo Part No Description Price (each) Stock
4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT $0.71 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.48 IN STOCK
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $266.56 To Order
Photo Part No Description Price (each) Stock
7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH $353.19 To Order
7G4314E693CA SWITCH PACK ASSY FRT SEAT LUMBAR LH $316.58 To Order
Photo Part No Description Price (each) Stock
7G43N014740AA Screw, M6 x 16, Socket Head $1.10 To Order
Photo Part No Description Price (each) Stock
4G437410690 Airbag, Side, RH $370.19 To Order
4G437410689 Airbag, Side, LH $370.19 To Order
Photo Part No Description Price (each) Stock
6G33062A00BB GLOVEBOX SWITCH $389.89 To Order
Photo Part No Description Price (each) Stock
7G43605W00ACW Strap, Squab Release, Manual Override $33.15 To Order
Photo Part No Description Price (each) Stock
AG4365530AA PUMP FRONT SEAT LUMBAR $191.33 To Order
8G3365532AA Pump, Lumbar Support Air $173.53 To Order
Photo Part No Description Price (each) Stock
AG4362690AA VALVE FRONT SOLENOID SEAT LUMBAR $148.19 To Order
8G3365524AA Valve, Lumbar Support Air $211.62 To Order
Photo Part No Description Price (each) Stock
4G437410127 Kit, Squab Motor $141.91 To Order
Photo Part No Description Price (each) Stock
AG43603B13AA Bladder, Lumbar Support Air $133.44 To Order
8G3365500AA LUMBAR SUPPORT BAG $425.94 To Order
Photo Part No Description Price (each) Stock
7G4314B426AB Sensor, seat track position $43.42 To Order
Photo Part No Description Price (each) Stock
92057 SEAT ECU-DRIVER $953.20 To Order
92055 SEAT ECU-PASS $953.20 To Order
Photo Part No Description Price (each) Stock
7G4364572AFW FRONT SEAT SQUAB RH COVER ASSY $3,259.37 To Order
7G4364573AFW FRONT SEAT SQUAB LH COVER ASSY $3,259.37 To Order
Photo Part No Description Price (each) Stock
6G3361L16BA RING SNAP MAG $7.81 To Order
Photo Part No Description Price (each) Stock
6G3361L16CA PIN MAG SMALL $3.66 To Order
Photo Part No Description Price (each) Stock
6G3361L16DA LATCH MAG LARGE $20.38 To Order
Photo Part No Description Price (each) Stock
6G3361L16EA WASHER LARGE MAG $3.66 To Order
Photo Part No Description Price (each) Stock
7G434D9513AB SQUAB FOAM RH $434.62 To Order
7G434D9514AB SEAT BACK FOAM LH $434.62 To Order
Photo Part No Description Price (each) Stock
7G4314D696AB Heating Element, Squab $124.36 To Order
Photo Part No Description Price (each) Stock
7G4362900AFW COVER ASSY FRONT SEAT CUSHION RH $2,352.68 To Order
7G4362901AFW COVER ASSY FRONT SEAT CUSHION LH $2,352.68 To Order
Photo Part No Description Price (each) Stock
8G439515AA FRT ST CUSH FOAM RH $398.67 To Order
8G439516AA FRT ST CUSH FOAM LH $398.67 To Order
Photo Part No Description Price (each) Stock
7G4314D698AC Element, Seat Base Heater $306.98 IN STOCK
7G437411070 SEAT HARNESS $129.36 To Order
View All

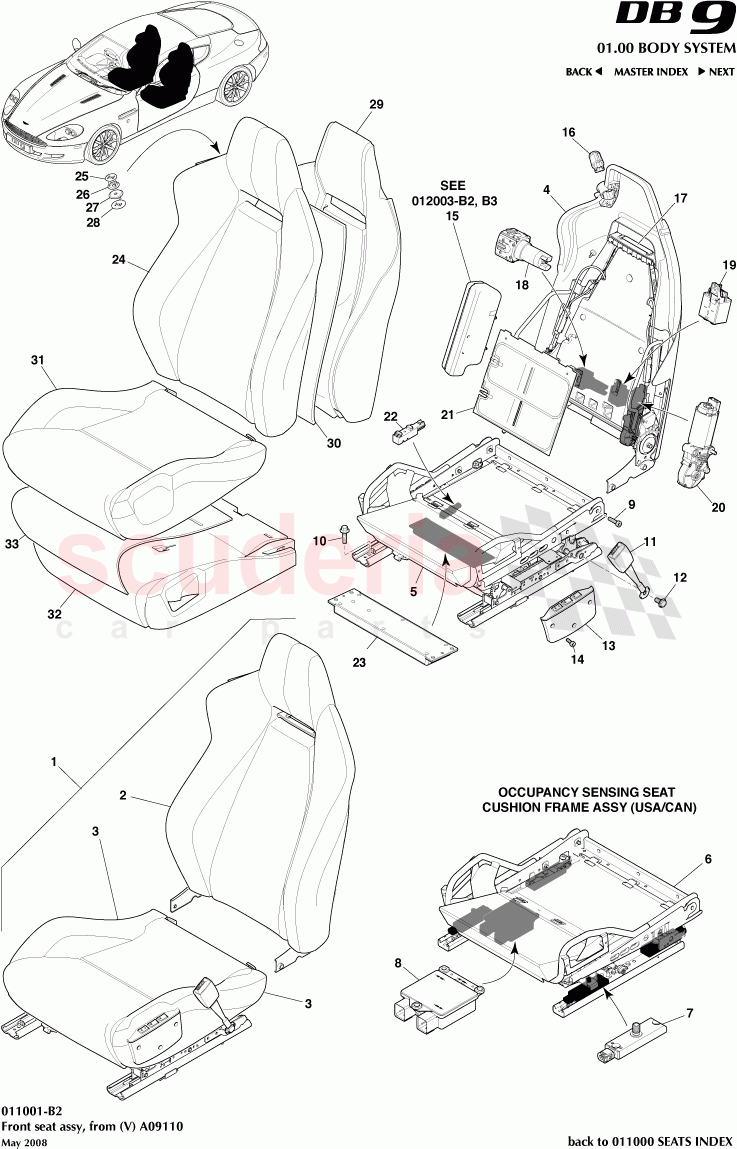

Front seat Assembly, from (V) A09110 of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7G4360008AFW
ASSY FRONT SEAT RH 		$12,333.97 1
1 7G4360009AFW
ASSY FRONT SEAT LHS 		$11,746.10 1
2 7G4360136AFW
FRONT SEAT SQUAB RH TRIMMED ASSY 		$5,922.58 1
2 7G4360137AFW
FRONT SEAT SQUAB LH TRIMMED ASSY 		$9,292.20 1
3 7G4360050AFW
FRONT SEAT CUSHION TRIMMED ASSY RH 		- 1 Enquire
3 7G4360051AFW
CSHN ASY FRT ST 		$5,127.05 1
4 AG4364800BA
Squab frame assy, front seat, RH
10.7MY 		$2,367.87 1
4 CG4364802AC
Squab Frame, Front Seat, LH, Memory
10.7MY 		$4,332.06 1
4 CG4364800AC
Squab Frame, Front Seat, RH, Memory
12MY 		$4,332.06 1
4 CG4364802AC
Squab Frame, Front Seat, LH, Memory
12MY 		$4,332.06 1
4 CG4364800AC
Squab Frame, Front Seat, RH, Memory 		$4,332.06 1
4 CG4364802AC
Squab Frame, Front Seat, LH, Memory 		$4,332.06 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
USA/Can 		$3,150.50 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
ROW 		$3,150.50 2
6 7G437411070
SEAT HARNESS
not illustrated 		$129.36 1
6 7G43L60344CB
Cushion Frame, Front Seat, Non Height Adjusting, OCS
USA/Can 		$3,625.62 1
7 7G43625B02BA
Sensor Passenger Seat Weight
ARRIVING SOON 		$366.66 1
8 7G43625B00CC
Module, Passenger Seat Weight
ARRIVING SOON 		$145.57 1
9 4G4361538AB
M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT 		$0.71 4
10 706423
SCREW-M8 x 25 HF PI
IN STOCK 		$1.48 4
11 4G43613K22BD
Buckle Assembly, Front Seatbelt 		$266.56 1
13 7G4314E693AA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH 		$353.19 1
13 7G4314E693CA
SWITCH PACK ASSY FRT SEAT LUMBAR LH 		$316.58 1
14 7G43N014740AA
Screw, M6 x 16, Socket Head 		$1.10 3
15 4G437410690
Airbag, Side, RH 		$370.19 1
15 4G437410689
Airbag, Side, LH 		$370.19 1
16 6G33062A00BB
GLOVEBOX SWITCH 		$389.89 1
17 7G43605W00ACW
Strap, Squab Release, Manual Override 		$33.15 1
18 AG4365530AA
PUMP FRONT SEAT LUMBAR
10.7MY 		$191.33 1
18 8G3365532AA
Pump, Lumbar Support Air 		$173.53 1
19 AG4362690AA
VALVE FRONT SOLENOID SEAT LUMBAR
10.7MY 		$148.19 1
19 8G3365524AA
Valve, Lumbar Support Air 		$211.62 1
20 4G437410127
Kit, Squab Motor 		$141.91 1
21 AG43603B13AA
Bladder, Lumbar Support Air
10.7MY 		$133.44 1
21 8G3365500AA
LUMBAR SUPPORT BAG 		$425.94 1
22 7G4314B426AB
Sensor, seat track position 		$43.42 1
23 92057
SEAT ECU-DRIVER 		$953.20 1
23 92055
SEAT ECU-PASS 		$953.20 1
24 7G4364572AFW
FRONT SEAT SQUAB RH COVER ASSY 		$3,259.37 1
24 7G4364573AFW
FRONT SEAT SQUAB LH COVER ASSY 		$3,259.37 1
25 6G3361L16BA
RING SNAP MAG 		$7.81 2
26 6G3361L16CA
PIN MAG SMALL 		$3.66 2
27 6G3361L16DA
LATCH MAG LARGE 		$20.38 2
28 6G3361L16EA
WASHER LARGE MAG 		$3.66 2
29 7G434D9513AB
SQUAB FOAM RH 		$434.62 1
29 7G434D9514AB
SEAT BACK FOAM LH 		$434.62 1
30 7G4314D696AB
Heating Element, Squab 		$124.36 1
31 7G4362900AFW
COVER ASSY FRONT SEAT CUSHION RH 		$2,352.68 1
31 7G4362901AFW
COVER ASSY FRONT SEAT CUSHION LH 		$2,352.68 1
32 8G439515AA
FRT ST CUSH FOAM RH 		$398.67 1
32 8G439516AA
FRT ST CUSH FOAM LH 		$398.67 1
33 7G4314D698AC
Element, Seat Base Heater
IN STOCK 		$306.98 1
33 7G437411070
SEAT HARNESS 		$129.36 1
