Body Side Quarter Trim Assembly (Volante)

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Body Side Quarter Trim Assembly (Volante)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43L31112ADW PANEL BODY SIDE TR R RH $1,275.12 To Order
4G43L31113ADW PANEL BODY SIDE TR REAR LH $1,338.85 To Order
6G43L31112AAW PANEL BODY SIDE TR R RH $1,228.13 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43L31486ADW MIDDLE QTR PANEL ASSY RHS $548.85 To Order
8G43L31486ABW Panel assy, quarter trim mid section, RH $658.86 To Order
4G43L31487ADW Panel assy, quarter trim mid section, LH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43L312A06ACW LOWER QTR PANEL ASY RHS $582.75 To Order
8G43L312A06AAW LOWER QUARTER PANEL ASSY RHS $67.83 To Order
4G43L312A07ACW LOWER QTR PANEL ASY LHS $939.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $11.30 IN STOCK
Photo Part No Description Price (each) Stock
4G43V850063AA Screw, Cap Hd $0.59 To Order
Photo Part No Description Price (each) Stock
4G43L24858AB Bezel Assy, Seat Belt B Post Upper, RH $237.47 To Order
4G43L24859AB Bezel Assy, Seat Belt B Post Upper, LH $383.61 To Order
Photo Part No Description Price (each) Stock
4G43L60594ADW Seat Back Panel Assy, RH $1,282.93 To Order
4G43L60595ADW PANEL ASY REAR ST BK LOWER $1,282.93 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G43L14501AAW SPEAKER GRILLE AND FOAM ASSY RHS $135.30 To Order
4G43L14502AAW SPEAKER GRILLE AND FOAM ASSY LHS $135.30 To Order
Photo Part No Description Price (each) Stock
4G43310C02AC BRKT SPKR CRL BODY SDTR RH $38.37 To Order
4G43310C03AC BRKT SPKR GRL BDY SD TR LH $38.37 To Order
Photo Part No Description Price (each) Stock
702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) $17.81 IN STOCK
Photo Part No Description Price (each) Stock
4G43290E16AB Plate, Light to Quarter Panel $13.13 To Order
Photo Part No Description Price (each) Stock
4G43539A40ABW Lid, Flap Finisher Top, RH $594.89 To Order
4G43539A41ABW Lid, Flap Finisher Top, LH $565.58 To Order
Photo Part No Description Price (each) Stock
4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH $346.35 IN STOCK
4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH $346.35 IN STOCK
Photo Part No Description Price (each) Stock
702211 SCREW M5x8.0x0.80 PAN HEAD $0.10 IN STOCK
Photo Part No Description Price (each) Stock
701440 Screw Self Tapping Washer Head 4.2 x 9.5 $0.12 IN STOCK
Photo Part No Description Price (each) Stock
701653 Spring Nut, U Type, 4.2 x 0.7-2 $0.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43L53296AA Link Rod, Flap Top RH $41.57 IN STOCK
4G43L53297AA Link Rod, Flap Top LH $23.53 IN STOCK
Photo Part No Description Price (each) Stock
4G4317431AA SPRING $1.64 IN STOCK
Photo Part No Description Price (each) Stock
4G43338013AA PLUG BLANKING (M6) $0.67 IN STOCK
Photo Part No Description Price (each) Stock
4G43103021AB Fix, Push On $1.02 IN STOCK
Photo Part No Description Price (each) Stock
4G431861AA CLIP $0.29 IN STOCK
View All

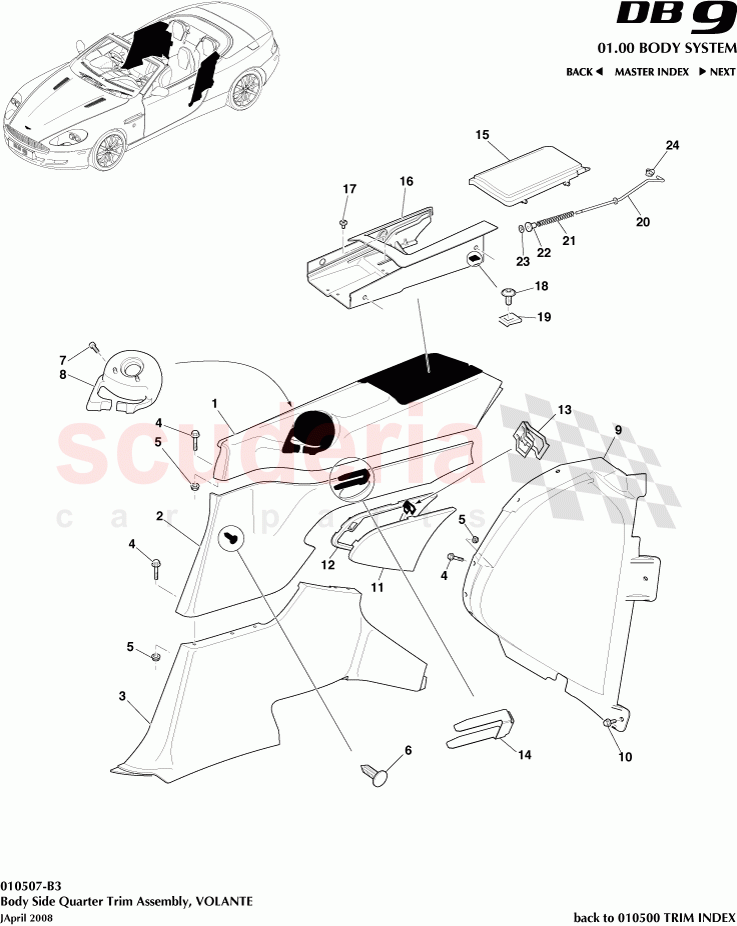

Body Side Quarter Trim Assembly (Volante) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43L31112ADW
PANEL BODY SIDE TR R RH
Up to (V) B05390 		$1,275.12 1
1 4G43L31113ADW
PANEL BODY SIDE TR REAR LH
Up to (V) B05390 		$1,338.85 1
1 6G43L31112AAW
PANEL BODY SIDE TR R RH
From (V) B05391 		$1,228.13 1
1 6G43L31113AAW
PANEL BODY SIDE TR REAR LH
From (V) B05391 		$1,228.13 1
2 4G43L31486ADW
MIDDLE QTR PANEL ASSY RHS
07MY 		$548.85 1
2 8G43L31486ABW
Panel assy, quarter trim mid section, RH
08MY 		$658.86 1
2 4G43L31487ADW
Panel assy, quarter trim mid section, LH
07MY 		- 1 Enquire
2 8G43L31487ABW
Panel assy, quarter trim mid section, LH
08MY 		$659.57 1
3 4G43L312A06ACW
LOWER QTR PANEL ASY RHS
07MY 		$582.75 1
3 8G43L312A06AAW
LOWER QUARTER PANEL ASSY RHS
08MY 		$67.83 1
3 4G43L312A07ACW
LOWER QTR PANEL ASY LHS
07MY 		$939.82 1
3 8G43L312A07AAW
LOWER QUARTER PANEL ASSY LHS
08MY 		- 1 Enquire
4 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.20 4
5 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.10 32
6 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
IN STOCK 		$11.30 2
7 4G43V850063AA
Screw, Cap Hd 		$0.59 2
8 4G43L24858AB
Bezel Assy, Seat Belt B Post Upper, RH 		$237.47 1
8 4G43L24859AB
Bezel Assy, Seat Belt B Post Upper, LH 		$383.61 1
9 4G43L60594ADW
Seat Back Panel Assy, RH 		$1,282.93 1
9 4G43L60595ADW
PANEL ASY REAR ST BK LOWER 		$1,282.93 1
10 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.20 32
11 4G43L14501AAW
SPEAKER GRILLE AND FOAM ASSY RHS 		$135.30 1
11 4G43L14502AAW
SPEAKER GRILLE AND FOAM ASSY LHS 		$135.30 1
12 4G43310C02AC
BRKT SPKR CRL BODY SDTR RH 		$38.37 1
12 4G43310C03AC
BRKT SPKR GRL BDY SD TR LH 		$38.37 1
13 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
IN STOCK 		$17.81 2
14 4G43290E16AB
Plate, Light to Quarter Panel 		$13.13 2
15 4G43539A40ABW
Lid, Flap Finisher Top, RH 		$594.89 1
15 4G43539A41ABW
Lid, Flap Finisher Top, LH 		$565.58 1
16 4G43LB605H20ADW
Frame and Finisher Assembly, C-Flap, RH
IN STOCK 		$346.35 1
16 4G43LB605H21ADW
Frame and Finisher Assembly, C-Flap, LH
IN STOCK 		$346.35 1
17 702211
SCREW M5x8.0x0.80 PAN HEAD
IN STOCK 		$0.10 2
18 701440
Screw Self Tapping Washer Head 4.2 x 9.5
IN STOCK 		$0.12 2
19 701653
Spring Nut, U Type, 4.2 x 0.7-2
IN STOCK 		$0.27 2
20 4G43L53296AA
Link Rod, Flap Top RH
IN STOCK 		$41.57 1
20 4G43L53297AA
Link Rod, Flap Top LH
IN STOCK 		$23.53 1
21 4G4317431AA
SPRING
1 per Link
IN STOCK 		$1.64 2
22 4G43338013AA
PLUG BLANKING (M6)
1 per Link
IN STOCK 		$0.67 2
23 4G43103021AB
Fix, Push On
1 per Link
IN STOCK 		$1.02 2
24 4G431861AA
CLIP
1 per Link
IN STOCK 		$0.29 2
