Aston Martin DB9 (2004-2012) - Front Seat Assembly Up to (V) A09109

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4364572ABW FRONT SEAT SQUAB RH COVER ASSY $3,127.17 To Order
4G4364573ABW FRONT SEAT SQUAB LH COVER ASSY $3,127.17 To Order
7G4364572ADW FRONT SEAT SQUAB RH COVER ASSY $3,263.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4362900AAW FRONT SEAT CUSHION RH COVER ASSY $3,020.48 To Order
4G4362901AAW FRONT SEAT CUSHION LH COVER ASSY $2,355.72 To Order
7G4362900ADW COVER ASSY FRONT SEAT CUSHION RH $3,903.41 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43600B94AAW SIDE AIRBAG RH $2,169.90 To Order
4G43600B95AAW SIDE AIRBAG LH $2,169.90 To Order
4G437410690 Airbag, Side, RH $370.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G33L60344AC FRONT SEAT CUSHION FRAME DRIVER $2,141.80 To Order
4G437410116 Track Assembly, Front Lightweight Seat $4,030.11 To Order
7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS $3,630.30 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4361888AC FRONT SEAT SPACER $81.66 To Order
Photo Part No Description Price (each) Stock
4G43647K22AA SWITCH ASSY VALANCE HEATER & LUMBAR $32.77 To Order
7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH $353.65 To Order
Photo Part No Description Price (each) Stock
4G43618A38AB M6 X 35 SKT HD SCREW BLACK S424 $1.29 To Order
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $266.90 To Order
Photo Part No Description Price (each) Stock
4G4364800AB FRONT SEAT SQUAB FRAME RH $2,749.08 To Order
4G4364801AB FRONT SEAT SQUAB FRAME LH $2,749.08 To Order
CG4364800AC Squab Frame, Front Seat, RH, Memory $4,337.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G437410120 FRONT SEAT - TILT LEVER - RH $72.72 IN STOCK
4G437410121 Front Seat - Tilt Lever - LH $72.72 IN STOCK
Photo Part No Description Price (each) Stock
4G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR $32.94 To Order
4G43647K22AA SWITCH ASSY VALANCE HEATER & LUMBAR $32.77 To Order
7G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR UPPER $32.47 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4314D694AA SEAT HEATING SWITCH - SEAT $247.07 To Order
7G4314D694AA SEAT HEATING SWITCH - SEAT $75.64 To Order
Photo Part No Description Price (each) Stock
4G437410124 LUMBAR SUPPORT KIT $227.99 To Order
Photo Part No Description Price (each) Stock
4G4362293AAW Panel, upper back Enquire To Order
Photo Part No Description Price (each) Stock
4G4360050ABW FRONT SEAT CUSHION RH TRIMMED ASSY $3,100.89 To Order
4G4360051ABW Cushion assy, front seat trimmed, LH Enquire To Order
4G439515AA FRONT SEAT CUSHION FOAM RH $1,106.43 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G437410119 SUSPENSION MAT $227.39 To Order
Photo Part No Description Price (each) Stock
4G437410127 Kit, Squab Motor $142.10 To Order
Photo Part No Description Price (each) Stock
4G437410118 CONNECTOR BRACKET $58.89 To Order
View All

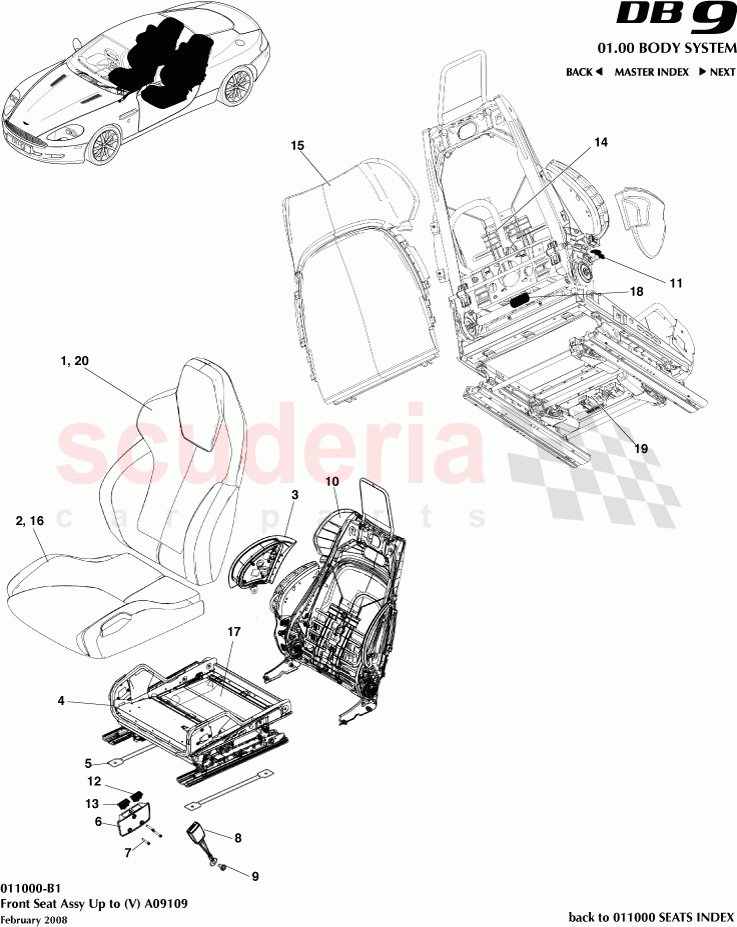

Front Seat Assembly Up to (V) A09109 of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4360008ABW
ASY FRONT SEAT RH
Up to (V) A06677 		$17,594.82 1
- 4G4360009ABW
ASSY FRONT SEAT LH
Up to (V) A06677 		$17,594.82 1
- 7G4360008ADW
ASSY FRONT SEAT RH
From (V) A06678 		$9,736.22 1
- 7G4360009ADW
ASSY FRONT SEAT LHS
From (V) A06678 		$10,153.29 1
1 4G4364572ABW
FRONT SEAT SQUAB RH COVER ASSY
Up to (V) A06677 		$3,127.17 1
1 4G4364573ABW
FRONT SEAT SQUAB LH COVER ASSY
Up to (V) A06677 		$3,127.17 1
1 7G4364572ADW
FRONT SEAT SQUAB RH COVER ASSY
From (V) A06678 		$3,263.58 1
1 7G4364573ADW
FRONT SEAT SQUAB LH COVER ASSY
From (V) A06678 		$3,263.58 1
2 4G4362900AAW
FRONT SEAT CUSHION RH COVER ASSY
Up to (V) A06677 		$3,020.48 1
2 4G4362901AAW
FRONT SEAT CUSHION LH COVER ASSY
Up to (V) A06677 		$2,355.72 1
2 7G4362900ADW
COVER ASSY FRONT SEAT CUSHION RH
From (V) A06678 		$3,903.41 1
2 7G4362901ADW
COVER ASSY FRONT SEAT CUSHION LH
From (V) A06678 		$2,355.72 1
3 4G43600B94AAW
SIDE AIRBAG RH
Up to (V) A06677 		$2,169.90 1
3 4G43600B95AAW
SIDE AIRBAG LH
Up to (V) A06677 		$2,169.90 1
3 4G437410690
Airbag, Side, RH
From (V) A06678 		$370.67 1
3 4G437410689
Airbag, Side, LH
From (V) A06678 		$370.67 1
4 6G33L60344AC
FRONT SEAT CUSHION FRAME DRIVER
Up to (V) A06677 		$2,141.80 2
4 4G437410116
Track Assembly, Front Lightweight Seat
Up to (V) A06677 		$4,030.11 2
4 7G43L60344CB
Cushion Frame, Front Seat, Non Height Adjusting, OCS
From (V) A06678 		$3,630.30 1
4 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
From (V) A06678 		$3,154.57 1
4 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
From (V) A06678 		$3,154.57 2
4 702526
Bolt M8 x 30 Hex Flange Head
IN STOCK 		$0.54 8
5 4G4361888AC
FRONT SEAT SPACER
Up to (V) A06677 		$81.66 4
6 4G43647K22AA
SWITCH ASSY VALANCE HEATER & LUMBAR
Up to (V) A06677 		$32.77 1
6 7G4314E693AA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH
From (V) A06678 		$353.65 1
7 4G43618A38AB
M6 X 35 SKT HD SCREW BLACK S424
Up to (V) A06677 		$1.29 3
8 4G43613K22BD
Buckle Assembly, Front Seatbelt
07MY 		$266.90 2
10 4G4364800AB
FRONT SEAT SQUAB FRAME RH
Up to (V) A06677 		$2,749.08 1
10 4G4364801AB
FRONT SEAT SQUAB FRAME LH
Up to (V) A06677 		$2,749.08 1
10 CG4364800AC
Squab Frame, Front Seat, RH, Memory
From (V) A06678 		$4,337.66 1
10 CG4364802AC
Squab Frame, Front Seat, LH, Memory
From (V) A06678 		$4,337.66 1
11 4G437410120
FRONT SEAT - TILT LEVER - RH
Up to (V) A06677
IN STOCK 		$72.72 1
11 4G437410121
Front Seat - Tilt Lever - LH
Up to (V) A06677
IN STOCK 		$72.72 1
12 4G4314D693AA
SEAT SWITCH ASSEMBLY LUMBAR
Up to (V) A06677 		$32.94 1
12 4G43647K22AA
SWITCH ASSY VALANCE HEATER & LUMBAR
Up to (V) A06677 		$32.77 2
12 7G4314D693AA
SEAT SWITCH ASSEMBLY LUMBAR UPPER
From (V) A06678 		$32.47 1
12 7G4314D692AA
SEAT SWITCH ASSEMBLY LUMBAR LOWER
From (V) A06678 		$31.92 1
12 7G4314E693AA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH
From (V) A06678 		$353.65 2
13 4G4314D694AA
SEAT HEATING SWITCH - SEAT
Up to (V) A06677 		$247.07 2
13 7G4314D694AA
SEAT HEATING SWITCH - SEAT
From (V) A06678 		$75.64 2
14 4G437410124
LUMBAR SUPPORT KIT
Up to (V) A06677 		$227.99 1
15 4G4362293AAW
Panel, upper back
Up to (V) A06677 		- 2 Enquire
16 4G4360050ABW
FRONT SEAT CUSHION RH TRIMMED ASSY
Up to (V) A06677 		$3,100.89 1
16 4G4360051ABW
Cushion assy, front seat trimmed, LH
Up to (V) A06677 		- 1 Enquire
16 4G439515AA
FRONT SEAT CUSHION FOAM RH
Up to (V) A06677 		$1,106.43 1
16 4G439516AA
FRONT SEAT CUSHION FOAM LH
Up to (V) A06677 		$1,106.43 1
16 7G4360050ADW
Cushion assy, front seat trimmed, RH
From (V) A06678 		- 1 Enquire
16 7G4360051ADW
Cushion assy, front seat trimmed, LH
From (V) A06678 		- 1 Enquire
16 8G439515AA
FRT ST CUSH FOAM RH
From (V) A06678 		$399.19 1
16 8G439516AA
FRT ST CUSH FOAM LH
From (V) A06678 		$399.19 1
17 4G437410119
SUSPENSION MAT 		$227.39 2
18 4G437410127
Kit, Squab Motor
For pre 07MY cars only 		$142.10 2
19 4G437410118
CONNECTOR BRACKET 		$58.89 2
20 4G4360136AAW
FRONT SEAT SQUAB RH TRIMMED ASSY
Up to (V) A06677 		$2,844.20 1
20 4G4360137AAW
FRONT SEAT SQUAB LH TRIMMED ASSY
Up to (V) A06677 		$2,909.23 1
20 4G434D9513AA
SQUAB FOAM RH
Up to (V) A06677 		$325.84 1
20 4G434D9514AA
SQUAB FOAM LH
Up to (V) A06677 		$325.84 1
20 4G437410126
SEAT HARNESS KIT
Up to (V) A06677 		$856.89 1
20 92057
SEAT ECU-DRIVER
Up to (V) A06677 		$954.43 2
20 4G4314D698AA
CUSHION HEATING ELEMENT
Up to (V) A06677 		$192.63 2
20 4G4314D696AA
SQUAB HEATING ELEMENT
Up to (V) A06677 		$271.26 2
20 4G4319K322AA
HEATING RELAYS
Up to (V) A06677 		$8.86 4
20 92055
SEAT ECU-PASS
From (V) A06678 		$954.43 1
20 7G4360136ADW
Squab assy, front seat trimmed, RH
From (V) A06678 		- 1 Enquire
20 7G4360137ADW
Squab assy, front seat trimmed, LH
From (V) A06678 		- 1 Enquire
20 92057
SEAT ECU-DRIVER
From (V) A06678 		$954.43 1
20 7G43625B00CC
Module, Passenger Seat Weight
From (V) A06678 		$145.76 1
20 7G43625B02BA
Sensor Passenger Seat Weight
From (V) A06678 		$367.13 1
20 7G434D9514AB
SEAT BACK FOAM LH
From (V) A06678 		$435.18 1
20 7G434D9513AB
SQUAB FOAM RH
From (V) A06678 		$435.18 1
20 7G43605W00ACW
Strap, Squab Release, Manual Override
From (V) A06678 		$33.19 2
20 6G33062A00BB
GLOVEBOX SWITCH
From (V) A06678 		$390.39 2
20 7G43061B53AC
Switch, valence cover, 3 hole
From (V) A06678 		$44.04 2
20 7G4314B426AB
Sensor, seat track position
From (V) A06678 		$43.48 2
20 7G4314D698AC
Element, Seat Base Heater
From (V) A06678
IN STOCK 		$307.37 2
20 7G4314D696AB
Heating Element, Squab
From (V) A06678 		$124.52 2
20 7G437411070
SEAT HARNESS
From (V)A06678 		$129.53 1
20 4G437410913
SEAT HARNESS WITH MEMORY
07MY 		$1,381.51 1
20 4G437410914
SEAT HARNESS NON MEMORY
07MY 		$822.84 1
20 4G437410122
SEAT SIDE COVER RH 		$31.17 1
20 4G437410123
SEAT SIDE COVER LH 		$31.17 1
20 4G437410125
SEAT BACK SHELL KIT 		$309.55 1
