Centre Console and Trim of Aston Martin Aston Martin DB7 (1995)

View All

Aston Martin DB7 (1995) - Centre Console and Trim

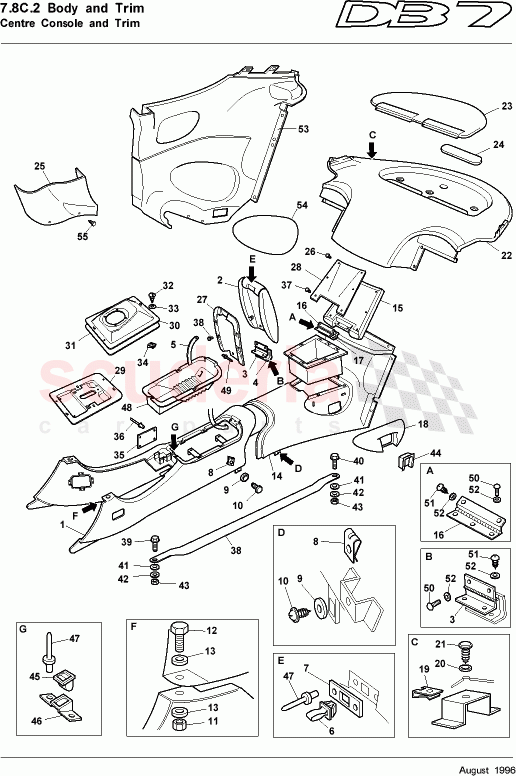

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8383791	Armrest lid assembly, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382795	LINK CHECK LID FT RH	$16.86	To Order

Photo	Part No	Description	Price (each)	Stock
	8382804	BOLSTER ASSY COMP CNSL RR RH	$200.84	To Order

Photo	Part No	Description	Price (each)	Stock
	8382819	TRIM ASSY LWR A POST RHD RH	$107.56	To Order

Photo	Part No	Description	Price (each)	Stock
	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	698987	SCREW FLG M10x20 BTN SKT HD	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	8382840	RECEPTACLE RR S/BELT RH	$5.91	To Order

Photo	Part No	Description	Price (each)	Stock
	8383184	COMP ASSY PANEL RR QTR RH	$1,065.52	To Order

Photo	Part No	Description	Price (each)	Stock
	8383195	BOLSTER COMP ASSY - RR QTR RH	$320.58	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8382820	Trim assembly, lower A post - RH	8382820 Trim assembly, lower A post - RH LHD. Leather trimmed - advise trim colour required	-	1	Enquire
-	8382821	TRIM ASSY LWR A POST RHD LH	8382821 TRIM ASSY LWR A POST RHD LH RHD. Leather trimmed - advise trim colour required	$107.56	1
-	8382822	Trim assembly, lower A post - LH	8382822 Trim assembly, lower A post - LH LHD. Leather trimmed - advise trim colour required	-	1	Enquire
-	8383578	TRIM ASSY LWR A POST RH RHD	8383578 TRIM ASSY LWR A POST RH RHD RHD. Carpet trimmed - advise trim colour required	$54.87	1
-	8383579	Trim assembly, lower A post - RH	8383579 Trim assembly, lower A post - RH LHD. Carpet trimmed - advise trim colour required	-	1	Enquire
-	8383580	TRIM ASSY LWR A POST LH RHD	8383580 TRIM ASSY LWR A POST LH RHD RHD. Carpet trimmed - advise trim colour required	$54.87	1
-	8383581	Trim assembly, lower A post - LH	8383581 Trim assembly, lower A post - LH LHD. Carpet trimmed - advise trim colour required	-	1	Enquire
-	8382805	BOLSTER ASSY COMP CNSL RR LH	8382805 BOLSTER ASSY COMP CNSL RR LH Advise trim colour required	$171.50	1
-	8383185	Rear quarter panel assembly, complete - LH	8383185 Rear quarter panel assembly, complete - LH Advise trim colour required	-	1	Enquire
-	8382848	BOLSTER COMP ASSY RR QTR LH	8382848 BOLSTER COMP ASSY RR QTR LH Advise trim colour required	-	1	Enquire
-	697574	RETAINING RING- G/LEVER GAITER	697574 RETAINING RING- G/LEVER GAITER Manual	$2.27	1
-	5083186	Armrest lid assembly, front - radio telephone	5083186 Armrest lid assembly, front - radio telephone	-	1	Enquire
-	8382841	RECEPTACLE RR S/BELT LH	8382841 RECEPTACLE RR S/BELT LH	$5.91	1
-	698987	SCREW FLG M10x20 BTN SKT HD	698987 SCREW FLG M10x20 BTN SKT HD	$2.43	1
-	8382796	LINK CHECK LID FT LH	8382796 LINK CHECK LID FT LH	$16.86	1
2	8383791	Armrest lid assembly, front	8383791 Armrest lid assembly, front	-	1	Enquire
5	8382795	LINK CHECK LID FT RH	8382795 LINK CHECK LID FT RH	$16.86	1
18	8382804	BOLSTER ASSY COMP CNSL RR RH	8382804 BOLSTER ASSY COMP CNSL RR RH Advise trim colour required	$200.84	1
25	8382819	TRIM ASSY LWR A POST RHD RH	8382819 TRIM ASSY LWR A POST RHD RH RHD. Leather trimmed - advise trim colour required	$107.56	1
34	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	88123445AA NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	$0.45	6
38	698987	SCREW FLG M10x20 BTN SKT HD	698987 SCREW FLG M10x20 BTN SKT HD	$2.43	1
44	8382840	RECEPTACLE RR S/BELT RH	8382840 RECEPTACLE RR S/BELT RH	$5.91	1
53	8383184	COMP ASSY PANEL RR QTR RH	8383184 COMP ASSY PANEL RR QTR RH Advise trim colour required	$1,065.52	1
54	8383195	BOLSTER COMP ASSY - RR QTR RH	8383195 BOLSTER COMP ASSY - RR QTR RH Advise trim colour required	$320.58	1
