Facia And Trim

Aston Martin DB7 (1995)

Find Your Part

Aston Martin DB7 (1995) - Facia and Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8383342 FACIA MLDG TRMD-RHD $5,921.24 To Order
Photo Part No Description Price (each) Stock
6982872 TUBE COMP ASSY FACIA SUPRT RHD $273.52 To Order
Photo Part No Description Price (each) Stock
6982874 Reinforcement, glovebox aperture Enquire To Order
Photo Part No Description Price (each) Stock
6982881 FACIA FACING PANEL ASY RHD Enquire To Order
Photo Part No Description Price (each) Stock
6983179 GLOVEBOX LINER RHD $223.68 To Order
Photo Part No Description Price (each) Stock
8382885 GLOVEBOX LID OUTER COMPLETE RHD $427.99 To Order
Photo Part No Description Price (each) Stock
6983181 Glovebox lid inner Enquire To Order
Photo Part No Description Price (each) Stock
6983769 CHECKARM INN.G/B RHD $13.27 To Order
Photo Part No Description Price (each) Stock
6983771 CHECKARM OUTR GB RHD $14.01 To Order
Photo Part No Description Price (each) Stock
6982898 BRACKET-FACIA END LH $35.97 To Order
Photo Part No Description Price (each) Stock
6982900 FINISHER-INSTRUMENT PACK RHD $278.27 To Order
Photo Part No Description Price (each) Stock
8382906 UNDERSCUTTLE PASS. ASSY TRIMMED RHD $744.63 To Order
Photo Part No Description Price (each) Stock
8382910 UNDERSCUTTLE DRV ASY TRIMMED RHD $724.11 To Order
Photo Part No Description Price (each) Stock
8383375 FINISHER TOP PNL ASY -RHD - AUTO $500.76 To Order
8383376 FINISHER TOP PNL ASY -LHD-AUTO $433.55 To Order
8383374 Console top finisher - manual Enquire To Order
Photo Part No Description Price (each) Stock
6983367 FOAM STRIP-1445 mm $61.35 To Order

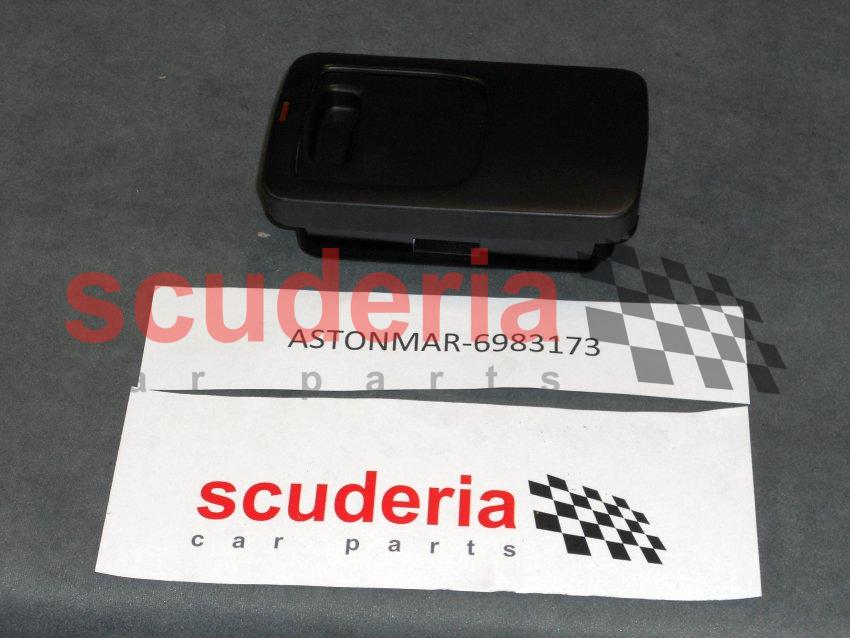

6983173 ASHTRAY ASSY COMP $117.25 To Order
Photo Part No Description Price (each) Stock
6983377 PANEL FRONT CONSOLE SURND ASSY $427.90 To Order
8090046 FRONT PANEL- CONSOLE SURROUND $367.81 To Order
Photo Part No Description Price (each) Stock
8090018 CONSOLE BADGE- ASTON MARTIN $127.64 To Order
697290 PUSH ON FIXER-M3 $0.11 To Order
View All

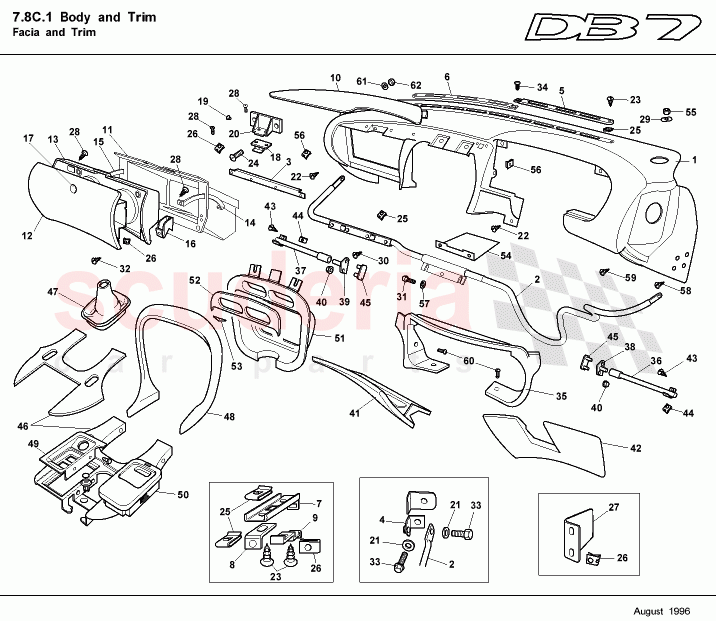

Facia and Trim of Aston Martin Aston Martin DB7 (1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8382907
UNDERSCUTTLE PASS. ASSY TRIMMED LHD
LHD. Advise trim colour required 		$643.71 1
- 8382911
UNDERSCUTTLE DRV ASY TRIMMED LHD
LHD. Advise trim colour required 		$809.33 1
- 6982873
Facia support tube assembly, complete
LHD. Advise trim colour required 		$53.81 1
- 8382886
Glovebox lid outer, complete
LHD. Advise trim colour required 		- 1 Enquire
- 8383344
FACIA MLDG TRMD LHD
LHD. Advise trim colour required 		- 1 Enquire
- 6983770
CHECKARM INN.G/B LHD
LHD 		$9.31 1
- 6983772
CHECKARM OUTR GB LHD
LHD 		$14.72 1
- 6982882
FACIA FACING PANEL ASY LHD
LHD 		$306.63 1
- 6982901
FINISHER-INSTRUMENT PACK LHD
LHD 		$174.79 1
- 6982899
BRACKET-FACIA END RH
LHD 		$7.23 1
- 6983373
Glovebox lid inner
LHD 		$41.26 1
- 6983180
Glovebox liner
LHD 		$65.92 1
- 6982875
BRACKET ASSY FACIA SUPPORT RH 		$13.53 1
- 6982894
Mounting plate, glovebox lock 		- 1 Enquire
- 8972290
IN CAR SENSOR 		$346.30 1
1 8383342
FACIA MLDG TRMD-RHD
RHD. Advise trim colour required 		$5,921.24 1
2 6982872
TUBE COMP ASSY FACIA SUPRT RHD
RHD. Advise trim colour required 		$273.52 1
3 6982874
Reinforcement, glovebox aperture 		- 1 Enquire
10 6982881
FACIA FACING PANEL ASY RHD
RHD 		- 1 Enquire
11 6983179
GLOVEBOX LINER RHD
RHD 		$223.68 1
12 8382885
GLOVEBOX LID OUTER COMPLETE RHD
RHD. Advise trim colour required 		$427.99 1
13 6983181
Glovebox lid inner
RHD 		- 1 Enquire
14 6983769
CHECKARM INN.G/B RHD
RHD 		$13.27 1
15 6983771
CHECKARM OUTR GB RHD
RHD 		$14.01 1
27 6982898
BRACKET-FACIA END LH
RHD 		$35.97 1
35 6982900
FINISHER-INSTRUMENT PACK RHD
RHD 		$278.27 1
41 8382906
UNDERSCUTTLE PASS. ASSY TRIMMED RHD
RHD. Advise trim colour required 		$744.63 1
42 8382910
UNDERSCUTTLE DRV ASY TRIMMED RHD
RHD. Advise trim colour required 		$724.11 1
46 8383375
FINISHER TOP PNL ASY -RHD - AUTO
RHD. Veneered 		$500.76 1
46 8383376
FINISHER TOP PNL ASY -LHD-AUTO
LHD. Veneered 		$433.55 1
46 8383374
Console top finisher - manual
Veneered 		- 1 Enquire
50 6983367
FOAM STRIP-1445 mm
Cut to length 		$61.35 1
50 6983173
ASHTRAY ASSY COMP 		$117.25 1
51 6983377
PANEL FRONT CONSOLE SURND ASSY
Up to (V) 100662 		$427.90 1
51 8090046
FRONT PANEL- CONSOLE SURROUND
From (V) 100663 		$367.81 1
53 8090018
CONSOLE BADGE- ASTON MARTIN
From (V) 100663 		$127.64 1
53 697290
PUSH ON FIXER-M3
From (V) 100663 		$0.11 2
