Body Panels of Aston Martin Aston Martin DB7 (1995)

View All

Aston Martin DB7 (1995) - Body Panels

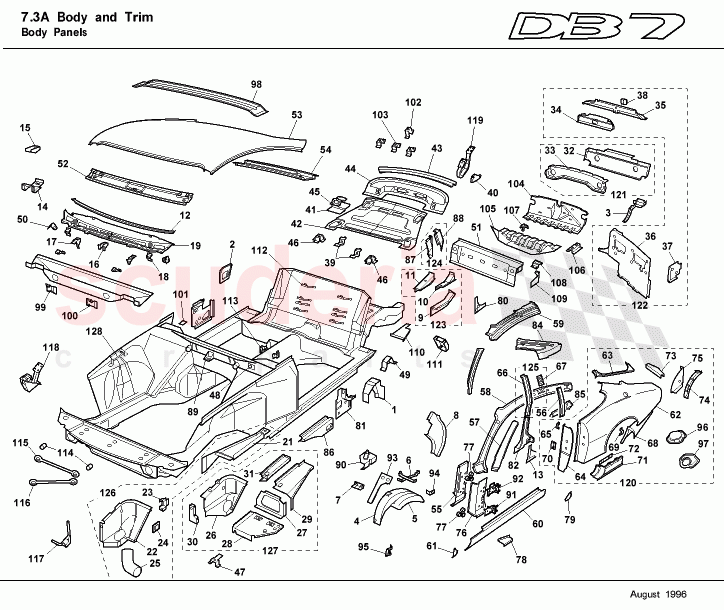

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2080588	PANEL SUPPORT A POST -RH	$101.99	To Order
	2080589	PANEL SUPPORT A POST -LH	$101.99	To Order

Photo	Part No	Description	Price (each)	Stock
	2080590	Panel closing, dash side - RH	Enquire	To Order
	2080591	Panel closing, dash side - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2280592	PANEL CLSG-LUGGAGE FLOOR SIDE-RH	$335.84	To Order
	2280593	PANEL CLSG-LUGGAGE FLOOR SIDE-LH	$335.84	To Order

Photo	Part No	Description	Price (each)	Stock
	2283019	Panel wheelarch, rear inner - RH	$540.99	To Order
	2283020	Panel wheelarch, rear inner - LH	$540.99	To Order

Photo	Part No	Description	Price (each)	Stock
	2280596	PANEL WHEELARCH OUTER RH	$482.27	To Order
	2280597	PANEL WHEELARCH OUTER LH	$482.27	To Order

Photo	Part No	Description	Price (each)	Stock
	2280599	ASSY BRKT-DAMPER SUPPORT RH	$10.81	To Order
	2280600	ASSY BRKT-DAMPER SUPPORT LH	$10.81	To Order

Photo	Part No	Description	Price (each)	Stock
	2280601	PANEL BAFFLE W'ARCH- TONNEAU RH	$96.67	To Order
	2280602	PANEL BAFFLE W'ARCH- TONNEAU LH	$89.62	To Order

Photo	Part No	Description	Price (each)	Stock
	2280610	Reinf plate - B post lower rear - RH	Enquire	To Order
	2280611	Reinf plate - B post lower rear - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2580612	Steering column mounting bracket - RH	Enquire	To Order
	2580613	Steering column mounting bracket - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080616	Bracket facia support - RH	Enquire	To Order
	2080617	Bracket facia support - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080618	Bracket windscreen cowl - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080652	Bracket, gas sprung - trunk lid - RH	Enquire	To Order
	2080653	Bracket, gas sprung - trunk lid - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080658	Reinforcement assy, child restraint - RH	Enquire	To Order
	2080659	Reinforcement assy, child restraint - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080663	Panel, A post support extension - RH	Enquire	To Order
	2080664	Panel, A post support extension - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080670	ASSY REINF `A POST LOWER RH	$101.99	To Order
	2080671	ASSY REINF `A POST LOWER LH	$85.58	To Order

Photo	Part No	Description	Price (each)	Stock
	6180672	PANEL B POST OUTER RH	$64.36	To Order
	6180673	PANEL B POST OUTER LH	$132.35	To Order

Photo	Part No	Description	Price (each)	Stock
	6180674	PANEL A POST OUTER RH	$187.78	To Order
	6180675	PANEL A POST OUTER LH	$187.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6180676	PANEL REINF A POST RH	$378.81	To Order
	6180677	PANEL REINF A POST LH	$423.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6180678	PANEL ASSY-CANTRAIL INNER RH	$108.47	To Order
	6180679	PANEL ASSY-CANTRAIL INNER LH	$142.94	To Order

Photo	Part No	Description	Price (each)	Stock
	6180680	PANEL SILL OUTER RH	$1,464.51	To Order
	6180681	PANEL SILL OUTER LH	$1,464.51	To Order

Photo	Part No	Description	Price (each)	Stock
	6180682	ASSY PANEL CLOSING SILL FRONT RH	$16.49	To Order
	6180683	ASSY PANEL CLOSING SILL FRONT LH	$16.49	To Order

Photo	Part No	Description	Price (each)	Stock
	2080708	PANEL A POST LOWER RH	$47.41	To Order
	2080709	PANEL A POST LOWER LH	$44.49	To Order

Photo	Part No	Description	Price (each)	Stock
	6180711	EXTN SILL FRONT RH	$8.75	To Order
	6180712	EXTN SILL FRONT LH	$8.75	To Order

Photo	Part No	Description	Price (each)	Stock
	6180713	Panel, rear w/a outer front extn - RH	$53.78	To Order
	6180714	Panel, rear w/a outer front extn - LH	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	2080715	Closing gussett, inner A post - RH	Enquire	To Order
	2080716	Closing gussett, inner A post - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080717	GUSSET INNER `A'POST RH	$55.38	To Order
	2080718	GUSSET INNER `A'POST LH	$55.38	To Order

Photo	Part No	Description	Price (each)	Stock
	2080719	Panel assy, B post inner lower - RH	Enquire	To Order
	2080720	Panel assy, B post inner lower - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080723	Panel, rear quarter inner - RH	Enquire	To Order
	2080724	Panel, rear quarter inner - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080727	Valance reinforcement, upper - RH	Enquire	To Order
	2080728	Valance reinforcement, upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2280734	ASSY REINF REAR PARCEL SHELF-RH	$86.03	To Order
	2280735	ASSY REINF REAR PARCEL SHELF-LH	$86.03	To Order

Photo	Part No	Description	Price (each)	Stock
	6580376	Door hinge assy, lower - RH	Enquire	To Order
	6580377	Door hinge assy, lower - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580378	Door hinge assy, upper - RH	Enquire	To Order
	6580379	Door hinge assy, upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	21110002AA	PNL SQUAB EXT RH	$32.58	To Order
	21110003AA	PNL SQUAB EXT LH	$32.58	To Order

Photo	Part No	Description	Price (each)	Stock
	2280755	REINF BRKT BUMPER MTG REAR RH	$19.36	To Order
	2280756	REINF BRKT BUMPER MTG REAR LH	$19.36	To Order

Photo	Part No	Description	Price (each)	Stock
	2280757	EXTN BOOT FLOOR RH	$87.16	To Order
	2280758	EXTN BOOT FLOOR LH	$75.78	To Order

Photo	Part No	Description	Price (each)	Stock
	2280759	Baffle, A post lower - RH	Enquire	To Order
	2280760	Baffle, A post lower - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2282945	Assembly panel, tonneau - RH	Enquire	To Order
	2282946	Assembly panel, tonneau - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2282949	ASSY REAR LONGIT EXTN RH	$210.85	To Order
	2282950	ASSY REAR LONGIT EXTN LH	$244.78	To Order

Photo	Part No	Description	Price (each)	Stock
	2282951	ASSY BR RR PARCEL SHELF/TONNEAU RH	$135.29	To Order
	2282952	ASSY BR RR PARCEL SHELF/TONNEAU LH	$135.29	To Order

Photo	Part No	Description	Price (each)	Stock
	6182953	ASSY PANEL B POST INR UPR RH	$135.71	To Order
	6182954	ASSY PANEL B POST INR UPR LH	$167.90	To Order

Photo	Part No	Description	Price (each)	Stock
	1982955	ASSEMBLY HEADLAMP INR RH	$1,447.38	To Order
	1982956	ASSEMBLY HEADLAMP INR LH	$1,934.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	$1,468.88	To Order
	1982958	ASSEMBLY HEADLAMP OTR LH	$1,468.88	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6390186	ASY-BODYW/DRS95M CPE	6390186 ASY-BODYW/DRS95M CPE	$56,162.54	1
1	2080588	PANEL SUPPORT A POST -RH	2080588 PANEL SUPPORT A POST -RH	$101.99	1
1	2080589	PANEL SUPPORT A POST -LH	2080589 PANEL SUPPORT A POST -LH	$101.99	1
2	2080590	Panel closing, dash side - RH	2080590 Panel closing, dash side - RH	-	1	Enquire
2	2080591	Panel closing, dash side - LH	2080591 Panel closing, dash side - LH	-	1	Enquire
3	2280592	PANEL CLSG-LUGGAGE FLOOR SIDE-RH	2280592 PANEL CLSG-LUGGAGE FLOOR SIDE-RH	$335.84	1
3	2280593	PANEL CLSG-LUGGAGE FLOOR SIDE-LH	2280593 PANEL CLSG-LUGGAGE FLOOR SIDE-LH	$335.84	1
4	2283019	Panel wheelarch, rear inner - RH	2283019 Panel wheelarch, rear inner - RH	$540.99	1
4	2283020	Panel wheelarch, rear inner - LH	2283020 Panel wheelarch, rear inner - LH	$540.99	1
5	2280596	PANEL WHEELARCH OUTER RH	2280596 PANEL WHEELARCH OUTER RH	$482.27	1
5	2280597	PANEL WHEELARCH OUTER LH	2280597 PANEL WHEELARCH OUTER LH	$482.27	1
7	2280599	ASSY BRKT-DAMPER SUPPORT RH	2280599 ASSY BRKT-DAMPER SUPPORT RH	$10.81	1
7	2280600	ASSY BRKT-DAMPER SUPPORT LH	2280600 ASSY BRKT-DAMPER SUPPORT LH	$10.81	1
8	2280601	PANEL BAFFLE W'ARCH- TONNEAU RH	2280601 PANEL BAFFLE W'ARCH- TONNEAU RH	$96.67	1
8	2280602	PANEL BAFFLE W'ARCH- TONNEAU LH	2280602 PANEL BAFFLE W'ARCH- TONNEAU LH	$89.62	1
13	2280610	Reinf plate - B post lower rear - RH	2280610 Reinf plate - B post lower rear - RH	-	1	Enquire
13	2280611	Reinf plate - B post lower rear - LH	2280611 Reinf plate - B post lower rear - LH	-	1	Enquire
14	2580612	Steering column mounting bracket - RH	2580612 Steering column mounting bracket - RH	-	1	Enquire
14	2580613	Steering column mounting bracket - LH	2580613 Steering column mounting bracket - LH	-	1	Enquire
17	2080616	Bracket facia support - RH	2080616 Bracket facia support - RH	-	1	Enquire
17	2080617	Bracket facia support - LH	2080617 Bracket facia support - LH	-	1	Enquire
18	2080618	Bracket windscreen cowl - RH	2080618 Bracket windscreen cowl - RH	-	1	Enquire
20	2080621	Reinf wiper spindle mtg - RH	2080621 Reinf wiper spindle mtg - RH	-	1	Enquire
20	2080622	Reinf wiper spindle mtg - LH	2080622 Reinf wiper spindle mtg - LH	-	1	Enquire
40	2080652	Bracket, gas sprung - trunk lid - RH	2080652 Bracket, gas sprung - trunk lid - RH	-	1	Enquire
40	2080653	Bracket, gas sprung - trunk lid - LH	2080653 Bracket, gas sprung - trunk lid - LH	-	1	Enquire
45	2080658	Reinforcement assy, child restraint - RH	2080658 Reinforcement assy, child restraint - RH	-	1	Enquire
45	2080659	Reinforcement assy, child restraint - LH	2080659 Reinforcement assy, child restraint - LH	-	1	Enquire
49	2080663	Panel, A post support extension - RH	2080663 Panel, A post support extension - RH	-	1	Enquire
49	2080664	Panel, A post support extension - LH	2080664 Panel, A post support extension - LH	-	1	Enquire
55	2080670	ASSY REINF `A POST LOWER RH	2080670 ASSY REINF `A POST LOWER RH	$101.99	1
55	2080671	ASSY REINF `A POST LOWER LH	2080671 ASSY REINF `A POST LOWER LH	$85.58	1
56	6180672	PANEL B POST OUTER RH	6180672 PANEL B POST OUTER RH	$64.36	1
56	6180673	PANEL B POST OUTER LH	6180673 PANEL B POST OUTER LH	$132.35	1
57	6180674	PANEL A POST OUTER RH	6180674 PANEL A POST OUTER RH	$187.78	1
57	6180675	PANEL A POST OUTER LH	6180675 PANEL A POST OUTER LH	$187.78	1
58	6180676	PANEL REINF A POST RH	6180676 PANEL REINF A POST RH	$378.81	1
58	6180677	PANEL REINF A POST LH IN STOCK	6180677 PANEL REINF A POST LH IN STOCK	$423.35	1
59	6180678	PANEL ASSY-CANTRAIL INNER RH	6180678 PANEL ASSY-CANTRAIL INNER RH	$108.47	1
59	6180679	PANEL ASSY-CANTRAIL INNER LH	6180679 PANEL ASSY-CANTRAIL INNER LH	$142.94	1
60	6180680	PANEL SILL OUTER RH	6180680 PANEL SILL OUTER RH	$1,464.51	1
60	6180681	PANEL SILL OUTER LH	6180681 PANEL SILL OUTER LH	$1,464.51	1
61	6180682	ASSY PANEL CLOSING SILL FRONT RH	6180682 ASSY PANEL CLOSING SILL FRONT RH	$16.49	1
61	6180683	ASSY PANEL CLOSING SILL FRONT LH	6180683 ASSY PANEL CLOSING SILL FRONT LH	$16.49	1
76	2080708	PANEL A POST LOWER RH	2080708 PANEL A POST LOWER RH	$47.41	1
76	2080709	PANEL A POST LOWER LH	2080709 PANEL A POST LOWER LH	$44.49	1
78	6180711	EXTN SILL FRONT RH	6180711 EXTN SILL FRONT RH	$8.75	1
78	6180712	EXTN SILL FRONT LH	6180712 EXTN SILL FRONT LH	$8.75	1
79	6180713	Panel, rear w/a outer front extn - RH	6180713 Panel, rear w/a outer front extn - RH	$53.78	1
79	6180714	Panel, rear w/a outer front extn - LH	6180714 Panel, rear w/a outer front extn - LH	$6.62	1
80	2080715	Closing gussett, inner A post - RH	2080715 Closing gussett, inner A post - RH	-	1	Enquire
80	2080716	Closing gussett, inner A post - LH	2080716 Closing gussett, inner A post - LH	-	1	Enquire
81	2080717	GUSSET INNER `A'POST RH	2080717 GUSSET INNER `A'POST RH	$55.38	1
81	2080718	GUSSET INNER `A'POST LH	2080718 GUSSET INNER `A'POST LH	$55.38	1
82	2080719	Panel assy, B post inner lower - RH	2080719 Panel assy, B post inner lower - RH	-	1	Enquire
82	2080720	Panel assy, B post inner lower - LH	2080720 Panel assy, B post inner lower - LH	-	1	Enquire
83	2080721	Panel A post inner - RH	2080721 Panel A post inner - RH	-	1	Enquire
83	2080722	Panel A post inner - LH	2080722 Panel A post inner - LH	-	1	Enquire
84	2080723	Panel, rear quarter inner - RH	2080723 Panel, rear quarter inner - RH	-	1	Enquire
84	2080724	Panel, rear quarter inner - LH	2080724 Panel, rear quarter inner - LH	-	1	Enquire
85	2080725	Panel, tonneau waistrail - RH	2080725 Panel, tonneau waistrail - RH	-	1	Enquire
85	2080726	Panel, tonneau waistrail - LH	2080726 Panel, tonneau waistrail - LH	-	1	Enquire
86	2080727	Valance reinforcement, upper - RH	2080727 Valance reinforcement, upper - RH	-	1	Enquire
86	2080728	Valance reinforcement, upper - LH	2080728 Valance reinforcement, upper - LH	-	1	Enquire
90	2280734	ASSY REINF REAR PARCEL SHELF-RH	2280734 ASSY REINF REAR PARCEL SHELF-RH	$86.03	1
90	2280735	ASSY REINF REAR PARCEL SHELF-LH	2280735 ASSY REINF REAR PARCEL SHELF-LH	$86.03	1
91	6580376	Door hinge assy, lower - RH	6580376 Door hinge assy, lower - RH	-	1	Enquire
91	6580377	Door hinge assy, lower - RH	6580377 Door hinge assy, lower - RH	-	1	Enquire
92	6580378	Door hinge assy, upper - RH	6580378 Door hinge assy, upper - RH	-	1	Enquire
92	6580379	Door hinge assy, upper - LH	6580379 Door hinge assy, upper - LH	-	1	Enquire
93	21110002AA	PNL SQUAB EXT RH	21110002AA PNL SQUAB EXT RH	$32.58	1
93	21110003AA	PNL SQUAB EXT LH	21110003AA PNL SQUAB EXT LH	$32.58	1
109	2280755	REINF BRKT BUMPER MTG REAR RH	2280755 REINF BRKT BUMPER MTG REAR RH	$19.36	1
109	2280756	REINF BRKT BUMPER MTG REAR LH	2280756 REINF BRKT BUMPER MTG REAR LH	$19.36	1
110	2280757	EXTN BOOT FLOOR RH	2280757 EXTN BOOT FLOOR RH	$87.16	1
110	2280758	EXTN BOOT FLOOR LH	2280758 EXTN BOOT FLOOR LH	$75.78	1
111	2280759	Baffle, A post lower - RH	2280759 Baffle, A post lower - RH	-	1	Enquire
111	2280760	Baffle, A post lower - LH	2280760 Baffle, A post lower - LH	-	1	Enquire
120	2282945	Assembly panel, tonneau - RH	2282945 Assembly panel, tonneau - RH Comprises items 62, 63, 64, 65, 68, 69	-	1	Enquire
120	2282946	Assembly panel, tonneau - LH	2282946 Assembly panel, tonneau - LH 70, 71, 72, 73, 74, 75, 96, 97	-	1	Enquire
123	2282949	ASSY REAR LONGIT EXTN RH	2282949 ASSY REAR LONGIT EXTN RH Comprises items 9, 10, 11	$210.85	1
123	2282950	ASSY REAR LONGIT EXTN LH	2282950 ASSY REAR LONGIT EXTN LH Comprises items 9, 10, 11	$244.78	1
124	2282951	ASSY BR RR PARCEL SHELF/TONNEAU RH	2282951 ASSY BR RR PARCEL SHELF/TONNEAU RH Comprises items 87, 88	$135.29	1
124	2282952	ASSY BR RR PARCEL SHELF/TONNEAU LH	2282952 ASSY BR RR PARCEL SHELF/TONNEAU LH Comprises items 87, 88	$135.29	1
125	6182953	ASSY PANEL B POST INR UPR RH	6182953 ASSY PANEL B POST INR UPR RH Comprises items 66, 67	$135.71	1
125	6182954	ASSY PANEL B POST INR UPR LH	6182954 ASSY PANEL B POST INR UPR LH Comprises items 66, 67	$167.90	1
126	1982955	ASSEMBLY HEADLAMP INR RH	1982955 ASSEMBLY HEADLAMP INR RH Comprises items 21, 22, 23, 24, 25	$1,447.38	1
126	1982956	ASSEMBLY HEADLAMP INR LH	1982956 ASSEMBLY HEADLAMP INR LH Comprises items 21, 22, 23, 24, 25	$1,934.06	1
127	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH Comprises items 26, 27, 28, 29,	$1,468.88	1
127	1982958	ASSEMBLY HEADLAMP OTR LH	1982958 ASSEMBLY HEADLAMP OTR LH 30, 31	$1,468.88	1
