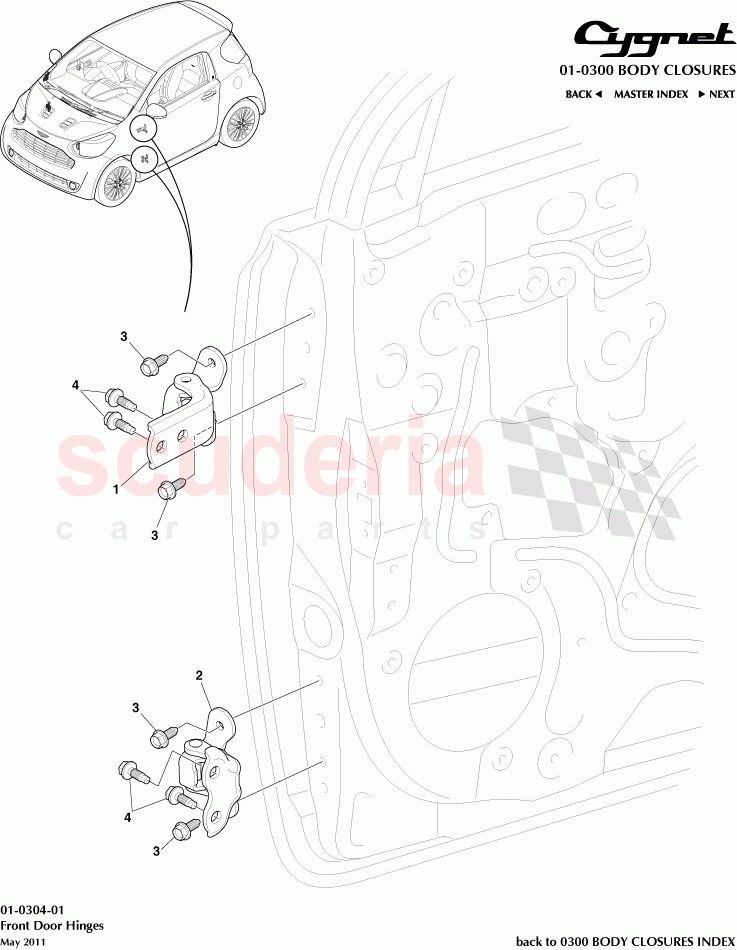

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6871012151	Hinge Assembly, Upper, RH	$43.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6873074011	Hinge Assembly, Lower, RH	$43.39	To Order

Photo	Part No	Description	Price (each)	Stock
	90105W0051	Bolt	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	9010508448	Bolt	$0.88	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	6871012151	Hinge Assembly, Upper, RH IN STOCK	6871012151 Hinge Assembly, Upper, RH IN STOCK	$43.01	1
-	6874074011	HINGE ASSY IN STOCK	6874074011 HINGE ASSY IN STOCK	$43.48	1
1	6871012151	Hinge Assembly, Upper, RH IN STOCK	6871012151 Hinge Assembly, Upper, RH IN STOCK	$43.01	1
2	6873074011	Hinge Assembly, Lower, RH	6873074011 Hinge Assembly, Lower, RH	$43.39	1
3	90105W0051	Bolt	90105W0051 Bolt	$1.19	8
4	9010508448	Bolt	9010508448 Bolt	$0.88	8
