Find Your Part

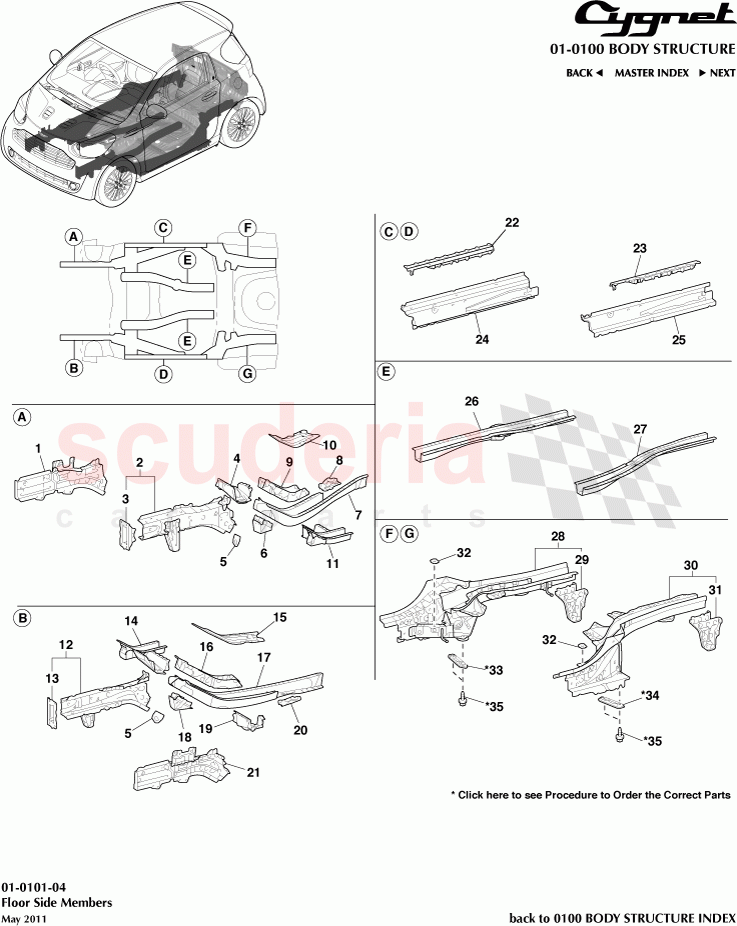

# Part Qty on
Diagram
Price
(each)
Buy
- 58035-74010 - Brace, Rear Floor Panel RH
*From 07/2010
1 Enquire
- 58036-74010 - Brace, Rear Floor Panel LH
*From 07/2010
1 Enquire
1 57025-74010 - Member Sub-Assy, Front Side, Outer RH 1 $82.46
2 57016-74010 - Reinforcement Sub-Assy, front Side Member RH 1 $234.30
3 57119-74010 - Plate Sub-Assy, Front Side Member, Front RH 1 $32.84
4 57197-74010 - Box, Torque, Front RH 1 Enquire
5 51963-52050 - Hook, Transport 2 Enquire
6 57107-74010 - Bracket Sub-Assy, Strut Bar RH 1 Enquire
7 57191-74010 - Member, Front Side, Inner Rear RH 1 Enquire
8 57433-74010 - Bracket, Front Side Member RH 1 Enquire
9 57245-74010 - Reinforcement, Front Side Member, No.9 RH 1 Enquire
10 57145-74010 - Reinforcement, Front Side Member, Rear RH 1 Enquire
11 57203-74010 - Extension Sub-Assy, Front Side Member RH 1 Enquire
12 57017-74010 - Reinforcement Sub-Assy, front Side Member LH 1 $232.18
13 57129-74010 - Plate Sub-Assy, Front Side Member, Front LH 1 $32.84
14 57204-74010 - Extension Sub-Assy, Front Side Member LH 1 Enquire
15 57146-74010 - Reinforcement, Front Side Member, Rear LH 1 Enquire
16 57246-74010 - Reinforcement, Front Side Member, No.9 LH 1 Enquire
17 57192-74010 - Member, Front Side, Inner Rear LH 1 Enquire
18 57108-74010 - Bracket Sub-Assy, Strut Bar LH 1 Enquire
19 57198-74010 - Box, Torque, Front LH 1 $37.13
20 57434-74010 - Bracket, Front Side Member LH 1 Enquire
21 57026-74010 - Member Sub-Assy, Front Side, Outer LH 1 $82.46
22 57421-74010 - Plate Floor Side Rail RH 1 Enquire
23 57422-74010 - Plate Floor Side Rail LH 1 Enquire
24 57411-74010 - Member, Floor Side, Inner RH 1 Enquire
25 57412-74010 - Member, Floor Side, Inner LH 1 Enquire
26 58102-74010 - Reinforcement, Front Floor RH 1 Enquire
27 58103-74010 - Reinforcement, Front Floor LH 1 Enquire
28 57601-74010 - Member Sub-Assy, Rear Floor Side RH 1 Enquire
31 51095-74010 - Hook Sub-Assy, Transport, Rear RH 1 Enquire
30 57602-74010 - Member Sub-Assy, Rear Floor Side LH 1 Enquire
32 57495-74010 - Patch, Upper Rear Floor 2 $3.12
33 58251-74010 - Brace, Rear Floor Panel RH
*To 07/2010
1 $33.27
34 58252-74010 - Brace, Rear Floor Panel LH
*To 07/2010
1 $33.27
35 90119-08C64 - Bolt, W/Washer
*2 per side
4 $1.08
