Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy

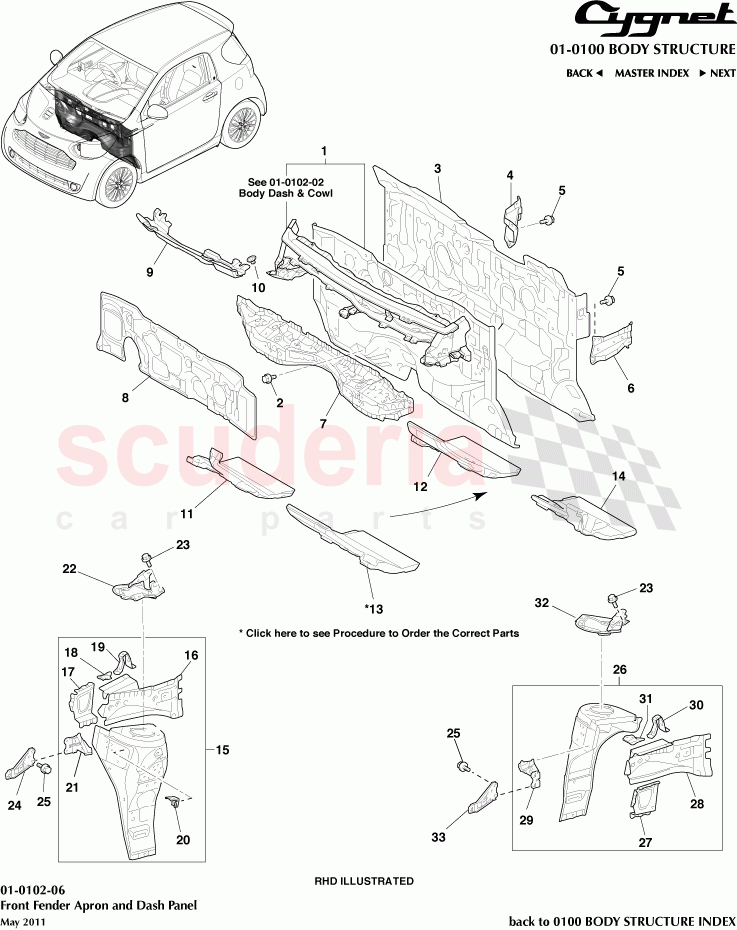

- 55101-74040 - Panel Sub-Assy, Dash, RHD, AUTO 1 Enquire
- 55101-74011 - Panel Sub-Assy, Dash, LHD, MAN 1 Enquire
- 55101-74020 - Panel Sub-Assy, Dash, LHD, AUTO 1 Enquire
- 55210-74012-B0 - Insulator Assy, Dash Panel, LHD 1 Enquire
- 55223-74020 - Insulator, Dash Panel, Outer, LHD 1 Enquire
- 55787-74010 - Insulator, Cowl Top Panel, No.1, LHD 1 Enquire
- 55214-74032 - Pad, Dash Panel Insulator, No.2, RHD, MAN
*From 03/2011
1 Enquire
- 55214-74021 - Pad, Dash Panel Insulator, No.2, RHD, AUTO
*To 03/2011
1 Enquire
- 55214-74022 - Pad, Dash Panel Insulator, No.2, RHD, AUTO
*From 03/2011
1 Enquire
1 55101-74030 - Panel Sub-Assy, Dash, RHD, MAN 1 Enquire
2 91671-A0816 - Bolt, Flange, CVFC $1.00
3 55210-74020-B0 - Insulator Assy, Dash Panel, RHD 1 Enquire
4 55137-74011 - Brace, Dash to Frame RH 1 Enquire
5 91515-80818 - Bolt, Flange 10 $1.00
6 55138-74010 - Brace, Dash to Frame LH 1 Enquire
7 57103-74011 - Cross Member, Front 1 Enquire
8 55223-74010 - Insulator, Dash Panel, Outer, RHD 1 Enquire
9 55787-74020 - Insulator, Cowl Top Panel, No.1, RHD 1 Enquire
10 90467-06188 - Clip Enquire
11 55215-74020 - Pad, Dash Panel Insulator, No.3, RHD 1 Enquire
12 55214-74012 - Pad, Dash Panel Insulator, No.2, LHD 1 Enquire
13 55214-74031 - Pad, Dash Panel Insulator, No.2, RHD, MAN
*To 03/2011
1 Enquire
14 55215-74010 - Pad, Dash Panel Insulator, No.3, LHD 1 Enquire
15 53701-74010 - Apron Sub-Assy, Front Fender RH 1 Enquire
16 57155-74010 - Reinforcement, Front Side Member, No.3 RH 1 Enquire
17 53737-74010 - Plate, Front Apron to Cowl Side Member RH 1 Enquire
18 53815-74010 - Reinforcement, Front Fender Apron, Front RH 1 Enquire
19 53717-74010 - Plate, Fender Apron 1 Enquire
20 53743-74010 - Gusset, Fender Apron RH 1 Enquire
21 55168-74010 - Bracket, Front Fender Mounting RH 1 Enquire
22 53707-74010 - Extension, Front Fender RH 1 Enquire
23 91671-80816 - Bolt, Flange
2 per side
4 Enquire
24 53713-74010 - Extension, Front Fender Apron, Front RH 1 Enquire
25 90901-05005 - Bolt, Washer Based
2 per side
4 $2.08
26 53702-74010 - Apron Sub-Assy, Front Fender LH 1 Enquire
27 53738-74010 - Plate, Front Apron to Cowl Side Member LH 1 Enquire
28 57156-74010 - Reinforcement, Front Side Member, No.3 LH 1 Enquire
29 55169-74010 - Bracket, Front Fender Mounting LH 1 Enquire
30 53718-74010 - Plate, Fender Apron LH 1 Enquire
31 53816-74010 - Reinforcement, Front Fender Apron, Front LH 1 Enquire
32 53708-74010 - Extension, Front Fender LH 1 Enquire
33 53714-74010 - Extension, Front Fender Apron, Front LH 1 $14.33
